Reolink RP-N64 4K 64-Channel Smart NVR

  • 4X 20TB HDD Capacity
  • 64 Channels
  • On-Device AI Video Search
  • Disk Group Mode
  • Video File Encryption
  • 8X Alarm In / 4X Alarm Out
  • Intelligent H.265+
  • Heat Mapping Technology
$750.00
$750.00
Tax included. Shipping calculated at checkout.
Availability: Out of stock
SKU: RP-N64-NHD
Reolink Store SingaporeReolink Home Hub Pro: Wireless Security Center
Reolink Home Hub Pro: Wireless Security Center with Encrypted Local Storage and Multi-Device Management, Built-in 2TB HDD - Reolinkstore
Reolink RP-N64 4K 64-Channel Smart NVR
$750.00
$750.00

Powerful Storage. Smarter Recording.

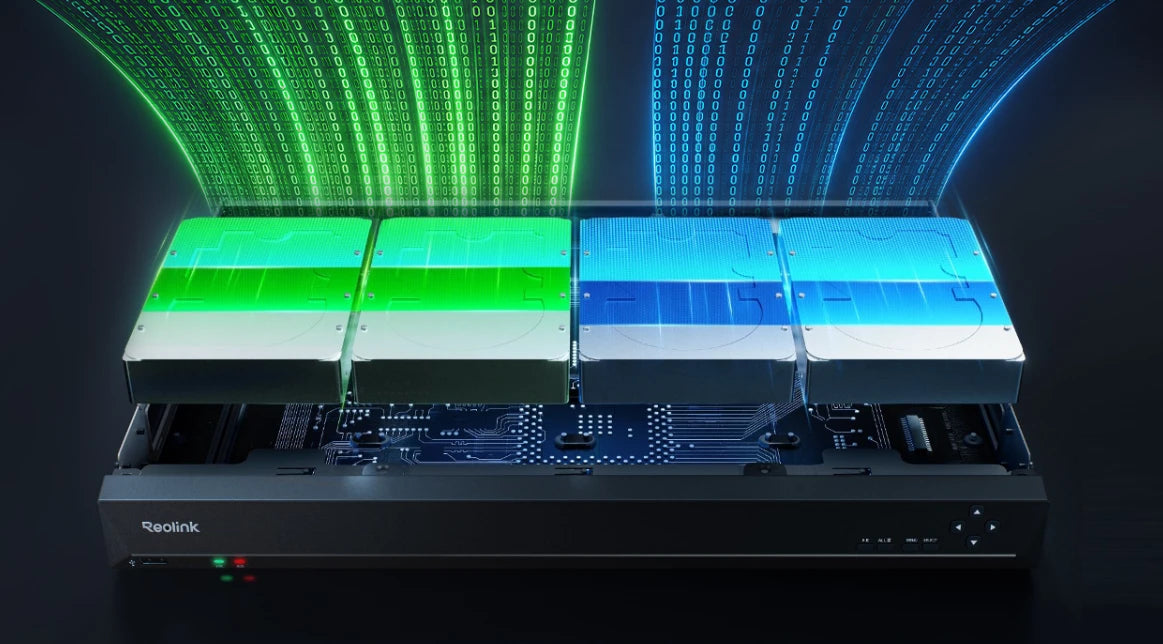

Massive Capacity

  • Supports up to 4 internal HDDs, with up to 20TB per HDD.
    Note: RP-N64 does not include pre-installed HDDs.

  • Connect up to 64 cameras (PoE, plug-in Wi-Fi, or battery powered Wi-Fi), with up to 4-channel playback (up to 8MP) or 1-channel playback (above 8MP)

  • 9 Gigabit Ethernet ports with 1000 Mbps bandwidth: 1 uplink + 8 downlinks

Recording Modes

Supports Standard Mode and Disk Group Mode. Disk Group Mode lets you assign important camera channels to dedicated drive groups, reserving storage for critical recordings while improving multi-channel recording efficiency and reducing write load.

Video Encoding

Supports H.264, H.265, and Intelligent H.265+. Intelligent H.265+ reduces bitrate and storage use by around 50% compared to H.265.

Unleash the Power of AI

AI Video Search

Built into the NVR, AI Video Search works even with cameras that don't support the feature. Simply enter descriptive keywords—such as "person wearing white clothes" or "yellow dog"—to quickly locate matching event recordings stored locally.

Smarter Security at a Glance

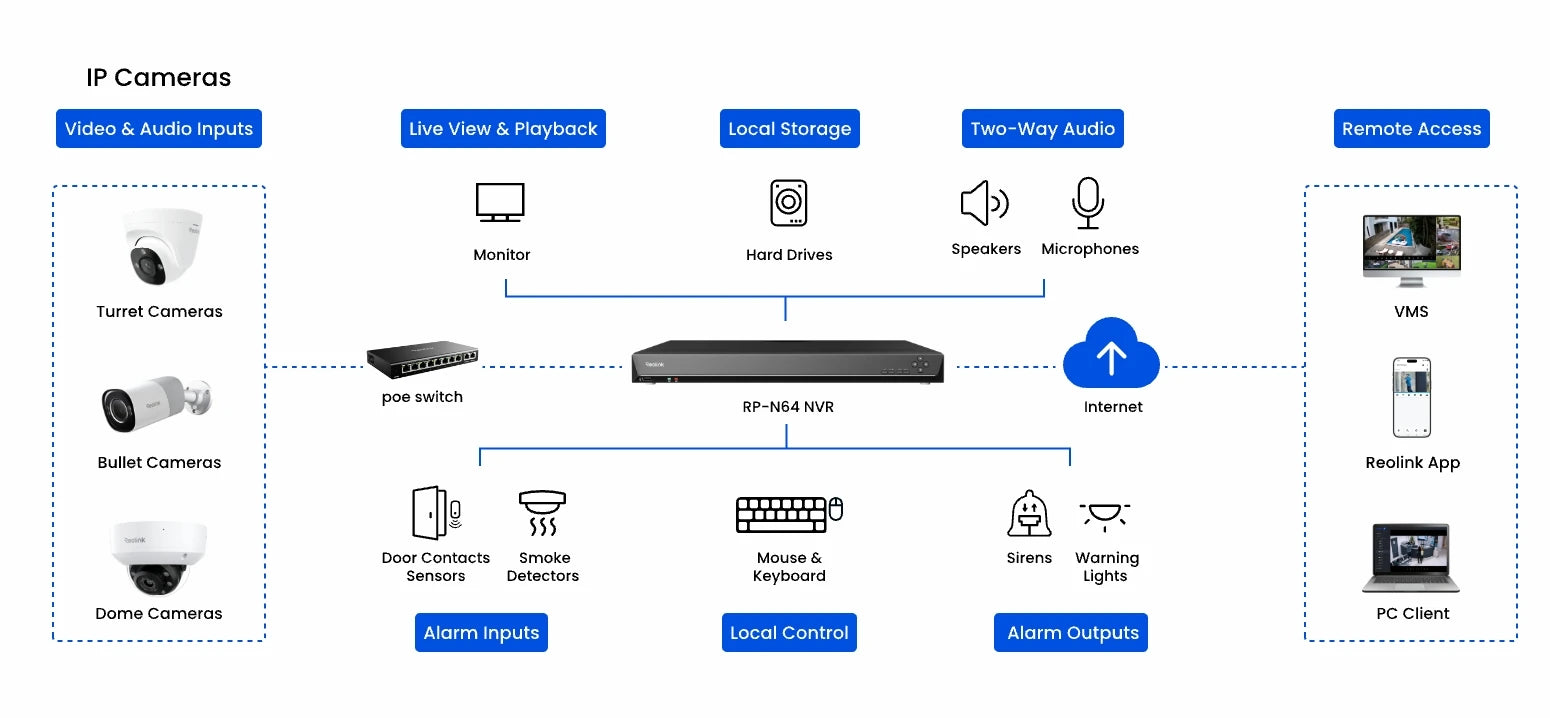

Built for Complete Security Control

Gallery

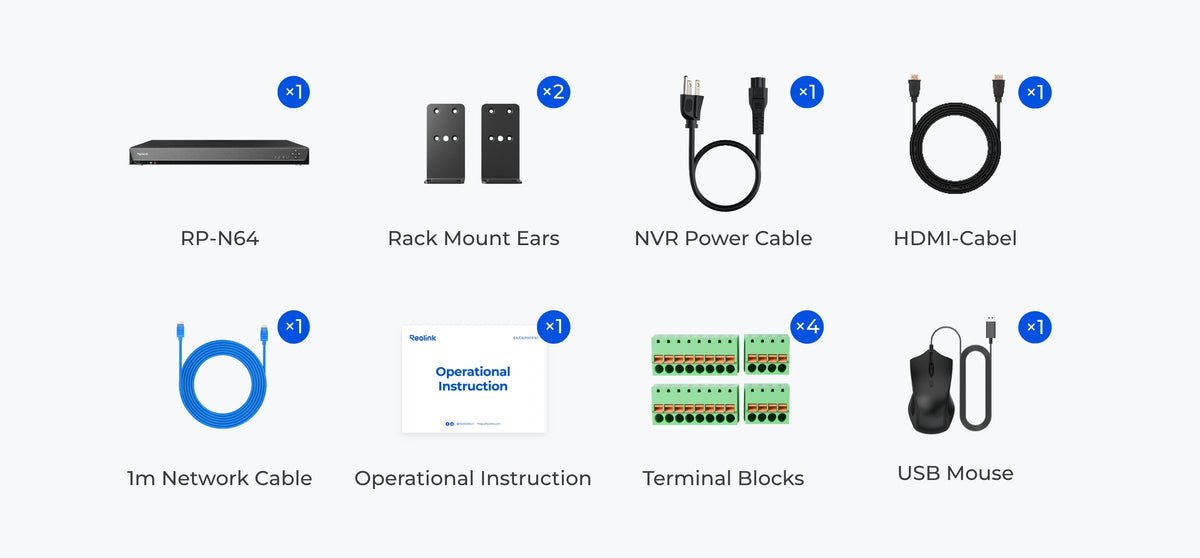

Note: Rack mount ears are compatible with 19-inch standard racks and cabinets.

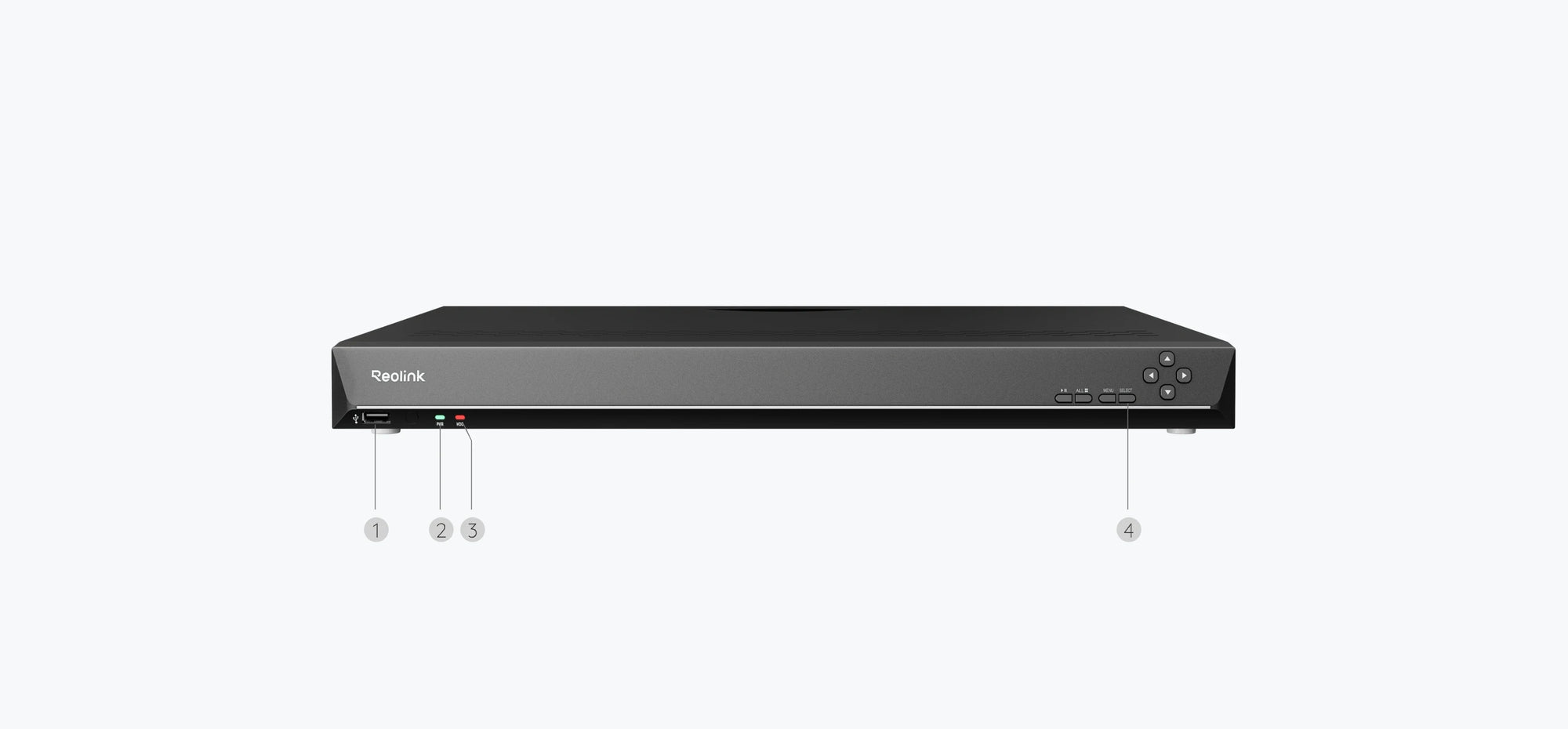

1. USB Port 2. PWR LED 3. HDD LED 4. Control Panel

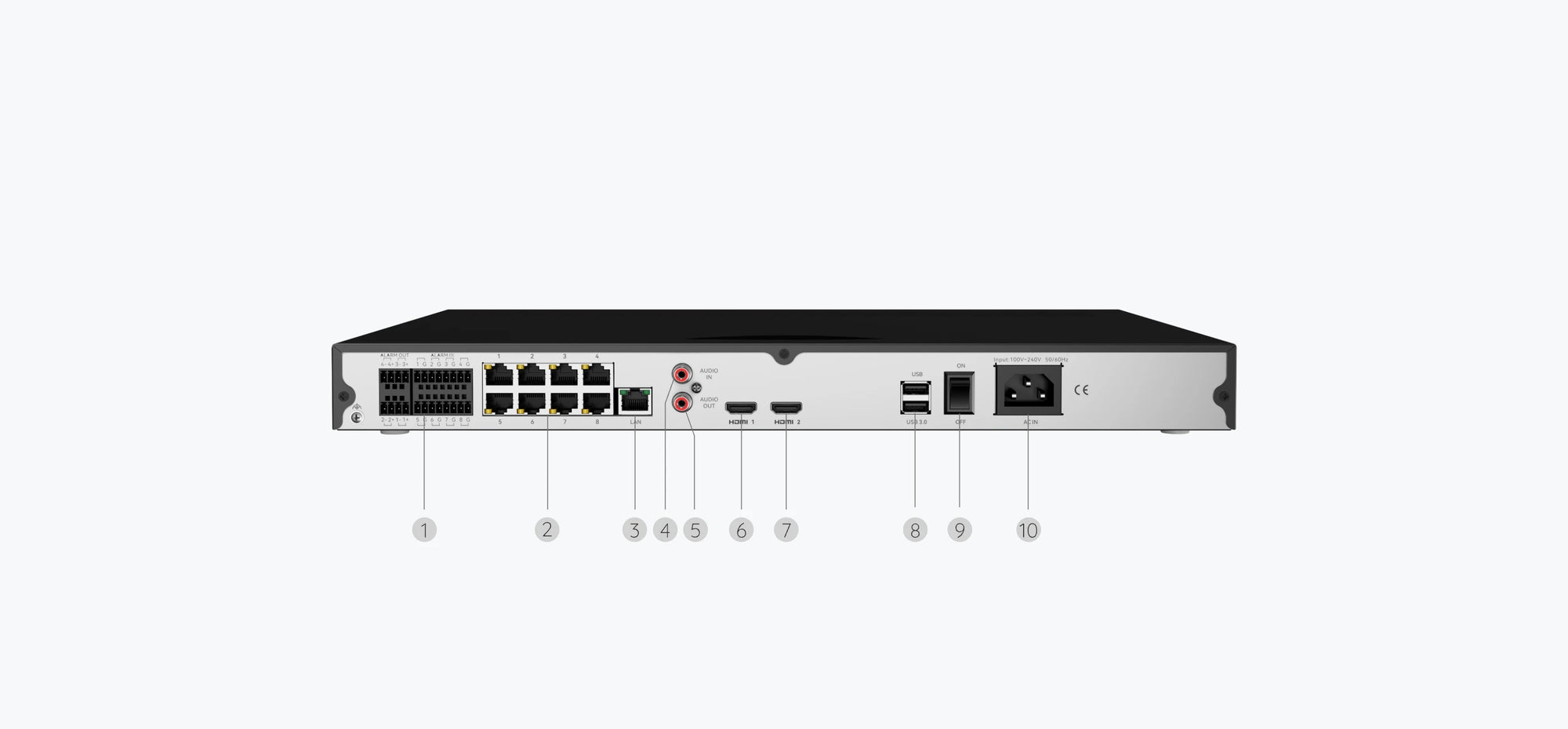

1. Alarm In/Out 2. RJ45 3. LAN Port 4. Audio In 5. Audio Out 6. HDMI 1 7. HDMI 2 8. USB/USB 3.0 9. On/Off Switch 10. Power Input

Specifications

Download as PDF File

Reolink RP-N64

Video & Audio Input

IP Video Input:
Up to 64 IP Cameras (Max.64 wired cameras)Up to 16 MP resolution

Audio Input:
1 audio in channel, RCA; Via cameras with mic

Outgoing Bandwidth:
768 Mbps

Device Compatible:
All Reolink Cameras (except for 4G Cameras)

Incoming Bandwidth:
768Mbps

Video & Audio Output

Video Output:
2 HDMI

Audio Output:
1 audio out channel, RCA

Display Resolution:
HDMI: 3840x2160, 2560x1440, 1920x1080, 1280x1024, 1280x720, 1024x768

Decoding

Video Compression:
Intelligent H.265+, H.265, H.264

Capability:
64x896x512 @20fps
8x4MP @20fps
6x5MP @20fps
4x8mp @20fps
2x12MP @20fps
2x16MP @20fps

Live View / Playback Resolution:
7680X2160, 4608X1728; 4512X2512, 4096X3072, 3840X2160, 2560X2560, 2560X1920, 2560X1440, 2048X1536, 2304X1296, 1080P, 720P

Synchronous Playback:
Up to 4-channel playback (up to 8MP) or 1-channel playback (above 8MP)

Storage

SATA:
4 SATA interface

External HDD slot:
Supports Max. 512GB microSD card

File Encryption:
YES

Record Channels:
64 channels

Capacity:
Up to 80TB (up to 20TB capacity for each HDD)

microSD Card Slot:
N/A

External Interface

USB Interface:
2 x UBS 2.0 + 1 x USB 3.0

Alarm In/Out:
In: 8 channels; Out: 4 channels

Network Interface:
8 x RJ-45, 10/100/1000 Mbps self-adaptive (for Switches)
1 x RJ-45, 10/100/1000 Mbps self-adaptive (for LAN/WAN)

PoE

Max. Power Per Port:
N/A

Supported Standard:
N/A

Network

Network Protocols:
HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP

Browsers Supported:
Edge, Firefox, Chrome, Safari

OS Supported:
PC: Windows, Mac OS; Smart phone: iOS, Android

User Access:
20 Users (1 admin account & 19 user accounts); supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

Other Features

AI Video Search:
Yes

People Counting & Zone Crowd Monitoring:
Yes (Camera Support Required)

Smart Event Detection:
Forgotten Object (Camera Support Required)
Object Removal (Camera Support Required)

Perimeter Protection:
Yes (Camera Support Required)

Heat Map:
Yes

General

Power Supply:
100-240 VAC, 50/60Hz, 1.5A

Working Environment:
Temperature: -10°C ~ + 45°C (14°F ~ 113°F);
Humidity: 10% ~ 90%

Weight:
2.88kg(without HDD)

Power Consumption:
<10W (without HDD & PoE)

Dimensions:
440*314.3*44mm

Warranty

3-year limited warranty.
