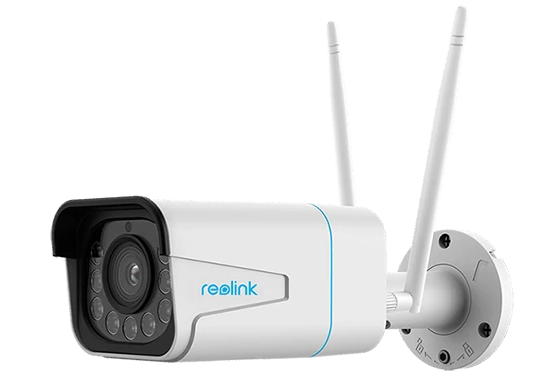

Reolink RLC-511WA: 5MP Person/Vehicle Detection Camera with Spotlight

  • Color Night Vision
  • 2.4/5 GHz WiFi
  • 5X Optical Zoom
  • Two-Way Audio
Regular price $129.00
Regular price $139.00 Sale price $129.00
Save 7%
Tax included. Shipping calculated at checkout.
Availability: Low stock
SKU: RLC-511WA
Regular price $129.00
Regular price $139.00 Sale price $129.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Detect Smartly & Deter Actively


  • Smart Person/Vehicle Detection

    With the on-camera technology of analyzing person and vehicle shapes, RLC-511WA offers accurate detections, thus greatly reducing the false alarms on trivial objects’ movements.

    * Features: Person/Vehicle Detection, Accurate Alerts, Without Subscription

  • Double Warning for the Unwelcome

    Once an intruder is detected, the camera’s spotlights and siren will be triggered or manually activated to warn off the would-be criminal. Stop the crime before it happens

    * Features: Siren, Spotlight

  • Two-Way Audio: Talk Like You’re Here

    Built-in mic & speaker allow you to listen and talk back to whoever the camera catches in real time: A “hello” to friends or a warning to foes.

    * Features: Microphone, Speaker

Marvelous Visual Experience Day & Night

Incredible 5MP Super HD

RLC-511WA provides you with a clearer visual quality & smoother live viewing experience. You can stay better informed with the hard-to-see details captured by the camera.

Dark ≠ Black and White

When daylight is out, RLC-511WA with built-in spotlights continues to record in full color. This will bring more visual details that help identify people and cars than black-and-white videos.

5 Spotlights & Up to 100ft

5X Optical Zoom for More Visibility

Its motorized varifocal lens provides a viewing angle of 27°~96°*, and its 5X optical zoom allows you to zoom in for astonishing details or zoom out for maximum coverage.

Viewing Angle*:
27° - 96°

Motorized Lens:
2.7 mm - 13.5 mm

Time Lapse: Visualize the Passing of Time

Long-term events like sun rising and flower blooming is hard yet fun to observe. RLC-511WA with time lapse makes it quicker and easier to capture the dynamic of such events, with stunning effect.

* This feature is incompatible when camera is connected to NVRs.

Easy Installation & Control

Dual-Band WiFi

RLC-511WA supports both 2.4 GHz and 5 GHz frequencies to ensure better performance for camera networking. Flexible to choose, easy to set up.

MIMO Antennas: 2T2R

Dual-Band WiFi: 2.4GHz/5GHz

Collapsible content

Wireless

Can be easily installed inside and outside your house. No messy cabling.

2.4 GHz Band & 5 GHz Band

More options available. No more sufferings from signal loss or interference.

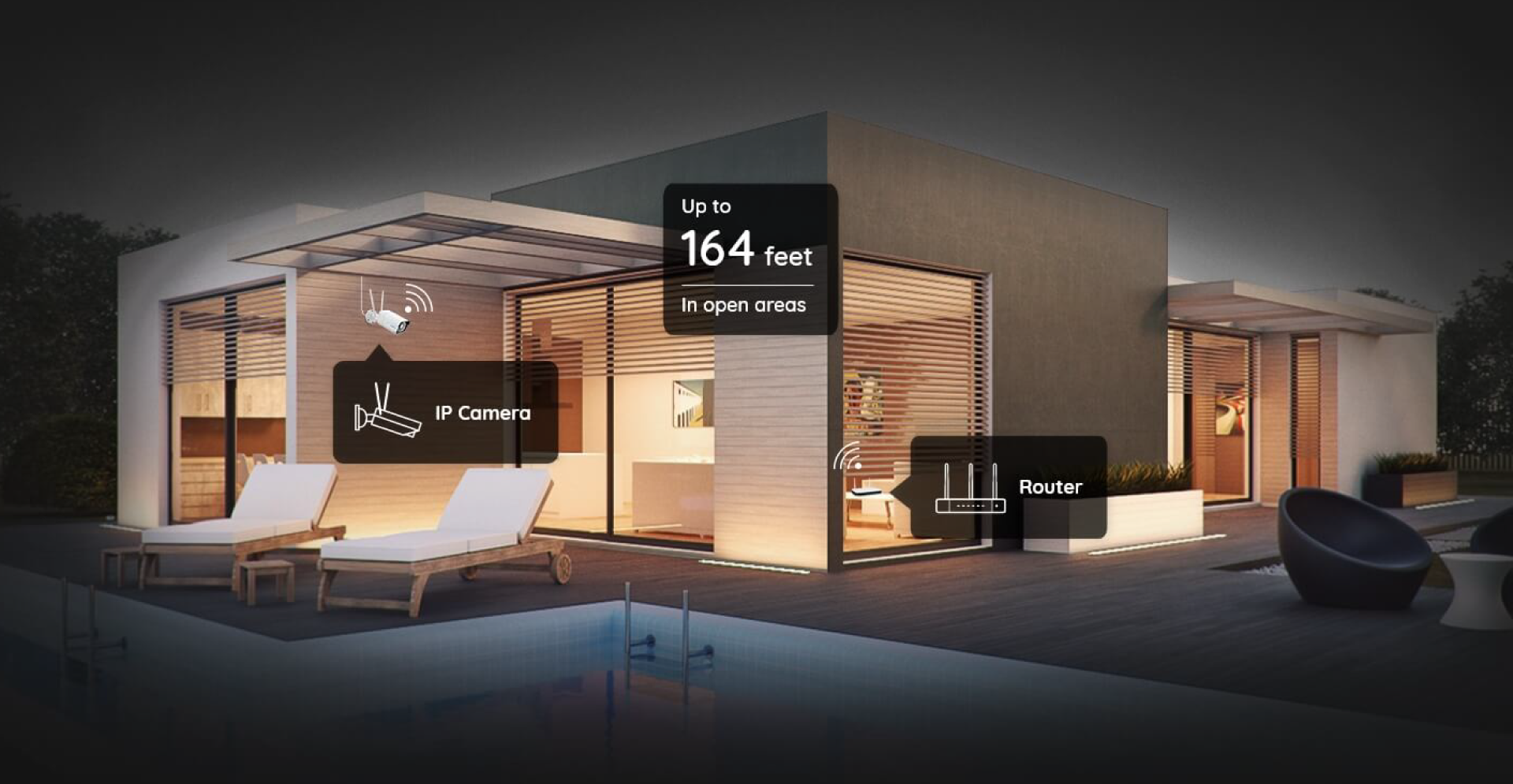

2T2R MIMO Antennas

Stronger network signals, with operating range of up to 164 feet (in open areas).

Remote Access & Control

With a few clicks on Reolink App or Client, you can stay tuned with your home or business all the time.

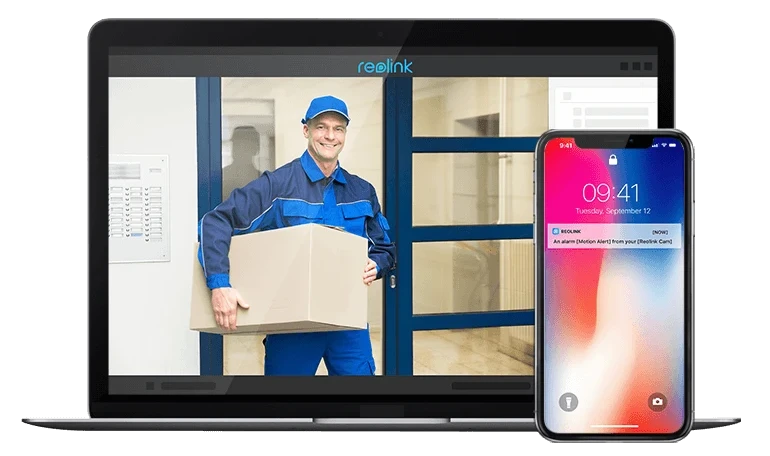

  • Real-Time Alerts

    Once it detects something suspicious, the camera will send to your device an instant push notification and an email with a detection snapshot. Know what’s happening all the time.

  • Live View from Anywhere

    Check your home situation when you’re on the journey, or see what’s up with your kids when you’re busy in the kitchen.

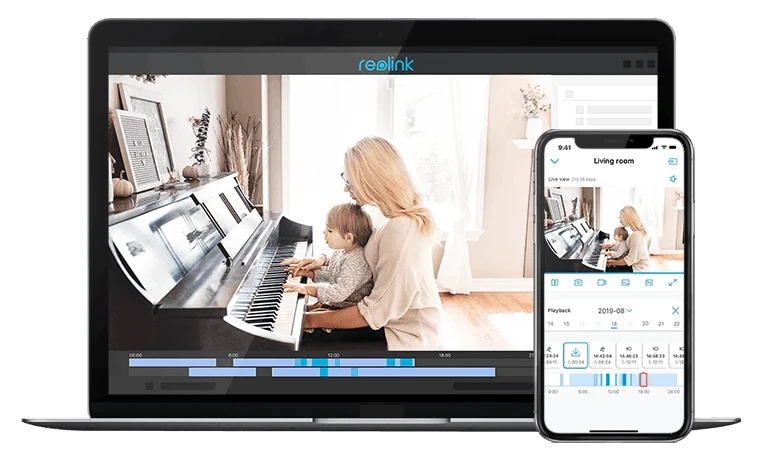

  • Easy & Smart Playback

    You can not only replay saved videos to find key information but also filter the video by detection modes and control the timeline to quickly locate what you want to see.

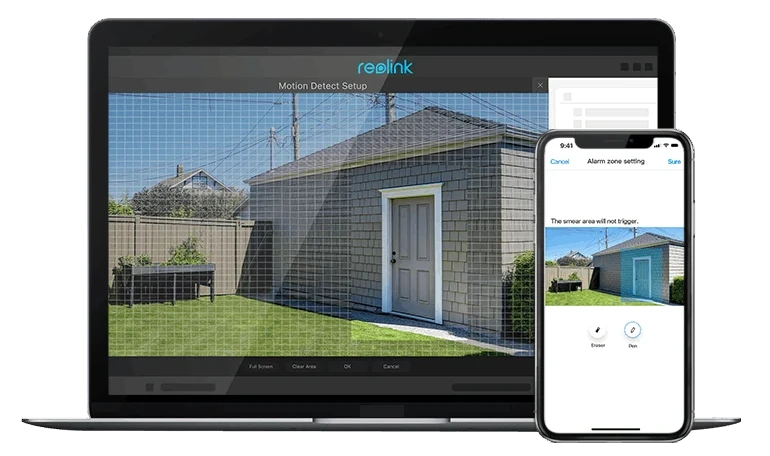

  • Motion Zone

    You can customize the motion zone to your like, deciding where objects’ movements will be detected and where they will not.

Multiple Recording Options

This smart camera supports 24/7 continuous, movement-triggered and scheduled recordings. All 3 types of video can be saved in the microSD card, Reolink NVR or FTP server. Choose a way you like and enjoy customized security.

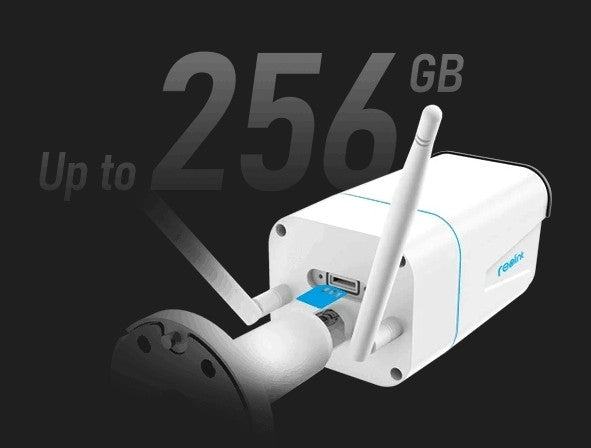

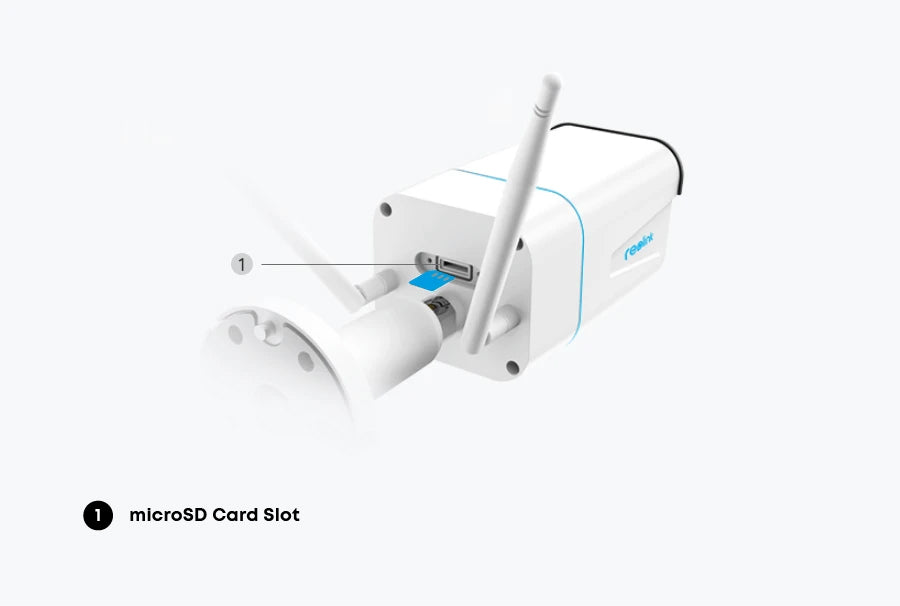

  • microSD Card

    Supports up to 256GB microSD card (not included).

    • 36.4hours - 64GB
    • 72.8hours - 128GB
    • 145.6hours - 256GB

    Figure based on the default bit rate of the cam (4096 kbps). Actual recording time depends on the settings. Results may vary.

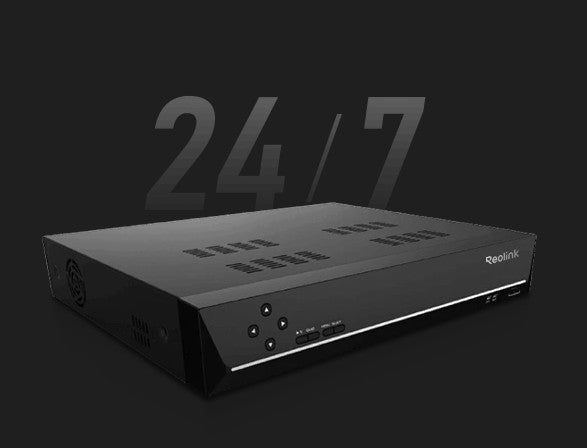

  • Reolink NVR

    If you want to save videos for much longer time or have multiple cameras to operate, connect this camera to a compatible Reolink NVR or security camera system is a better choice.

    * Reolink NVRs are recommended for best performance.

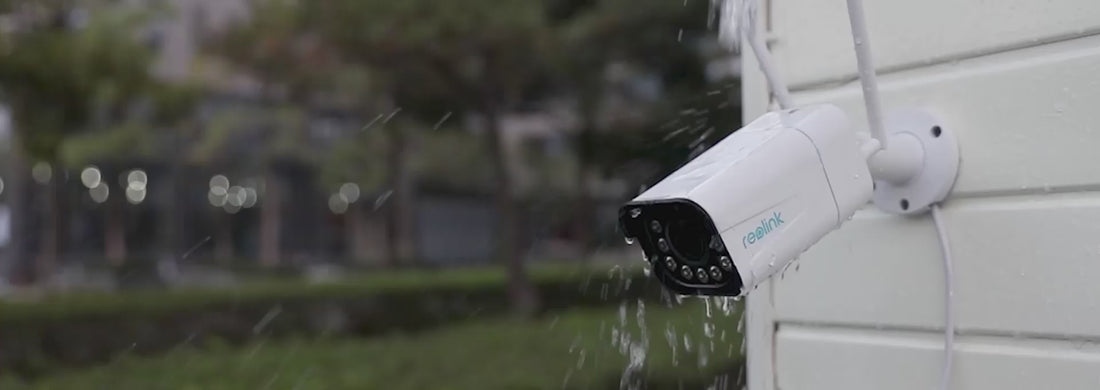

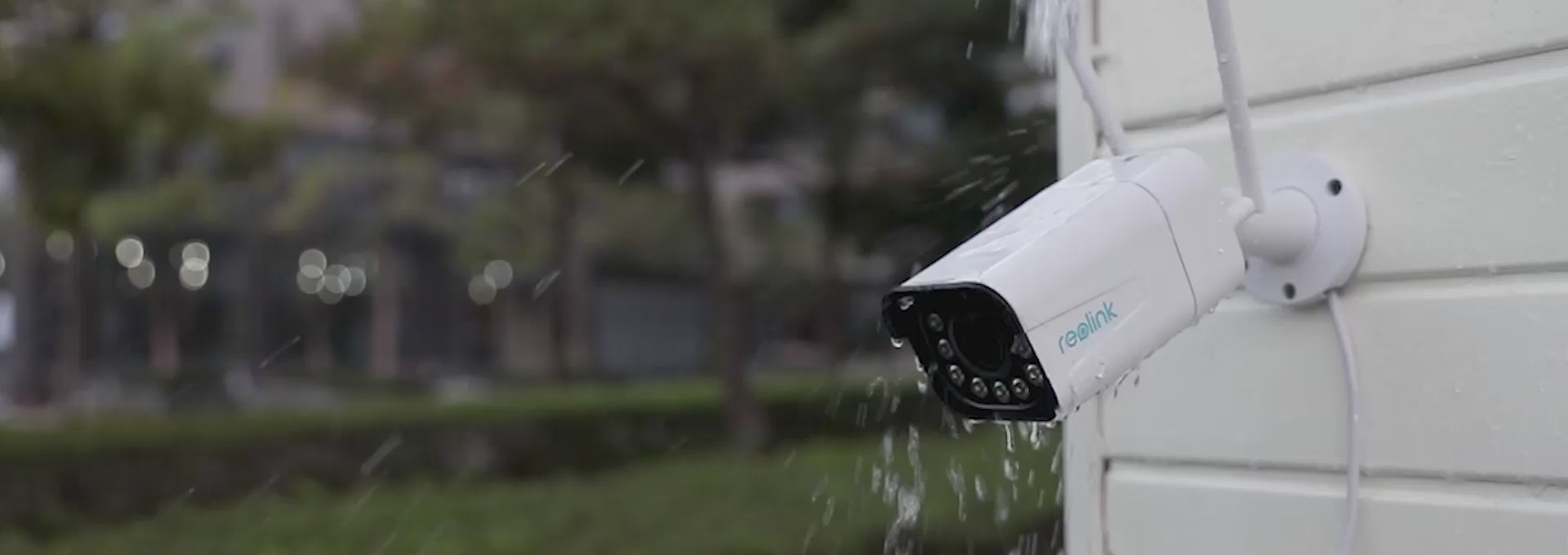

Survives the Rain, Snow and Wind

The rugged housing and body make this Reolink smart IP camera waterproof. It works perfectly both inside and outside your house, in any harsh weather conditions.

IP67 Certified Waterproof

Control Your Cameras, Hands-Free


  • Google Assistant

    As easy as saying “Hey Google, show me the backyard”, you can check what’s happening there on your Google Nest Hub or Chromecast-enabled TVs.

    * This feature is incompatible when camera is connected to NVRs.

  • Alexa

    Control it with your voice. Just ask Alexa to show the video of your camera on the Echo Spot, Echo Show or Fire TVs, and everything is done.

    * This feature is incompatible when camera is connected to NVRs.

Specifications


Download PDF File

Video & Audio

Image Sensor:
1/2.7" CMOS Sensor

Video Resolution:
Default: 2560 x 1920 (5.0 megapixels) at 20 frames/sec

Lens:
f=2.7-13.5mm F=1.6-3.3, with IR cut

Video Format:
H.264

Field of View:
• Horizontal: 27°- 96°
• Vertical: 21°- 69°

Day & Night:
IR-Cut filter with auto-switching

Infrared Night Vision:
Up to 30 meters (LED: 4pcs/28mil/850nm)

Color Night Vision:
Spotlights: 5pcs/4W/6500K/450 lumens)

Audio:
Two-way audio

DC Power:
DC 12.0V⎓1A, <12W

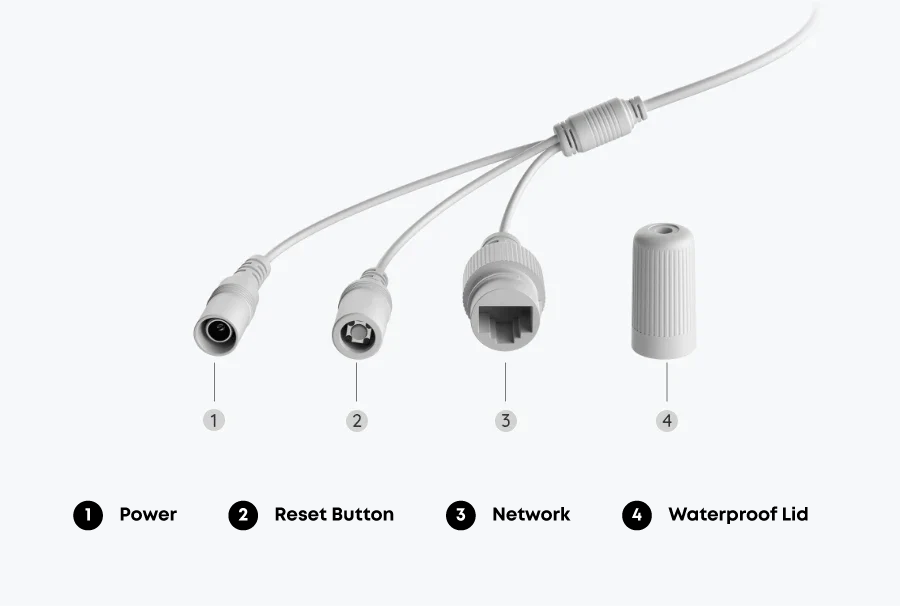

Interface

Power:
DC power port

System:
Reset button

Ethernet:
One 10M/100Mbps RJ45

Storage:
Micro SD card slot (Max. 256GB)

Audio:
Built-in microphone and speaker

Software Features

Frame Rate:
• Mainstream: 2fps - 30fps (default: 20fps)
• Substream: 4fps - 15fps (default: 10fps)

Code Rate:
• Mainstream: 1024Kbps - 8192Kbps (default: 4096Kbps)
• Substream: 64Kbps - 512Kbps (default: 256Kbps)

Browsers Supported:
IE, Edge, Chrome, Firefox, Safari

OS Supported:
PC: Windows, Mac OS; Smartphone: iOS, Android

Smart Alarm:
Motion detection/human detection/vehicle detection

Record Modes:
Motion recording (default); scheduled recording; 24/7 recording

Protocols & Standards:
HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P

Maximal User Access:
20 Users (1 admin account & 19 user accounts); Support up to 12 simultaneous video streams (10 substreams &
2 mainstreams)

Work with:
Google Assistant

WiFi

Wireless Standard:
IEEE 802.11a/b/g/n

Operating Frequency:
2.4GHz/5GHz

Wireless Security:
WPA-PSK/WPA2-PSK

Working Environment

Temperature:
Operating temperature: -10°C~+55°C (14°F~131°F)

Humidity:
Operating humidity: 10% ~ 90%

Waterproof:
IP67

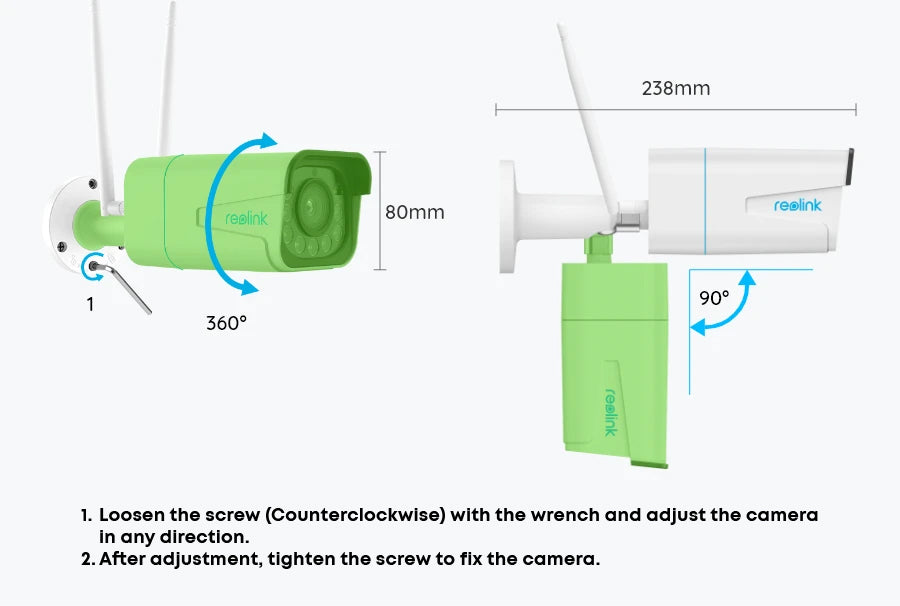

Size & Weight

Dimension:
80 x 72x 238mm

Weight:
838g

Warranty

2-year limited warranty.
