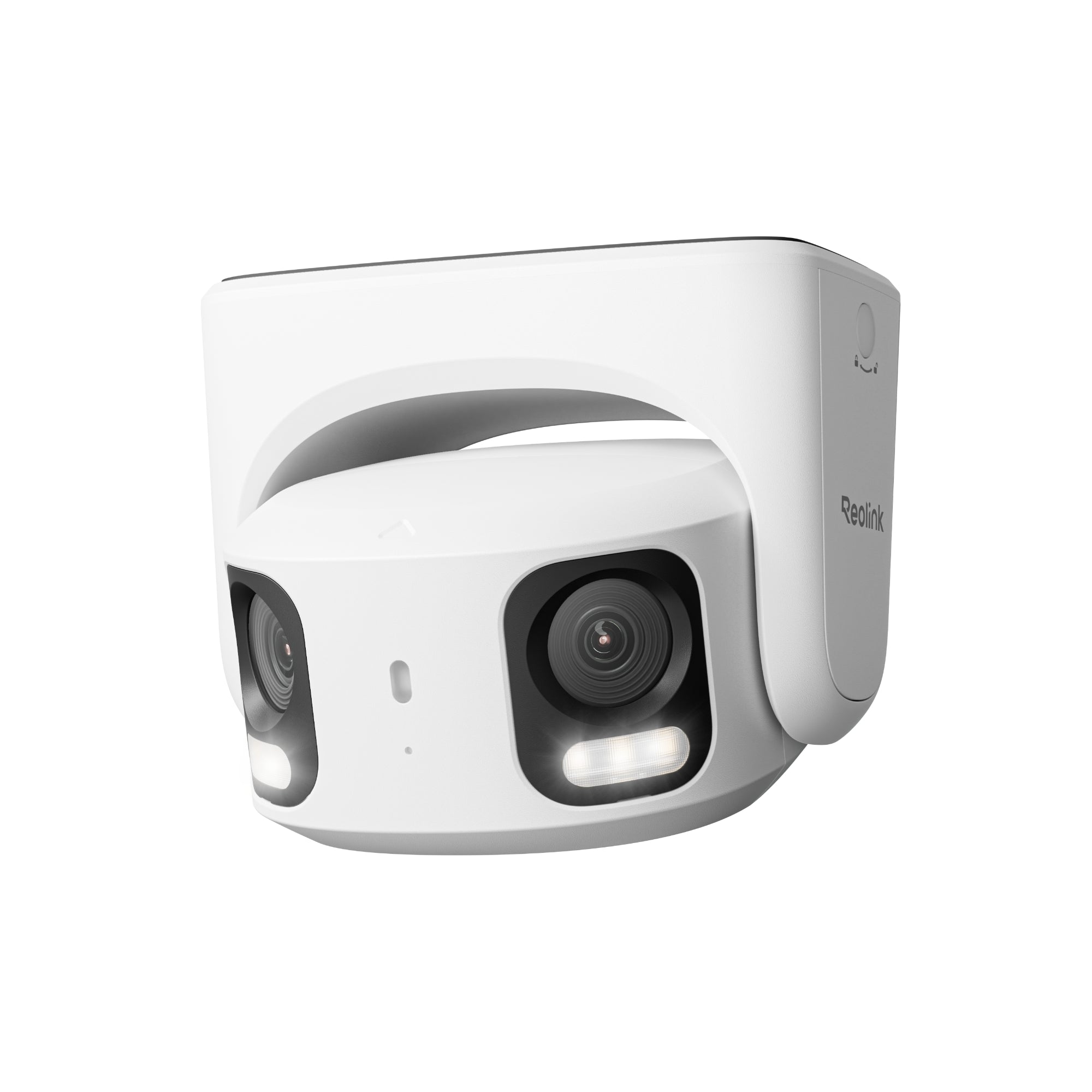

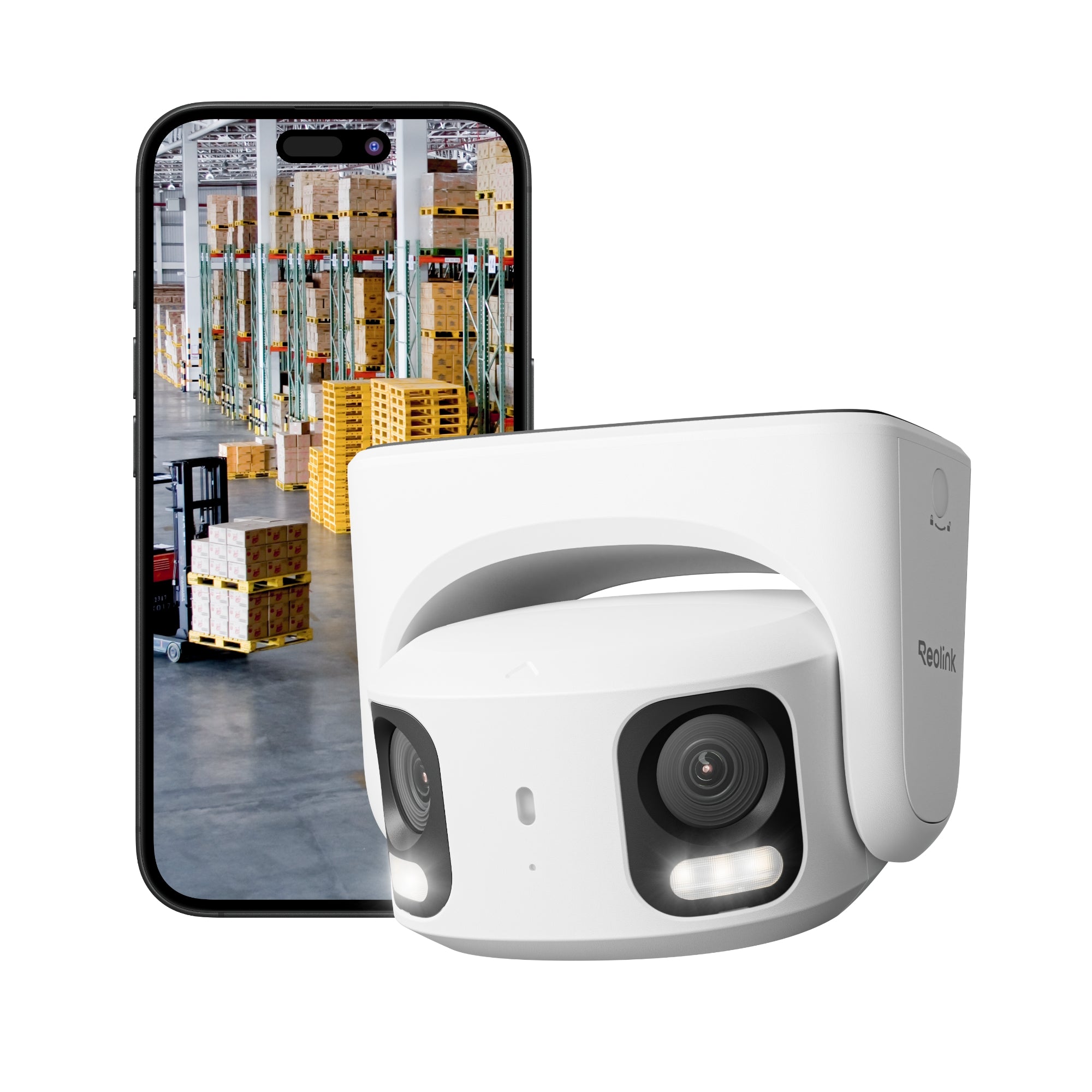

Reolink RP-PCT8MD : 8MP 4K PoE Panoramic Dual Lens Camera

4K / 8MP Ultra HD POE Camera

  • 4K Ultra HD 8MP (5120x1552) @ 30FPS
  • 180° Panorama, H: 180°, V: 60°
  • Operating Temperature: -30°C~+55°C
  • Person / Vehicle / Animal Detection
  • Perimeter Protection: Line Crossing / Zone Intrusion / Zone Loitering Alert
  • Smart Event Detection (Beta)
  • AI Video Search
  • Color & IR Night Vision
  • Multiple Recording Options
  • Supports Max: 512GB micro SD card
Regular price Enquire with us
Regular price Enquire with us Sale price Enquire with us
Tax included. Shipping calculated at checkout.
Availability: In stock
SKU: PCRPDB4K01
Regular price Enquire with us
Regular price Enquire with us Sale price Enquire with us

4K Ultra HD with 180° Dual-Lens View

Experience ultra-clear 4K resolution with a panoramic 180° dual-lens view. Enjoy distortion-free, wide-angle coverage with no blind spots. The large F1.6 aperture enhances night vision, ensuring detailed color footage even in low light.

  • 4K 8MP Ultra HD

  • Dual-Lens 180° Ultra-Wide View

  • Color Night Vision

Feature Highlight

  • Person/Vehicle/Animal Detection

  • 30m Infrared Night Vision

  • Two-Way Audio

  • 25 FPS Smoothness

  • H.264/H.265 Compression

  • 512GB microSD

  • -30°C to +55°C

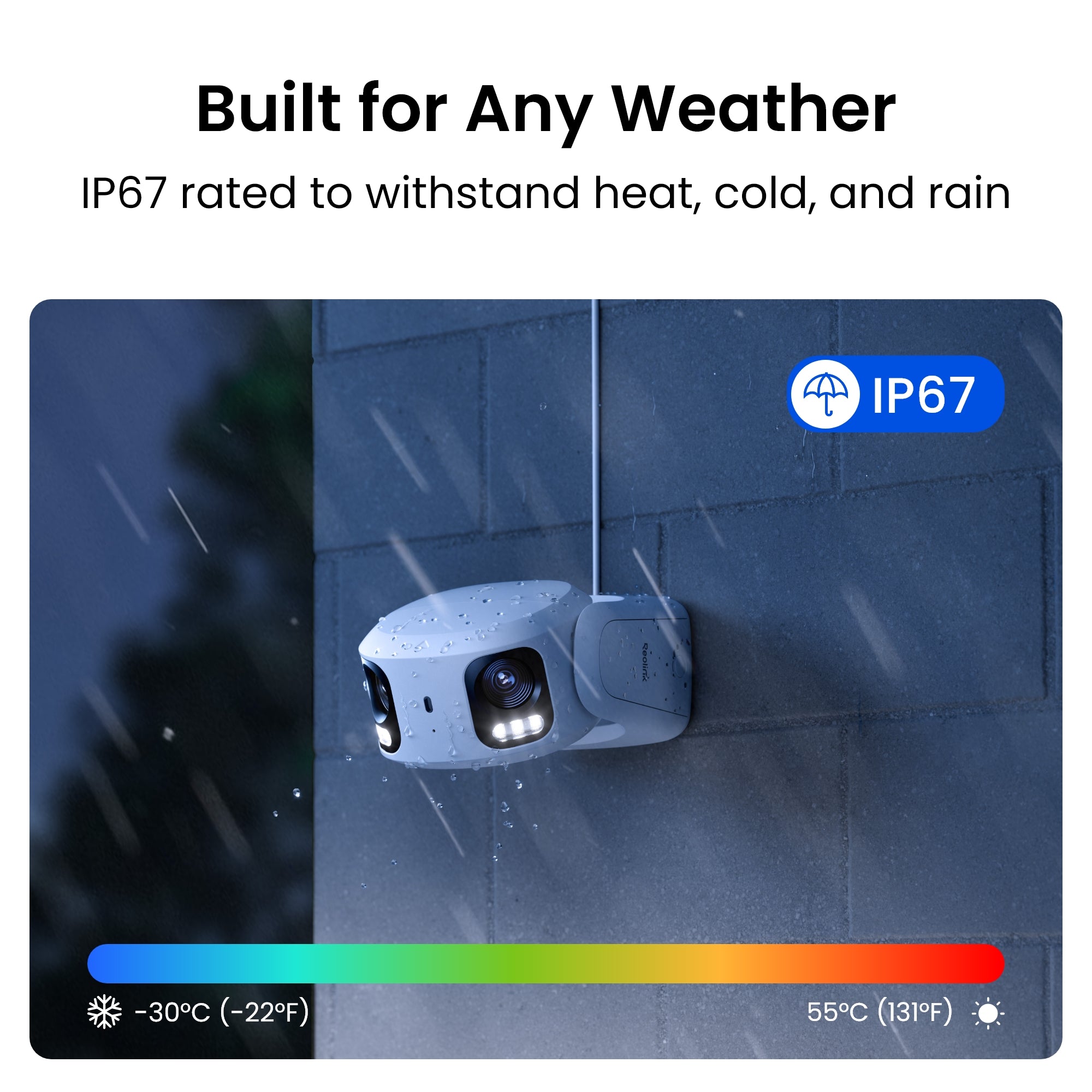

  • IP67 Waterproof

Unleash the Power of AI

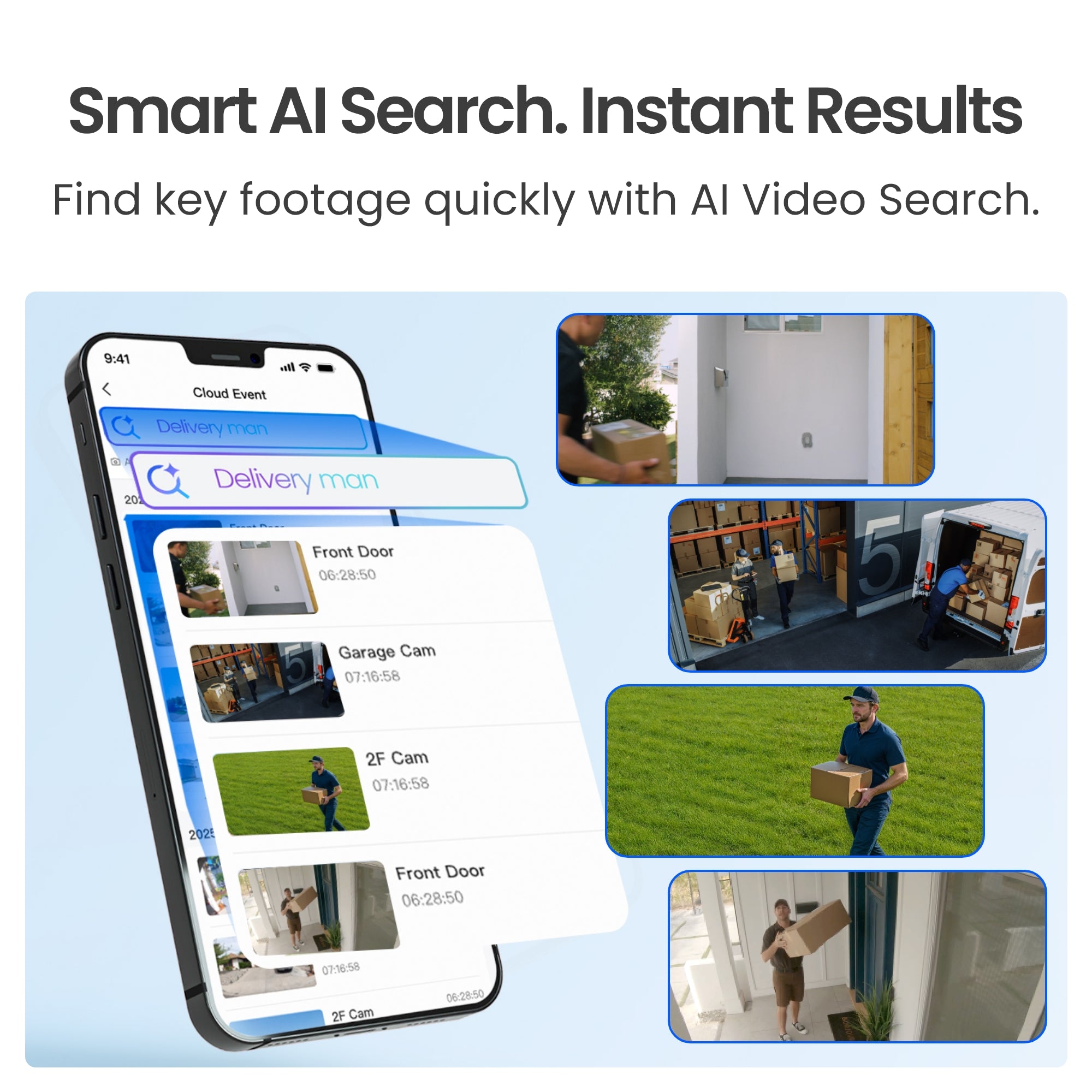

  • AI Video Search

    Input descriptive keywords (e.g. "person wearing white clothes", "yellow dog") to search specific video clips in locally saved triggered recordings. Filter out irrelevant clips and pinpoint the target alarm event in no time.

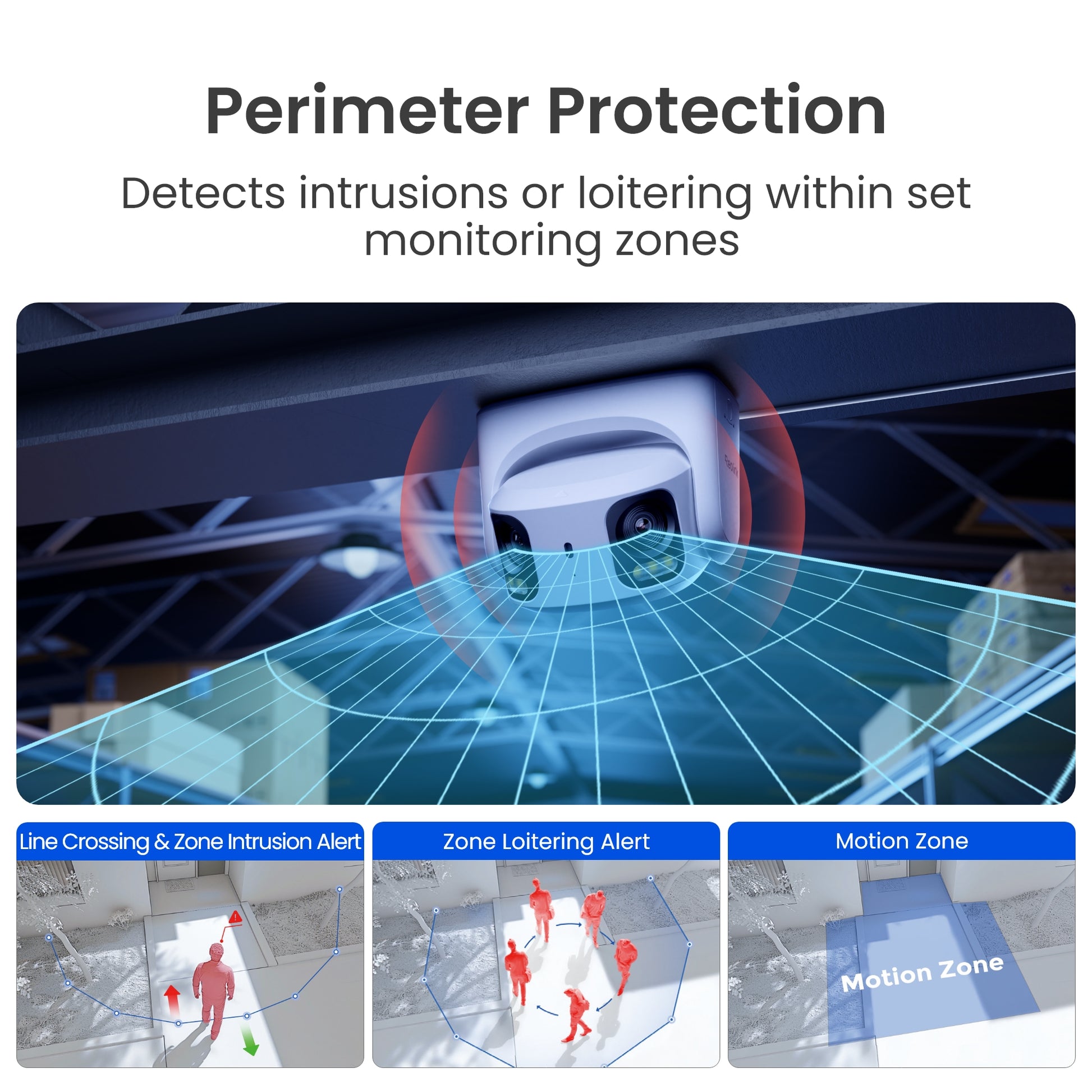

  • Perimeter Protection

    Equipped with AI-driven Line Crossing Alert, Zone Intrusion Alert, and Zone Lingering Alert, this pro-grade camera delivers precise 24/7 protection for critical areas, enabling rapid response to security threats.

  • Smart Event Detection

    Send instant alerts on object forgotten or removed from key areas, ensuring timely action and loss prevention.

Secure Storage For Every Need

Ensure trusted storage options including microSD cards, high-capacity NVRs, encrypted FTP backup solutions.

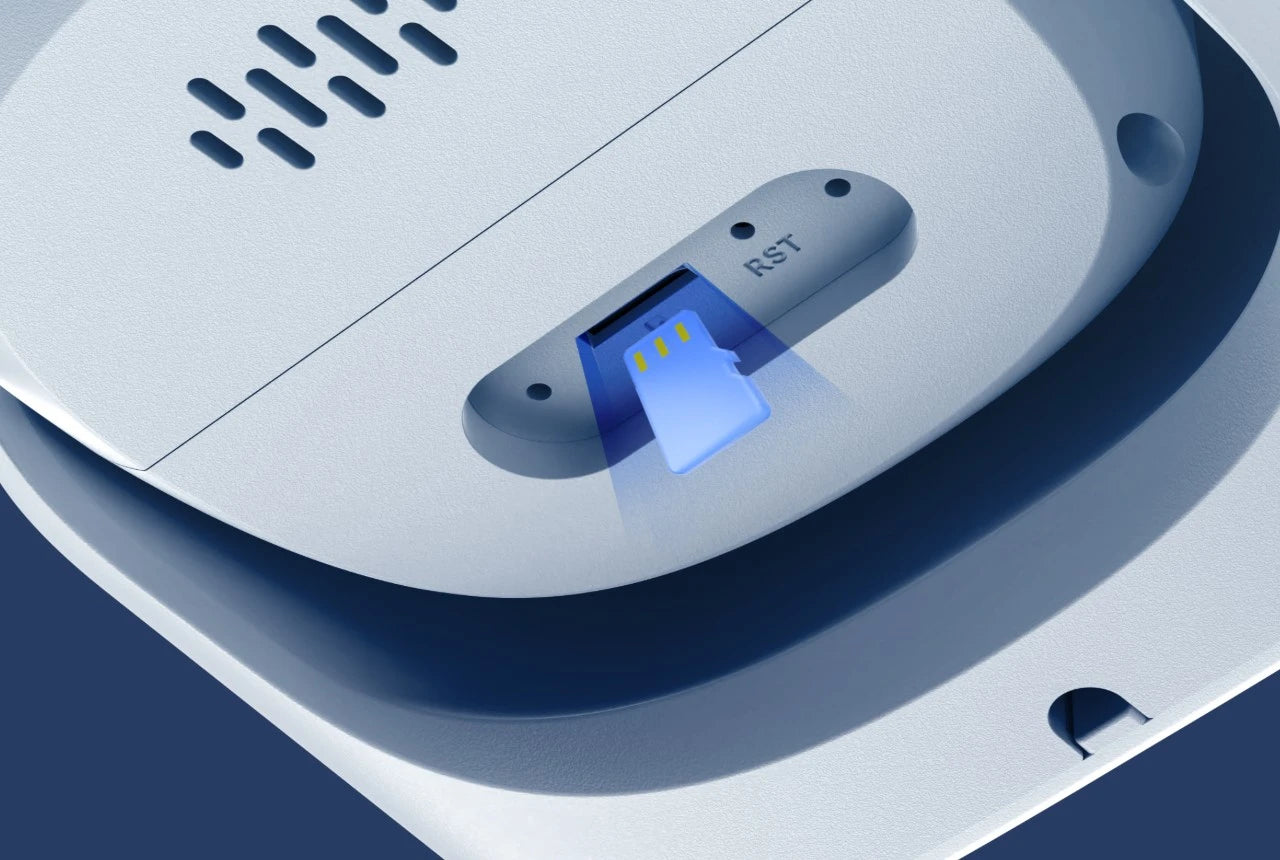

  • MicroSD Card

    Conveniently store your recordings locally on a microSD card up to 512GB.

    36.4 hours - 128GB
    72.8 hours - 256GB
    145.6 hours - 512GB

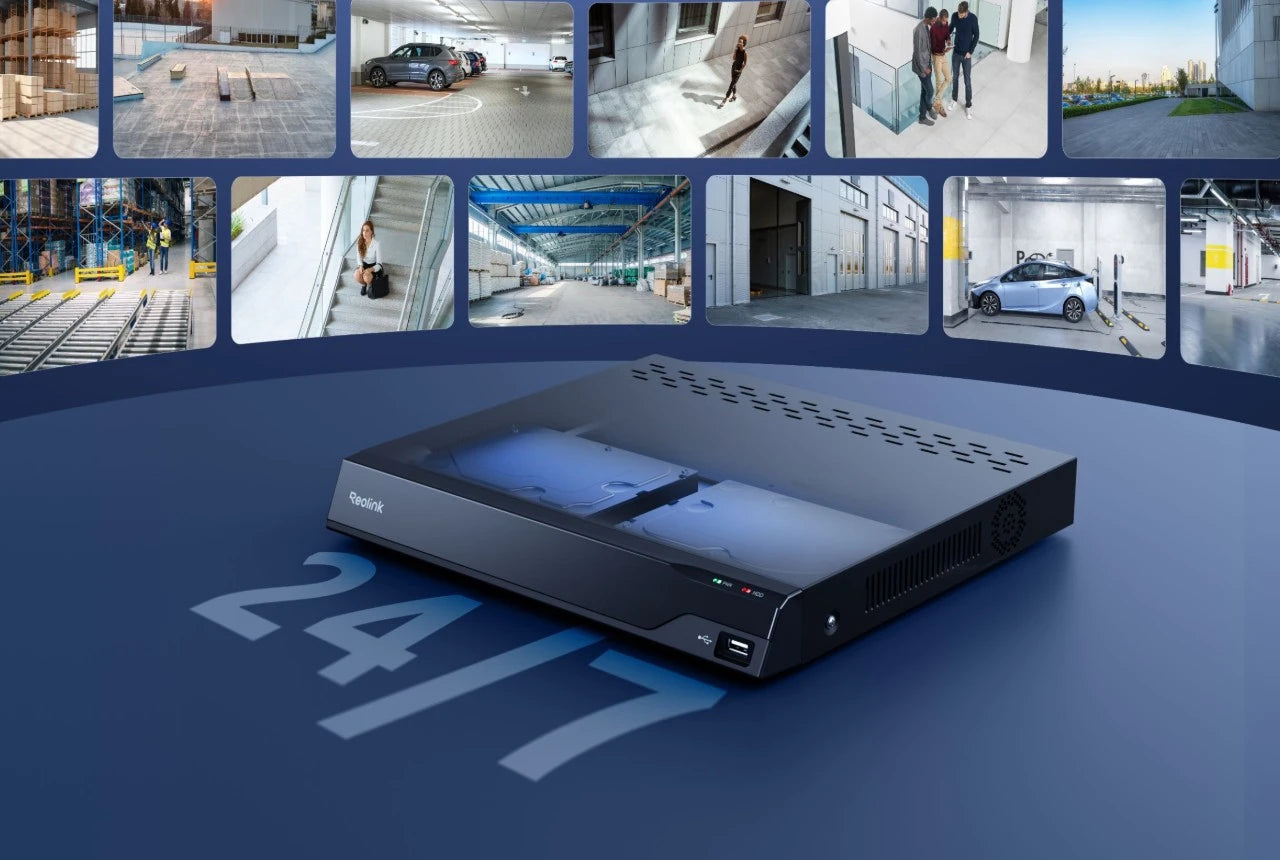

  • Reolink NVR

    Reolink NVR offers a reliable and high-capacity storage solution for small business security, enabling 24/7 continous recording across multiple channels.

Smooth VMS System


  • Remote Live Viewing

    Stay connected to your home or business with real-time remote viewing via the VMS system, whether you're in office or on the go.

  • Alarm Management

    Supports diverse detection, including Person & Object Detection, Smart Event Detection, Perimeter Protection, Device Anomaly Alarm, and Video Occlusion Alarm, with instant pop-up notifications via VMS for prompt response.

  • Device Management

    Group cameras by project or area for efficient device managment and status monitoring. Check the real-time connectivity status and battery level for uninterrupted surveillance.

  • Account Management

    Assign roles and permissions based on operational needs. With device-account linking, users only see authorized areas and devices. Once logged in, they can access linked devices across multiple platforms without repeated setup.

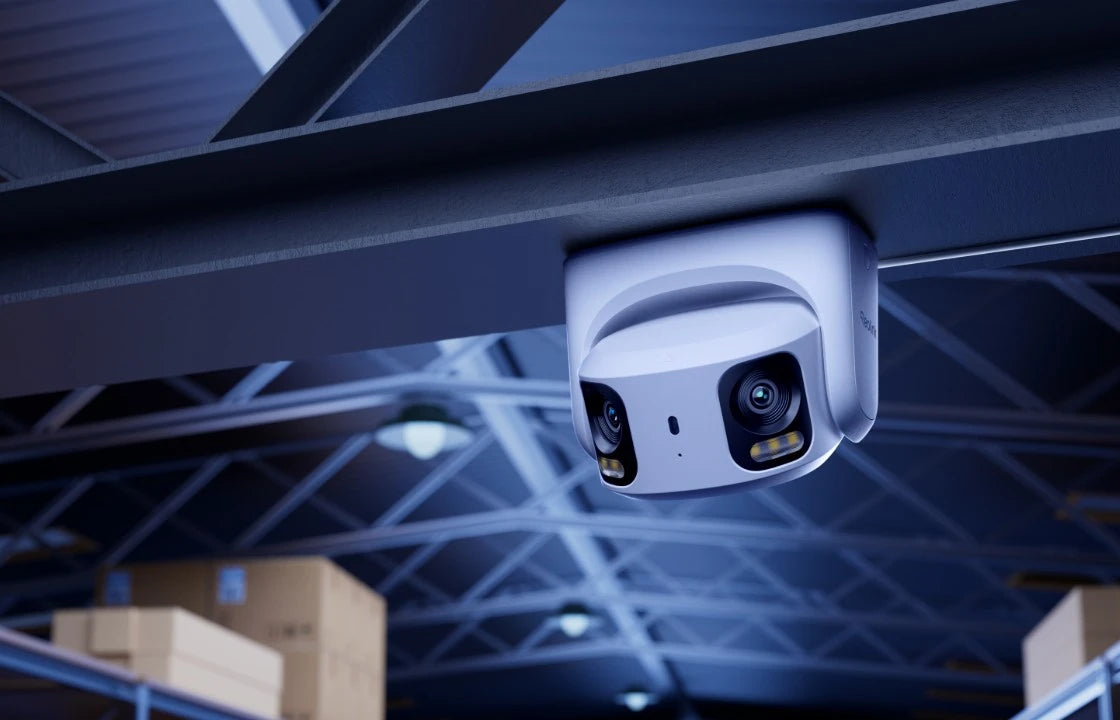

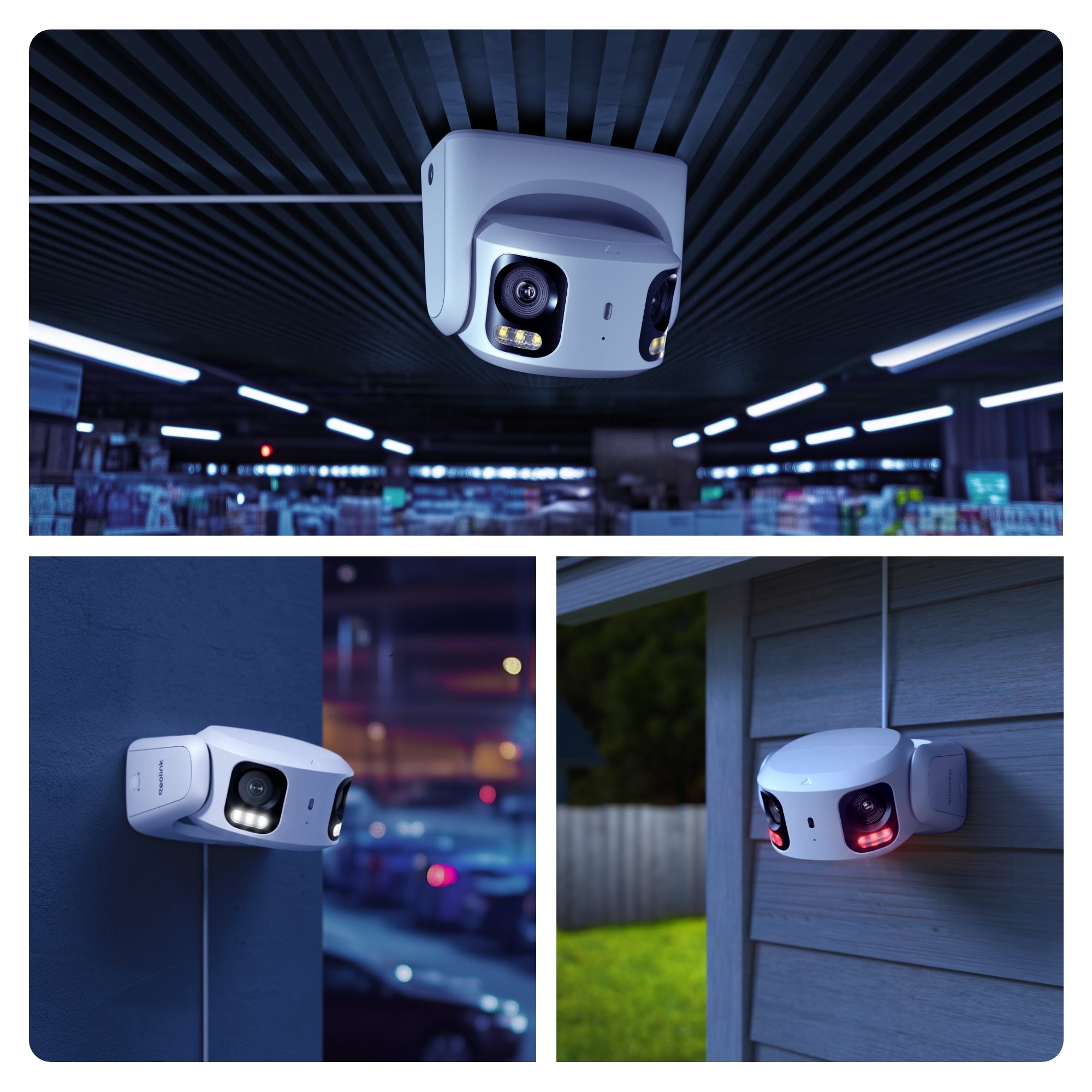

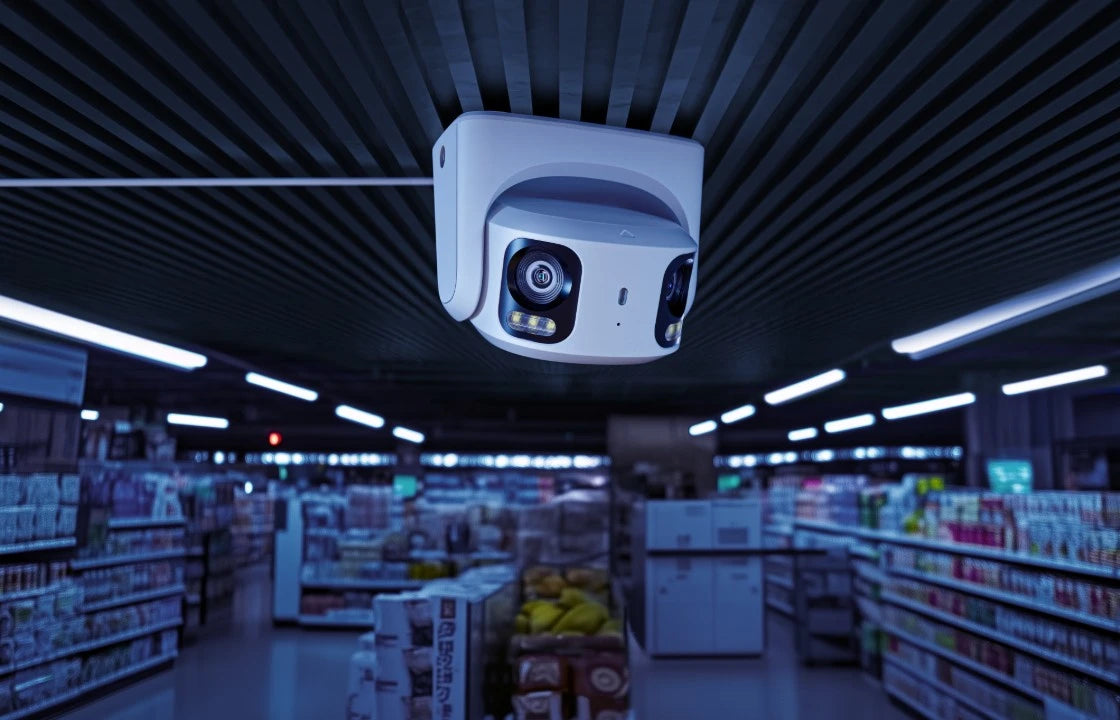

Surveillance Solution for All Applications

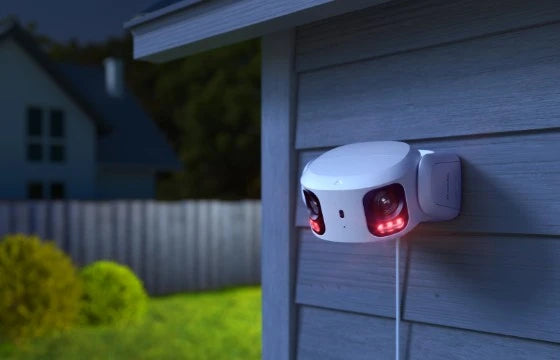

With flexible installation options, this camera ensures durable and high-performance surveillance across a wide range of applications, from residential spaces to commercial sites.

Specifications


Download PDF File

Video & Audio

Image Sensor:
1/2.65" CMOS  Sensor

Resolution:
5120*1552(8Megapixels) @25fps

Lens:
f = 2.8 mm fixed, F = 1.6

Zoom:
N/A

Video Compression:
H.265/H.264

Field of View:
Horizontal: 180°
Vertical: 57°

Day & Night:
IR-cut filter with auto-switching

Infrared Night Vision:
Up to 30meters(100ft);LED: 6pcs/3W/850nm

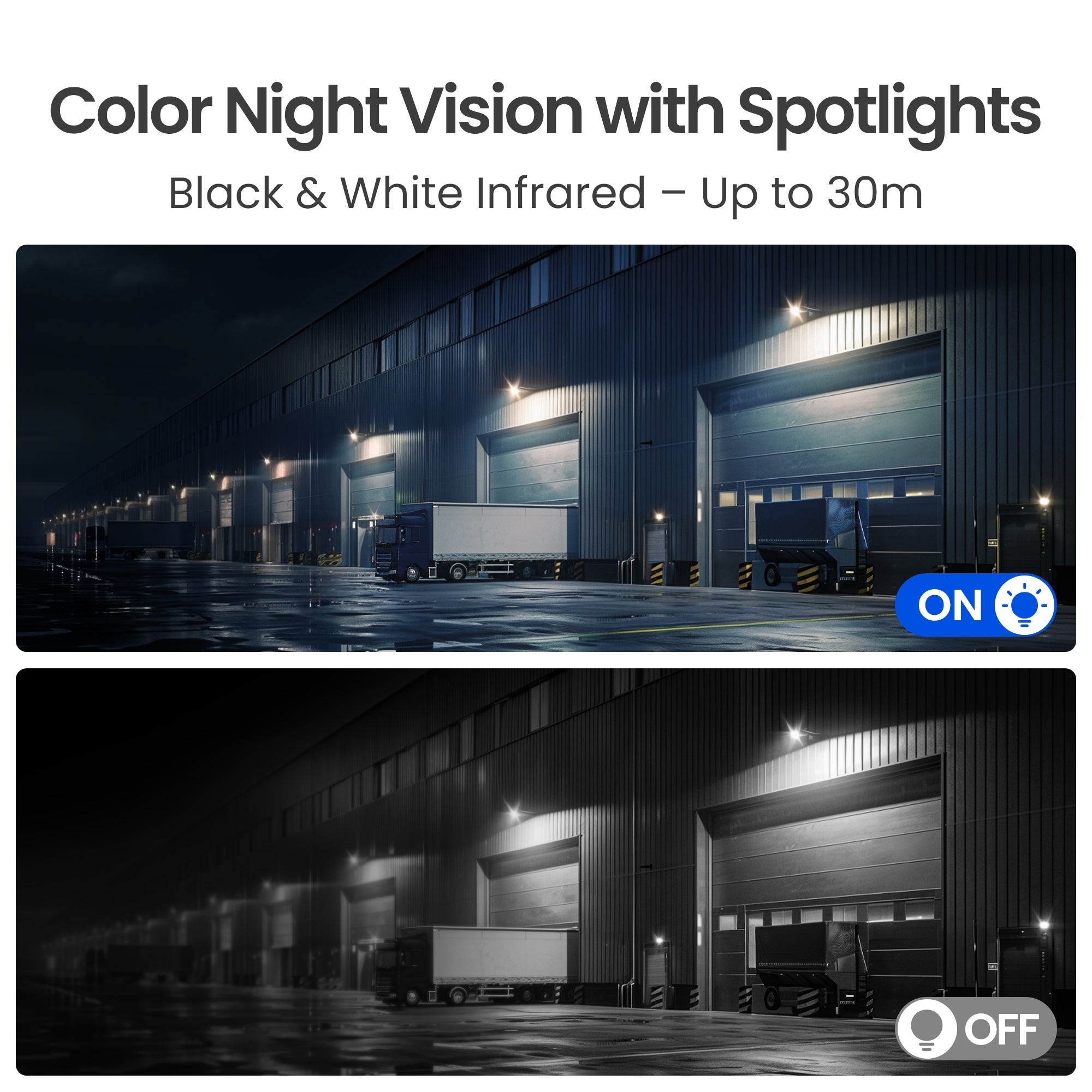

Color Night Vision:
With spotlights:6pcs LEDs/3.5W/4000k/ 400lumens

Frame Rate:
Main Stream: 2fps - 25fps(default: 25fps)Sub
Stream: 4fps - 20fps(default: 20fps)

Code Rate:
Main Stream: 3072Kbps -10240Kbps(default:8192Kbps)
Sub Stream: 256Kbps - 2048Kbps(default: 1024Kbps)

Audio:
Two-way audio

Power

PoE:
IEEE 802.3af, 48V, Active

DC Power:
DC 12.0V⎓2A,  <12W

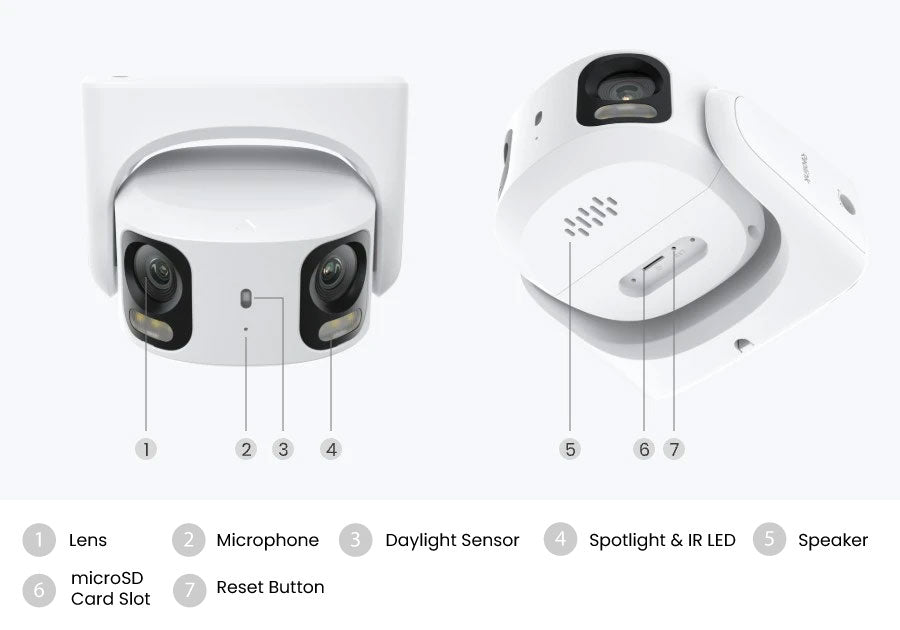

Interface

Power Port:
DC power port

Ethernet Port:
One  10M/100Mbps  RJ45

Storage:
MicroSD card slot (Max. 512GB) Reolink NVR, ftp

Reset Button:
YES

Alarm In/Out:
N/A

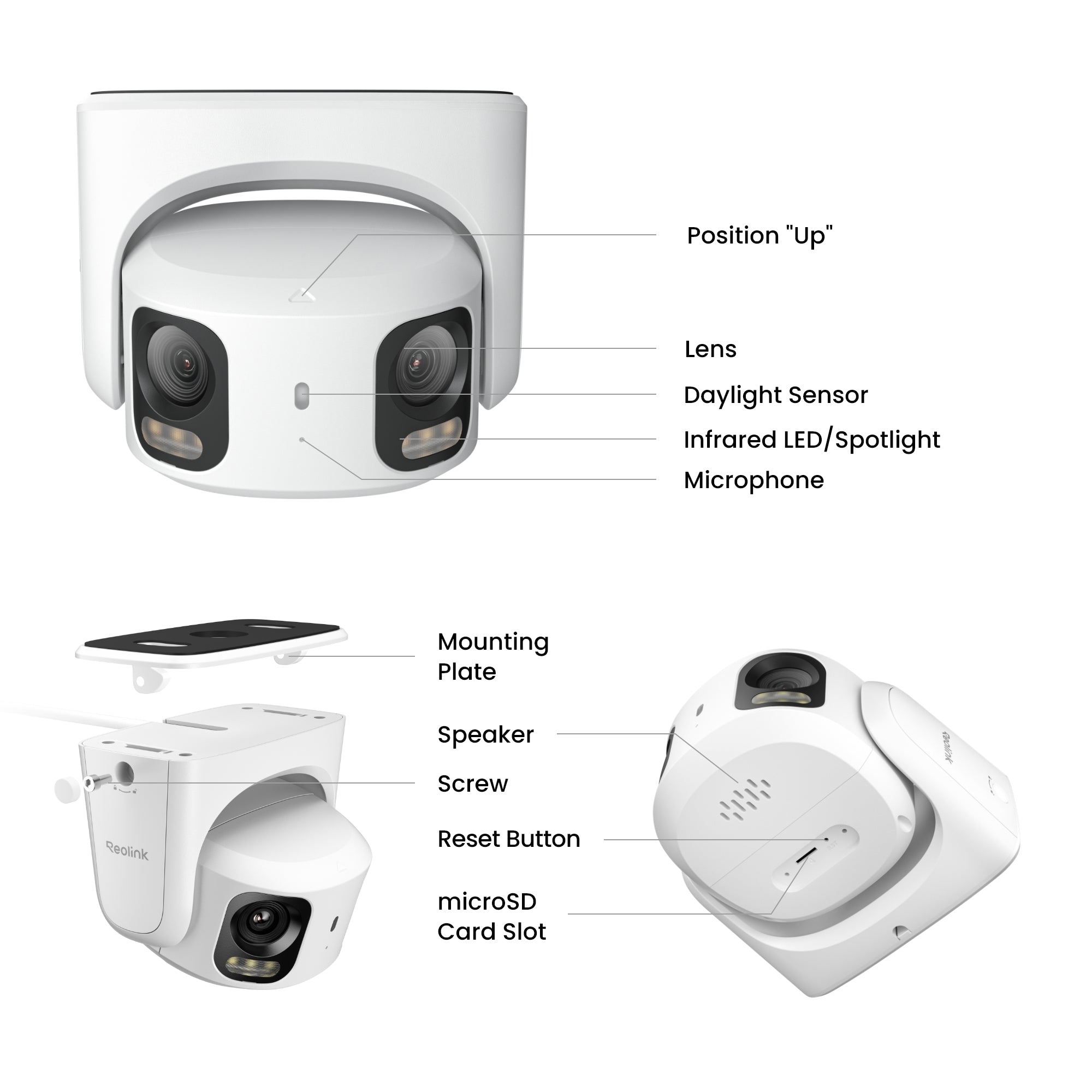

Audio In/Out:
Built-in Microphone&Speaker

Software

Browsers Supported:
Edge, Chrome, Firefox, Safari

OS Supported:
PC: Windows, Mac OS; Smartphone: iOS, Android

Protocols & Standards:
HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P, ONVIF

User Access:
Max. 20 users (1 admin & 19 user);
Max. 12 simultaneous streams (2 main & 10 sub streams)

Other Features

Smart Alarm:
Motion detection/Human Detection/Vehicle Detection/Animal Detection

Perimeter Protection:
Line Crossing Alert, Zone Intrusion Alert, Zone Loitering Alert

Smart Event Detection:
Object Removal (beta) , Forgotten Object (beta)

Recording Modes:

Motion-triggered recording (default); Scheduled recording, 24/7 recording

Smart Home Compatibility:
Google Assistant

AI Video Search:
Yes

AI ISP:
NO

HDR:
NO

Time Lapse:
Yes

Motion Track:

N/A

Working Environment

Operating Temperature: -30°C~+55°C

Operating Humidity:
10% ~ 90%

Weatherproof:
IP67

What's in the box

  • RP-PCT8MD ×1
  • Ethernet Cable ×1
  • Waterproof Lid ×1
  • Pack of Screws ×1
  • Quick Start Guide ×1
  • Wrench ×1

Mechanical

Dimensions:
132mmx131mmx72mm

Weight (Without Accessories):
775g

Warrranty

3-year limited warranty
