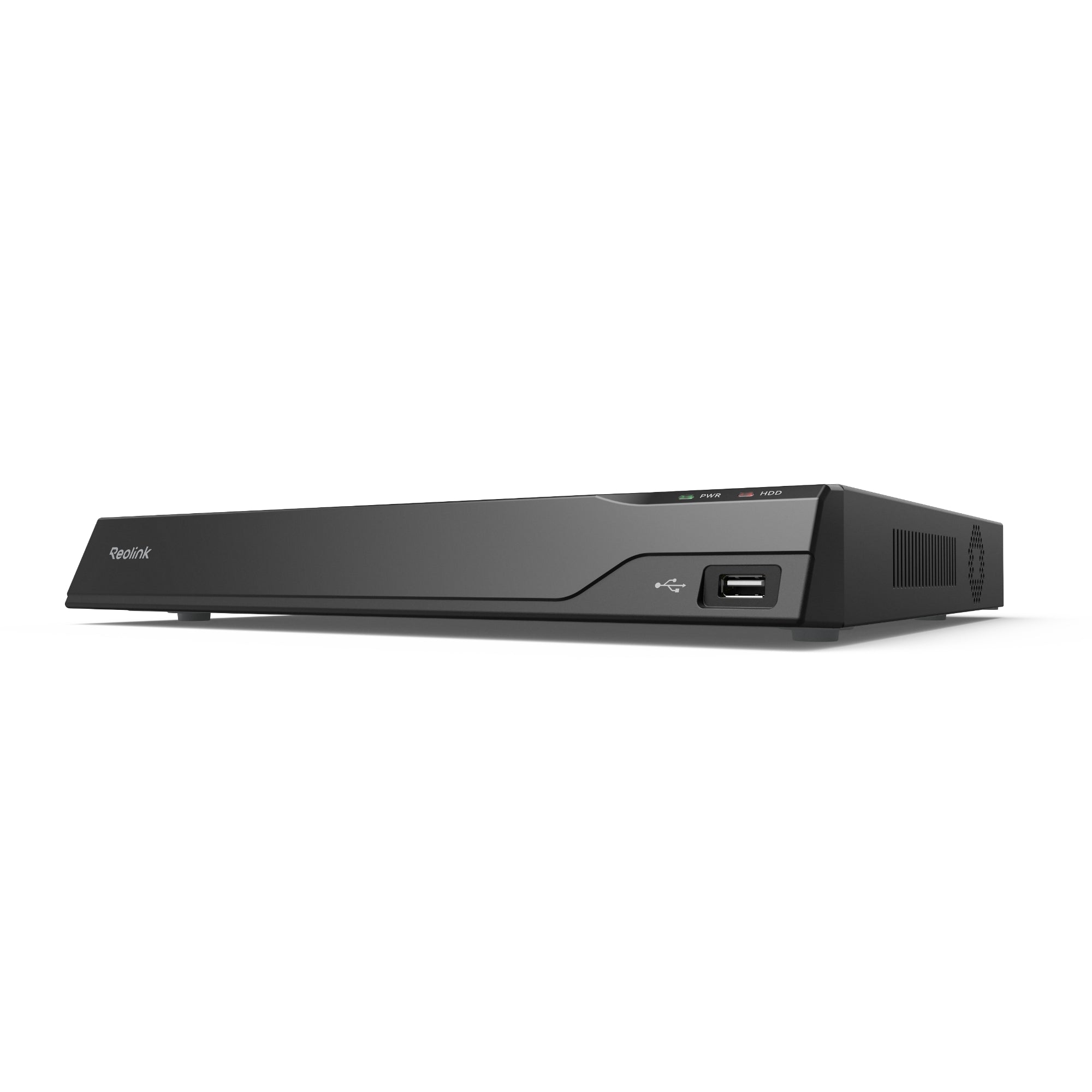

Reolink RP-PN16-NHD : 16-Channel PoE NVR for 24/7 Continuous Recording

16-Channel PoE AI NVR for 24/7 Continuous Recording

  • Support up to 24 Reolink cameras (16 wired cam+8 battery-WiFi cam)
  • 24/7 Recording
  • Supports up to 32TB (Max. 16TB HDD for each SATA)
  • Centralized Security
  • Multi-Access Control
Enquire with us
Enquire with us Enquire with us
Tax included. Shipping calculated at checkout.
Availability: In stock
SKU: RP-PN16

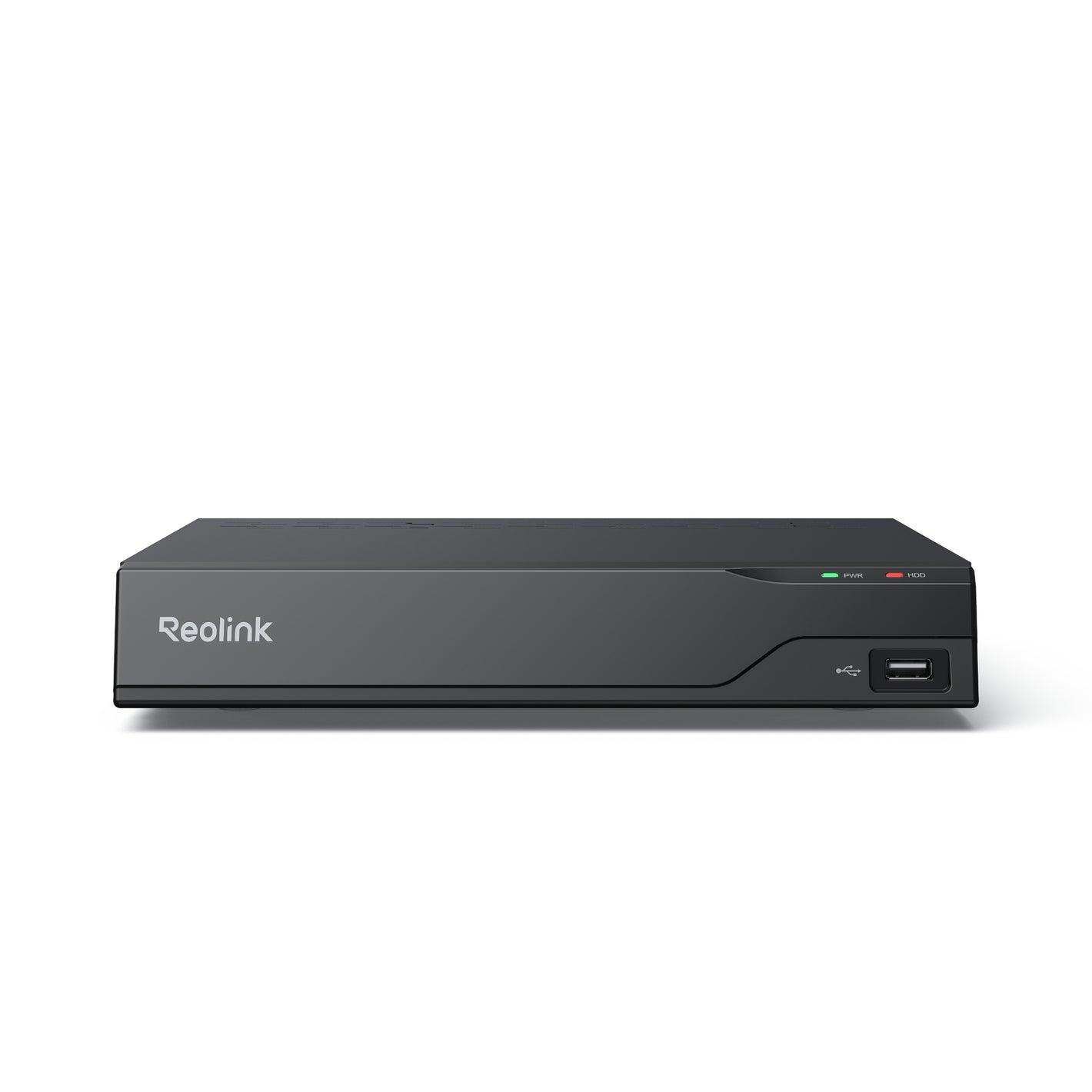

ReolinkReolink PN8-NHD : 8-Channel PoE NVR for 24/7 Continuous Recording
Reolink PN8-NHD 8-Channel PoE NVR for 24/7 Continuous Recording
Reolink RP-PN16-NHD 16-Channel PoE NVR for 24/7 Continuous Recording
Enquire with us
Enquire with us Enquire with us

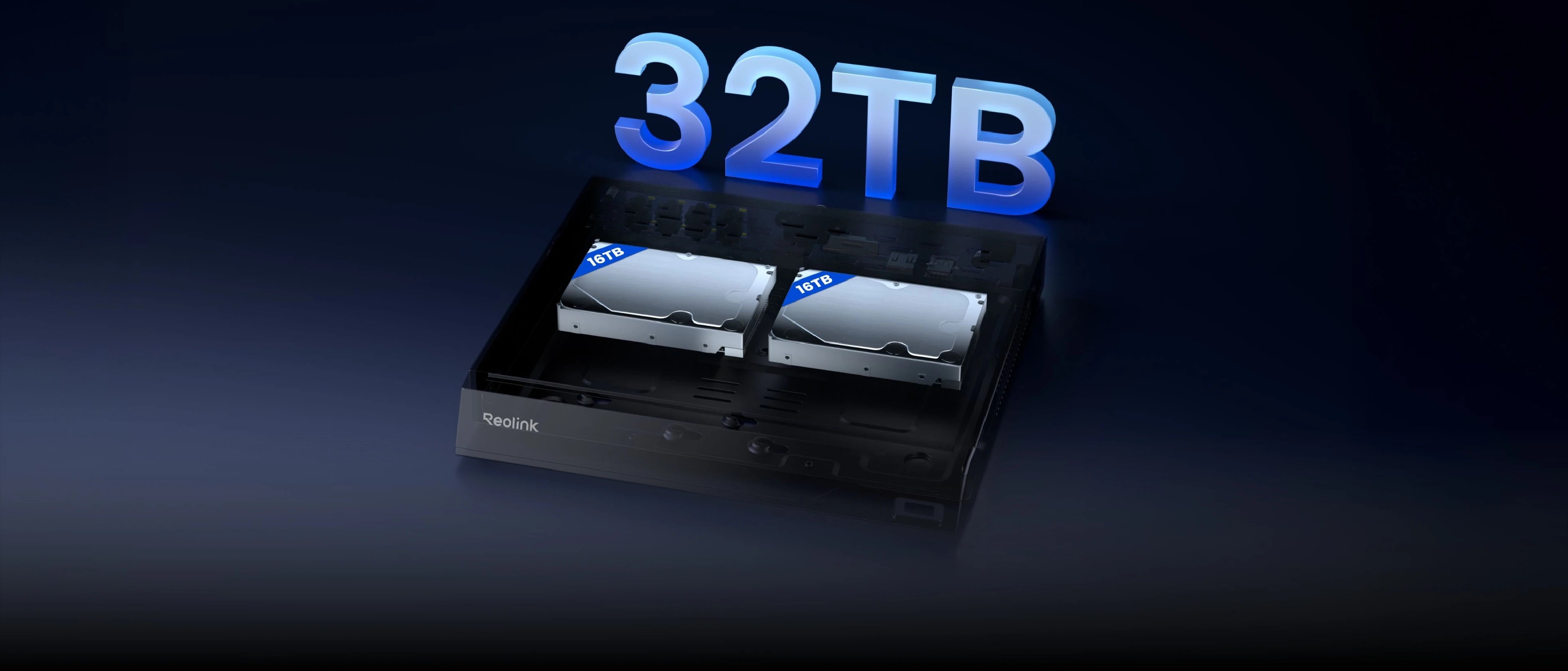

Secure & Expandable Local Storage

With a built-in 4TB HDD and expandable storage up to 32TB (2x16TB SATA), the RP-PN16 is perfect for enterprise security and demanding surveillance needs. It also supports video file encryption, where recordings will be securely stored and encrypted, requiring a password for playback even after a factory reset. This provides an added layer of data protection should the NVR be stolen.

  • Built-in 4TB HDD

    Expandable storage up to 32TB

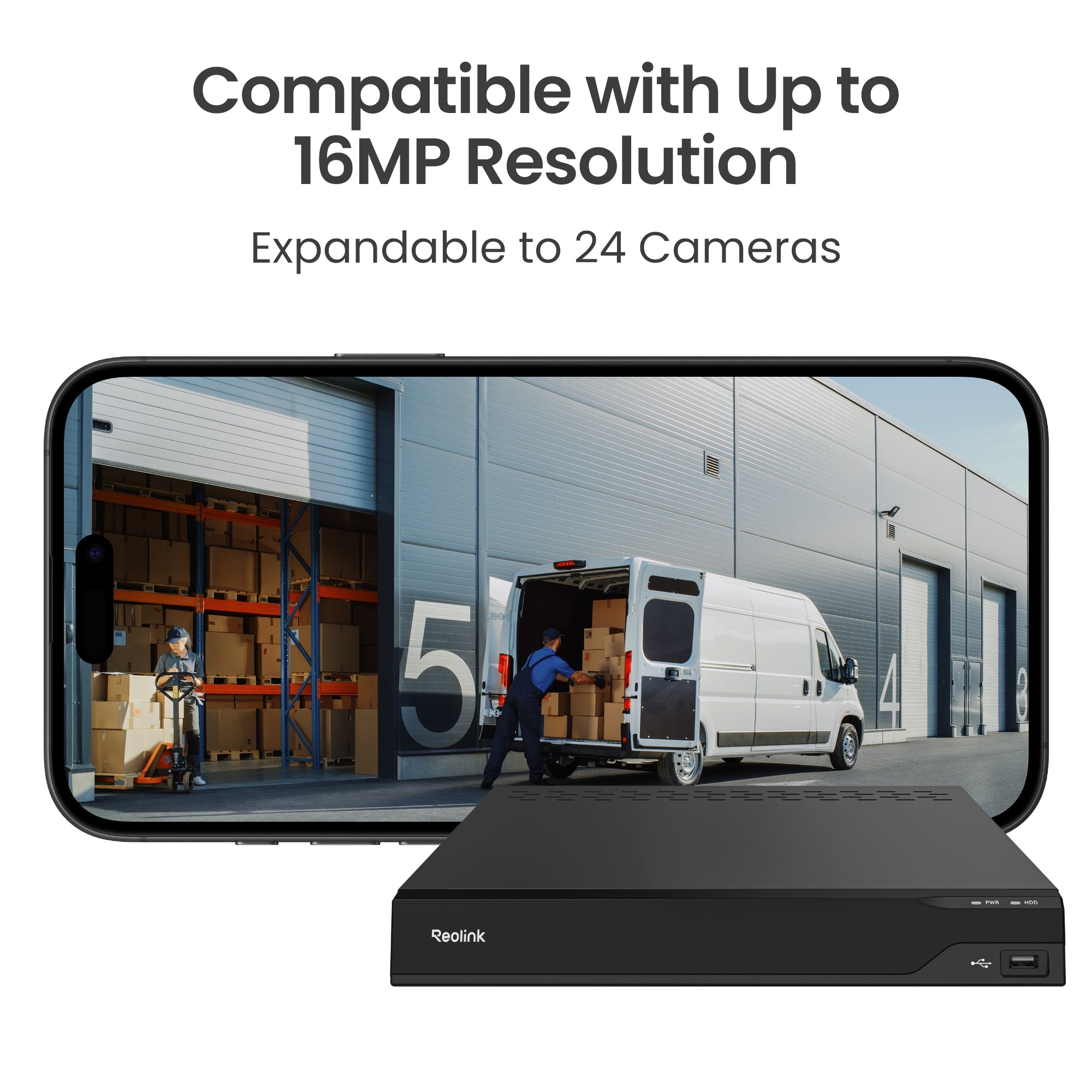

  • Supports up to 16MP

    Live view & playback

  • 24/7 Recording

    Ensures no moment is missed

Enterprise-Grade Precision with ReoNeura AI

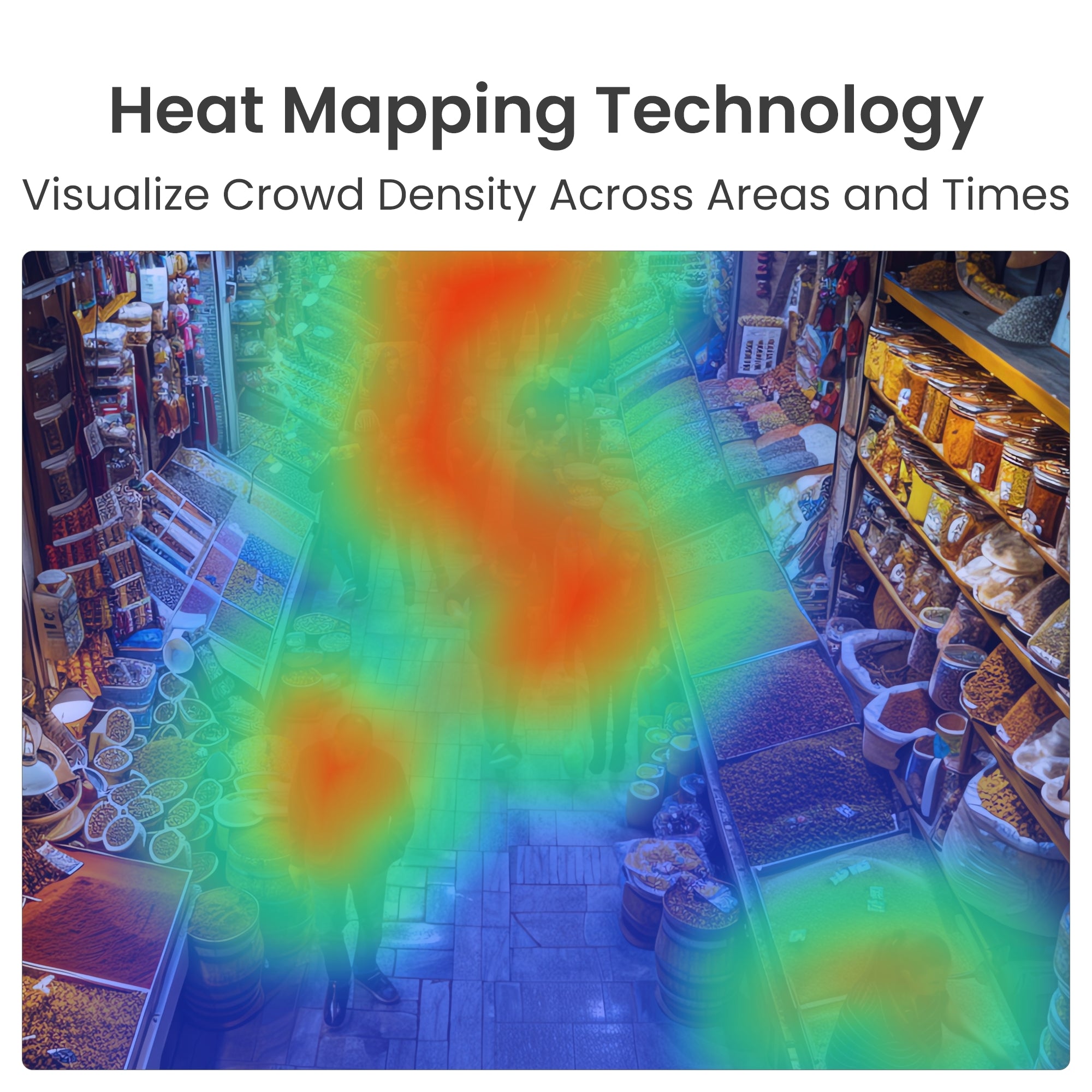

Visualize with Heat Mapping

Using color variations, heat mapping visualizes the distribution, density, and intensity of collected data, enabling the monitoring and analysis of target traffic within a defined area. Ideal for malls, supermarkets, and museums, this feature helps to optimize layout and product placement by showing how people move and linger within your space.

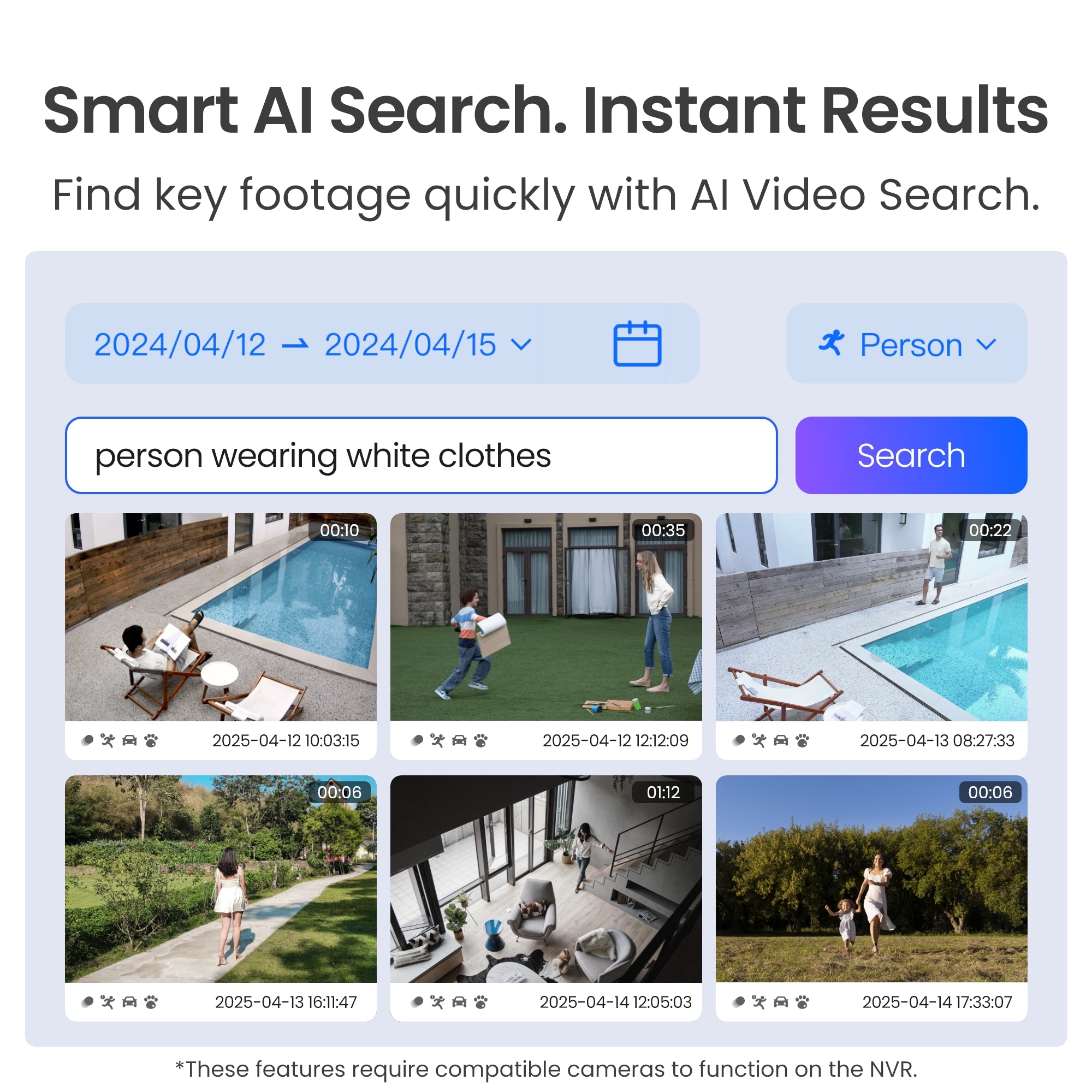

  • AI Video Search

    Input descriptive keywords (e.g. "person wearing white clothes", "yellow dog") to search specific video clips in locally saved triggered recordings. Filter out irrelevant clips and pinpoint the target alarm event in no time.

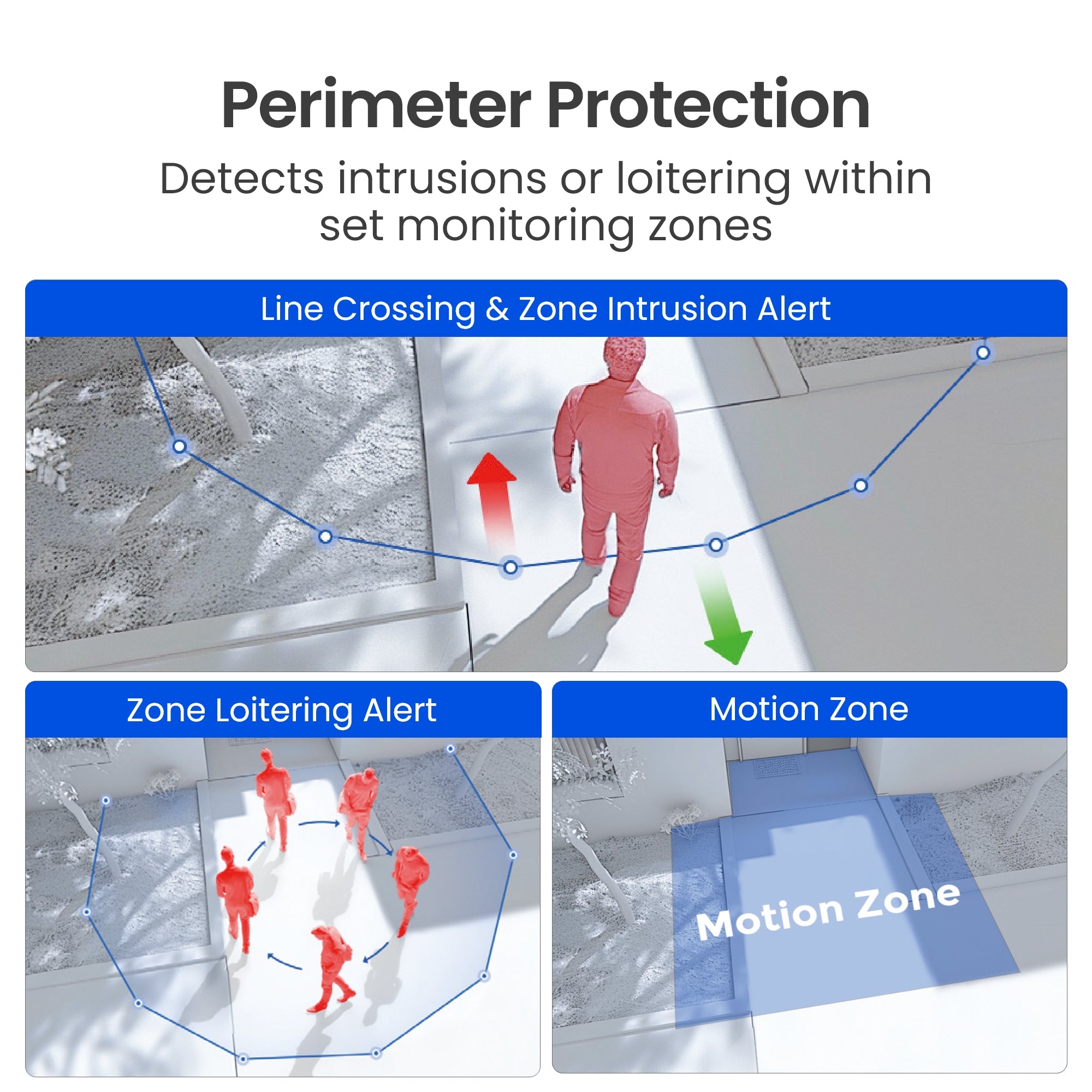

  • Perimeter Protection

    Equipped with AI-driven Line Crossing Alert, Zone Intrusion Alert, and Zone Lingering Alert, it delivers precise 24/7 protection for critical areas, enabling rapid response to security threats.

  • Smart Event Detection(Beta)

    Send instant alerts on objects forgotten or removed from key areas, ensuring timely action and loss prevention.

These features require compatible cameras to function on the NVR.

Smart Access Options with Multi-User Support

This NVR supports both local and remote camera access. View live feeds and manage your system via monitor, PC client, or app. With up to 12 simultaneous users (2 mainstreams + 10 substreams), your team can stay connected anytime, anywhere.

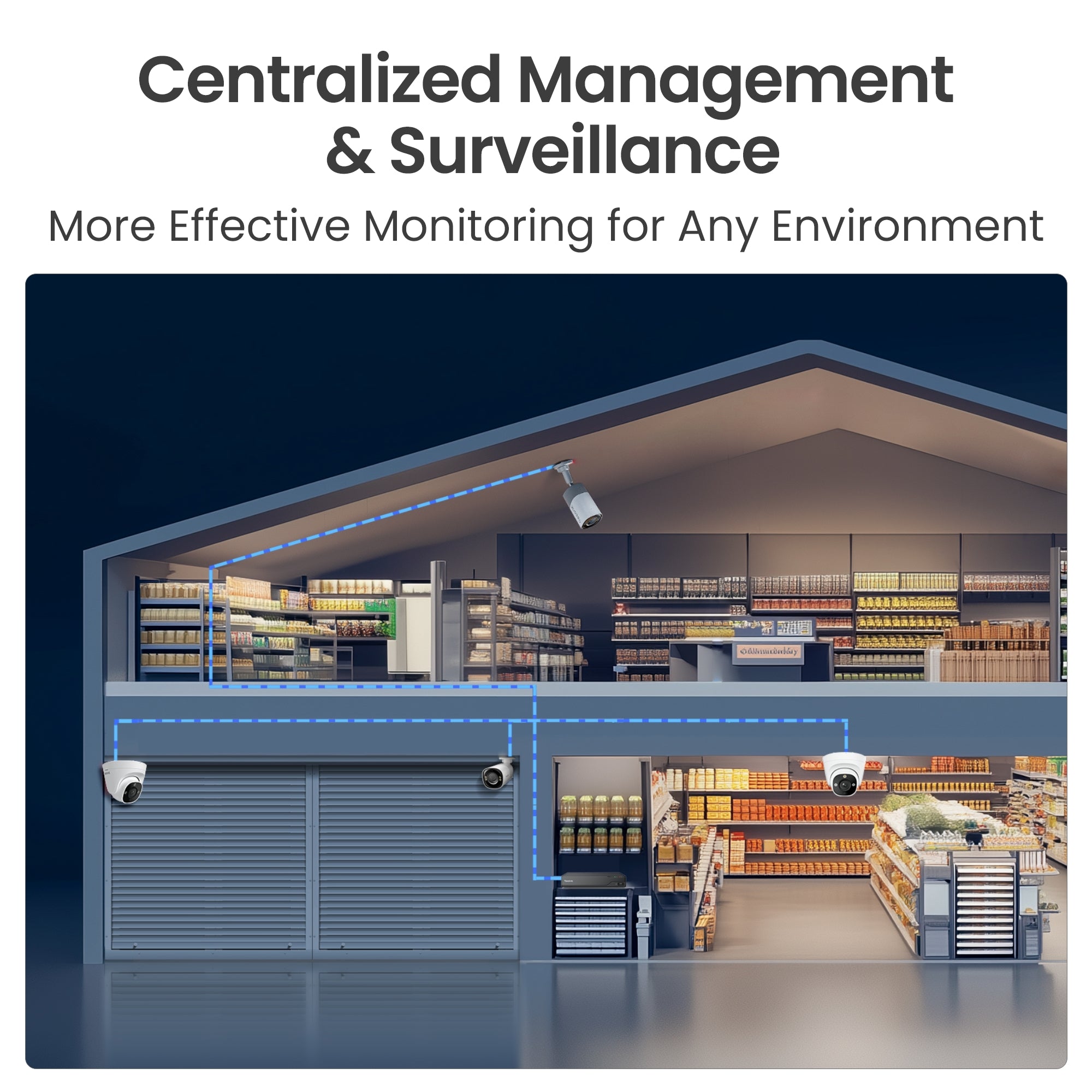

Flexible PoE & Central Control

Using PoE technology, the RP-PN16 provides power and network access to each connected camera through a single cable, reducing the need for extra power sources and simplifying installation. This provides seamless integration and management of all your connected cameras—a unified surveillance system that can adapt to various environments, be it at the office, or retail stores.

Plug & Play, Reliable Connection

Specifications

Download Datasheet

RP-PN8

Video/Audio Input

IP Video Input:
Up to 24 IP Cameras (Max.16 wired cameras)
Up to 16 MP resolution

Audio Input:
Cameras with built-in MIC

Incoming Bandwidth:
400Mbps

Outgoing Bandwidth:
400Mbps

Video/Audio Output

Video Output:
1 HDMI, 1 VGA

Display Resolution:
HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768
VGA: 1920x1080, 1280x1024, 1280x720, 1024x768

Audio Output:
1 audio out channel, RCA

Decoding

Video Compression:
H.265 / H.264

Live View/Playback Resolution:
7680X2160, 4608X1728, 4512X2512, 4096X3072, 3840X2160, 2560*2560, 2560X1920, 2560X1440, 2048X1536, 2304X1296,1080P,720P

Synchronous Playback:
1-4 channels (Supports only 1-channel playback if you view it in 8MP or higher resolution)

HDD

SATA:
2 SATA interfaces for 2 HDDs(1 x 4TB HDD included)

External HDD:
NO

Capacity:
Up to 32TB (up to 16TB capacity for each HDD)

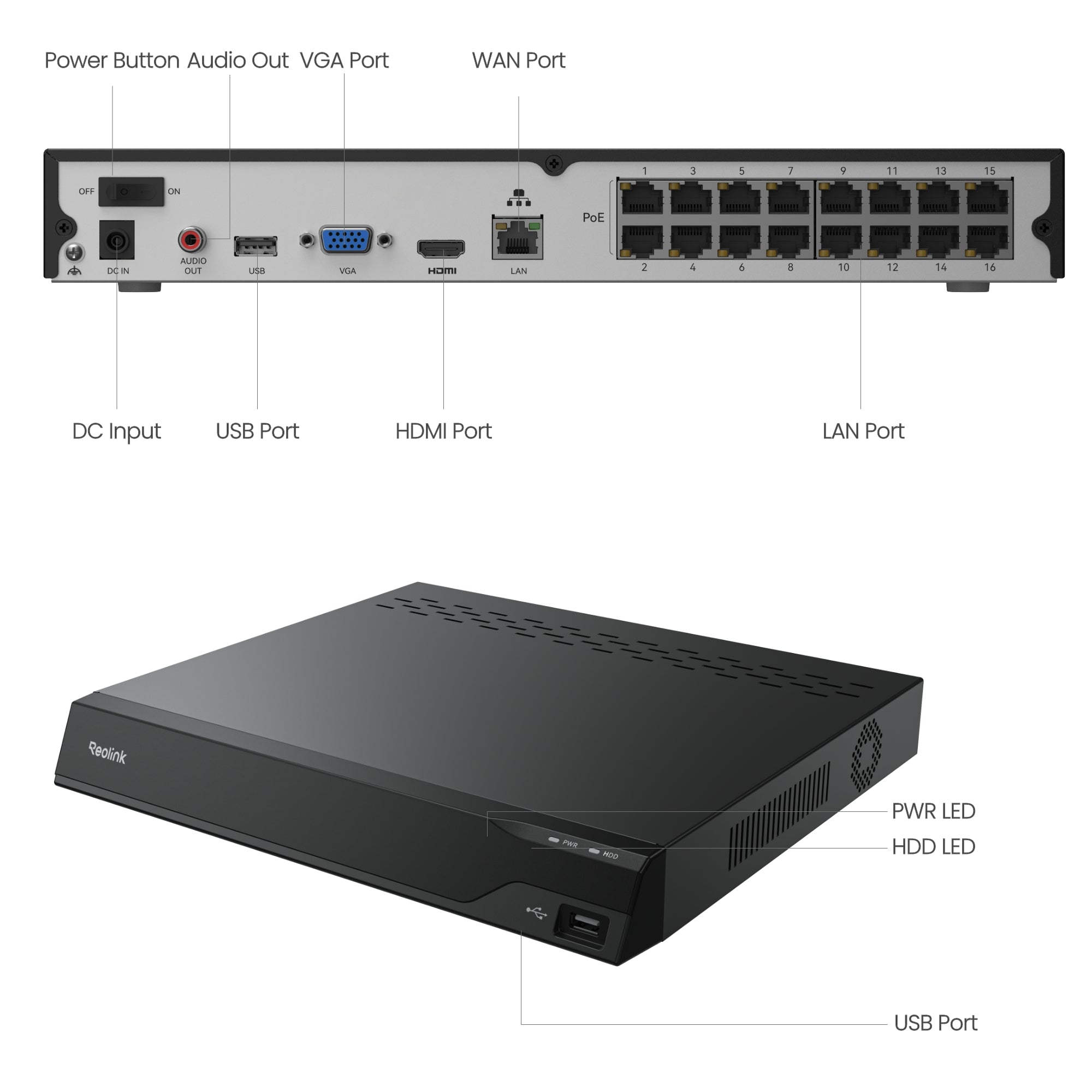

External Interface

USB Interface:
2 x USB 2.0

Network Interface:
16 x RJ-45, 10/100 Mbps self-adaptive PoE Ethernet interface (for IP cameras)
1 x RJ-45, 10/100/1000 Mbps self-adaptive (for LAN/WAN)

Interface

Alarm In/Out:
N/A

PoE

Max. Power Per Port:
25W

Supported Standard:
IEEE 802.3 af/at

Network

Network Protocols:
HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP,FTP

Browsers Supported:
Edge, Firefox, Chrome, Safari

OS Supported:
PC: Windows, Mac OS; Smart phone: iOS, Android

Max. User Access:
20 Users (1 admin account & 19 user accounts); supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

Other Features

AI Video Search:
Yes (need to be supported on cameras as well)

Person & Object Detection:
Person, Vehicle, Non-motorized vehicle, Animal and Package (need to be supported on cameras as well)

Perimeter Protection:
Line Crossing Alert, Zone Intrusion Alert, Zone Loitering Alert (need to be supported on cameras as well)

Smart Event Detection:
Object Removal (beta) , Forgotten Object (beta) (need cameras support)

Heat Map:
Yes

General

Power Supply:
DC 52V/2.3A

Power Consumption:
<10W (without HDD & PoE)

Working Environment:
Temperature: -10°C ~ + 45°C (14°F ~ 113°F);
Humidity: 10% ~ 90%

Dimensions:
255mmx50mmx211mm

Weight:
1.4kg(without HDD)
1.8kg(with HDD)

What's in the box

  • RP-PN16 ×1
  • Operational Instruction ×1
  • NVR Power Adapter ×1
  • HDMI Cable ×1
  • USB Mouse ×1
  • 1m Network Cable ×1

Warranty

Limited Warranty:
3-year
