Reolink E1 Outdoor PoE: 4K Ultra HD Security Camera with Advanced Features

  • 3X Optical Zoom
  • Color Night Vision
  • Person/Vehicle Detection
  • Outdoor & Indoor
Regular price $159.00
Regular price $279.00 Sale price $159.00
Save 43%
Tax included. Shipping calculated at checkout.
Availability: In stock
SKU: PCE1PT4K01
Regular price $159.00
Regular price $279.00 Sale price $159.00

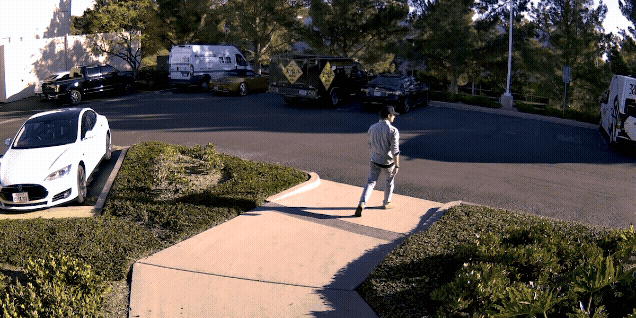

Small But Powerful in Tracking

Designed small and compact, this camera is only slightly bigger than a tennis ball, suitable for various scenarios. In addition to manual panning and tilting, it can automatically follow people and vehicles by keeping them in its field of view, so you won't miss any key details.

Note: It tracks people/vehicles left and right, but not up and down.

Auto Tracking, Manual Pan & Tilt

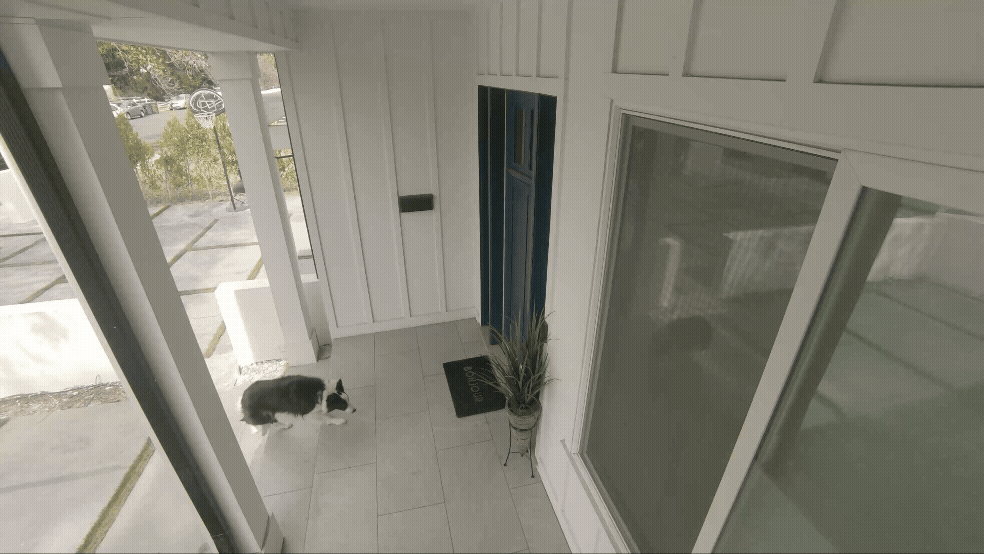

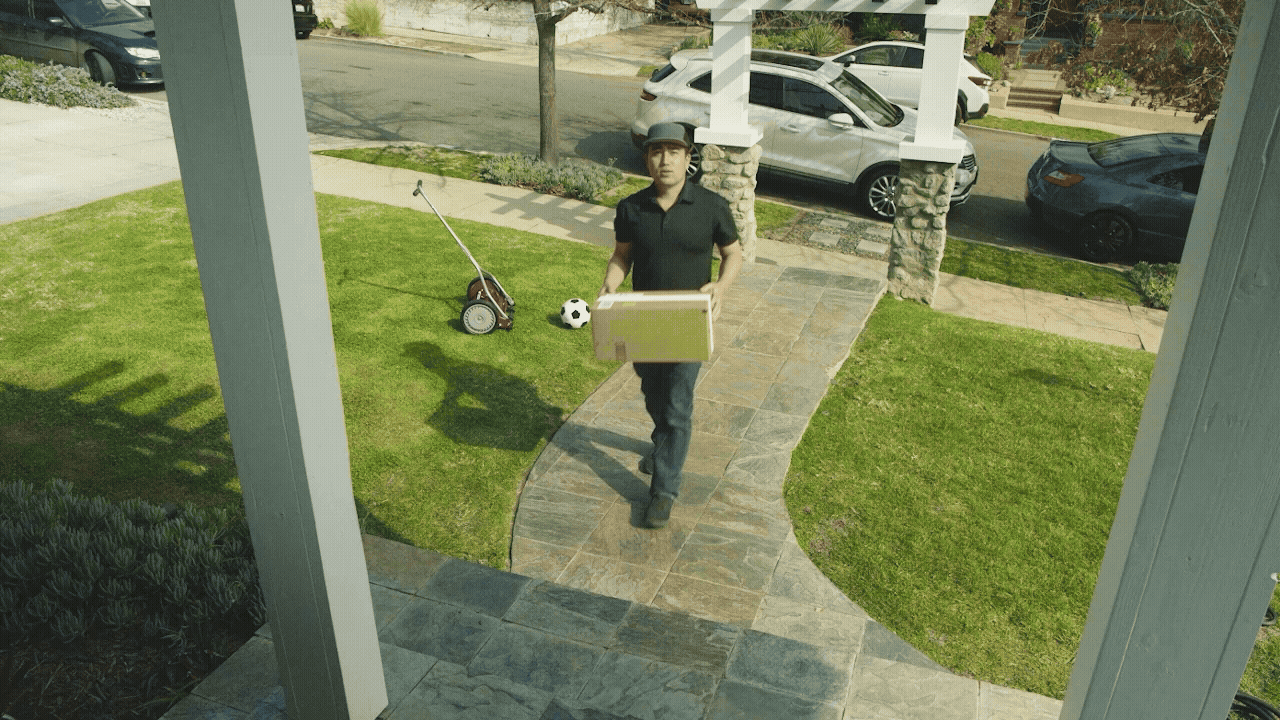

Smart Detection: Be Alerted to What Matters

The camera can distinguish people/vehicles from other things like waving branches to reduce false alarms. Never miss anything important with notifications sent to your phone when person/vehicle is detected.

  • Person/Vehicle Detection

  • Accurate Alerts

  • No Subscription

  • Pet Detection

Two-Way Audio: Easier Communication

With the built-in speaker and microphone, you can ask the delivery person to hide your packages, or vocally scare off unwanted guests.

Features: Microphone, Speaker

Double Warning with Lights and Siren

Once a suspicious person is detected, the camera's spotlights and siren will be automatically triggered or manually activated to keep the uninvited guest off your premises.

Features: Spotlights, Siren

Impressive Clarity in 4K 8MP

The camera with an ultra high revolution delivers exceptionally sharp images and videos. You can stay better informed with the hard-to-see details captured by the camera.

Peace of Mind Even at Night

The camera has three night modes: black-and-white, color, and smart (motion-activated). In smart mode, its spotlights will be triggered when the camera detects a motion at night. Keep you solidly protected even when it's dark.

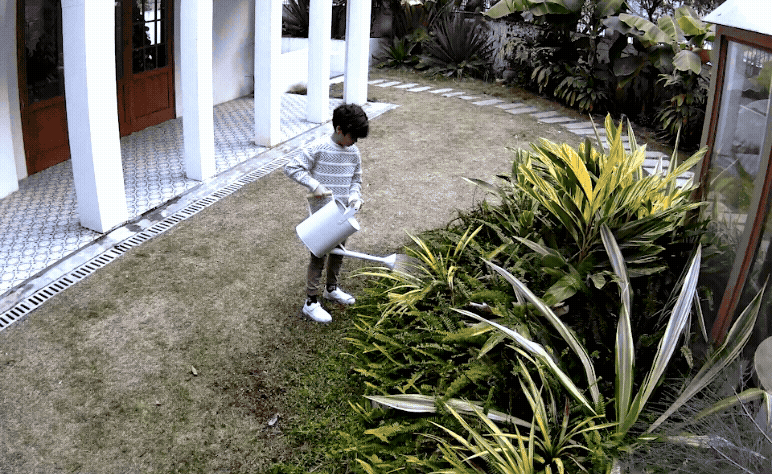

3X Optical Zoom for Sharp Details

The camera with a motorized varifocal lens supports 3X optical zoom. You can zoom in on details like license plates or zoom out for larger monitoring areas without distortion.

50° - 94°
Viewing Angle*

2.8 mm - 8 mm
Motorized Lens

Time Lapse: Visualize the Passage of Time

With the time lapse feature, E1 Outdoor PoE makes it simple to reproduce in seconds or minutes the dynamic process of flower blossoming or the beautiful sunrise.

* This feature is incompatible when camera is connected to NVRs.

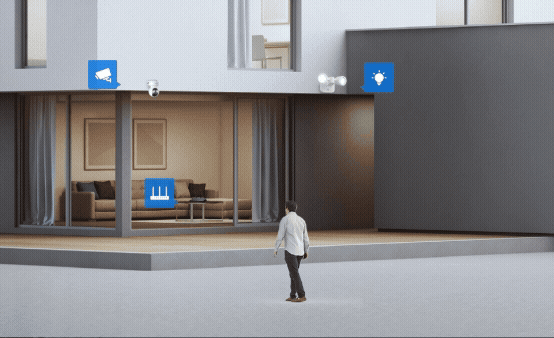

Reolink's Internet of Things

Link the camera to Reolink IoT devices, such as Reolink Floodlight PoE/WiFi for a more advanced experience. When it is linked to Reolink Floodlight, the floodlight can be activated by the camera's motion detection to illuminate a larger surveillance area, ensuring brighter and clearer night vision.

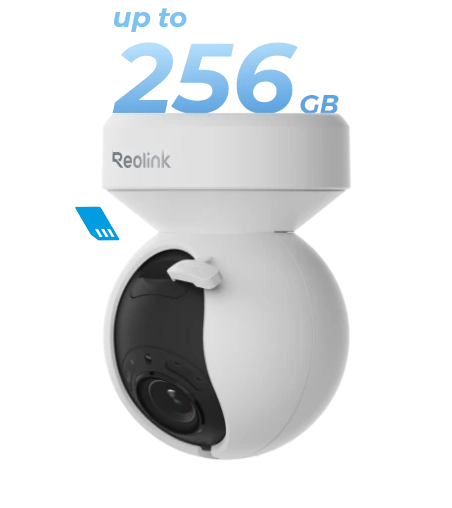

microSD Card

Supports up to 256GB microSD card (not included).

24.2 hours - 64GB
48.5 hours - 128GB
97.1 hours - 256GB

Figures are based on the default bit rate of the camera (6144 kbps). Actual recording time depends on the settings. Results may vary.

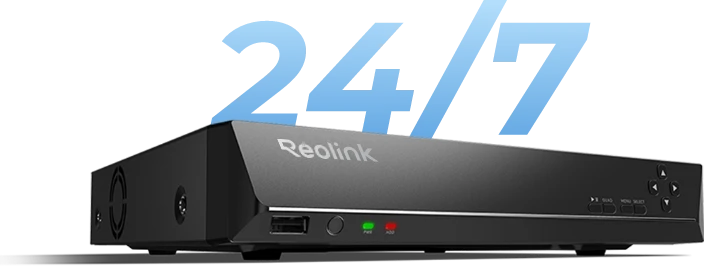

Reolink NVR

If you want to save videos for a longer time or manage multiple cameras, you can simply connect this camera to a compatible Reolink NVR or security camera system.

* Reolink NVRs are recommended for the best performance.

  • Real-Time Alerts

    Once something suspicious is detected, the camera will send an instant push notification and an email with a detection snapshot to your phone.

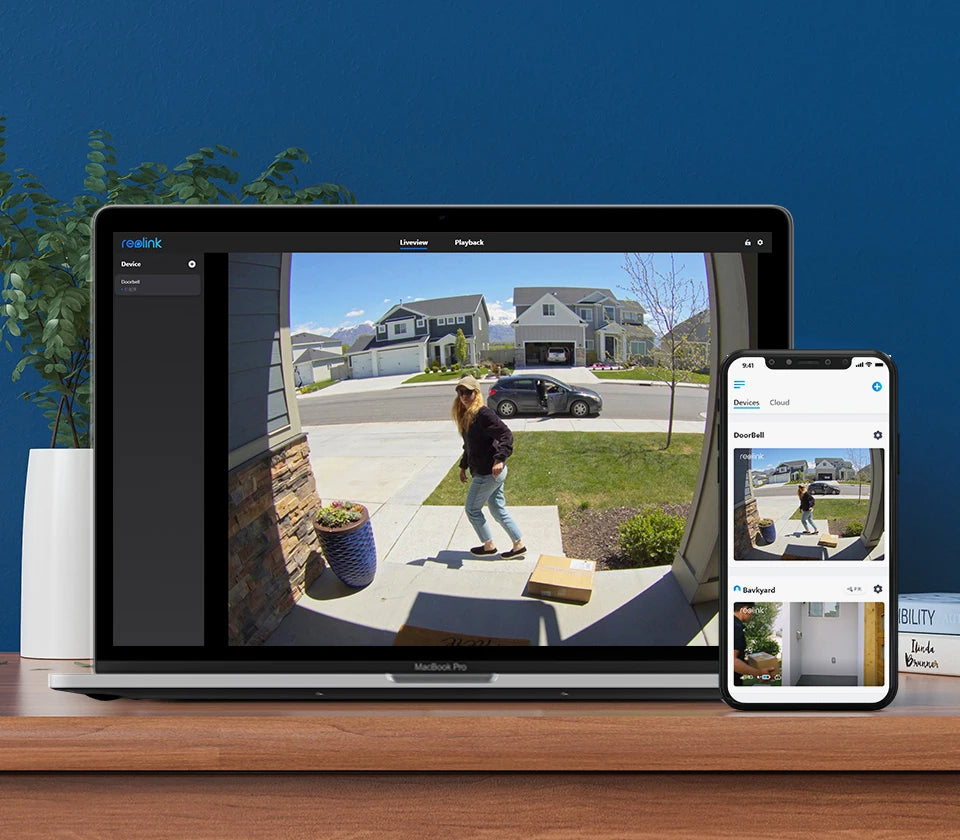

  • Live View from Anywhere

    Check what's happening in your home wherever you are, or see what your kids are up to when you're busy with your stuff.

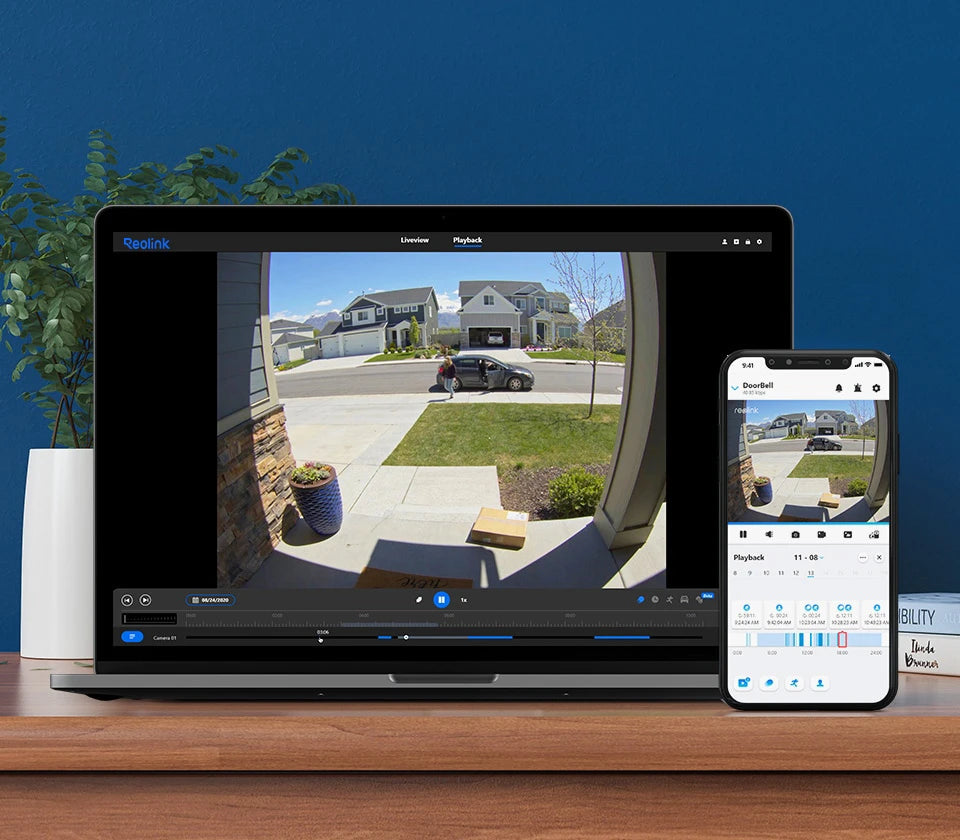

  • Easy & Smart Playback

    You can replay saved videos, filter them by detection modes, and control the timeline to find what you want to see quickly.

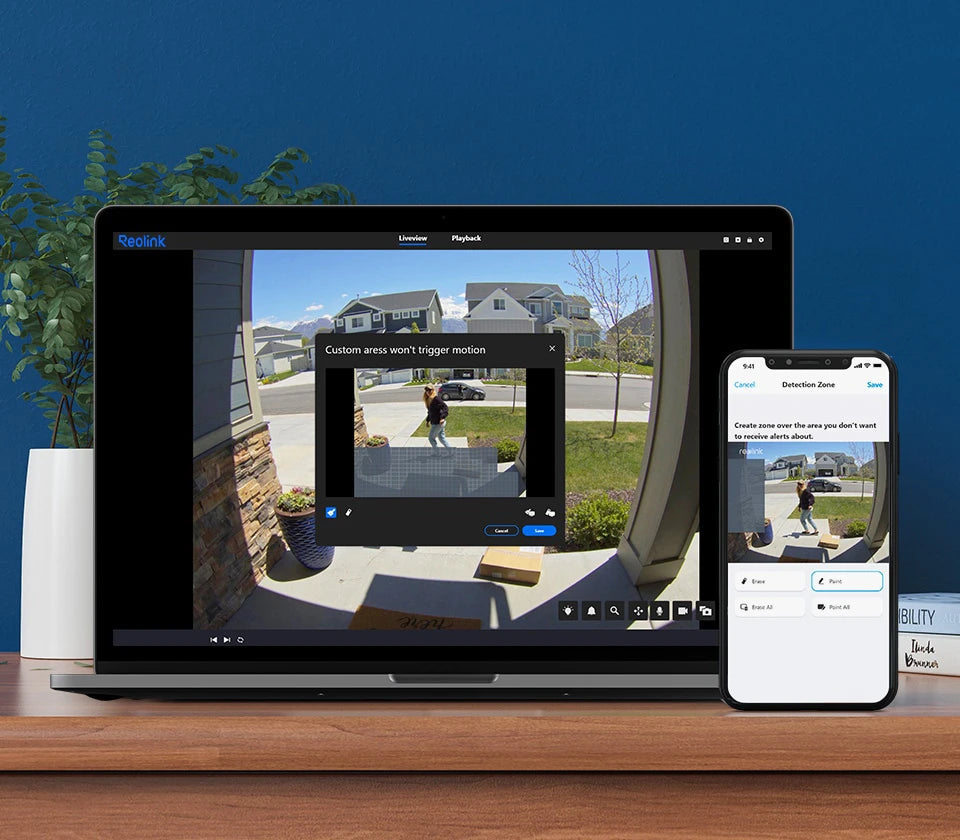

  • Customized Motion Zone

    You can customize the motion detection zone to define what movement you will be alerted to. It helps protect your privacy and reduce false alarms.

  • Works with Google Assistant

    Check what’s happening in front of the camera on your Google Nest Hub or Chromecast-enabled TVs. It’s as easy as saying “Hey Google, show me the backyard."

  • Works with Alexa

    Control it with your voice. Just ask Alexa to show your camera’s video on the Echo Spot, Echo Show or Fire TV.

Specifications


Download PDF File

Video & Audio

Image Sensor:
1/2.8" CMOS Sensors

Video Resolution:

Default: 3840X2160 (8.0 megapixels) at 25 frames/sec

Lens:
f=2.8 - 8mm, zoom module

Video Format:
H.265

Field of View:
• Horizontal : 94° - 50°

• Vertical : 53° - 30°

Day & Night:
IR-cut filter with auto-switching

Infrared Night Vision:
Up to 12 meters (40ft) (LED : 12pcs/14mil/850nm)

Color Night Vision:
Spotlights: 4pcs/2.7W/6500K/180Lumens

Audio:
Two-Way Audio

Power

POE:
IEEE 802.3af, 48V Active

DC Power:
DC 12V⎓1A, <12W

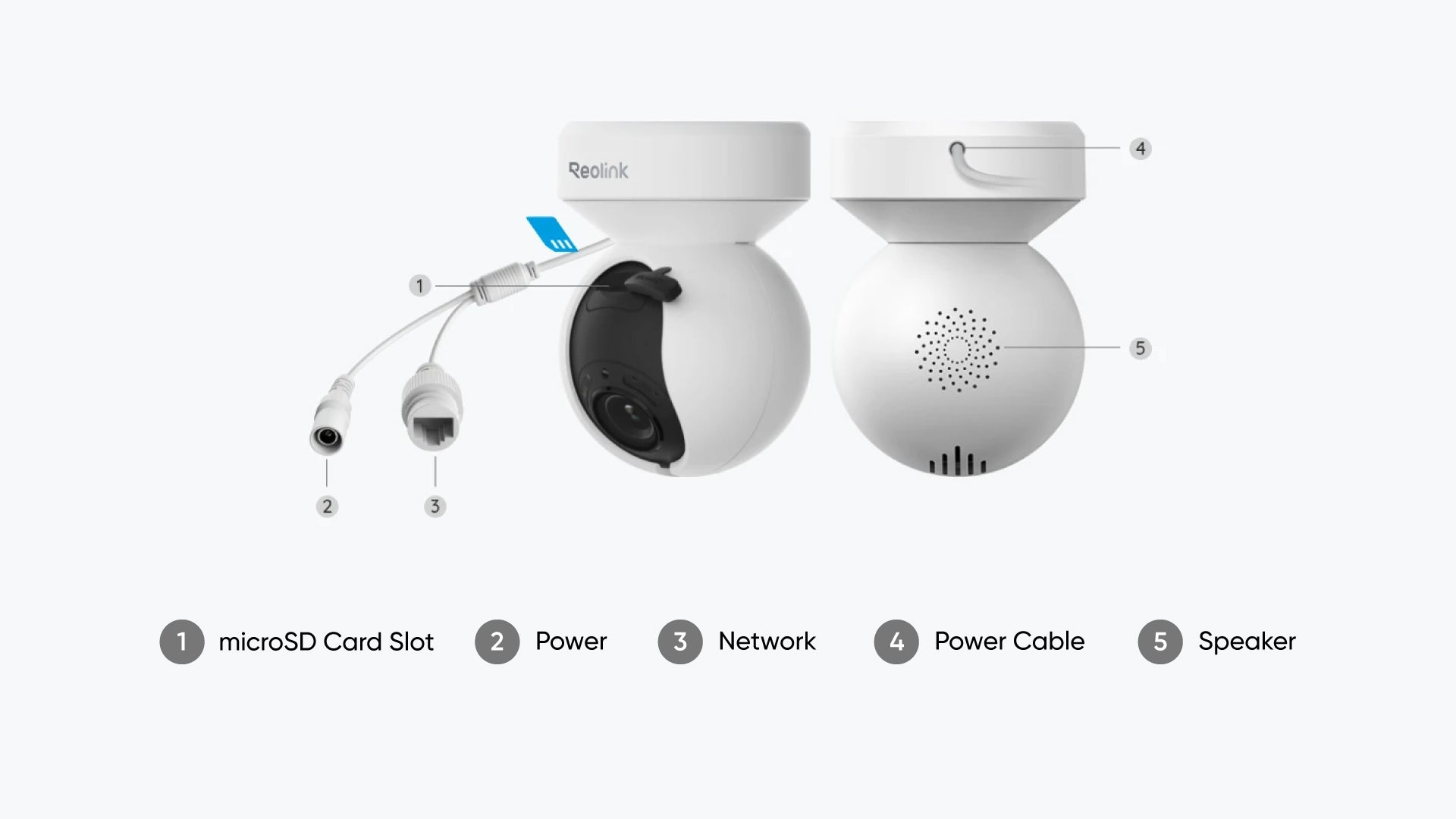

Interface

Power:
DC power port

System:
Reset button

Ethernet:
One 10M/100Mbps; RJ45

Storage:
microSD card slot (Max. 256GB)

Audio:

Built-in microphone and speaker

Pan & Tilt

Pan & Tilt:
Pan: 355°, Tilt: 0° - 50°

Auto Tracking:

Support

Software Features

Frame Rate:
• Mainstream : 2fps - 25fps (default : 25fps)

• Substream : 4fps - 15fps (default : 10fps)

Code Rate:
• Mainstream : 4096Kbps - 8192Kbps (default : 6144Kbps)

• Substream : 64Kbps - 512Kbps (default : 256Kbps)

Browser Supported:
Edge, Chrome, Firefox, Safari

OS Supported:
PC : Windows, Mac OS ; Smartphone : iOS, Android

Smart Alarm:
Motion detection; person detection; vehicle detection; pet detection

Record Mode:
Motion-triggered recording (default); scheduled recording; 24/7 recording

Protocols & Standards:
HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P

Maximal User Access
20 Users (1 admin account & 19 user accounts); Supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

Works with
Google Assistant

Working Environment

Temperature:
Operating temperature: -10°C ~ +50°C (14°F ~ 122°F)

Humidity:
Operating humidity: 10% ~ 90%

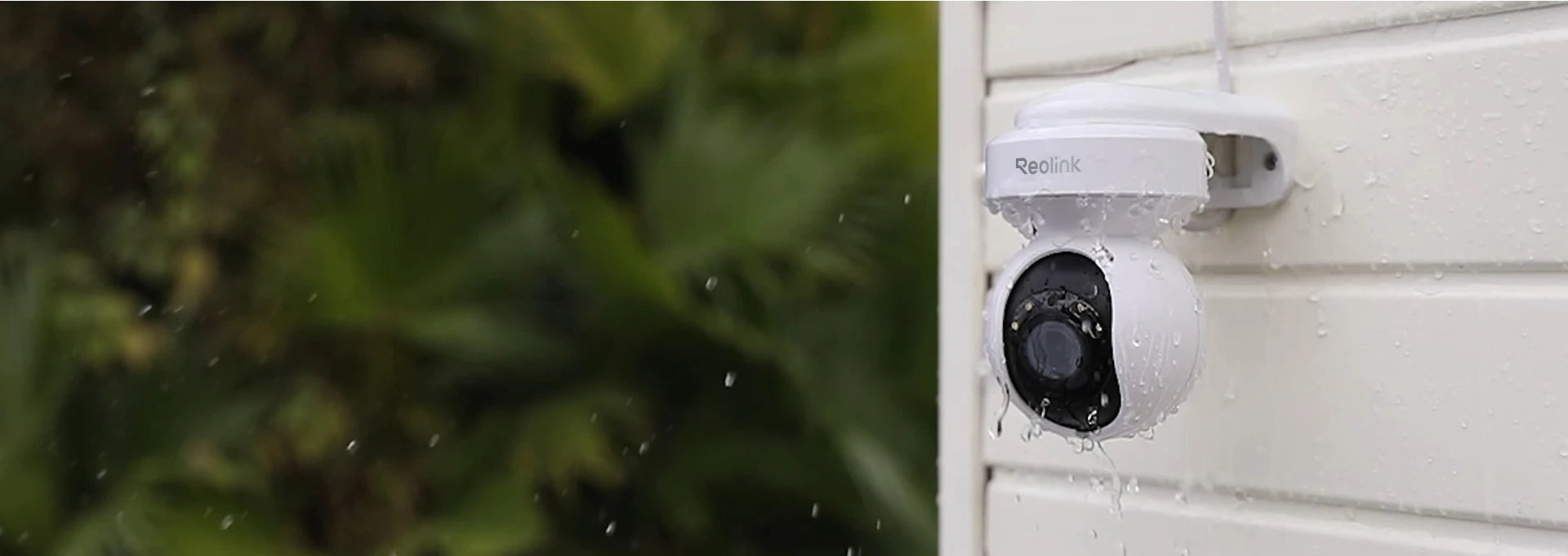

Waterproof:
IP64

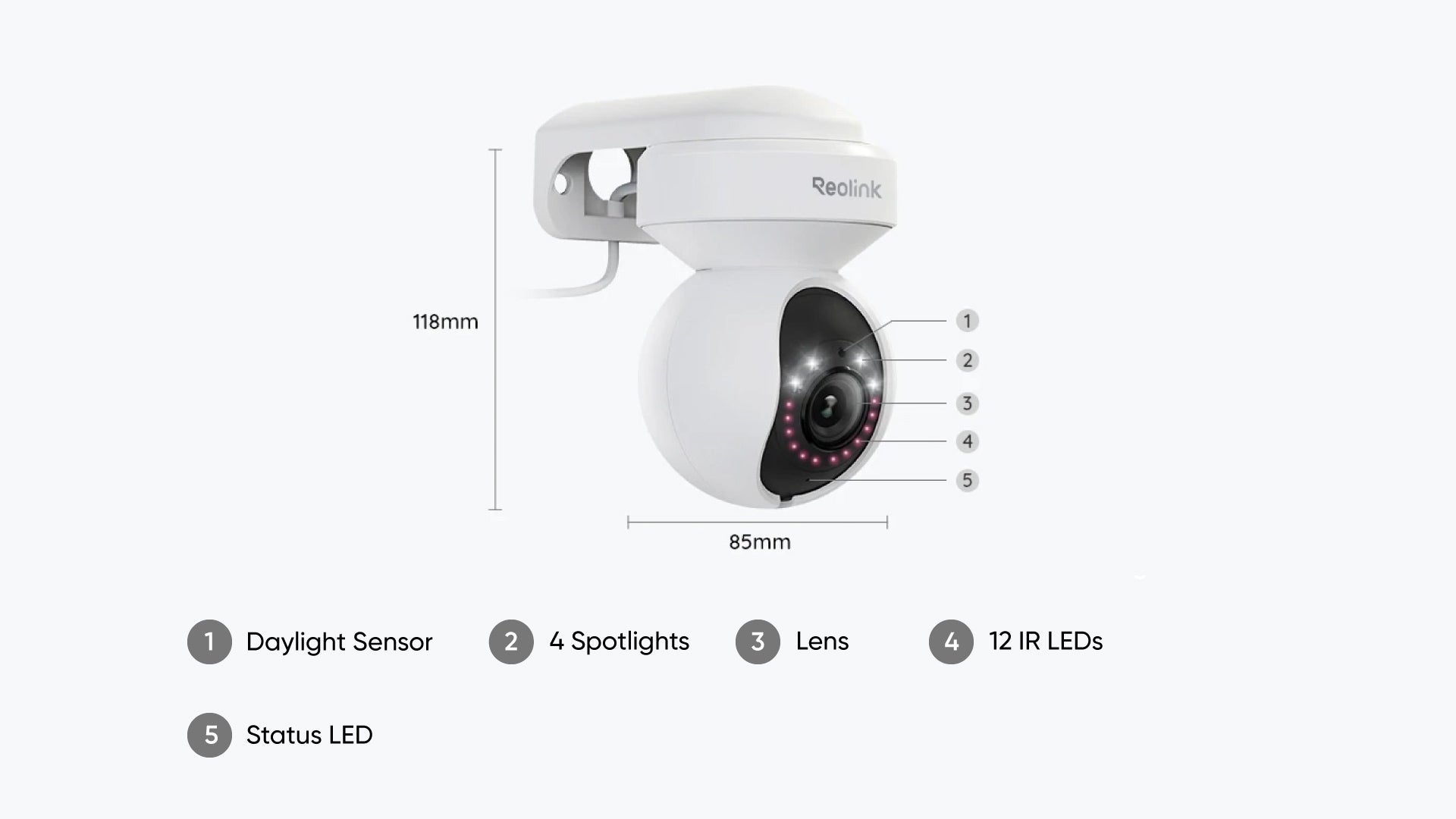

Size & Weight

Dimension:
Φ85x118mm

Weight:
395g

Warranty

2-year limited warranty
