  3. Reolink NVS16-NHD: Your High-Capacity 16-Channel PoE NVR
By Reolink

Reolink NVS16-NHD: Your High-Capacity 16-Channel PoE NVR

  • Support up to 16MP
  • Power over Ethernet
  • 16-Channel
  • No HDD (Support up to 16TB)
$329.00
$459.00 $329.00
Save 28%
Tax included. Shipping calculated at checkout.
Availability: In stock
SKU: PN-16-NHD
Reolink NVS16-NHD: Your High-Capacity 16-Channel PoE NVR - Reolinkstore
$329.00
$459.00 $329.00

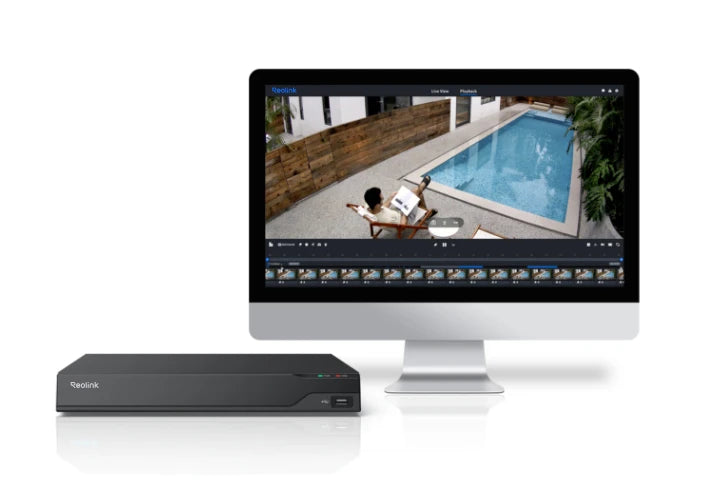

24/7 Continuous Recording

If you want 24/7 video recording or if you have multiple IP cameras to manage, this Reolink NVR is your best choice.

●Pre-installed 4TB HDD for 24/7 recording and monitoring.
●Support all cameras recording at the same time (up to 16 cameras).
●The motion detection recording function will trigger recording only when motion is detected. It’s much flexible and helpful for longer recording.

Pre-installed - 4TB Seagate HDD
Up to 16 Cameras

Customize Your Own Security Camera System

It supports all Reolink 16MP, 12MP, 8MP, 5MP or 4MP IP cameras. You can choose up to 16 cameras (not included) to work with this NVR & build your own video surveillance system.

* Reolink NVRs are designed for Reolink security cameras ONLY.

  • IP66 Certified Weatherproof

  • With Audio (Mic) (Optional)

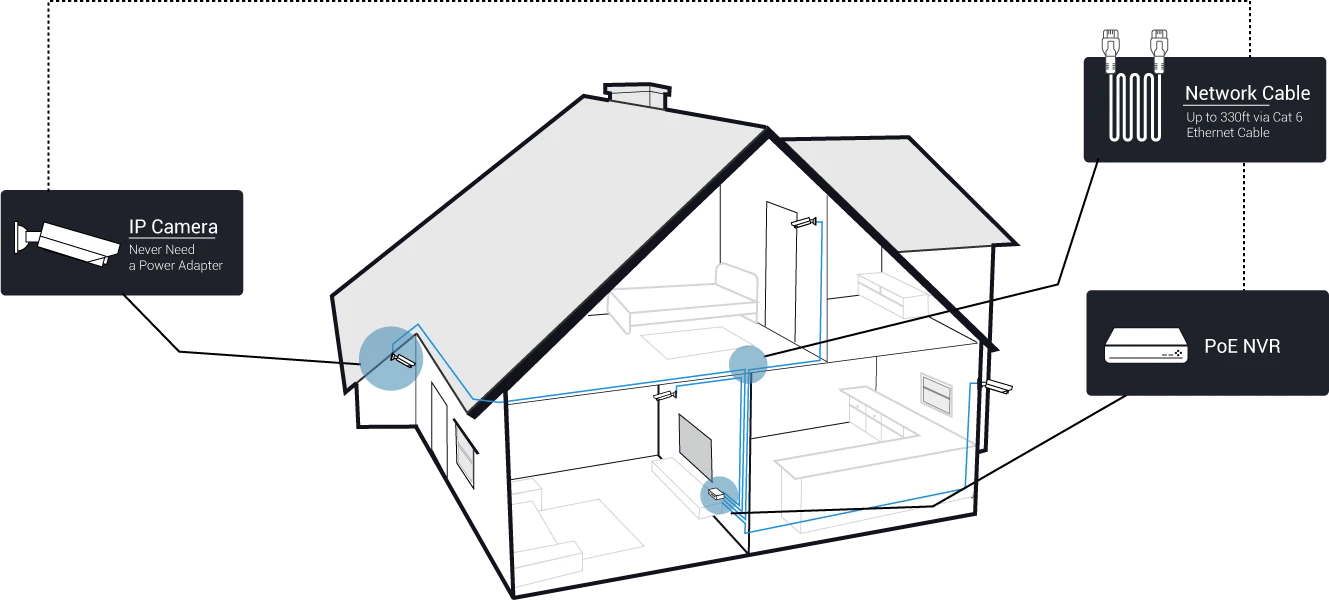

PoE — Easy Setup & Real Plug and Play

A real plug and play network video recorder! It features PoE (Power over Ethernet), with a single network cable connecting each of your IP cameras to the NVR for both power supply and video signal transmission. Easy wiring – the wiring process can’t be simpler for DIY enthusiasts.

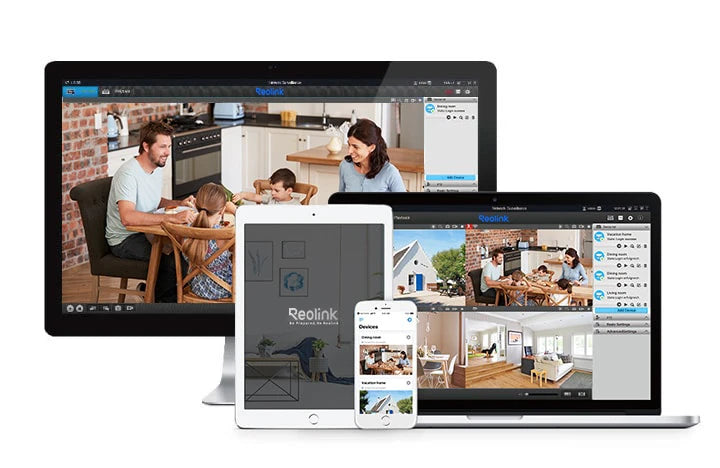

Local and Remote Access & Control

For local access and control
Connect the system to a monitor or an HD TV.
For remote access and control
Use free Reolink App on a mobile device, Reolink Client on a computer or via web browsers.

Download on
- Apple App Store
- Google Play Store
- macOs
- Windows

Specifications

Download PDF File

NVS16

Hardware

Hardware:
4TB HDD: N6MB01

Video/Audio Input

IP Video Input:
PoE IP camera x 16

Audio Input:
Cameras with built-in mic

Video/Audio Output

Video Output:
VGA, HDMI

Display Resolution:
• HDMI: 3840*2160, 1920*1080, 1280*1024, 1280*720, 1024*768

• VGA: 1920*1080, 1280*1024, 1280*720, 1024*768

Audio output:
1-channel, RCA

Decoding

Live View / Playback Resolution:
7680×2160, 4608×1728, 4512×2512, 4096×3072, 3840×2160, 2560×2560, 2560×1920, 2560×1440, 2048×1536, 2304×1296, 1080p, 720p

Video Format:
H.265, H.264

Synchronous Playback:
Up to 4 channels

HDD

SATA:
2 x SATA interface (1 x 4TB HDD included)

Capacity:
Up to 12TB (max. 6TB capacity for each HDD)

External HDD:
No

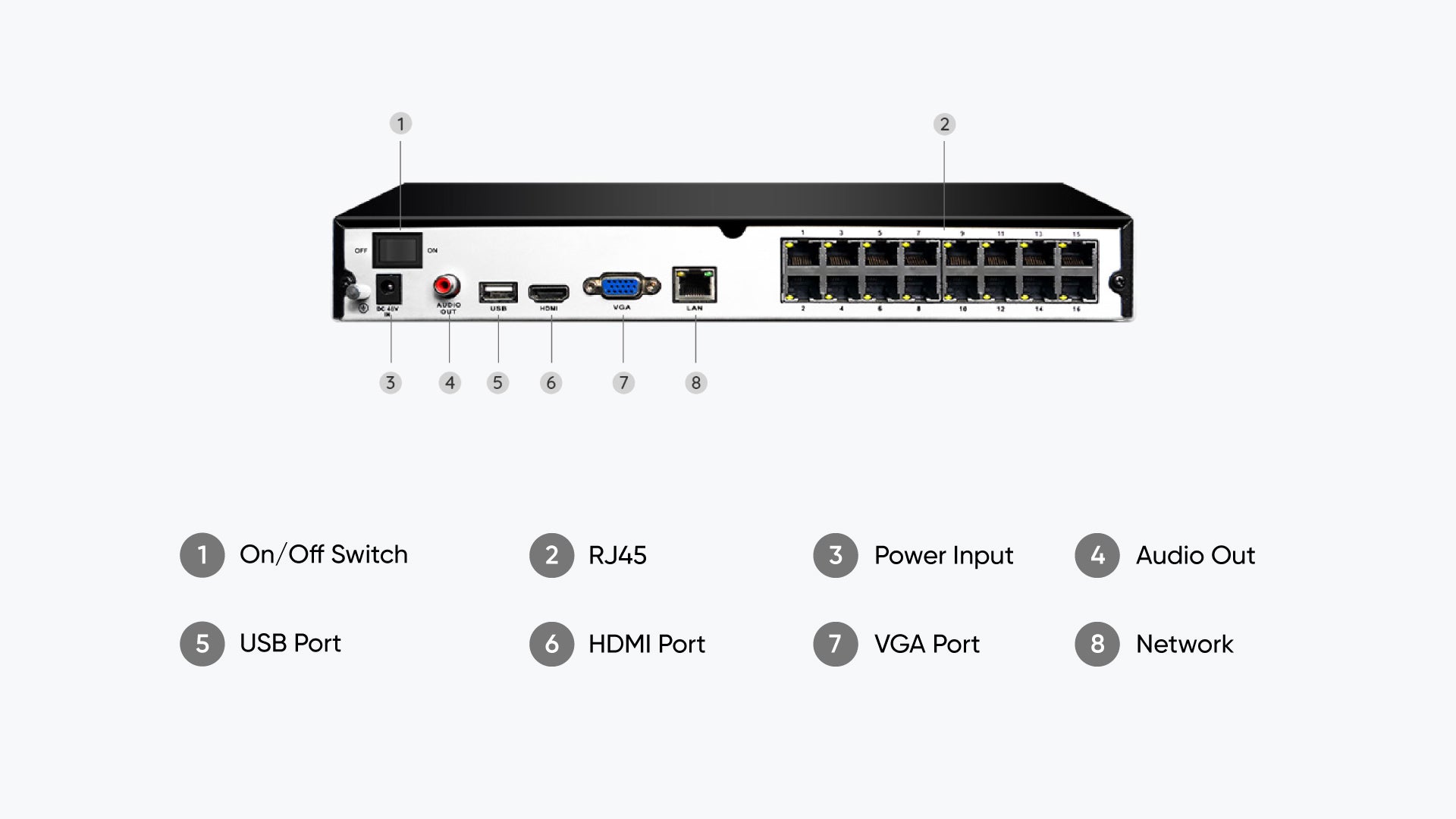

External Interface

USB Interface:
2 x USB 2.0

Network Interface:
• 1, RJ-45 10/1000 Mbps self-adaptive Ethernet interface for LAN/WAN

• 16, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera

PoE

Max. Power Per Port:
25W

Supported Standard:
IEEE 802.3 af/at

Network

Network Protocol:
HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS,
DDNS, NTP, FTP

Browser Supported:
Firefox, Chrome, Edge, Safari

OS Supported:
PC: Windows, Mac OS; smartphone: iOS, Android

Max. User Access:
20 users (1 admin account & 19 user accounts); up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

General

Power Supply:
DC 48V~54V

Power Consumption:
<10W (without HDD & PoE)

Working Environment:
Temperature: -10°C~+45°C (14°F~113°F); humidity: 10%~90%

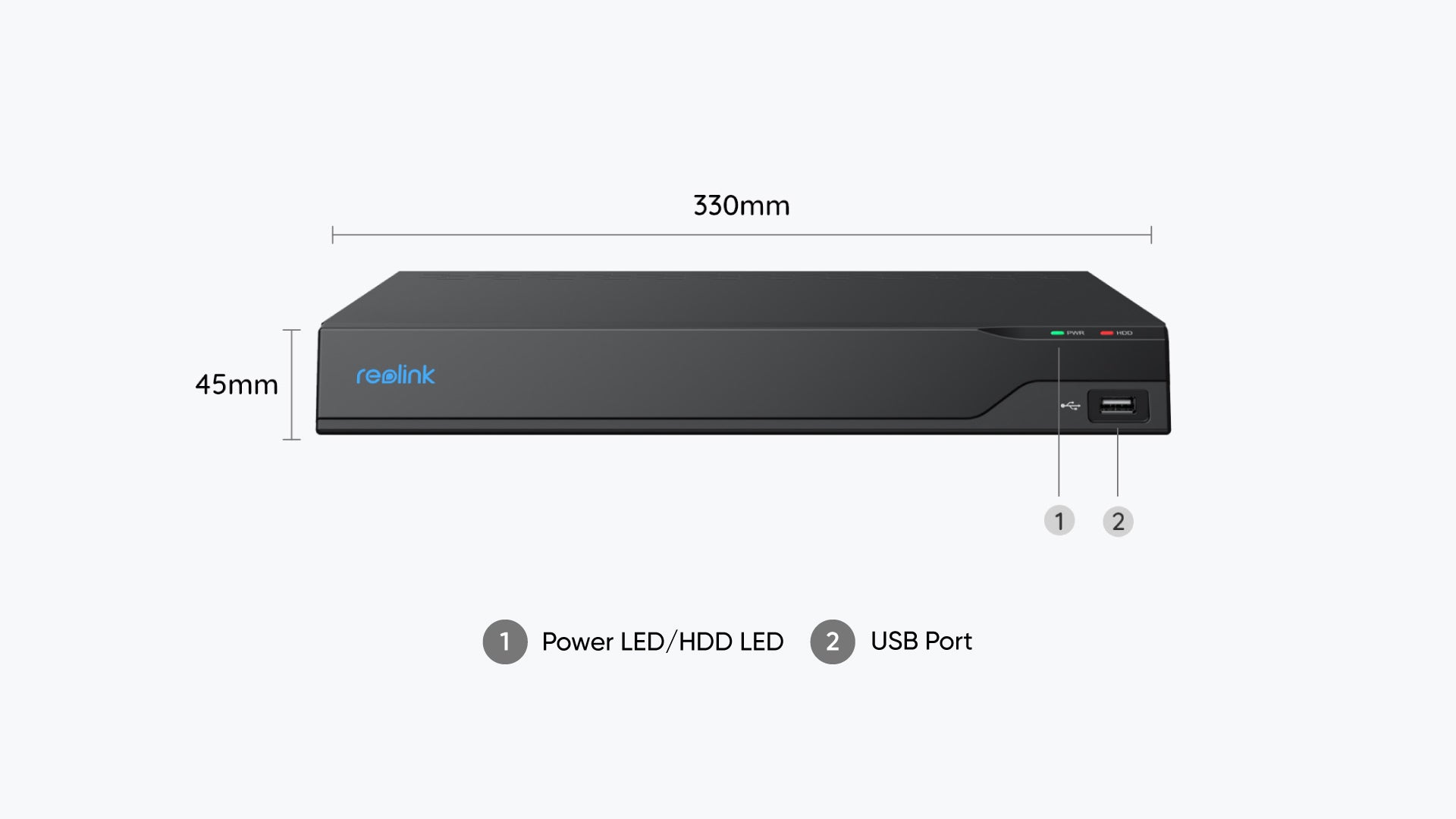

Dimensions:
330 x 45 x 285mm

Weight:
2.4kg

Warranty

2-year limited warranty
