Reolink NVS8-5MD4 : 5MP HD 8-Channel PoE Surveillance System with Smart Detection

  • Smart Detection (Person/Vehicle)
  • With 8-Channel NVR
  • Dome type cameras
  • 2TB HDD Built-in (upgradable to 16TB)

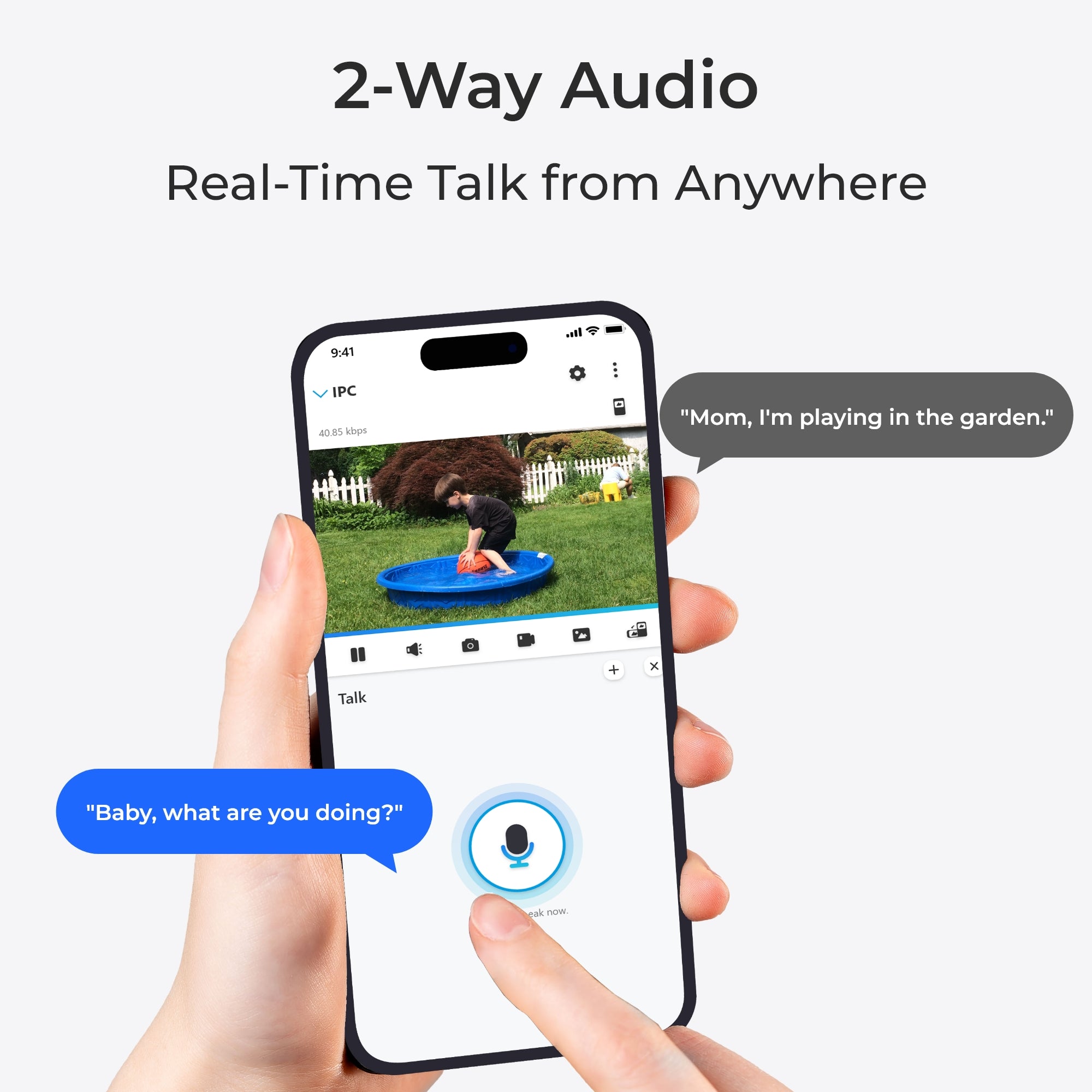

  • Audio Recording (Two-way audio)
  • No subscription needed

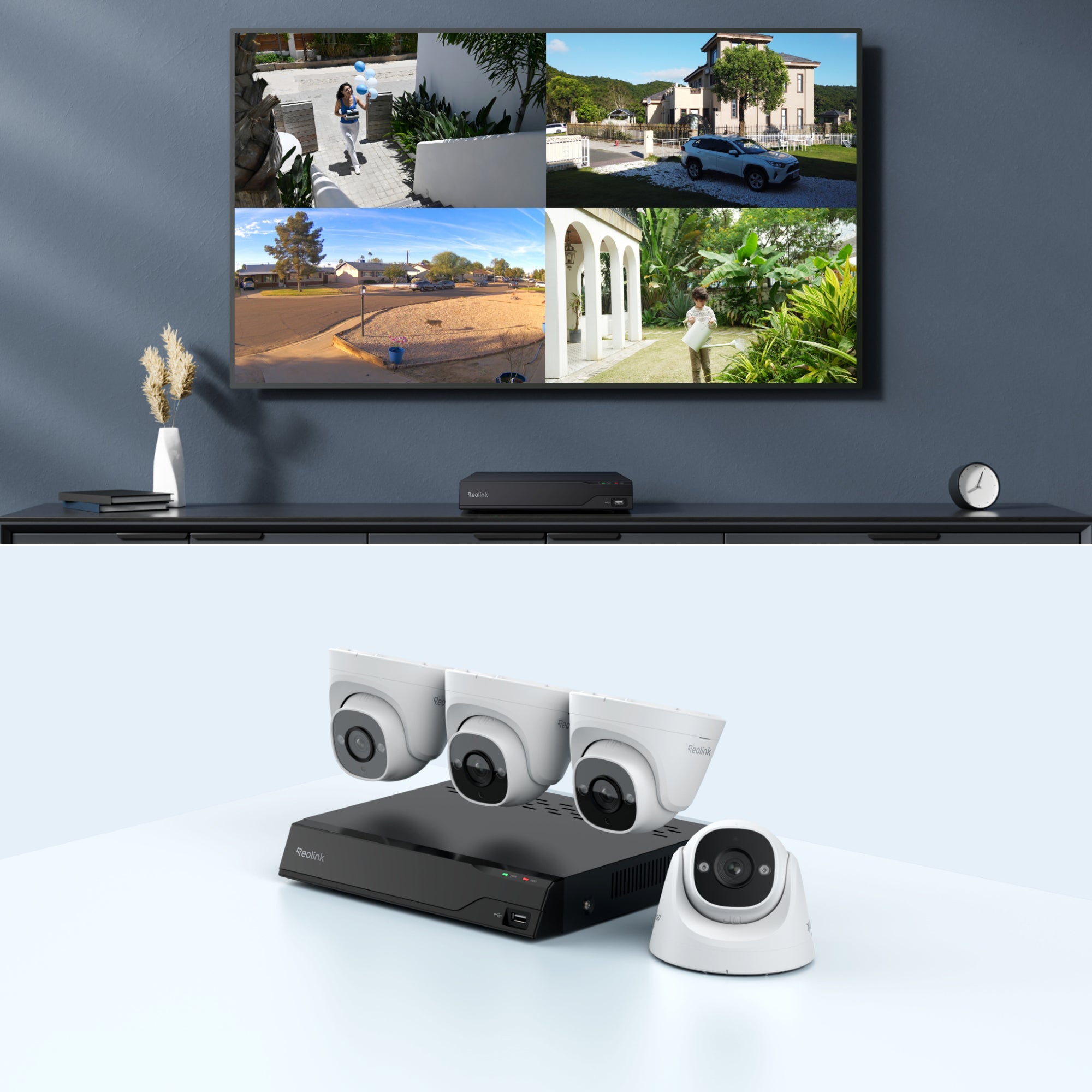

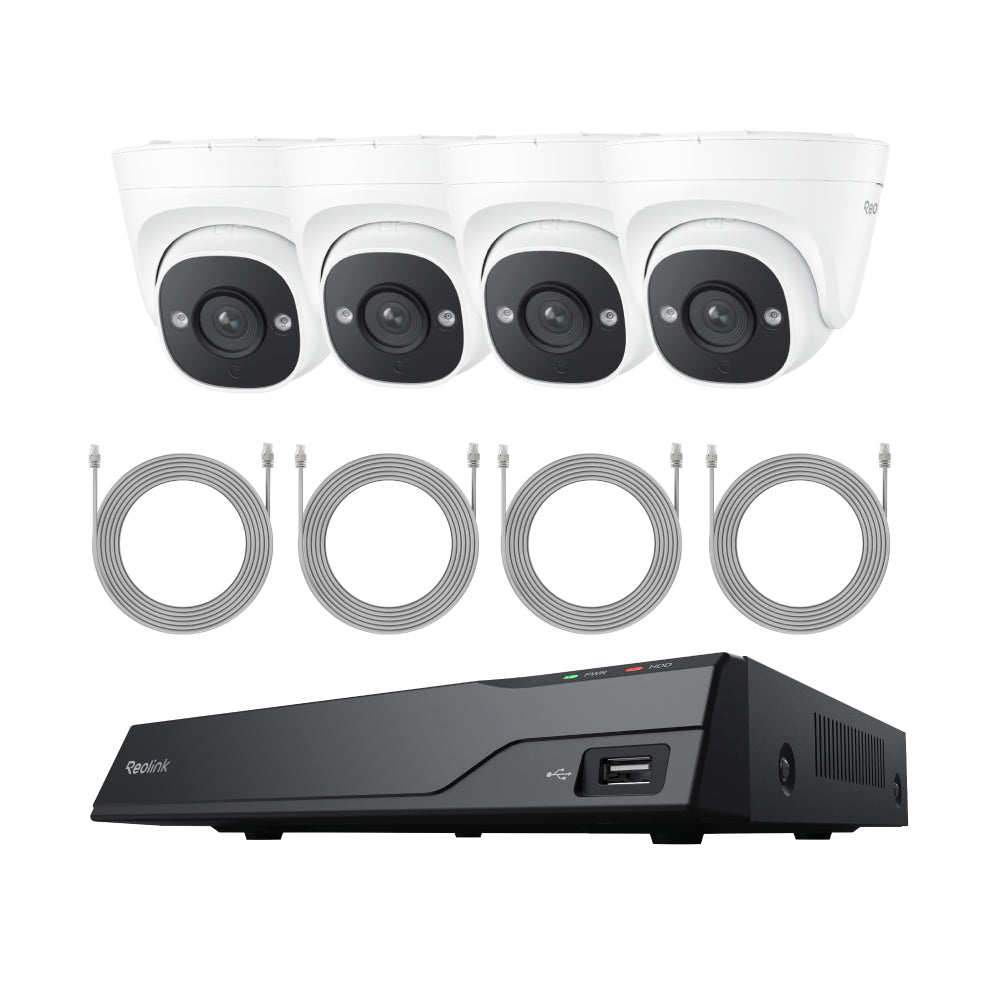

This bundle consist of the following items:

  • 1x NVS8-NHD: 8-Channel PoE NVR (2TB) Learn More
  • 4x P324 Smart 5MP PoE Security Camera Learn More
  • 4x 18m network cable kit
Regular price $549.99
Regular price Sale price $549.99
Tax included. Shipping calculated at checkout.
Availability: In stock
SKU: PS2KD02-8
Regular price $549.99
Regular price Sale price $549.99

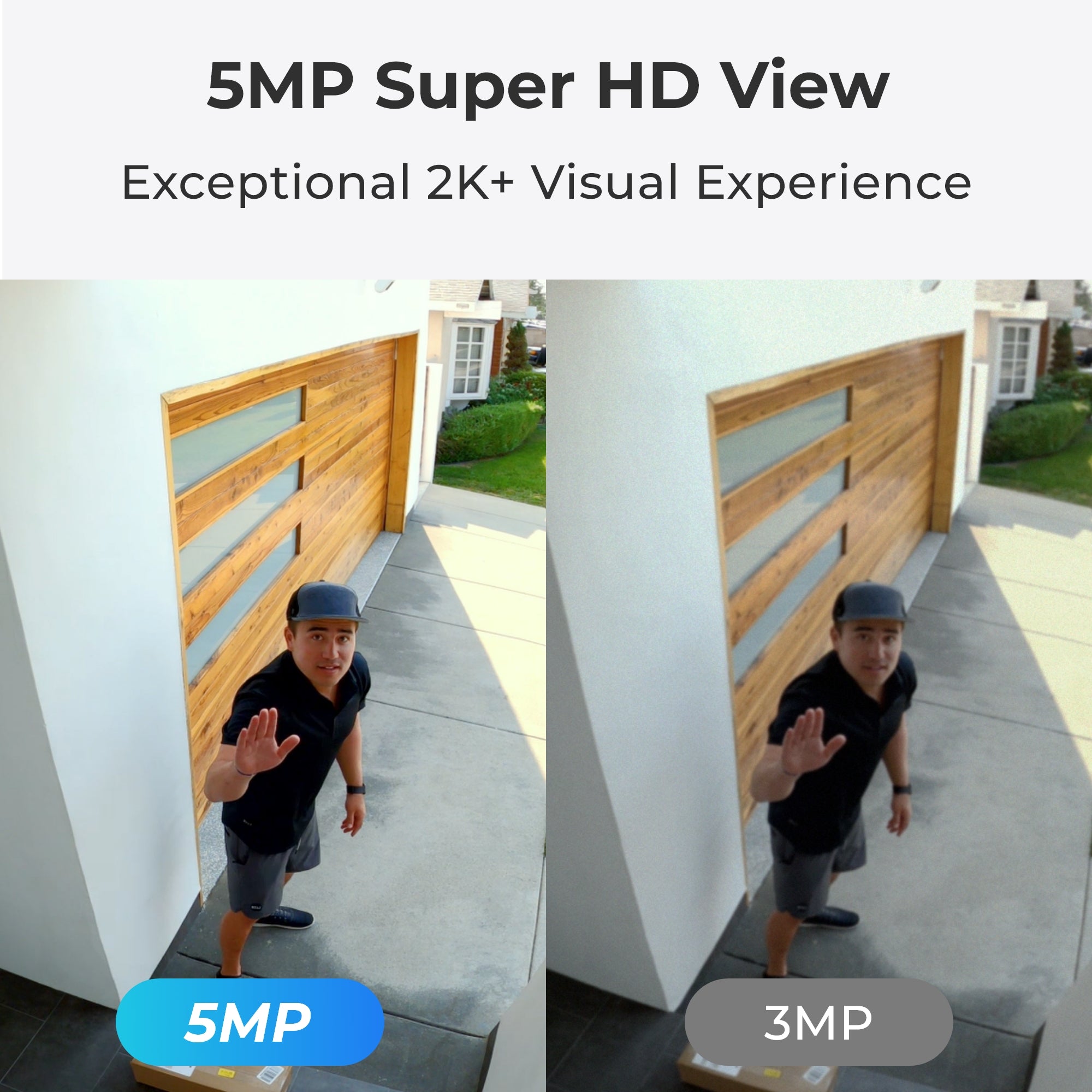

More Than 5MP Super HD

Boasting a high resolution of 2560x1920, the 5MP security cameras in the kit capture clear and sharp images. You can get buttery-smooth videos without any freezing or jerky footage.

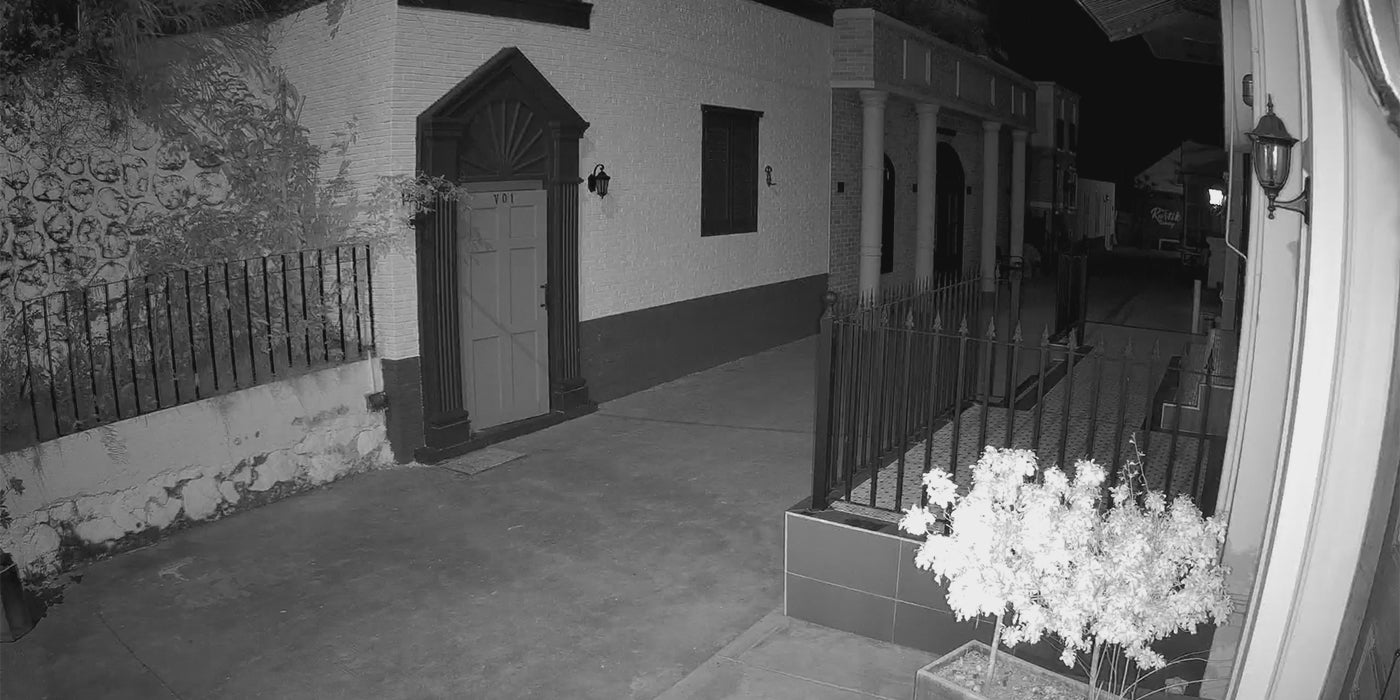

Keep Guard at Night

To protect your home and business 24 hours a day, this system features 18 infrared LEDs in each camera to capture videos clearly in the dark with a range of up to 100ft.

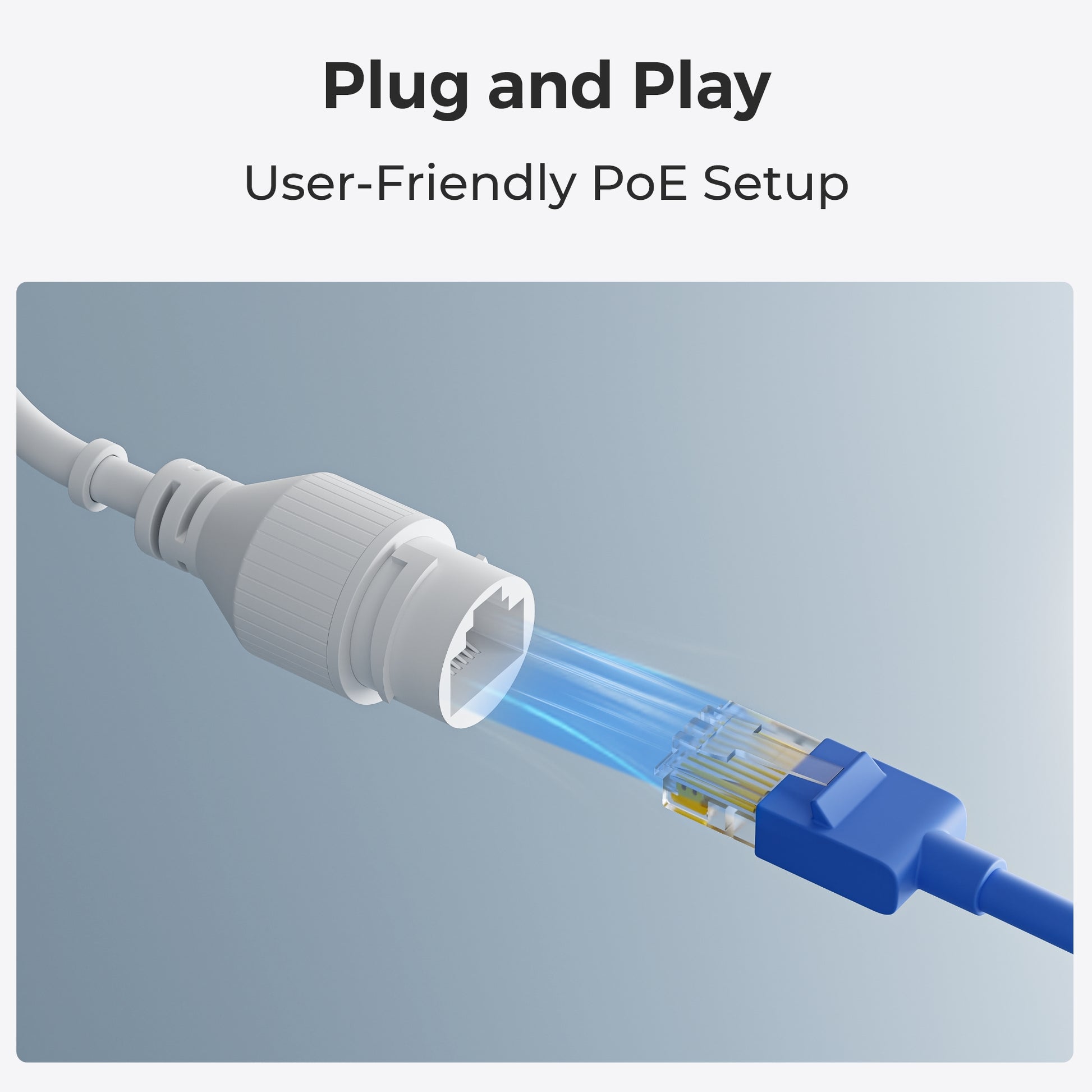

Hassle-Free Setup:
Plug and Play PoE

Experience the convenience of plug-and-play installation with our PoE (Power over Ethernet) system. No need for separate power cables for each camera.

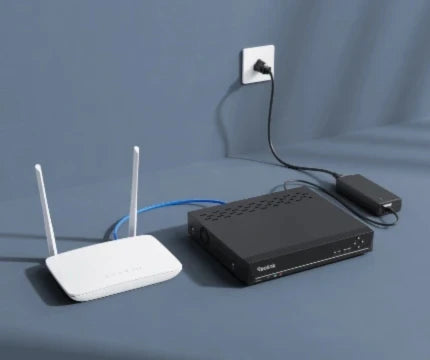

  • Step 1. Card heading

    Connect the NVR to a power source and then to your router.

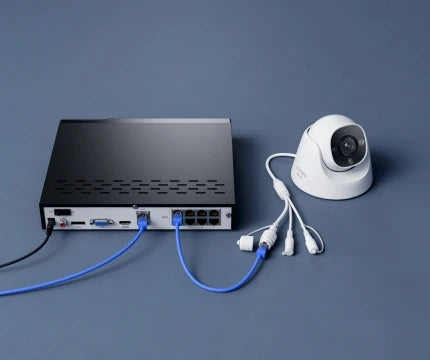

  • Step 2. Set up the Cams

    Use an Ethernet cable to connect each PoE camera directly to the NVR.

  • Step 3. Scan & Live View

    Scan the NVR's QR code using the Reolink App and view your live camera feeds.

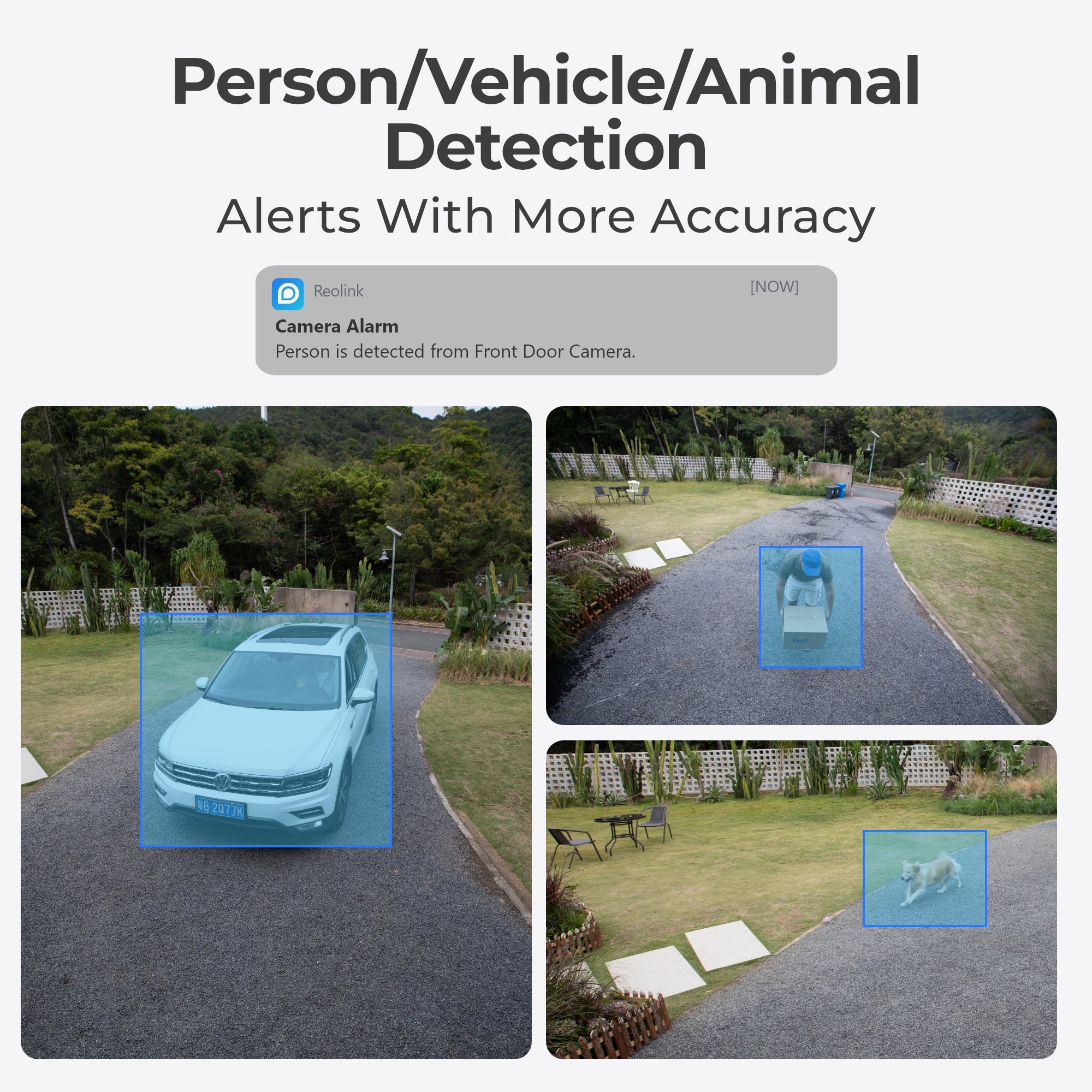

Smart Detection for Peace of Mind

Experience fewer false alarms with our intelligent detection system. Accurately distinguish between people, vehicles, and animals, ensuring you only receive relevant alerts. Get instant push notifications directly to your phone, keeping you informed and in control, all without any monthly fees.

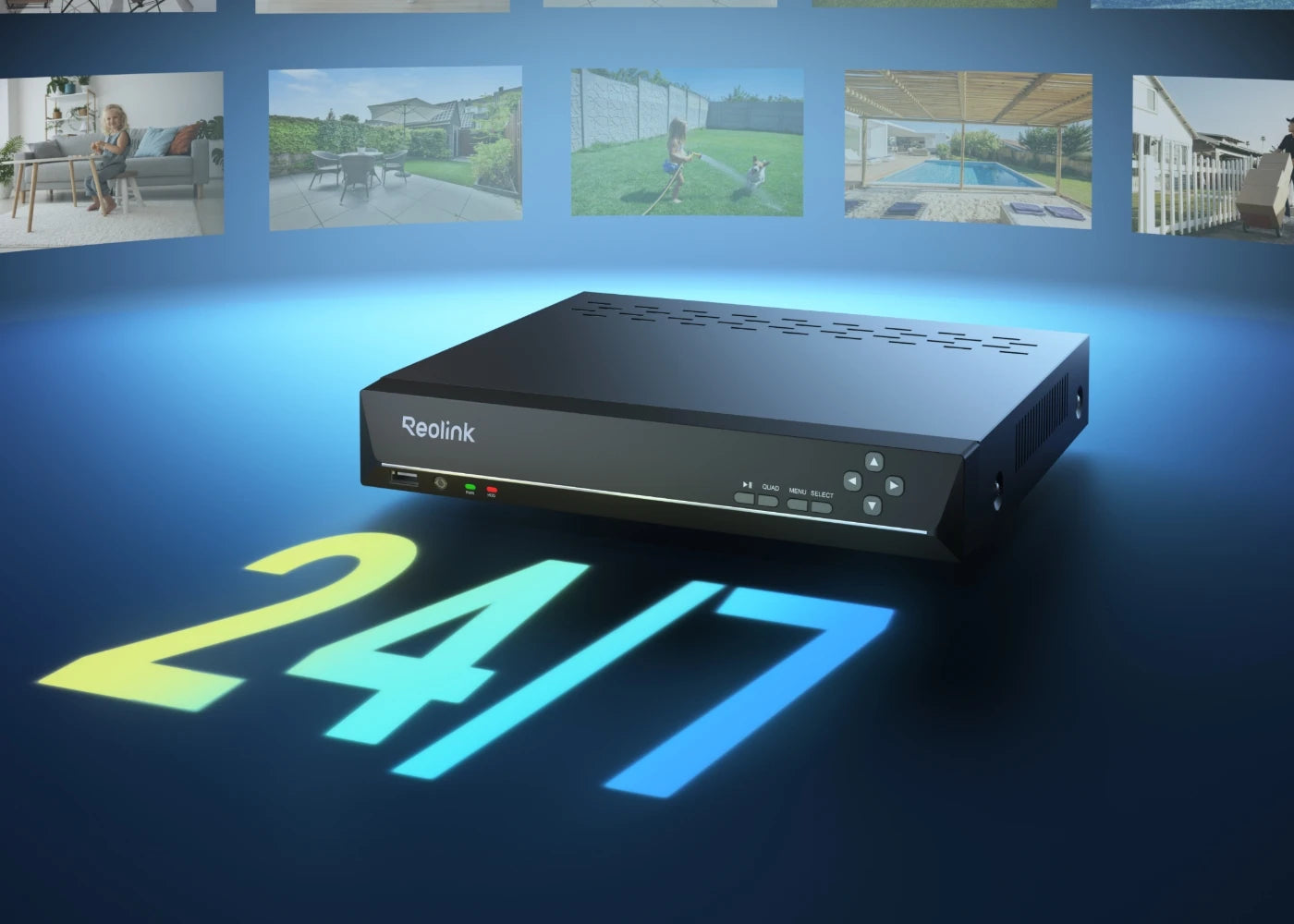

24/7 Recording for Uninterrupted Security

Your security never sleeps, and neither does your camera system. With a pre-installed 2TB hard drive, you can store footage from all four cameras, ensuring continuous recording around the clock. Need more space? Expand your storage capacity up to 16TB for even longer recording periods. True peace of mind, all with offline 24/7 recording.

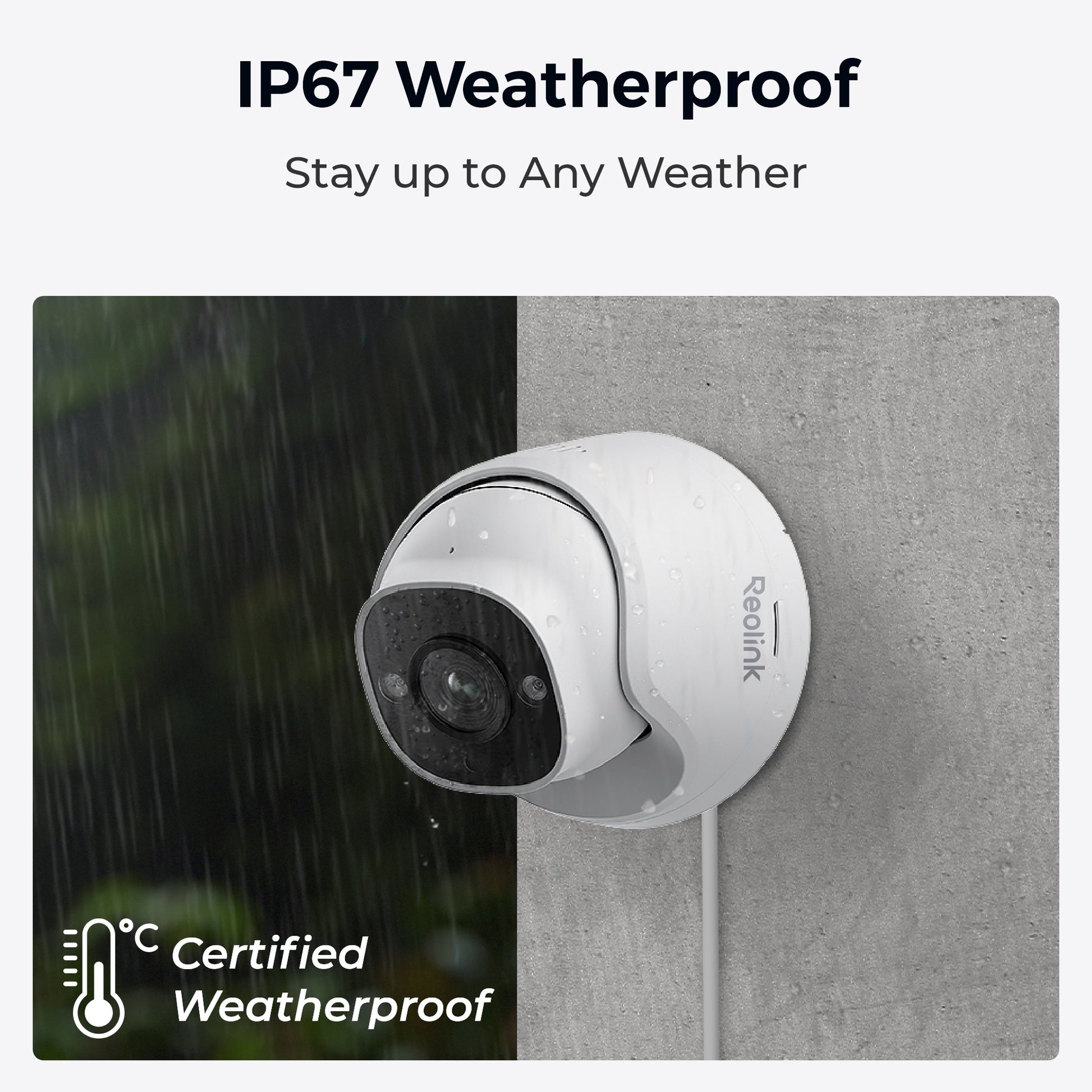

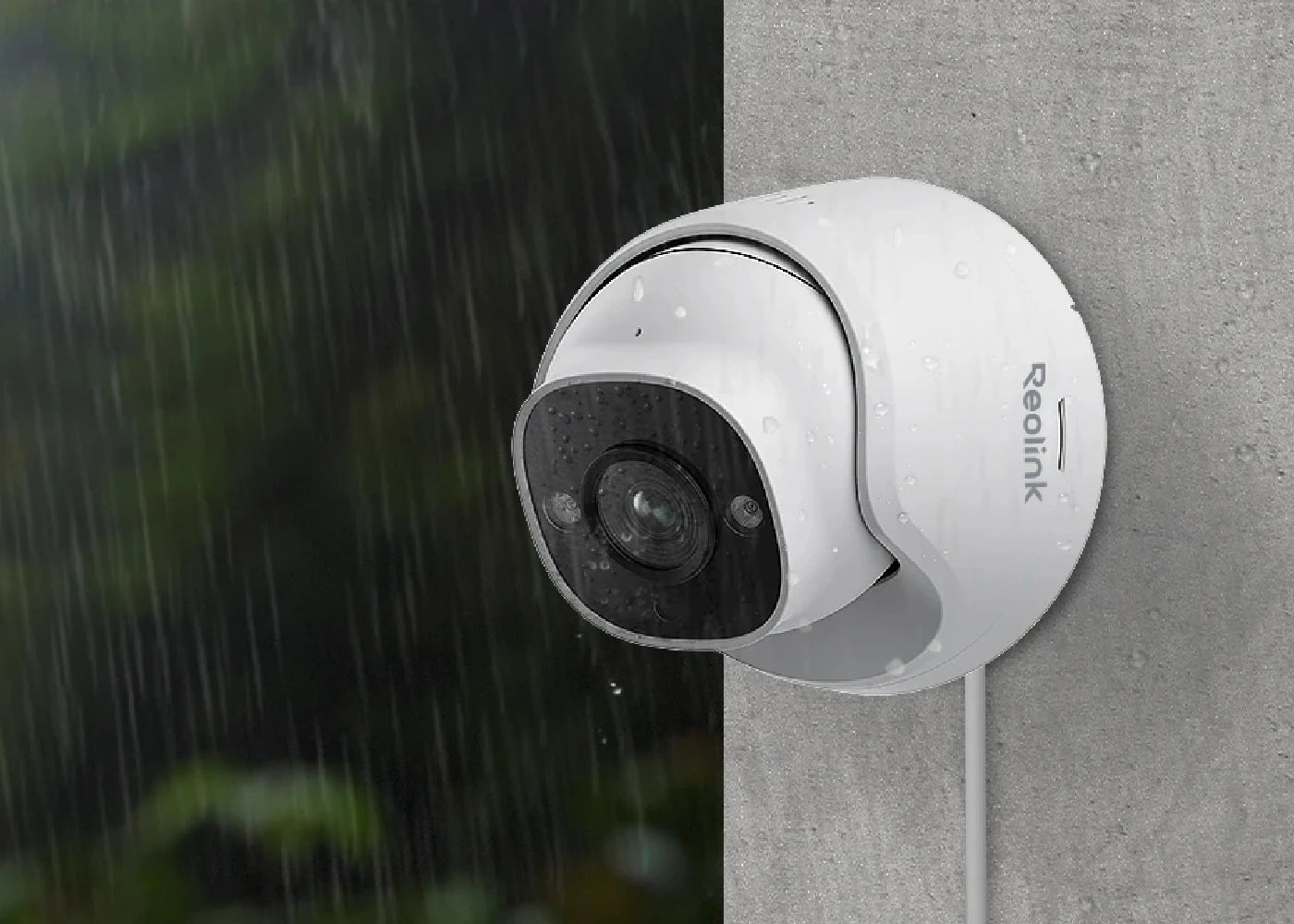

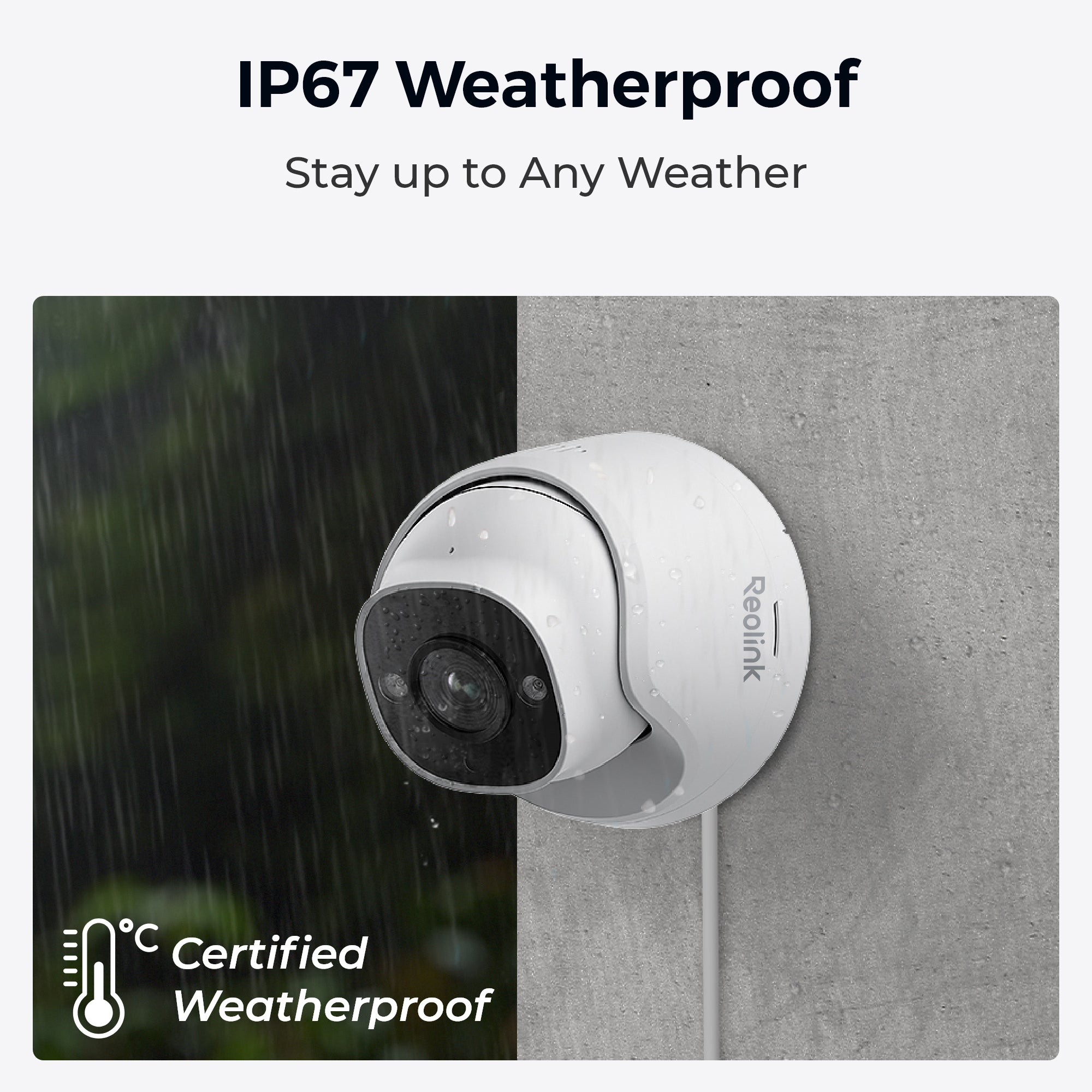

Weatherproof Reliability with IP67 Rating

Rain or shine, your security remains uncompromised. With an IP67 weatherproof rating, these cameras are built to withstand the elements, making them suitable for both indoor and outdoor use. Install them confidently knowing they'll continue to protect your property, no matter the weather conditions.

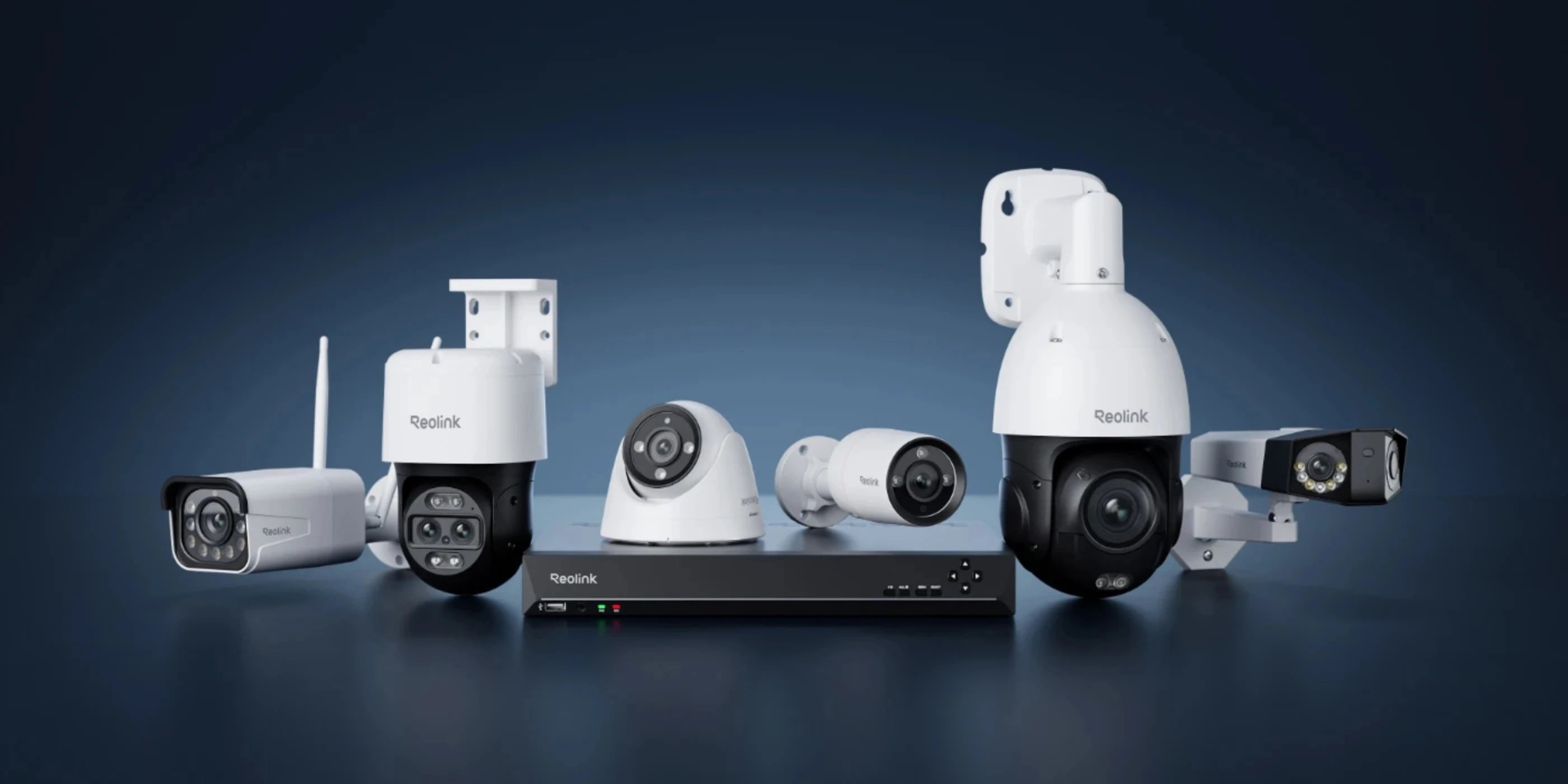

Expand Your System with Reolink Compatibility

Your security needs are unique, and your system should be too. This system offers exceptional expandability, seamlessly integrating with a wide range of Reolink cameras. Choose from various resolutions and styles, including PoE cameras for wired connections and Wi-Fi cameras for flexible placement.

Stay Connected and in Control


  • Real-Time Alerts

    Receive instant push notifications and email alerts whenever motion is detected, ensuring you're always aware of what's happening.

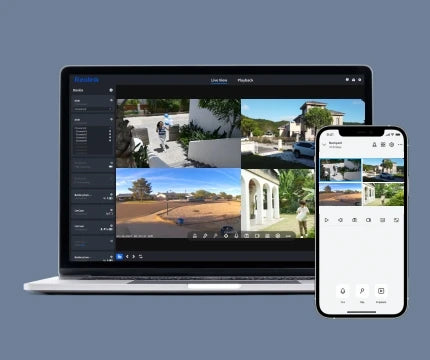

  • Easy Live View

    Monitor multiple cameras simultaneously on a single screen, giving you a comprehensive view of your surroundings.

  • Smart Playback

    Filter recordings by type (motion, person, vehicle, animal) to save time and easily locate specific events.

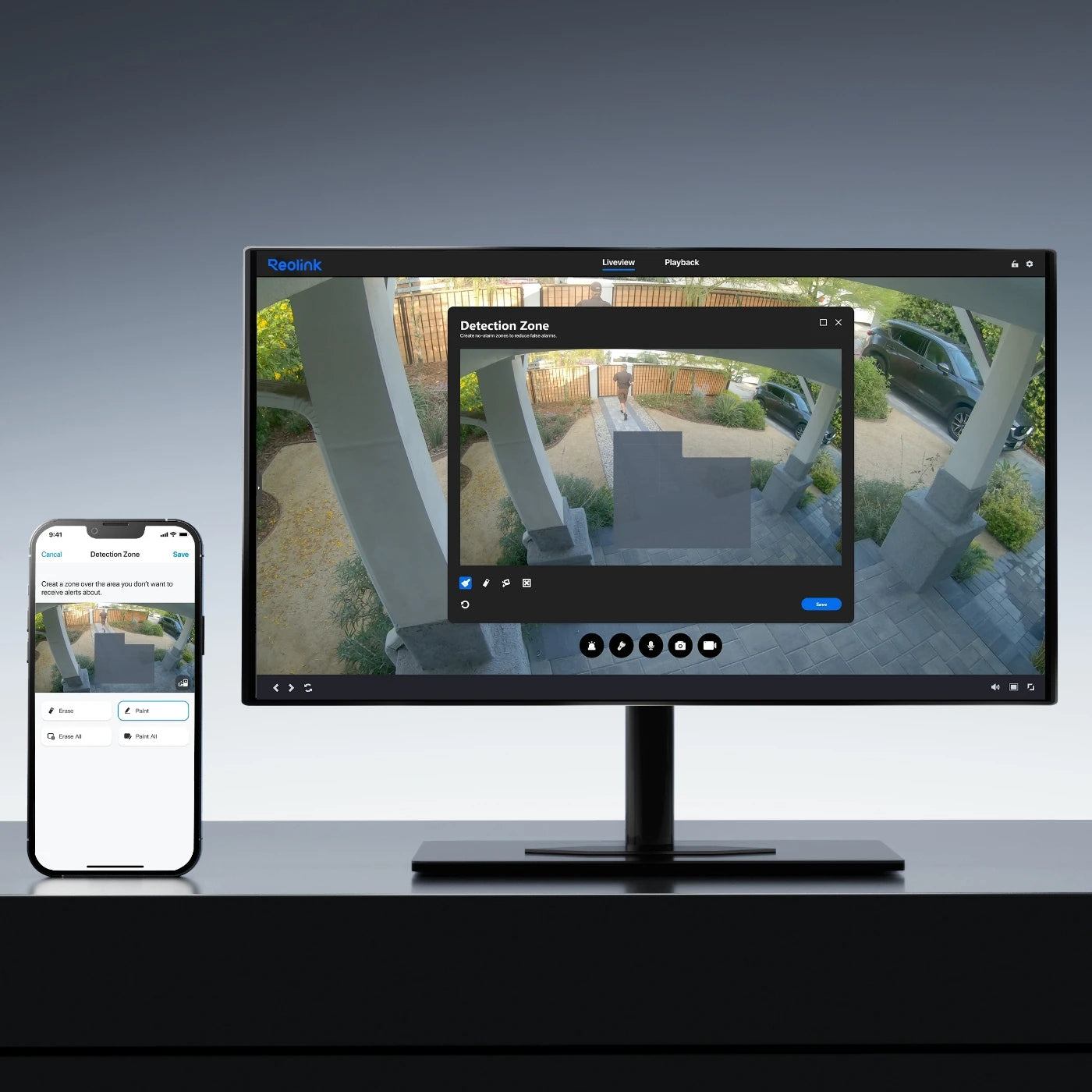

  • Customizable Detection Zones

    Tailor your motion detection to focus on specific areas of interest, ensuring you only receive alerts when it matters most.

Specifications

NVS8

Download as PDF File

Hardware

Hardware: N7MB01

Video/Audio Input

IP Video Input:
Up to 12 IP cameras (max.8 wired cameras)

Audio Input:
Cameras with built-in mic

Video/Audio Output

Video Output:
VGA, HDMI

Display Resolution:
HDMI: 3840*2160, 1920*1080, 1280*1024, 1280*720, 1024*768;

VGA: 1920*1080, 1280*1024, 1280*720, 1024*768

Audio Output:
1-channel, RCA

Decoding

Live View/Playback Resolution:
7680×2160, 4608×1728, 4512×2512, 4096×3072, 3840×2160, 2560×2560, 2560×1920, 2560×1440, 2048×1536, 2304×1296, 1080p, 720p

Video Format:
H.265, H.264

Synchronous Playback:

Up to 4 channels

HDD

SATA:
1 x SATA interface (1 × 2TB HDD included)

Capacity:
Up to 16TB (max. 8TB capacity for each HDD)

External HDD:
1 eSATA interface for HDD

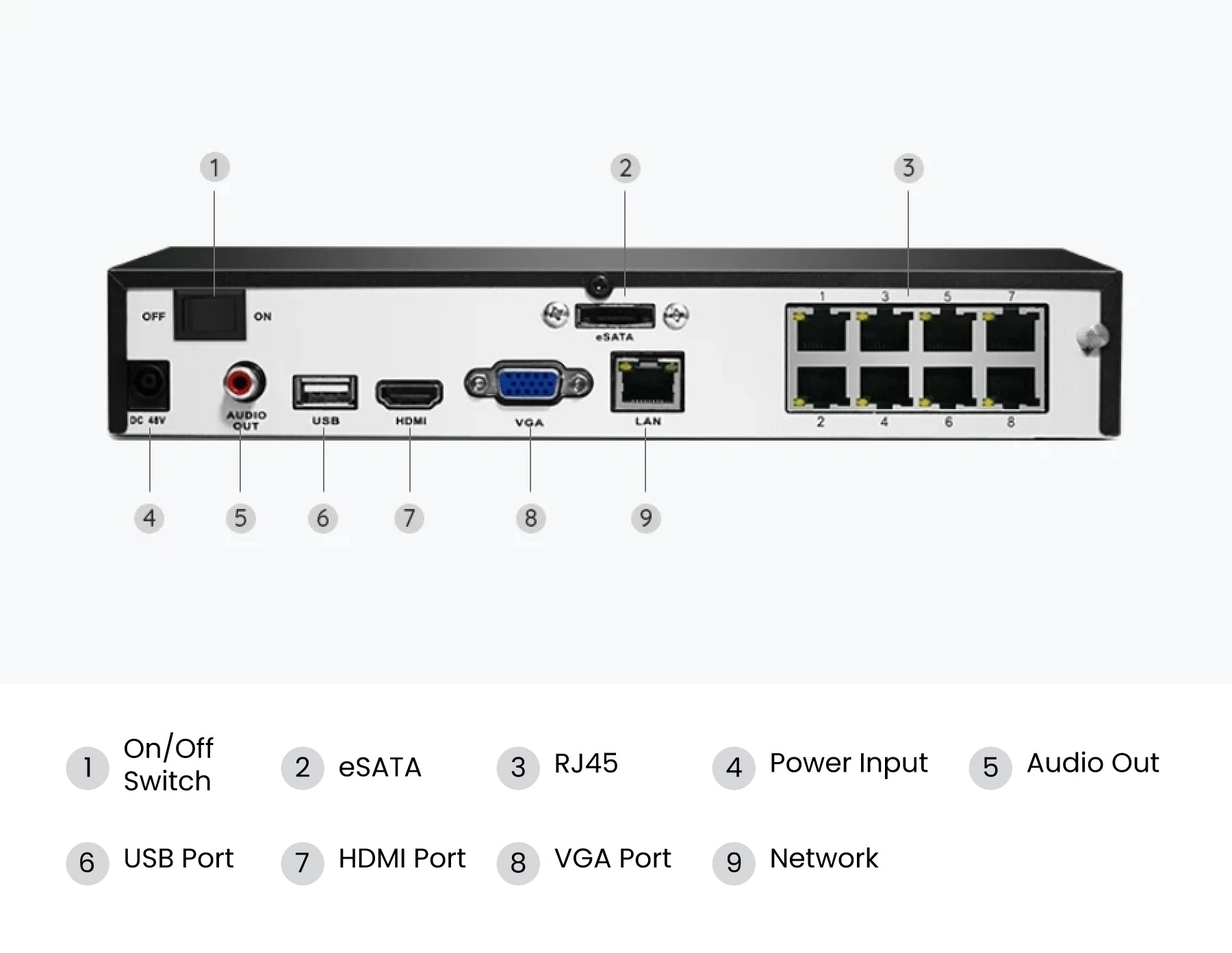

External Interface

USB Interface:
2 × USB 2.0

Network Interface:
1, RJ-45 10/100 Mbps self-adaptive Ethernet interface for LAN/WAN;8, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera

PoE

Max. Power Per Port:
25W

Supported Standard:

IEEE 802.3 af/at

Network

Network Protocols:
HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP

Browsers Supported:
Firefox, Chrome, Edge, Safari

OS Supported:
PC: Windows, Mac OS; Smartphone: iOS, Android

Max. User Access:
20 users (1 admin account & 19 user accounts); Up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

General

Power Supply:
DC 48V~53V

Power Consumption:
<10W (without HDD & PoE)

Working Environment:
Temperature: -10°C~+45°C (14°F~113°F); humidity: 10%~90%

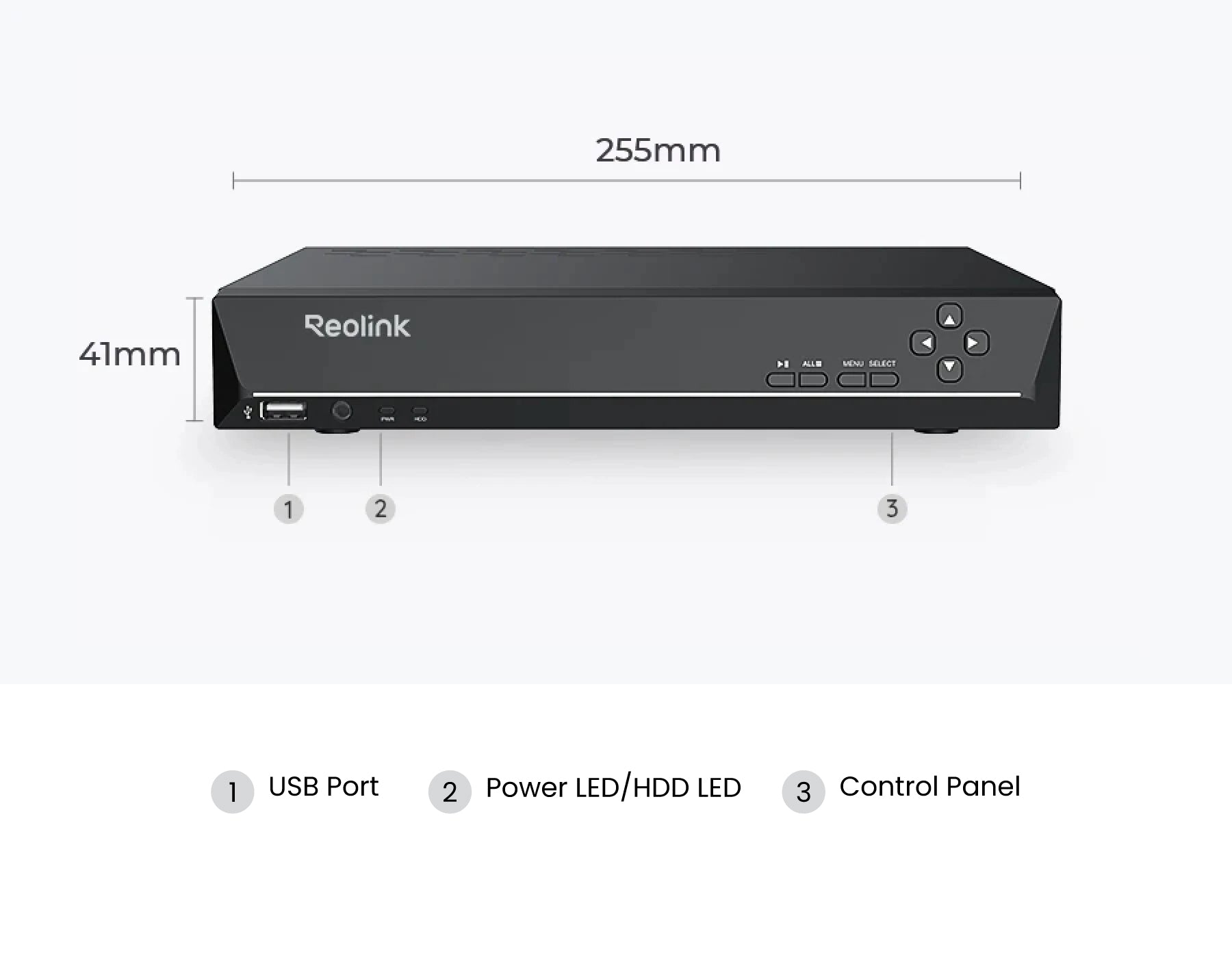

Dimensions:
260 x 41 x 230mm

Weight:
1.4kg

Warranty

Limited Warranty:
2-year limited warranty.

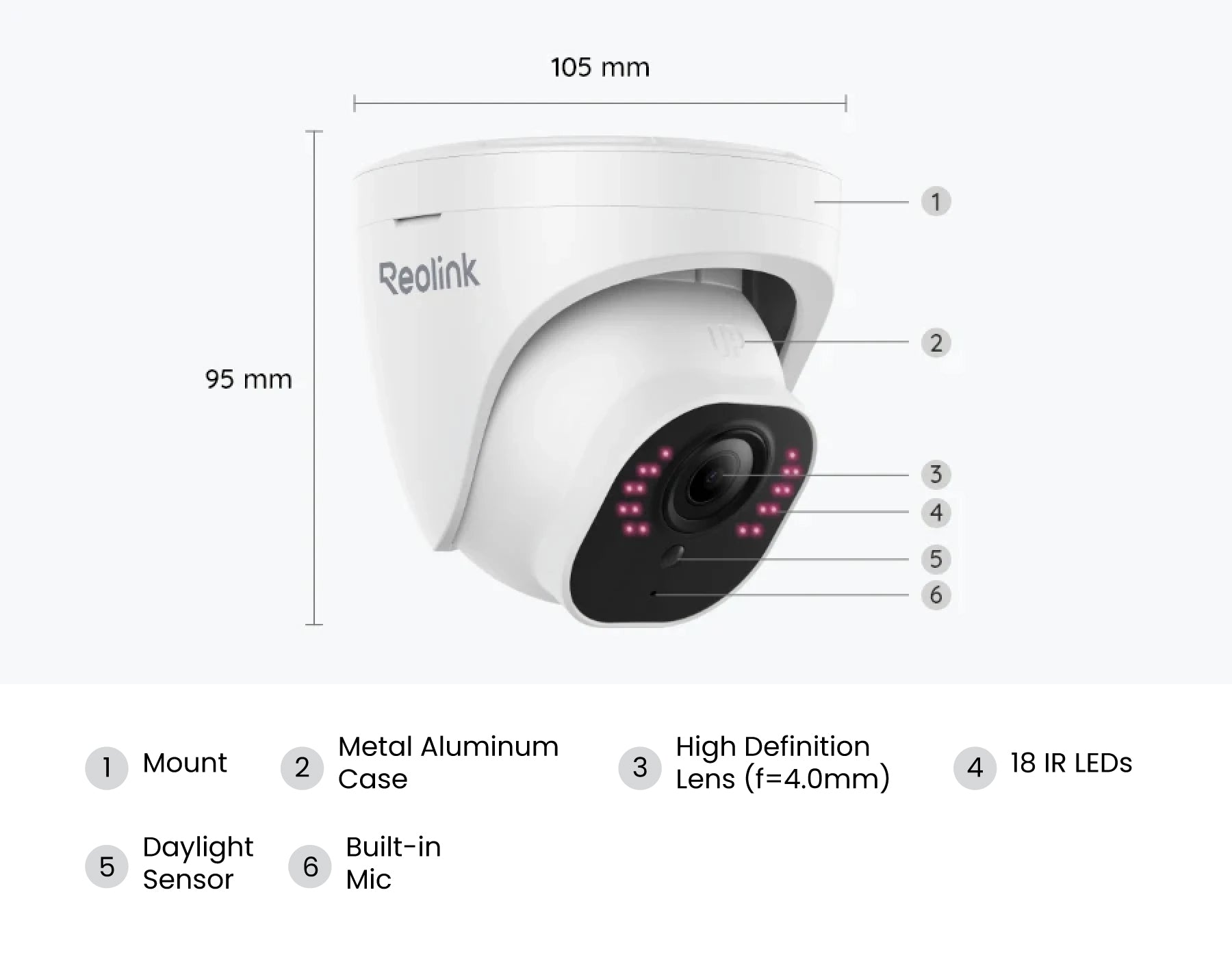

Specification

D500

Download as PDF File

Video & Audio

Image Sensor:
1/2.7" CMOS sensor

Video Resolution:
Default: 2560x1920 (5.0 Megapixels) at 30 frames/sec

Lens:
f=4.0mm fixed; F=2.0, with IR-cut filter

Video format:
H.264

Field of View:
Horizontal: 80°;Vertical: 42°

Day & Night:
Auto-switching with IR-cut filter

Infrared Night Vision:

30 meters (100ft) (LED: 18pcs/14mil/850nm)

Audio:
Audio recording

Power

PoE:
IEEE 802.3af, 48V Active

DC Power:
DC 12.0V⎓1A, <12W

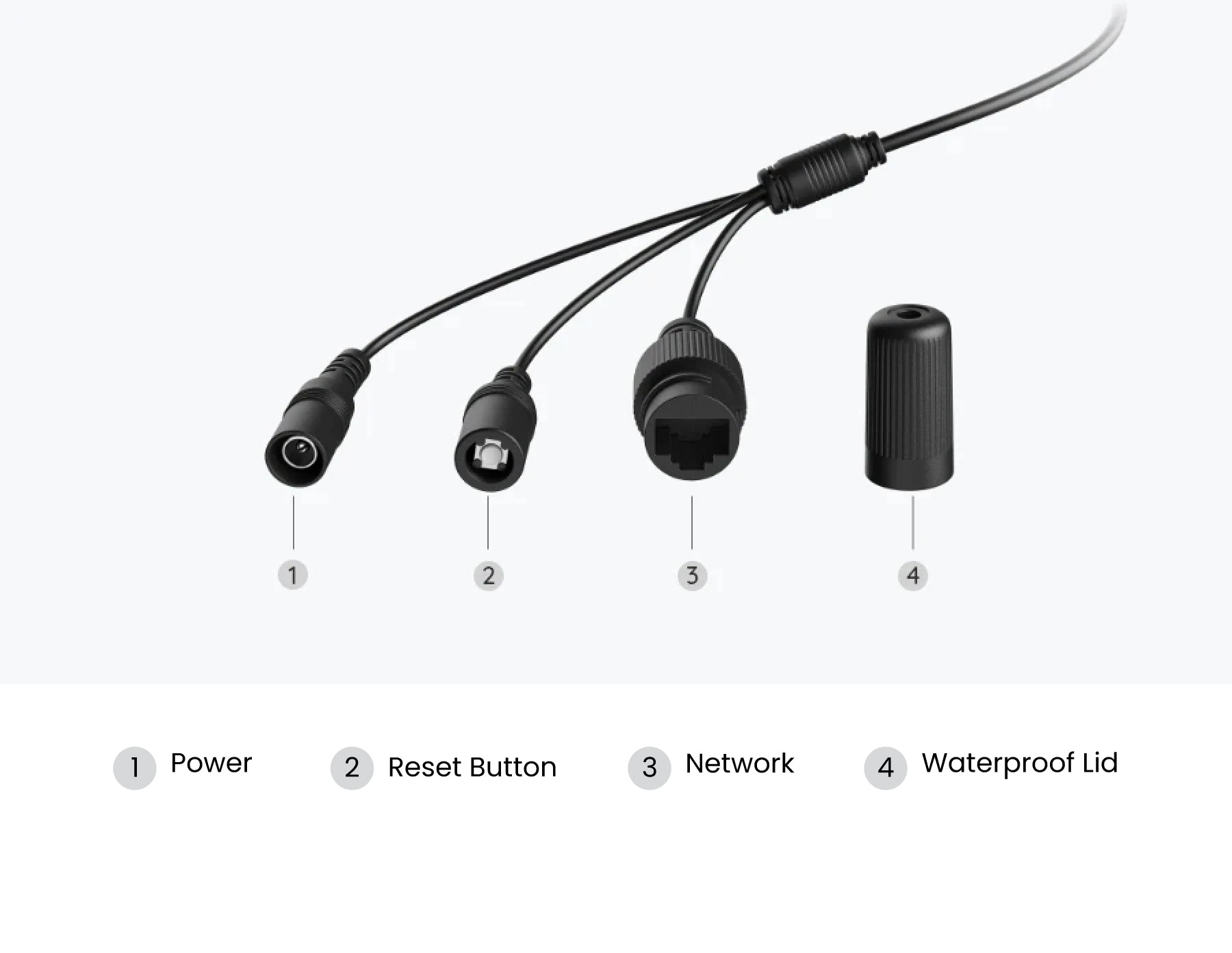

Interface

Power:
DC power port

System:

Reset button

Ethernet:
One 10M/100Mbps; RJ45

Audio:
Built-in microphone

Software Features

Frame Rate:
Mainstream: 2fps - 30fps (Default: 30fps);Substream: 4fps - 15fps (Default: 10fps)

Code Rate:
Mainstream: 1024Kbps - 8192Kbps (Default: 6144Kbps);Substream: 64Kbps - 512Kbps (default: 160Kbps)

Smart Alarm:
Motion detection; Person detection; Vehicle detection; Animal detection

Record Mode:

Motion-triggered recording (default); scheduled recording; 24/7 recording

Working Environment

Operating Temperature:
-10°C to +55°C  (14°F to 131°F)

Operating Humidity:
10% ~ 90%

Weatherproof:
IP67

Size & Weight

Dimension:
Φ67*186mm

Weight:
415g

Warranty

Limited Warranty:
2-year limited warranty.
