Reolink NVS8-5MB4 : Smart PoE NVR System with 4 5MP Cameras for 24/7 Recording

  • Smart Detection (Person/Vehicle)
  • With 8-Channel NVR
  • Bullet type cameras
  • 2TB HDD Built-in (upgradable to 16TB)

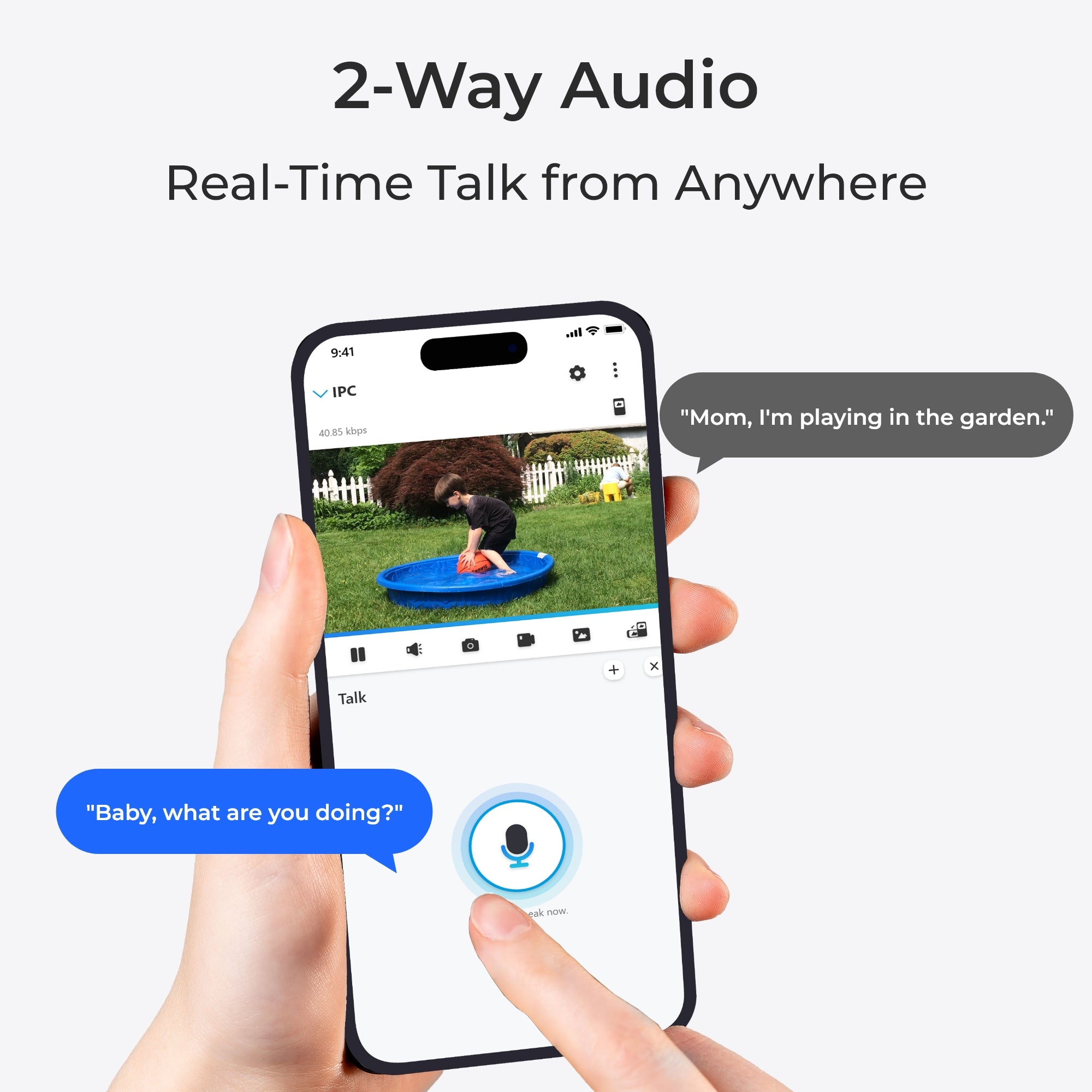

  • Audio Recording (Two-way audio)
  • No subscription needed

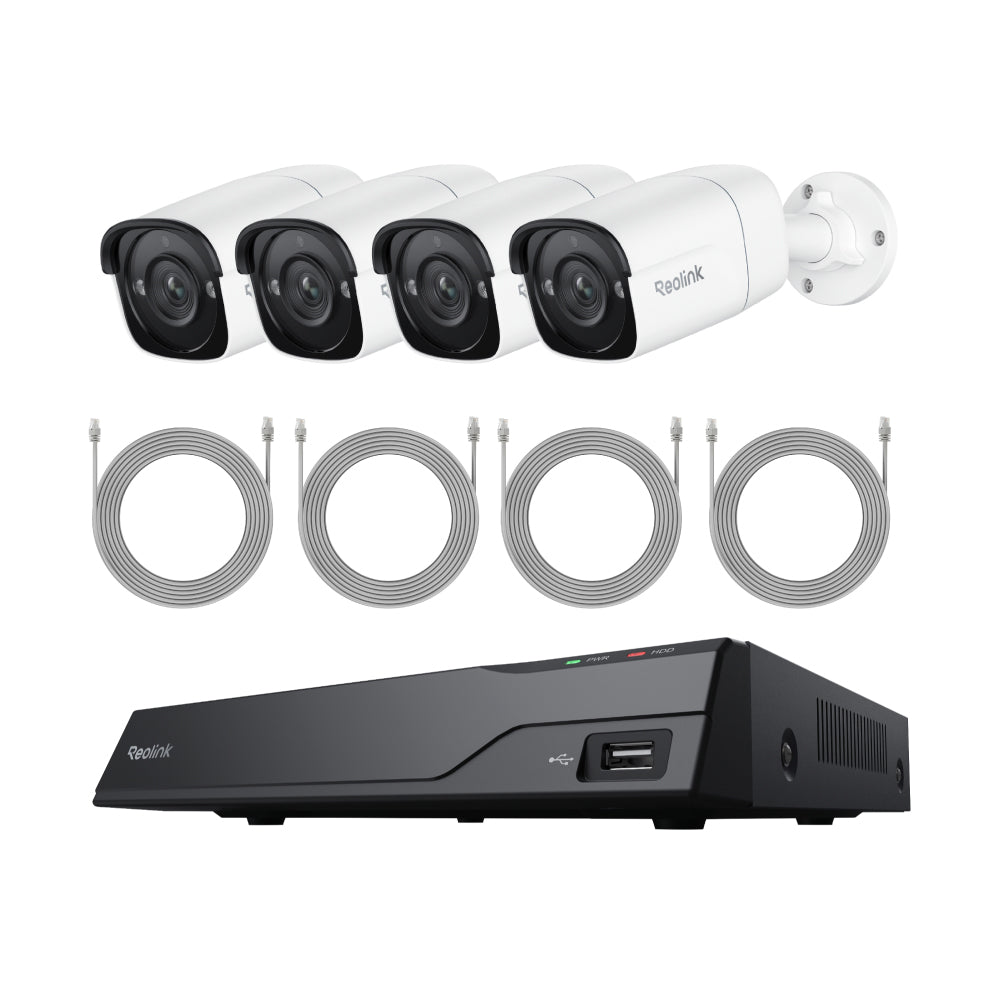

This bundle consist of the following items:

  • 1x NVS8-NHD: 8-Channel PoE NVR (2TB) Learn More
  • 4x P320 Smart 5MP PoE Security Camera Learn More
  • 4x 18m network cable kit
Regular price $549.99
Regular price Sale price $549.99
Tax included. Shipping calculated at checkout.
Availability: Out of stock
SKU: PS2KB02-8
Regular price $549.99
Regular price Sale price $549.99

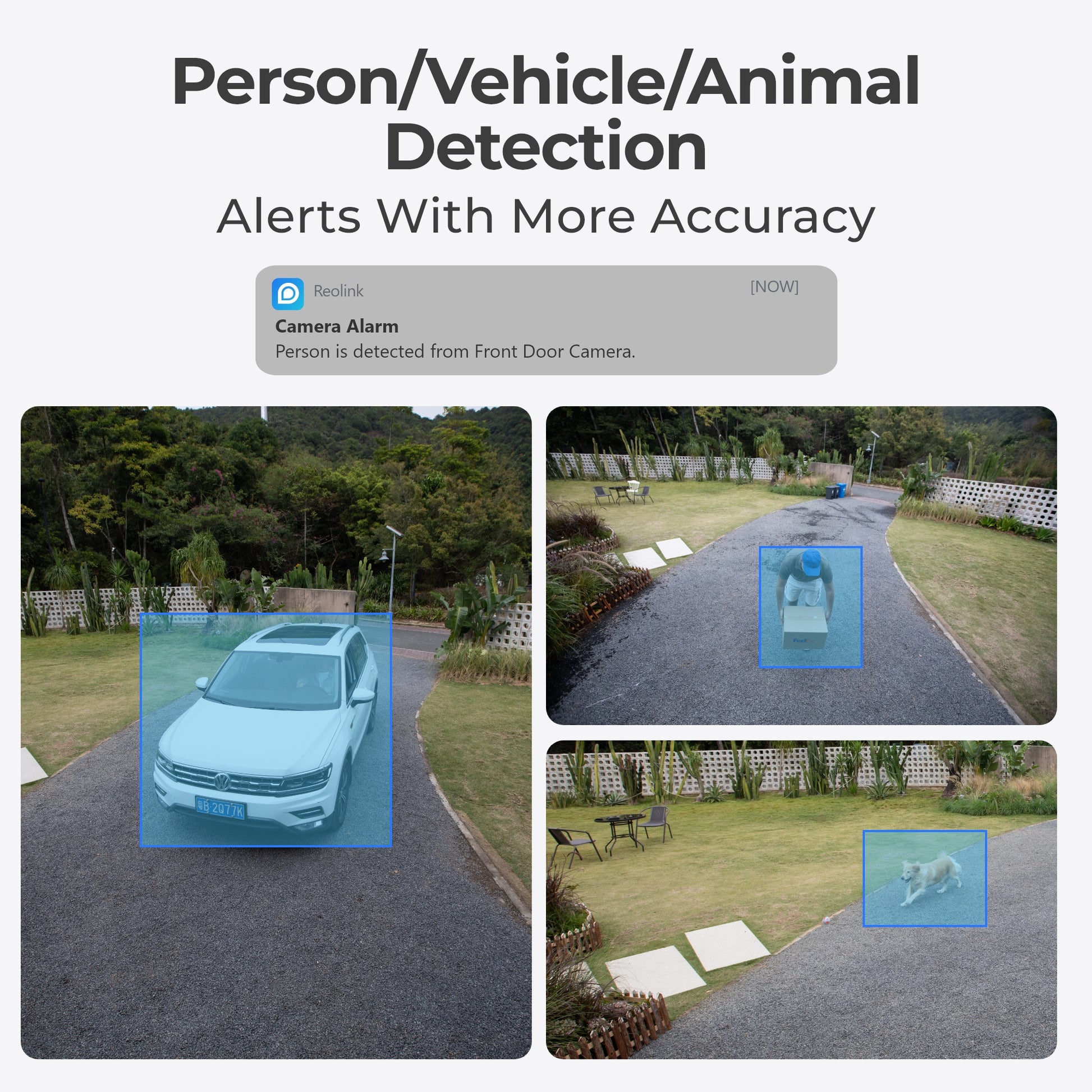

Smart Detection,
Accurate Alerts

With smart detection, cameras of NVS8-5MB4 can distinguish people and cars from other objects. Receiving an alert once a suspicious person or vehicle is detected around your home or business while eliminating unwanted notifications.

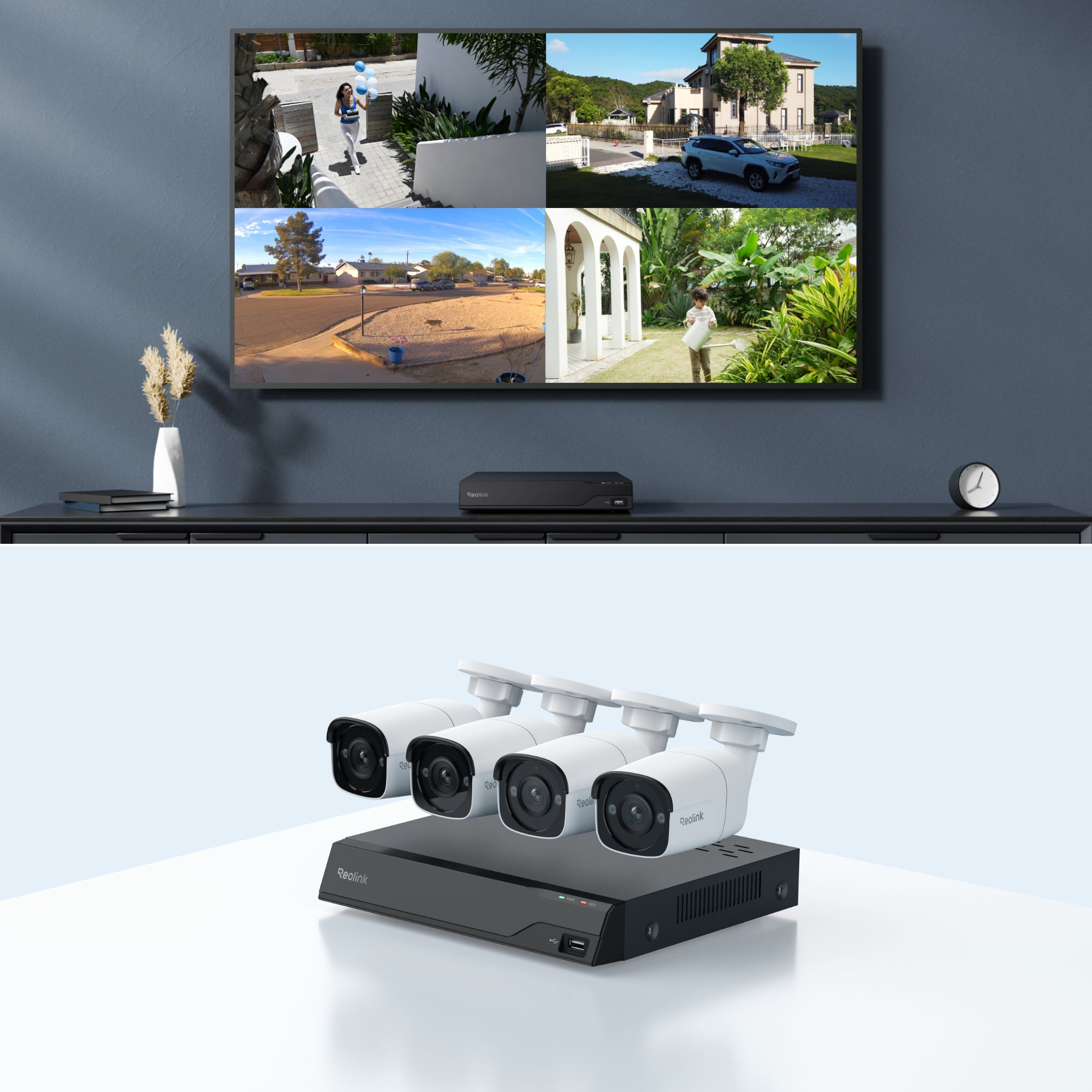

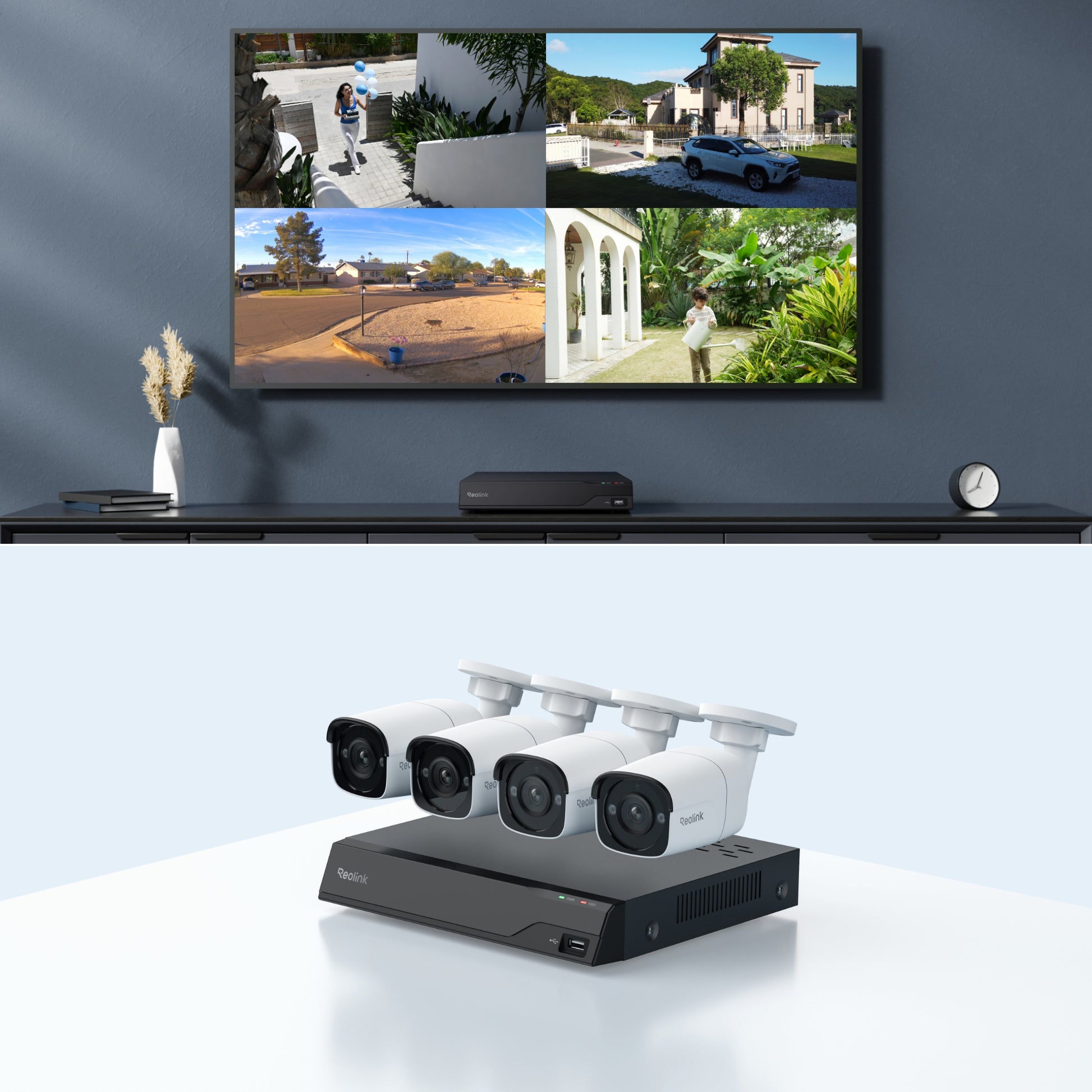

Your All-in-One Security Solution

Achieve whole-home protection with this camera system. The NVR at its core allows you to establish your private security center and manage multiple cameras easily. Whether it's your room, garage, front door, or store, the system has got you covered.

  • 8-Channel NVR

    Built-in 2TB HDD

  • Four 2K+ Cameras

    High-Resolution PoE Cameras Included

  • Up to 16TB

    Local Storage Capacity

Exceptional Night Vision in 4MP/5MP Super HD

With a high resolution of 5MP/4MP, the camera captures crisp, detailed video day and night. Equipped with 18 infrared LEDs and advanced IR technology, it delivers clear images even in total darkness up to 100ft, helping you stay protected and aware 24/7.

  • Day Vision

  • Black & White Night Vision

24/7 Recording, Local Security

With a pre-installed 2TB HDD and up to 16TB storage capacity, the PoE system can save days of 24/7 footage from 4 cameras locally. It stands guard even offline to capture every moment without missing a beat.

Built-in 2TB HDD, Privacy Secured

Stay Connected and in Control


  • Real-Time Alerts

    Receive instant push notifications and email alerts whenever motion is detected, ensuring you're always aware of what's happening.

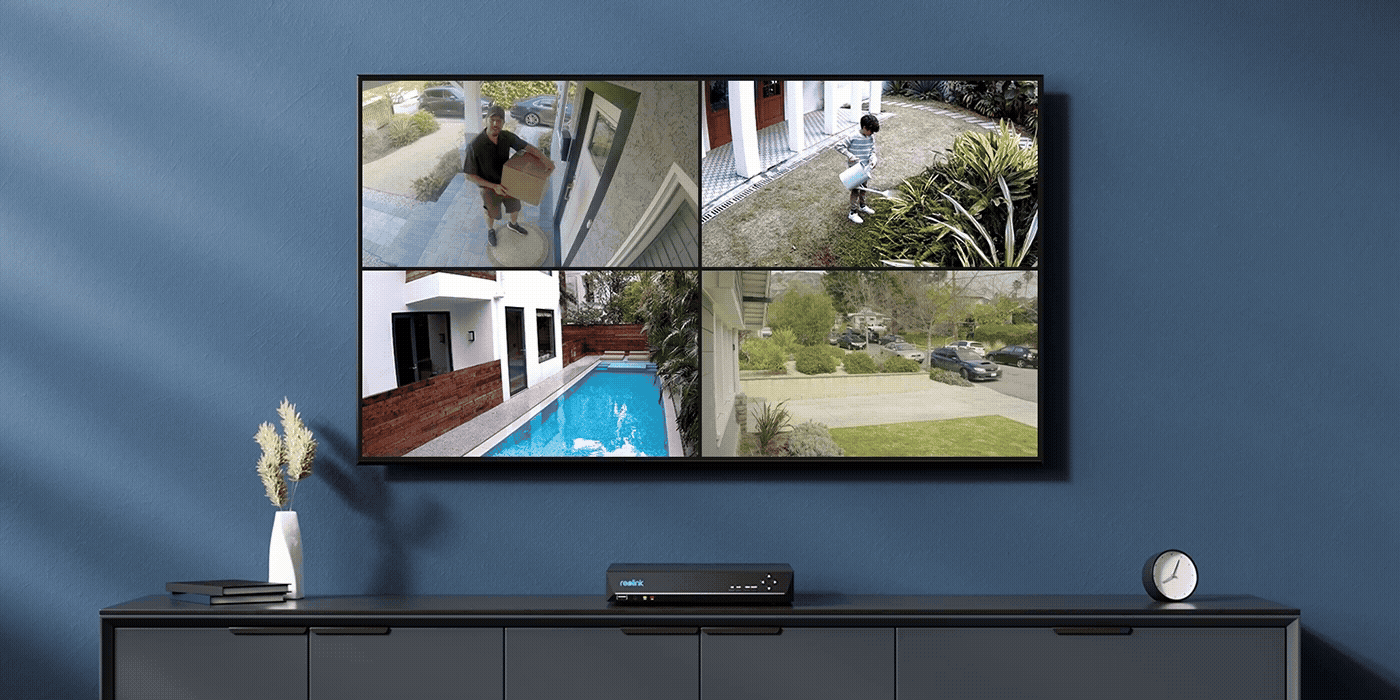

  • Easy Live View

    Monitor multiple cameras simultaneously on a single screen, giving you a comprehensive view of your surroundings.

  • Smart Playback

    Filter recordings by type (motion, person, vehicle, animal) to save time and easily locate specific events.

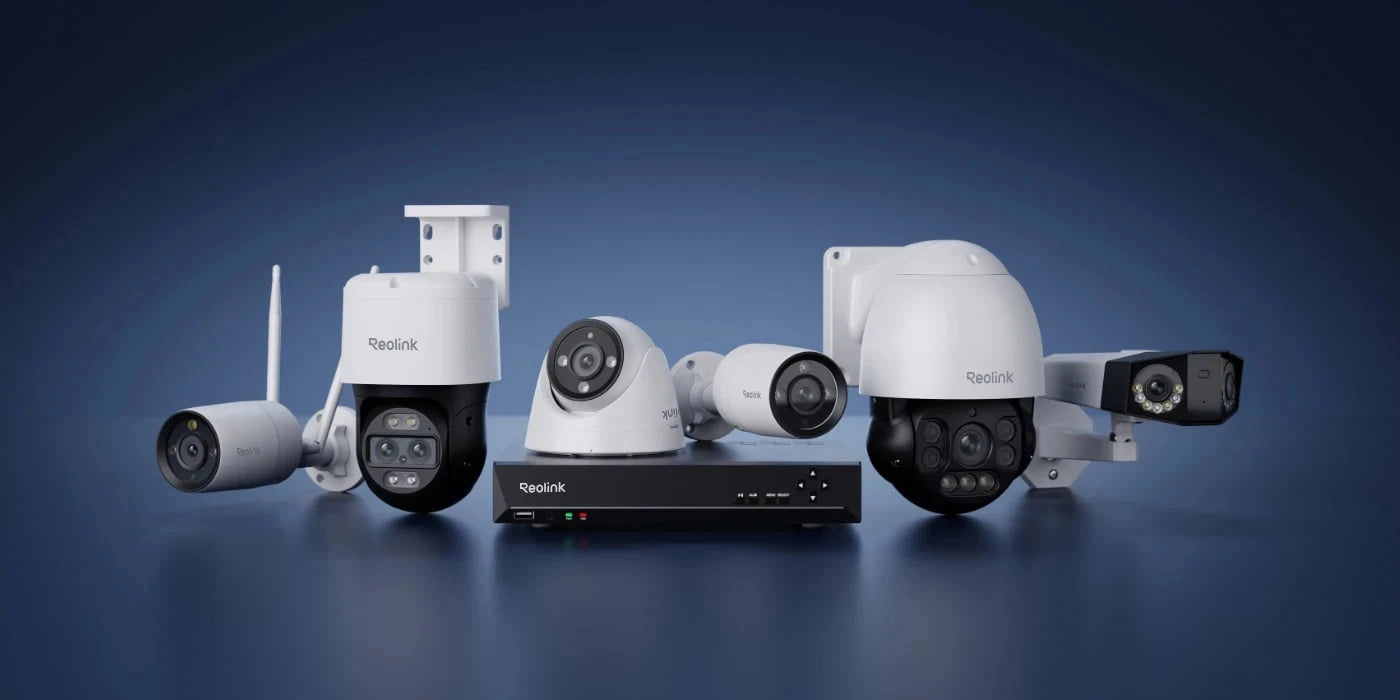

Expand Your System with Reolink Compatibility

Your security needs are unique, and your system should be too. This system offers exceptional expandability, seamlessly integrating with a wide range of Reolink cameras. Choose from various resolutions and styles, including PoE cameras for wired connections and Wi-Fi cameras for flexible placement.

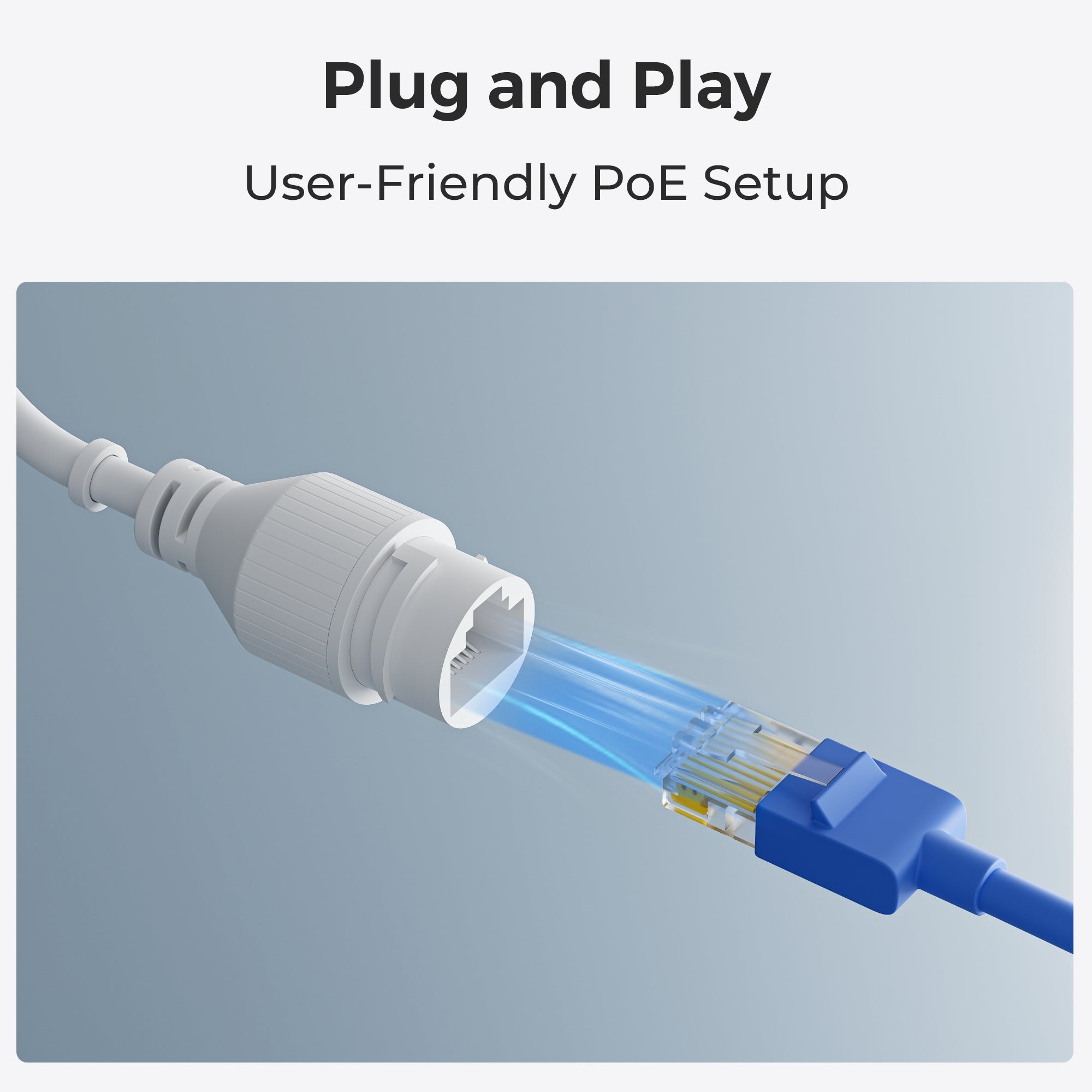

Hassle-Free Setup: Plug and Play PoE

Experience the convenience of plug-and-play installation with our PoE (Power over Ethernet) system. No need for separate power cables for each camera.

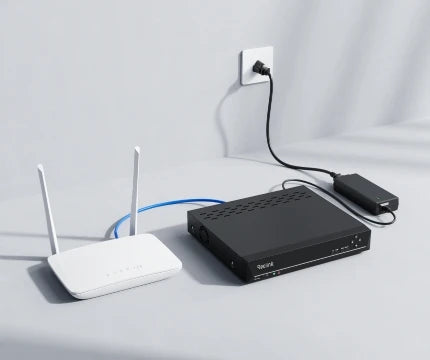

  • Step 1. Set up the NVR

    Connect the NVR to a power source and then to your router.

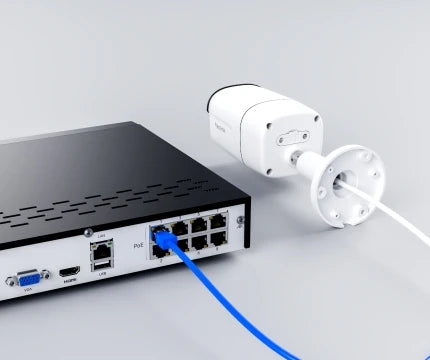

  • Step 2. Set up the Cams

    Use an Ethernet cable to connect each PoE camera directly to the NVR.

  • Step 3. Scan & Live View

    Scan the NVR's QR code using the Reolink App and view your live camera feeds.

Specifications

NVS8

Download as PDF File

Hardware

Hardware: N7MB01

Video/Audio Input

IP Video Input:
Up to 12 IP cameras (max.8 wired cameras)

Audio Input:
Cameras with built-in mic

Video/Audio Output

Video Output:
VGA, HDMI

Display Resolution:
HDMI: 3840*2160, 1920*1080, 1280*1024, 1280*720, 1024*768;

VGA: 1920*1080, 1280*1024, 1280*720, 1024*768

Audio Output:
1-channel, RCA

Decoding

Live View/Playback Resolution:
7680×2160, 4608×1728, 4512×2512, 4096×3072, 3840×2160, 2560×2560, 2560×1920, 2560×1440, 2048×1536, 2304×1296, 1080p, 720p

Video Format:
H.265, H.264

Synchronous Playback:

Up to 4 channels

HDD

SATA:
1 x SATA interface (1 × 2TB HDD included)

Capacity:
Up to 16TB (max. 8TB capacity for each HDD)

External HDD:
1 eSATA interface for HDD

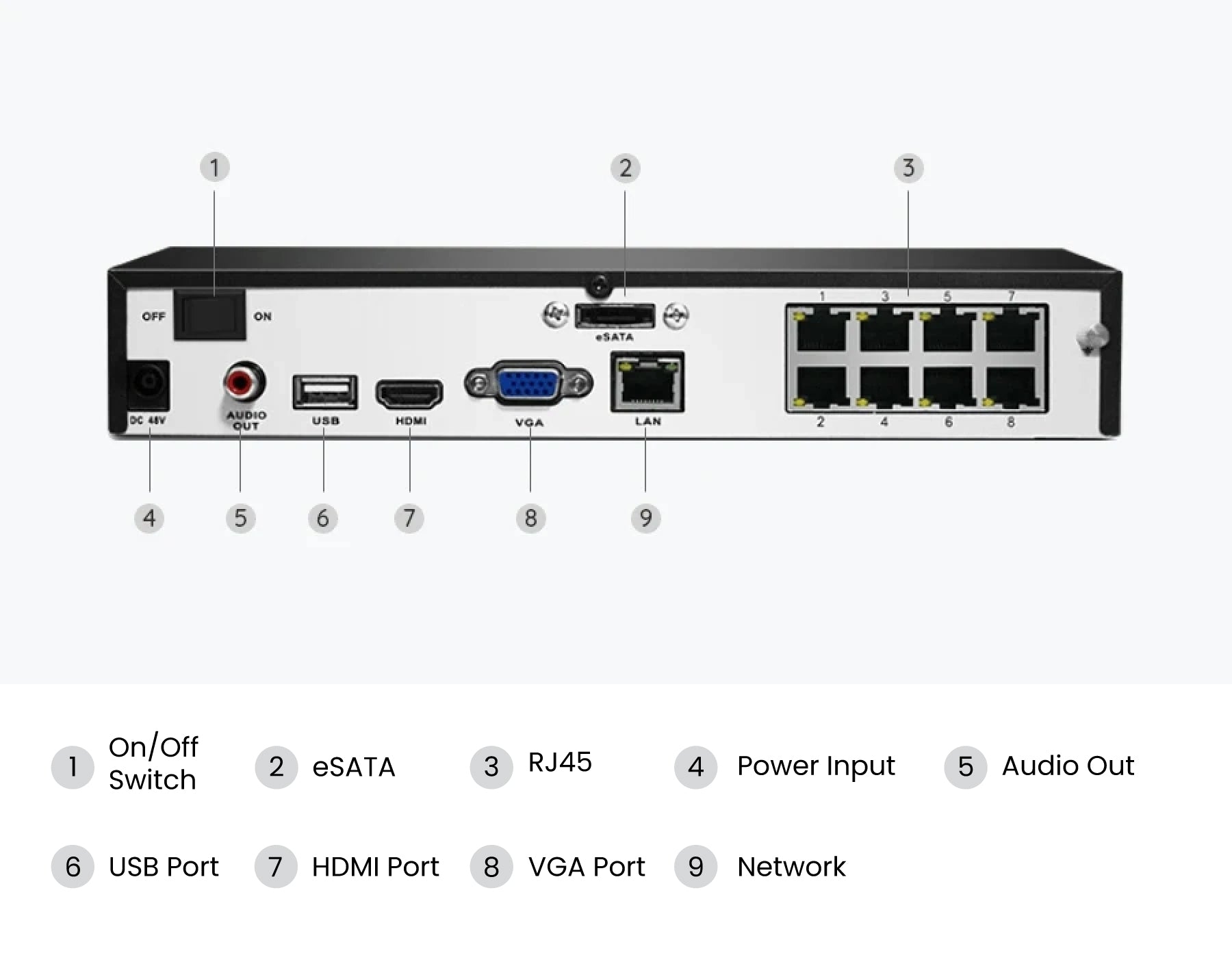

External Interface

USB Interface:
2 × USB 2.0

Network Interface:
1, RJ-45 10/100 Mbps self-adaptive Ethernet interface for LAN/WAN;8, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera

PoE

Max. Power Per Port:
25W

Supported Standard:

IEEE 802.3 af/at

Network

Network Protocols:
HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP

Browsers Supported:
Firefox, Chrome, Edge, Safari

OS Supported:
PC: Windows, Mac OS; Smartphone: iOS, Android

Max. User Access:
20 users (1 admin account & 19 user accounts); Up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

General

Power Supply:
DC 48V~53V

Power Consumption:
<10W (without HDD & PoE)

Working Environment:
Temperature: -10°C~+45°C (14°F~113°F); humidity: 10%~90%

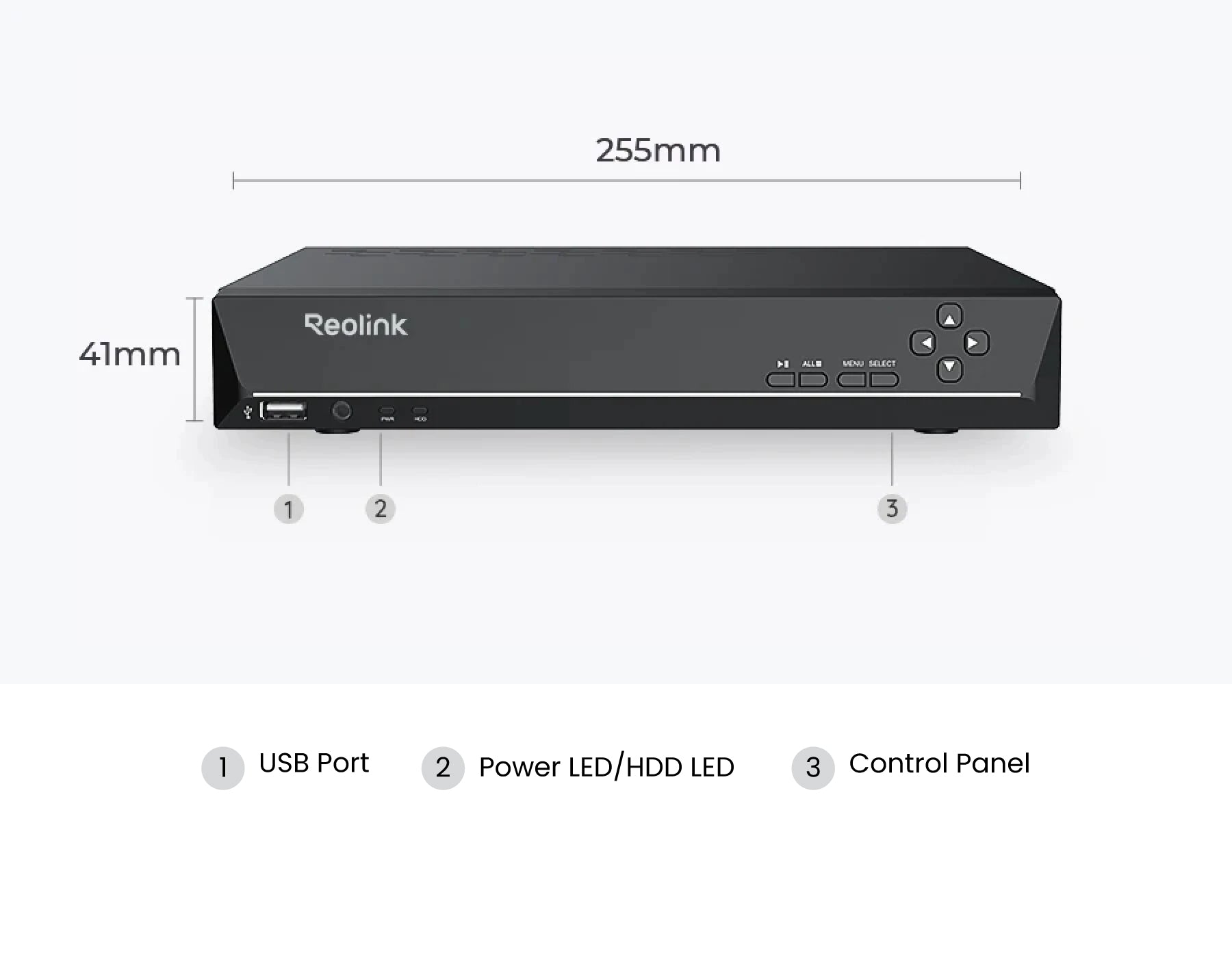

Dimensions:
260 x 41 x 230mm

Weight:
1.4kg

Warranty

Limited Warranty:
2-year limited warranty.

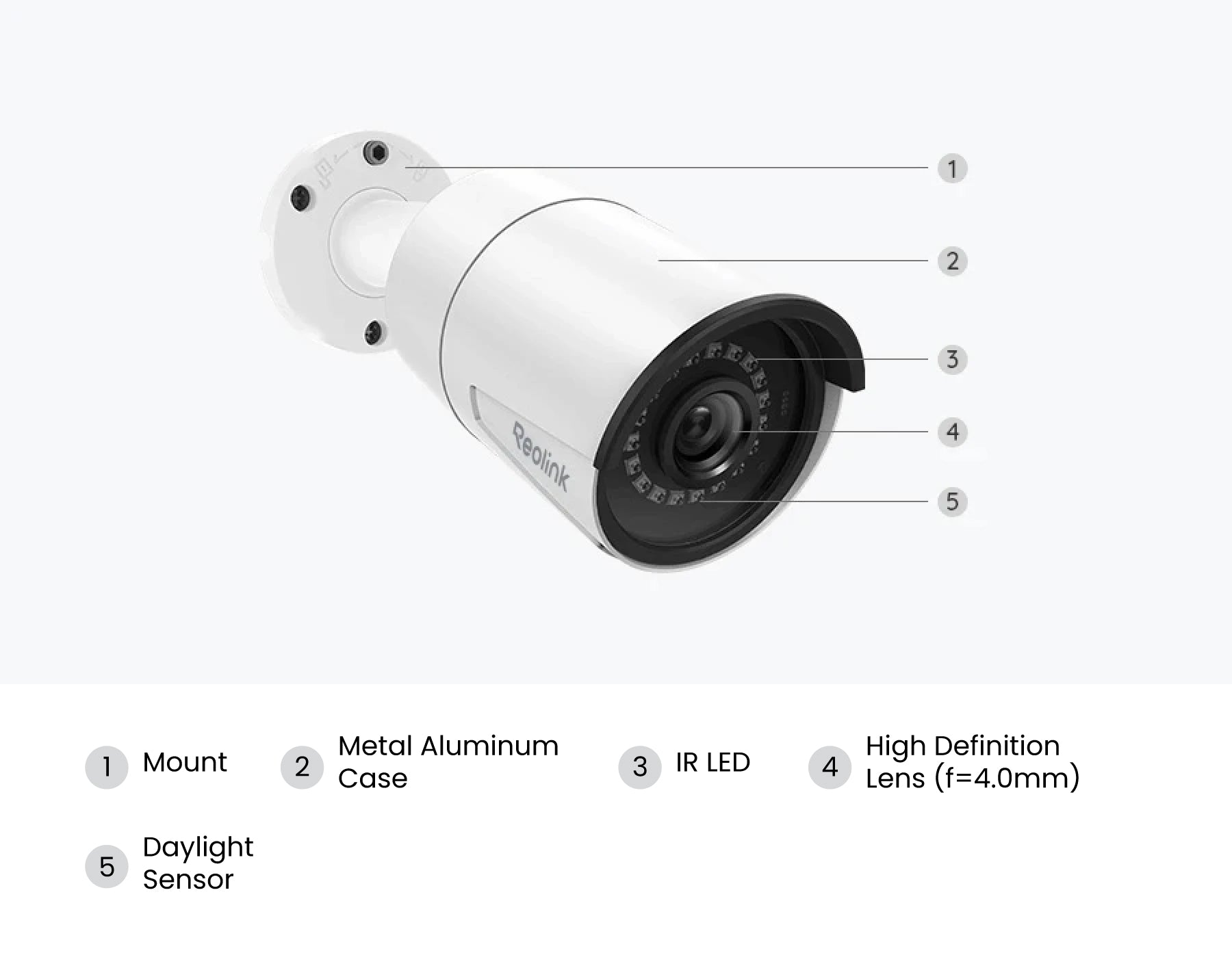

Specification

B500/B400

Download as PDF File

Video & Audio

Image Sensor:
1/2.7" CMOS Sensor

Video Resolution:
Default: 2560x1920 (5.0 Megapixels)@25 frames/sec

Lens:
f=4.0mm fixed; F=2.0, with IR-cut filter

Video Format:
H.264

Field of View:
Horizontal: 80°;Vertical: 48°

Day & Night:
Auto-switching with IR-cut filter

Infrared Night Vision:
30 meters (100ft) (LED: 18pcs/14mil/850nm)

Audio:
Audio recording

Power

PoE:
IEEE 802.3af

DC Power:
DC 12.0V⎓1A, <12W

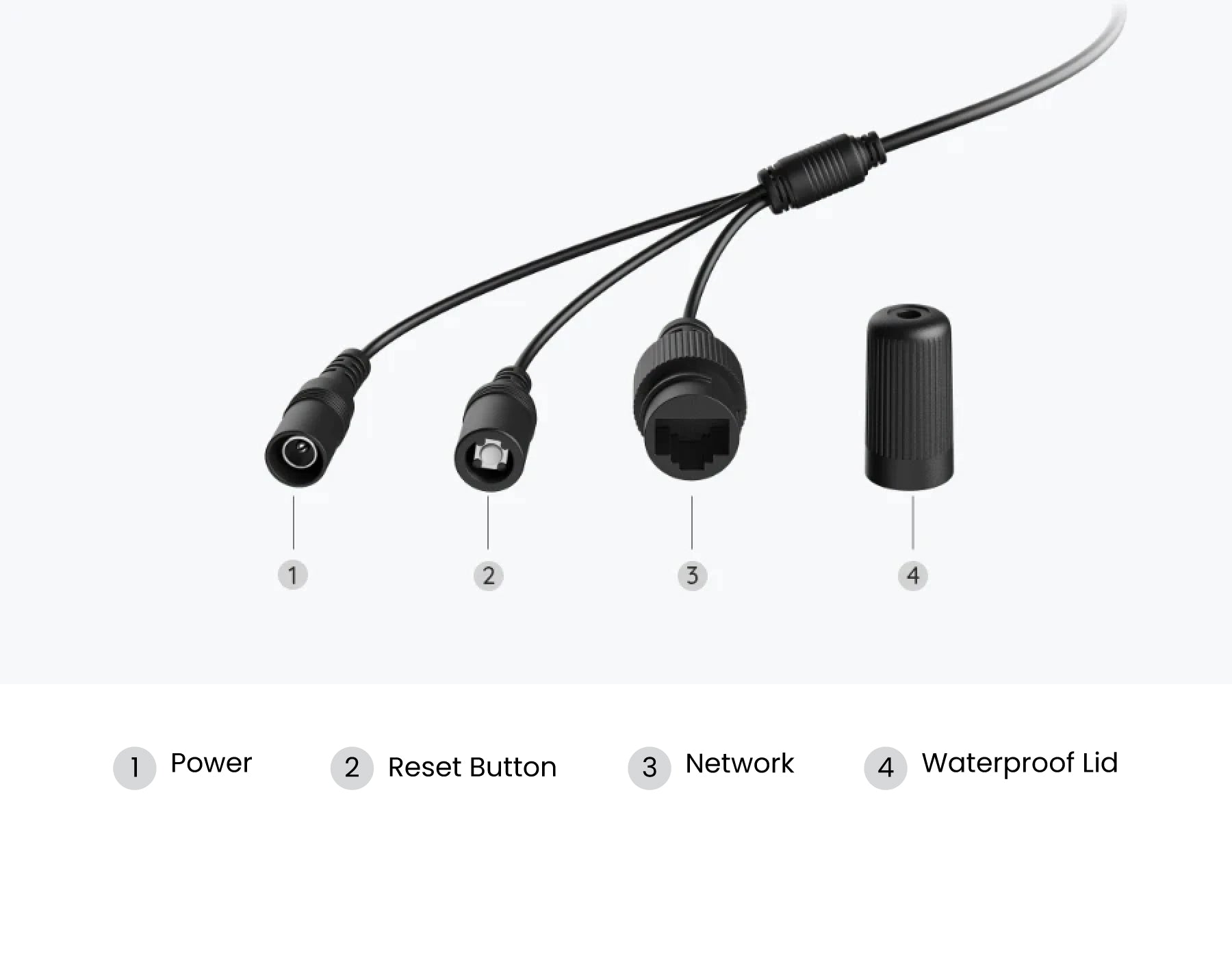

Interface

Power:
DC power port

System:
Reset button

Ethernet:
One 10M/100Mbps; RJ45

Audio:
Built-in microphone

Software Features

Frame Rate:
Mainstream: 2fps - 30fps (Default: 30fps);
Substream: 4fps - 15fps (Default: 10fps)

Code Rate:
Mainstream: 1024Kbps - 8192Kbps (Default: 6144Kbps);
Substream: 64Kbps - 512Kbps (default: 160Kbps)

Smart Alerts:
Motion detection; Person detection; Vehicle detection; Animal detection

Record Mode:
Motion-triggered recording (default); scheduled recording; 24/7 recording

Working Environment

Operating Temperature:
-10°C to +55°C  (14°F to 131°F)

Operating Humidity:
10% ~ 90%

Weatherproof:
IP67

Size & Weight

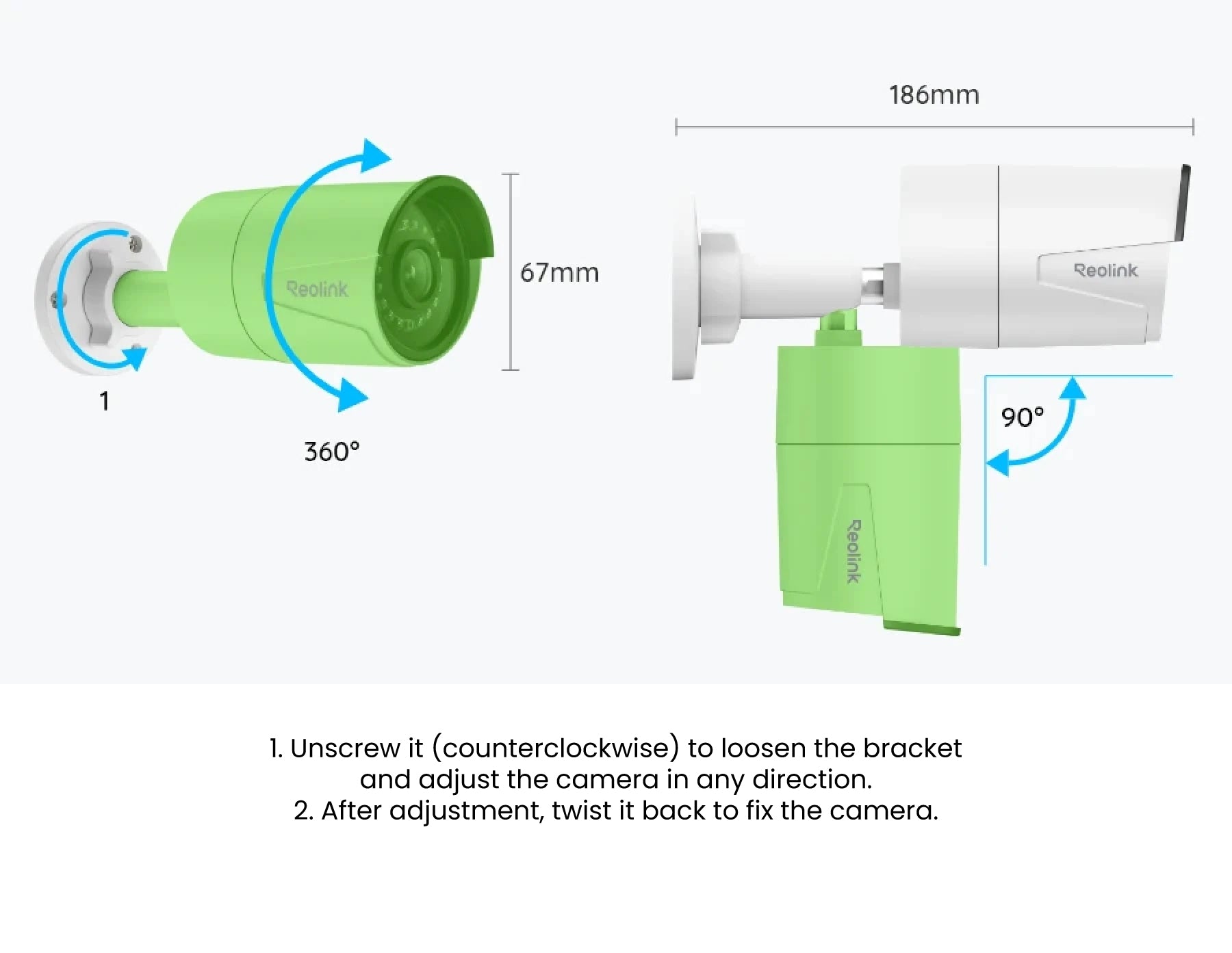

Dimension
Φ67*186mm

Weight:
415g

Warranty

Limited Warranty:
2-year limited warranty.
