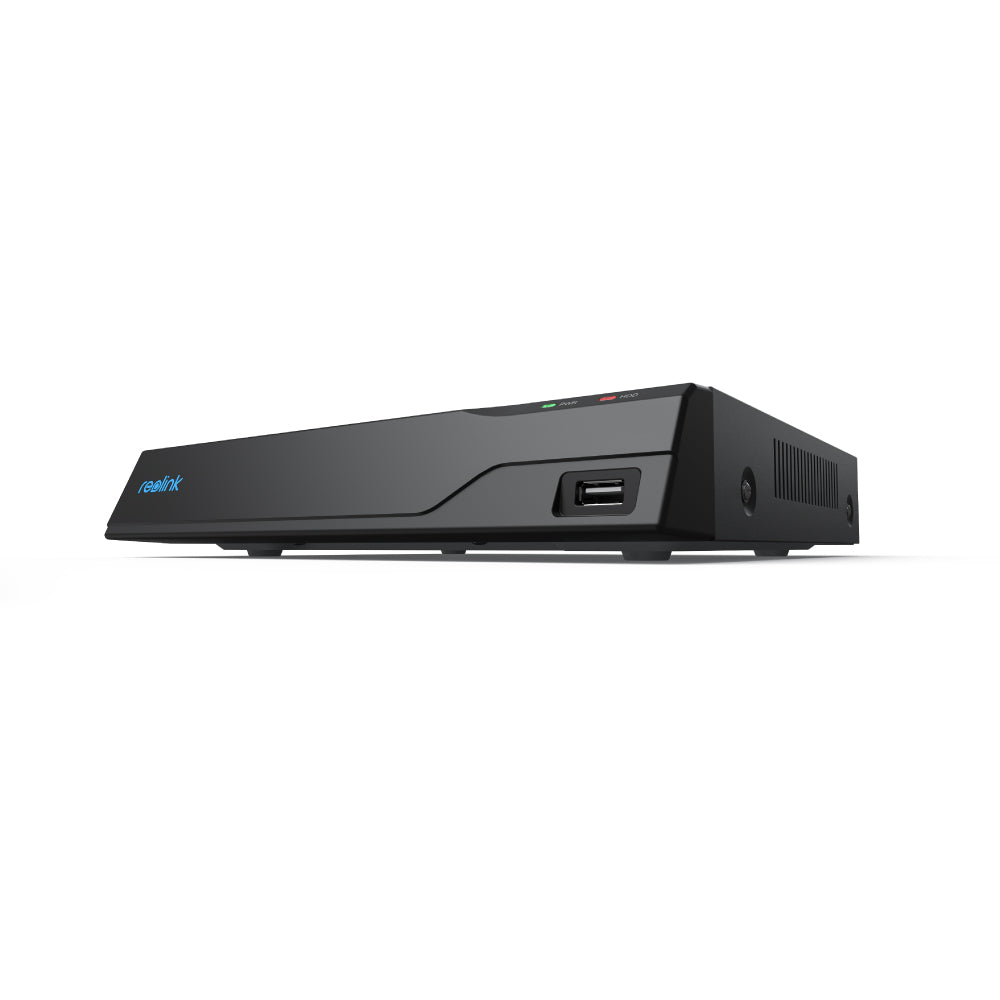

  3. Reolink NVS8-NHD: 8-Channel PoE NVR for 24/7 Reliable Recording
By Reolink

Reolink NVS8-NHD: 8-Channel PoE NVR for 24/7 Reliable Recording

  • Support up to 12MP
  • Power over Ethernet
  • 8-Channel
$229.00
$329.00 $229.00
Save 30%
Tax included. Shipping calculated at checkout.
Availability: In stock
SKU: PN-8-NHD
Reolink NVS8-NHD: 8-Channel PoE NVR for 24/7 Reliable Recording - Reolink Store Singapore
$229.00
$329.00 $229.00

for 24/7 Reliable Recording

If you want 24/7 video recording or if you have multiple IP cameras to manage, this Reolink NVR is your best choice.

●Support all cameras recording at the same time (up to 8 cameras).
●If you want longer recording, try motion detection recording, which will trigger recording only when motion is detected.
●Allow you to install an external hard disk drive via e-SATA for more storage (up to 6TB).

Up to 8 Cameras | Up to 6TB External HDD

Customize Your Own Security Camera System

Reolink NVS8 8-channel PoE NVR works perfectly with all our IP cameras – including 12MP, 8MP, 5MP and 4MP PoE/WiFi cameras - for 24/7 recording, live views and more features. Apart from this NVR, you can choose up to 8 cameras to build your own video surveillance system.

* The Reolink NVRs are designed for Reolink security cameras ONLY.

IP66 Certified Weatherproof | With Audio (Mic) (Optional)

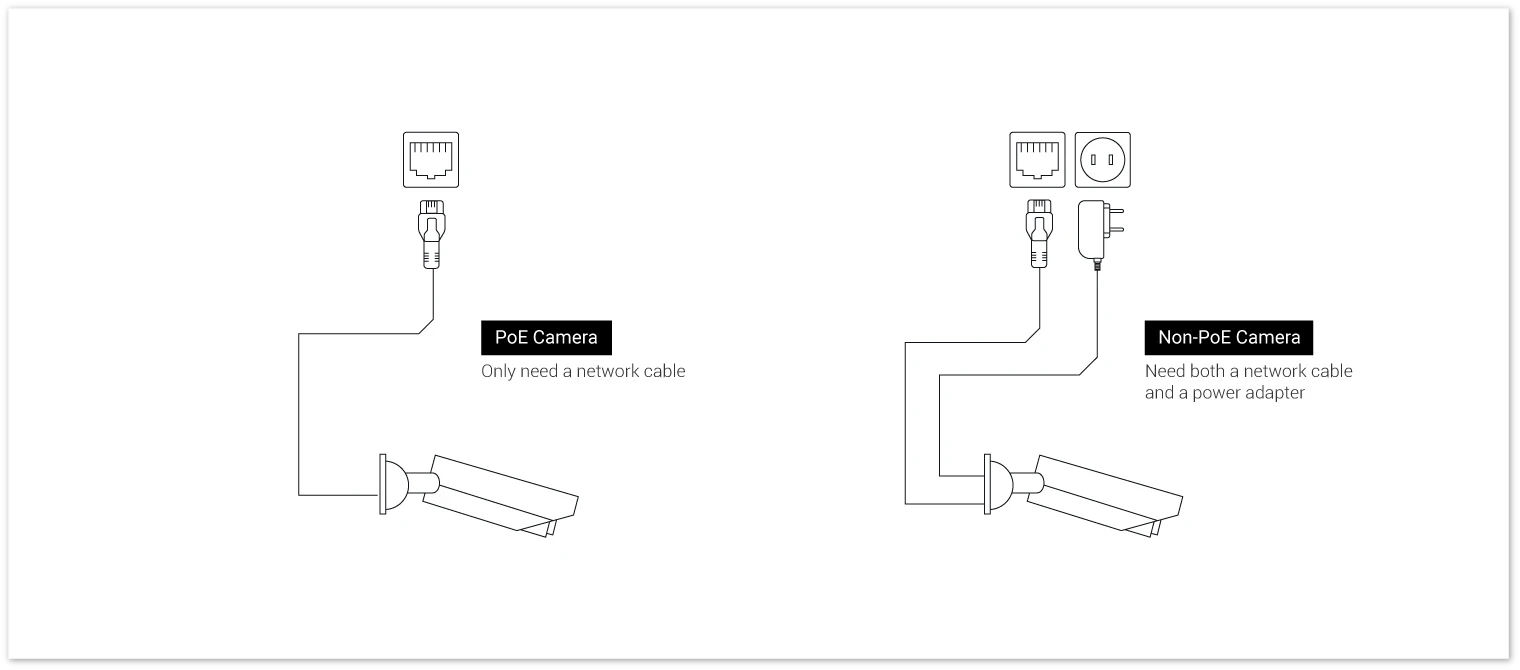

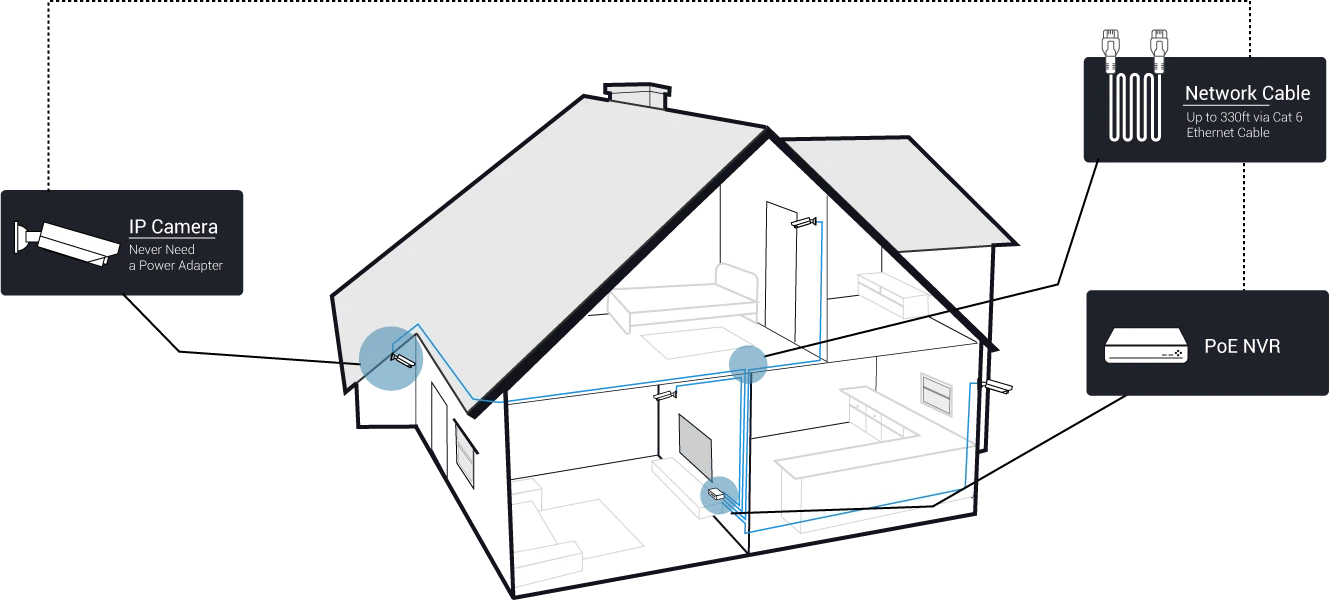

PoE — Easy Setup & Real Plug and Play

A real plug and play network video recorder! This NVS8 NVR features PoE (Power over Ethernet), with a single network cable connecting each of your IP cameras to the NVR for both power supply and video signal transmission. Easy wiring – the wiring process can’t be simpler for DIY enthusiasts.

Local and Remote Access & Control

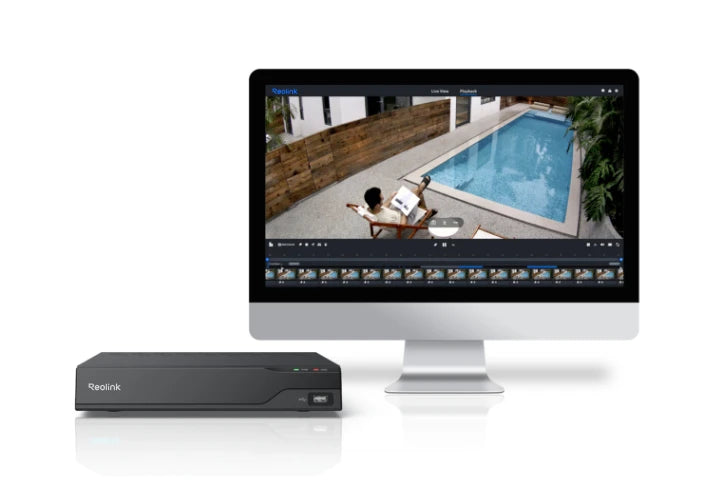

For local access and control
Connect the system to a monitor or an HD TV.

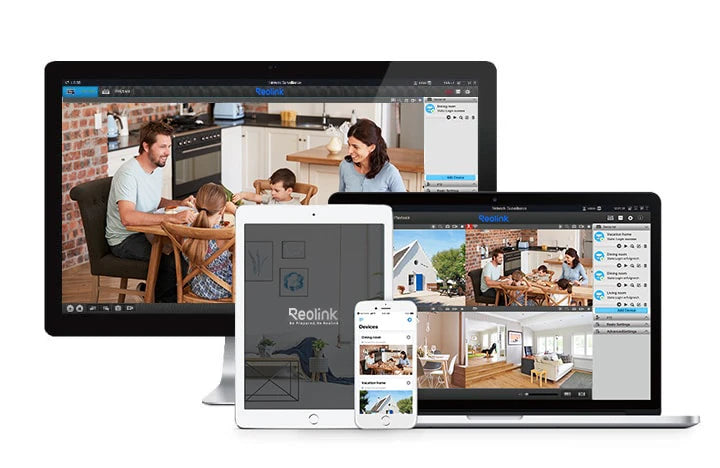

For remote access and control
Use free Reolink App on a mobile device, Reolink Client on a computer or via web browsers.

Download on the
- Apple App store
- Google Play
- MacOs
- Windows

Specifications

Download the PDF File

NVS8

Hardware

Hardware:
N7MB01

Video/Audio Input

IP Video Input:
PoE IP Camera x 8

Audio Input:
Cameras with built-in mic

Video/Audio Output

HDMI Output Resolution:
3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768

VGA Output Resolution:
1920x1080, 1280x1024, 1280x720, 1024x768

Audio output:
1-Channel, RCA

Decoding

Video Format:
H.264, H.265

Live View / Playback Resolution:
7680X2160,4608X1728;4512X2512,4096X3072, 3840X2160,2560*2560, 2560X1920,2560X1440, 2048X1536, 2304X1296,1080p, 720p

Synchronous Playback:
Up to 4 channels

HDD

SATA:
1 x SATA interface

External HDD:
1 eSATA Interface for HDD

Capacity:
Up to 12TB (max. 6TB capacity for each HDD)

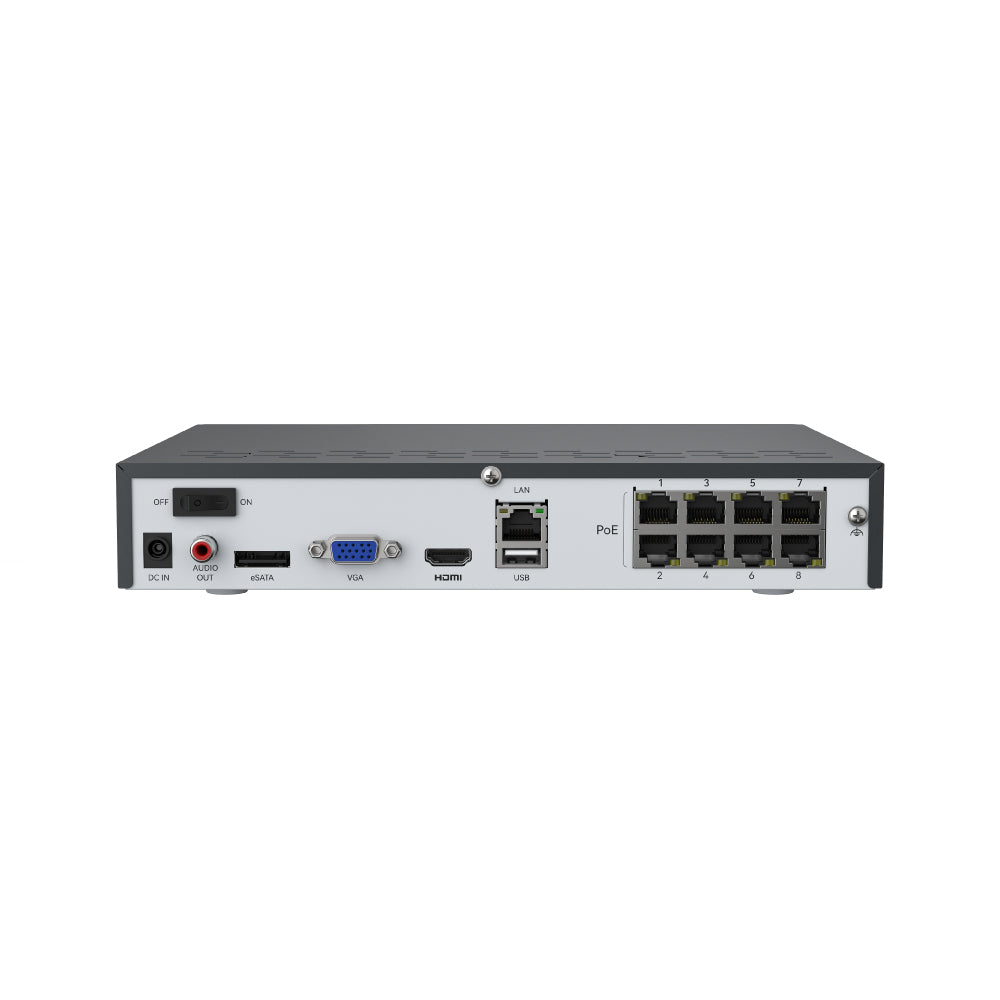

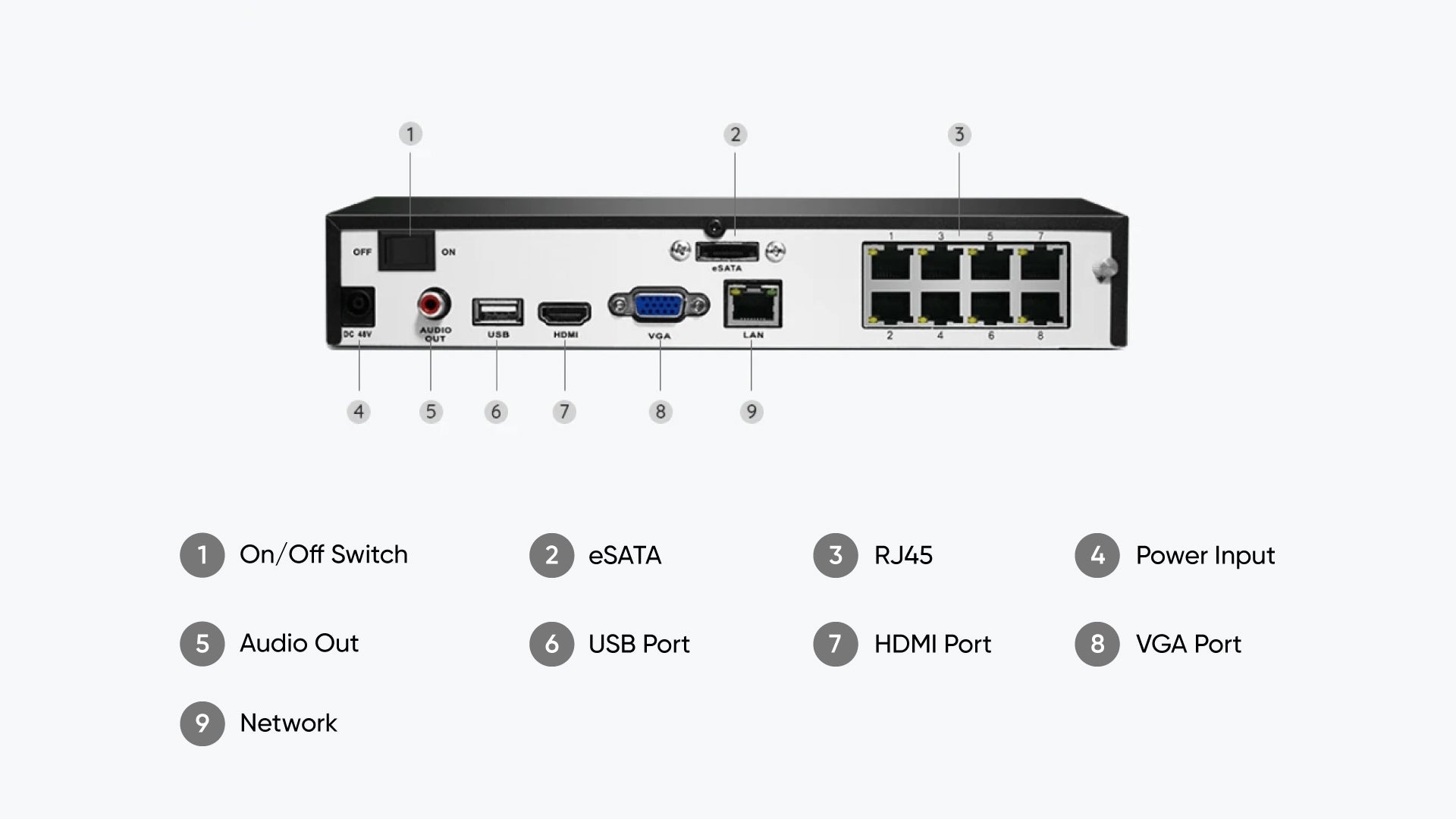

External Interface

USB Interface:
2 x USB 2.0

Network Interface:
• 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface for LAN/WAN

• 8, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera

PoE

Max. Power Per Port:
25W

Supported Standard:
IEEE 802.3af/at

Network

Network Protocols:
HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP

Browsers Supported:
Edge, Firefox, Chrome, Safari

OS Supported:
PC: Windows, Mac OS; smartphone: iOS, Android

Max. User Access:
20 users (1 admin account & 19 user accounts); supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

General

Power Supply:
DC 48V~53V

Power Consumption:
<10W (Without HDD&PoE)

Working Environment:
Temperature: -10°C~+45°C (14°F~113°F); humidity: 10%~90%

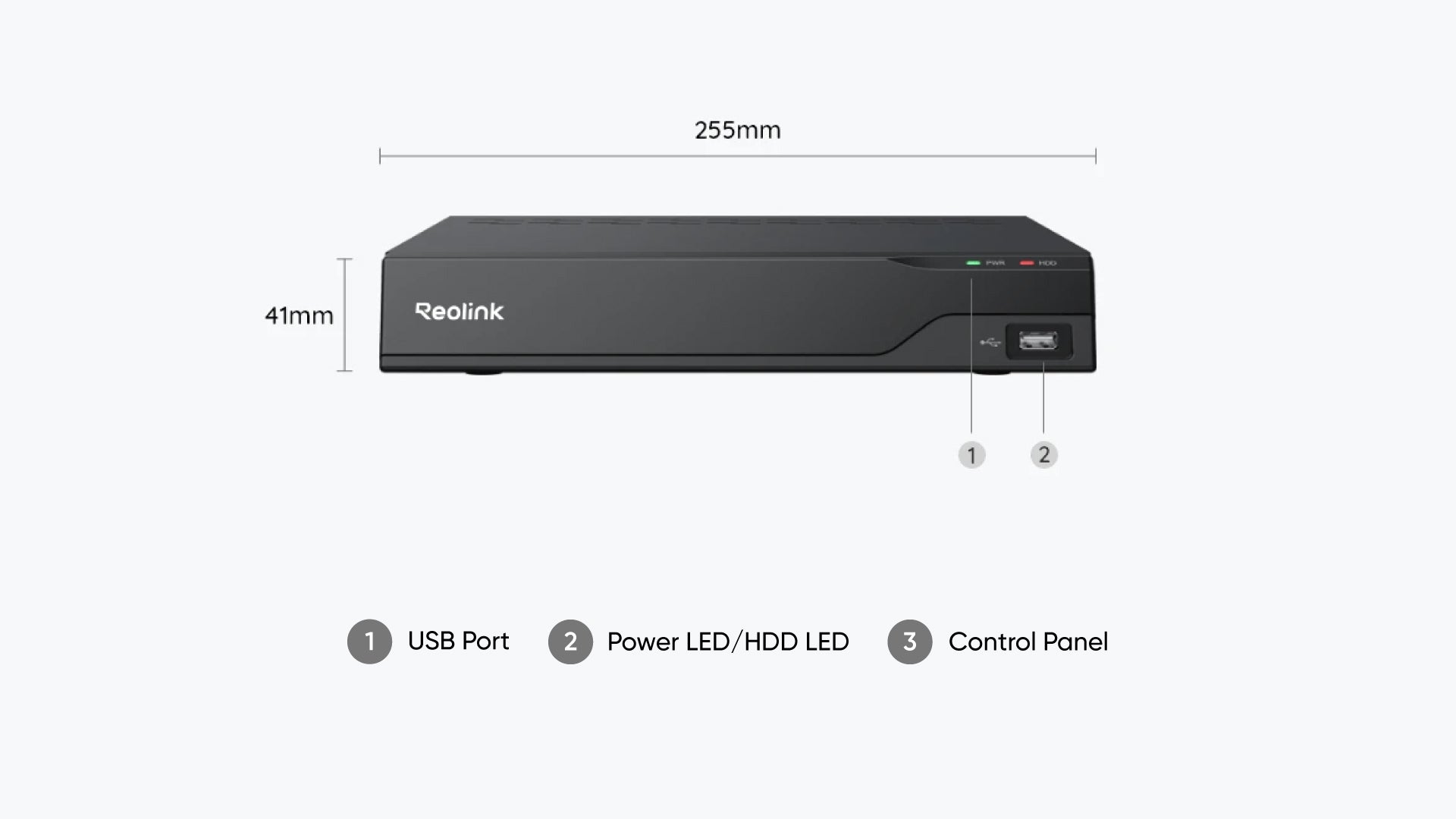

Dimensions:
255 x 49.5 x 232mm

Weight:
1.4kg

Warranty

2-year limited warranty
