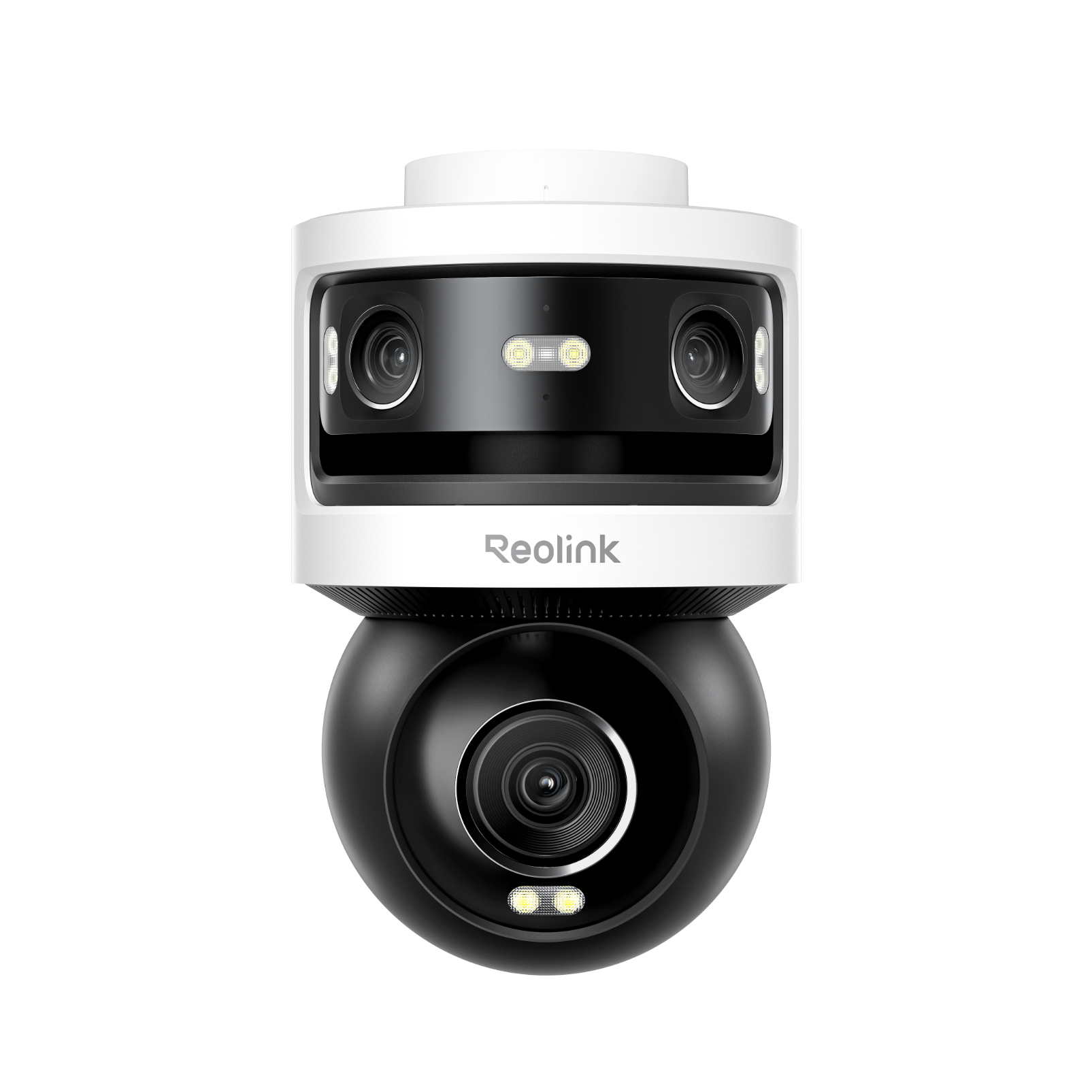

Reolink OMVI 3i PoE 360° : 18MP Security Camera with Triple Lens

  • 10MP Dual-Lens 180° View
  • 4K 360° Full Coverage
  • SyncTrack with auto framing & auto tracking
  • Local Storage (No Monthly Fees)
  • Local AI Video Search
$429.00
$479.00 $429.00
Save 10%
Tax included. Shipping calculated at checkout.
Availability: In stock
SKU: PCBPTOMV6K01

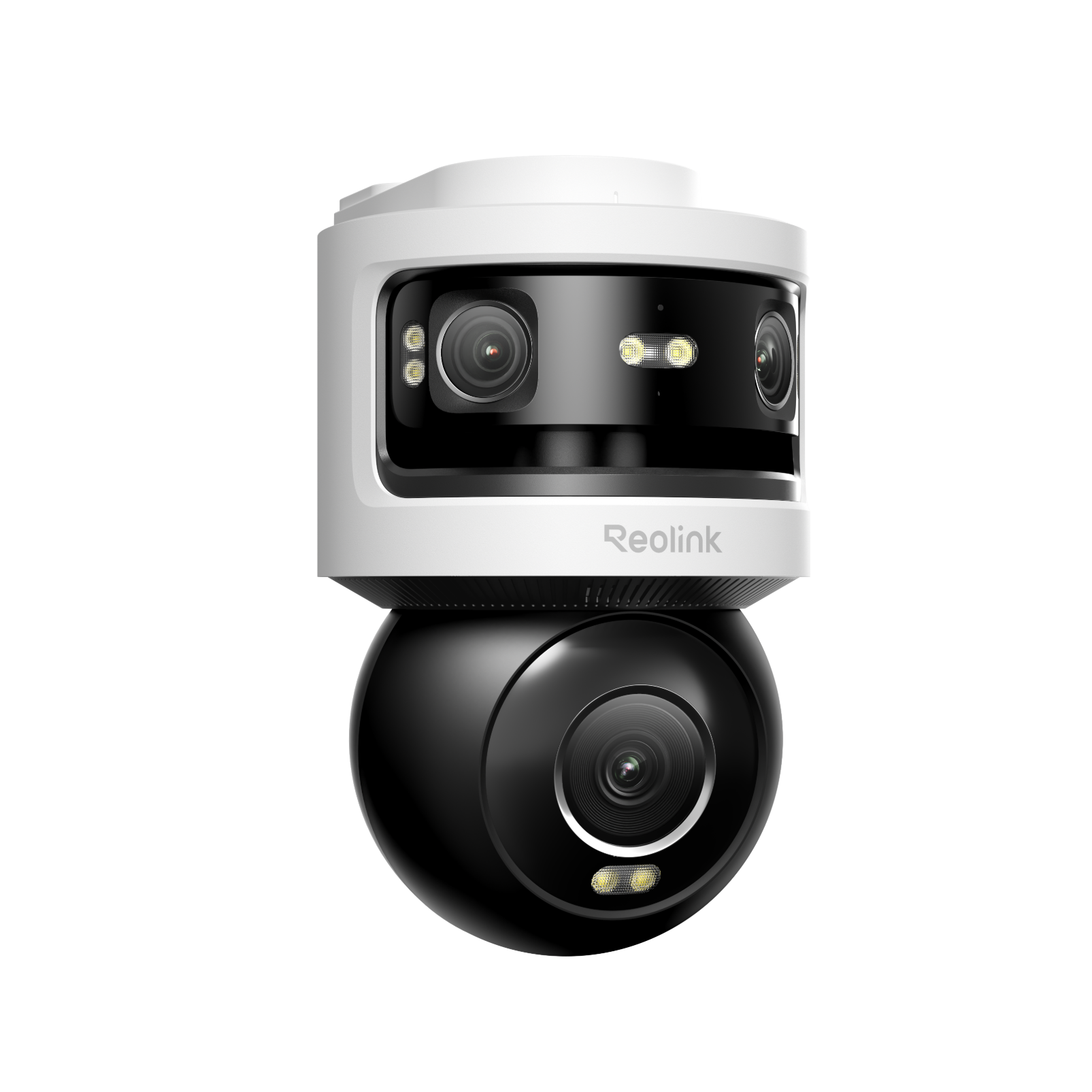

REOLINK OMVI 3i PoE 360° Security Camera with Triple Lens
$429.00
$479.00 $429.00

One Camera. Complete Coverage. Nothing Missed

Important Notice: Please ensure your Reolink NVR firmware is updated to version 3.6.5 or later. Earlier versions will only display dual-lens camera footage and will not show the PTZ camera view. Current Reolink client (v8.21) supports dual-screen display when connected to Reolink NVR/Home Hub/Home Hub Pro.

Store image

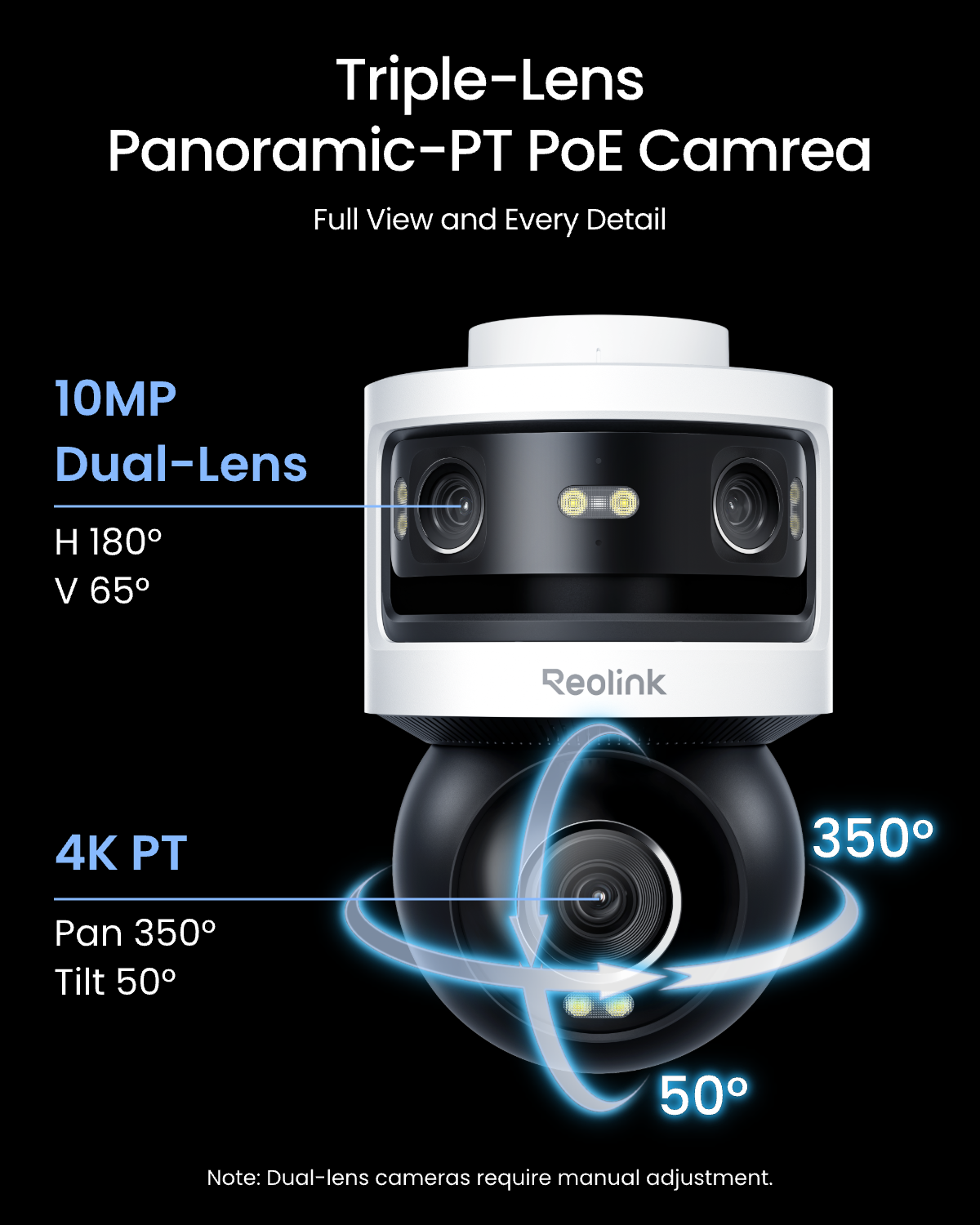

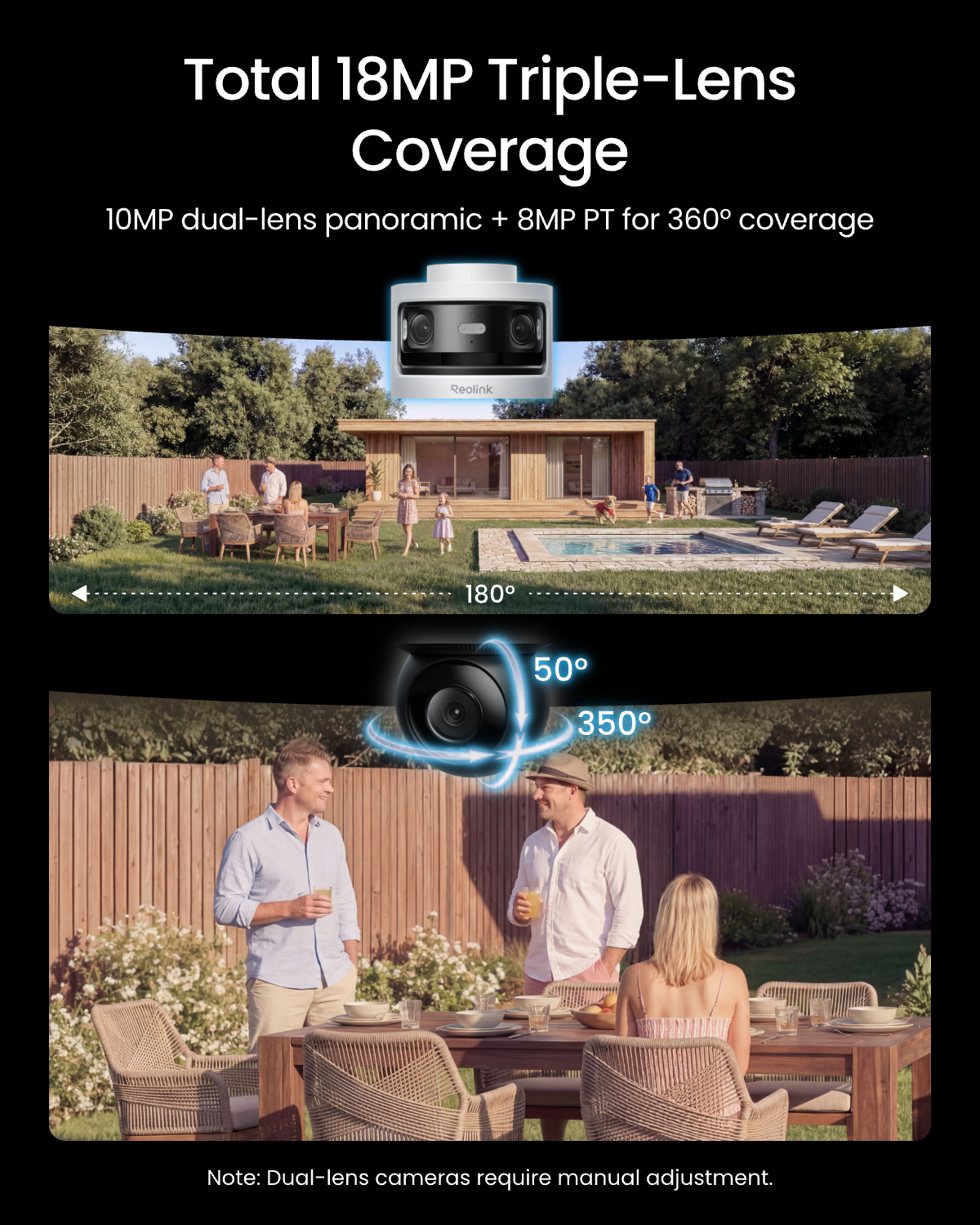

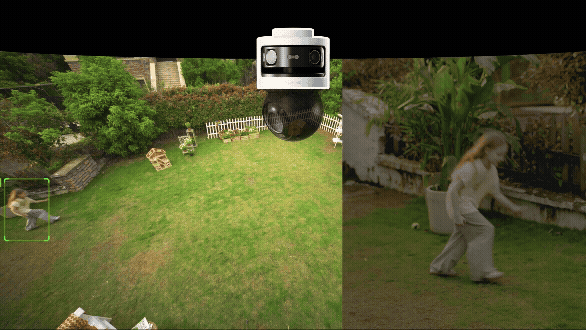

180° Panoramic with Auto Framing

One camera replaces two.

The OMVI 3i's 18MP(10MP+8MP) triple-lens system delivers a sweeping panoramic view while simultaneously tracking movement in real time. Watch the full scene and zoom in on important details, both visible on your screen at the same time.

Store image

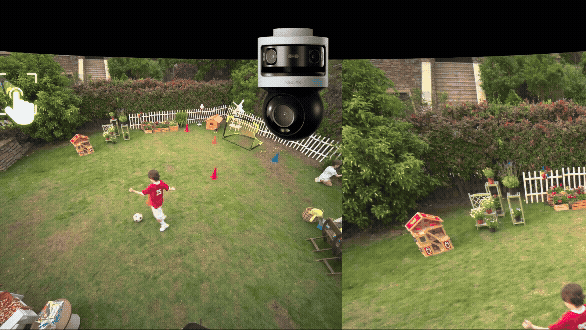

Lock On, Never Lose Track

Synctrack & Auto Tracking

Synctrack & Auto Tracking

When Auto Framing is enabled, the OMVI 3i PoE's pan-tilt camera locks on and follows if someone or something moves,
keeping the tracked object centered in the frame. Tracking continues even if the subject walks out of the panoramic view.

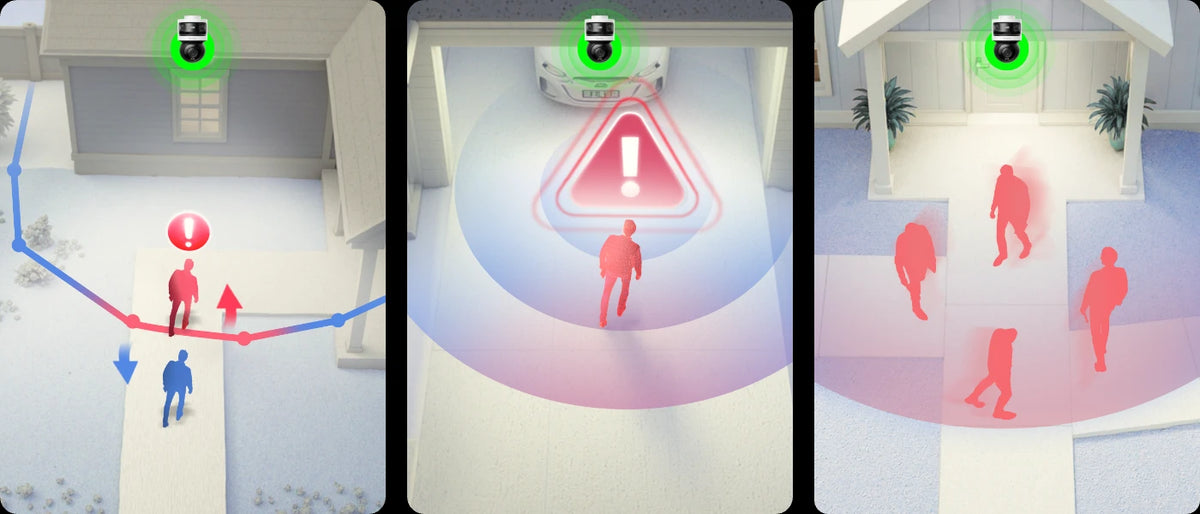

Local AI Detection Reduce False Alerts

Local AI runs directly on your camera, no cloud required. Precisely distinguishes people from vehicles, animals, and motion noise. Customize detection zones, draw virtual fences, and set loitering alerts.

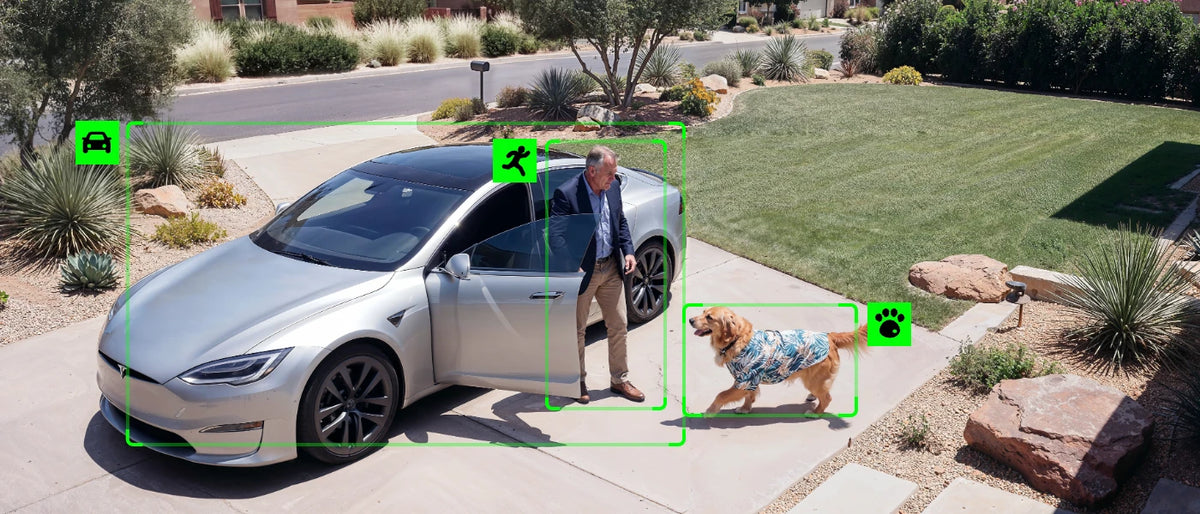

Smart Detection

Smart Detection

Empowered by local AI to understand what it sees such as people, vehicles & Animals.

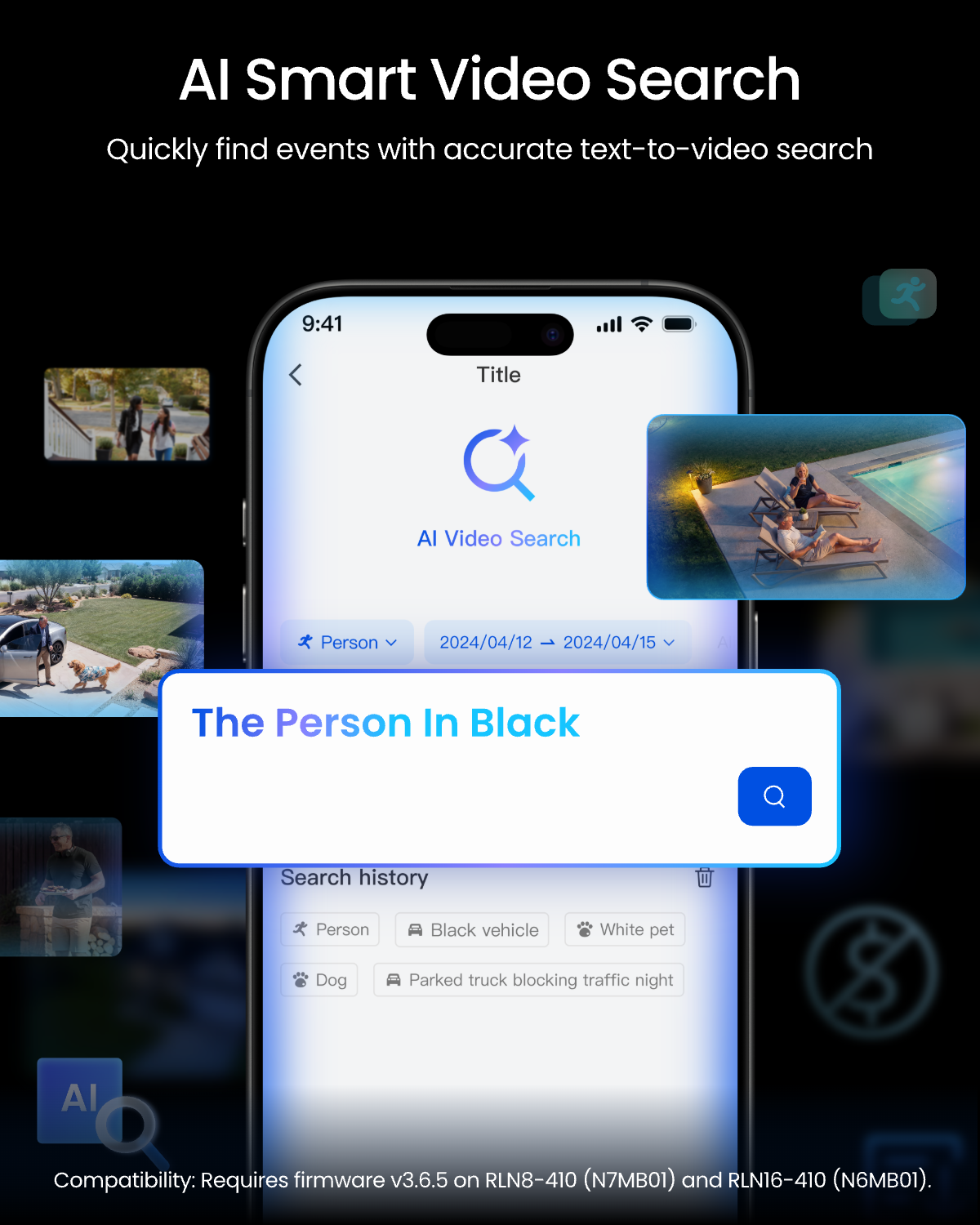

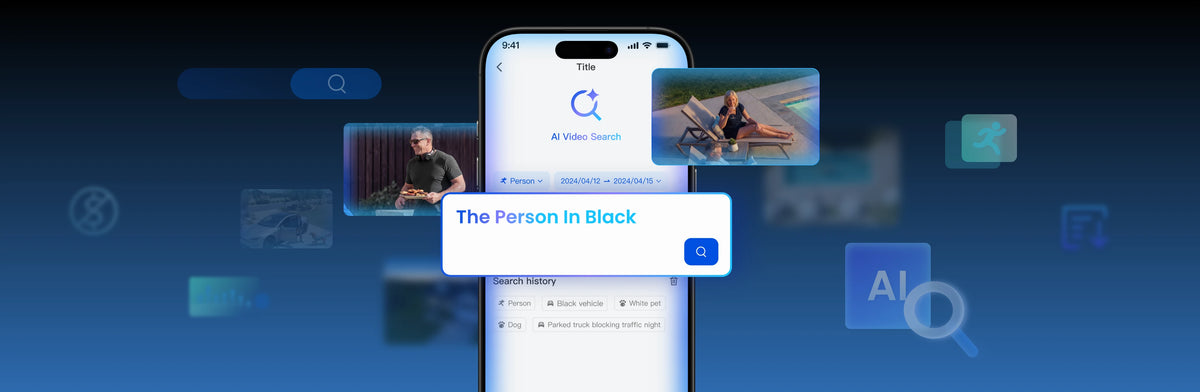

  • Local AI Video Search

    Find anything instantly. Search your recorded footage with plain language "person in a blue shirt," "red vehicle," "someone carrying a package." The camera does the looking for you.

  • Sees What Others Miss.

    Reolink OMVI 3i PoE has full-color clarity at night with the integrated spotlight. Switch to infrared mode for discreet monitoring. Motion-activated lighting deters intruders while keeping visibility crystal clear.

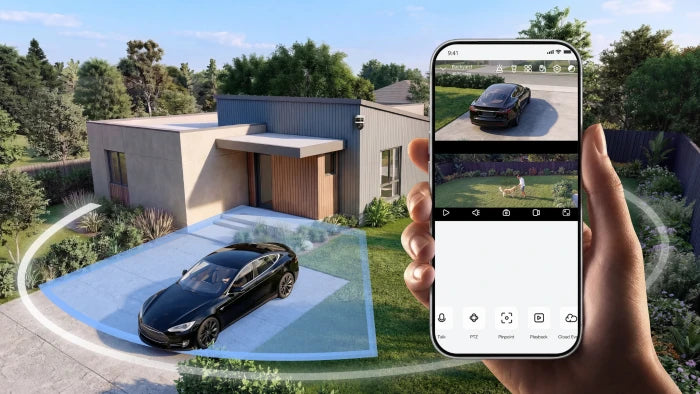

  • Two-in-One Camera for Total Coverage

    Monitor two separate areas at the same time with just one powerful camera. Reduce blind spots with pan & tilt functionality and 180-degree vision to get a more thorough, comprehensive overview of your home.

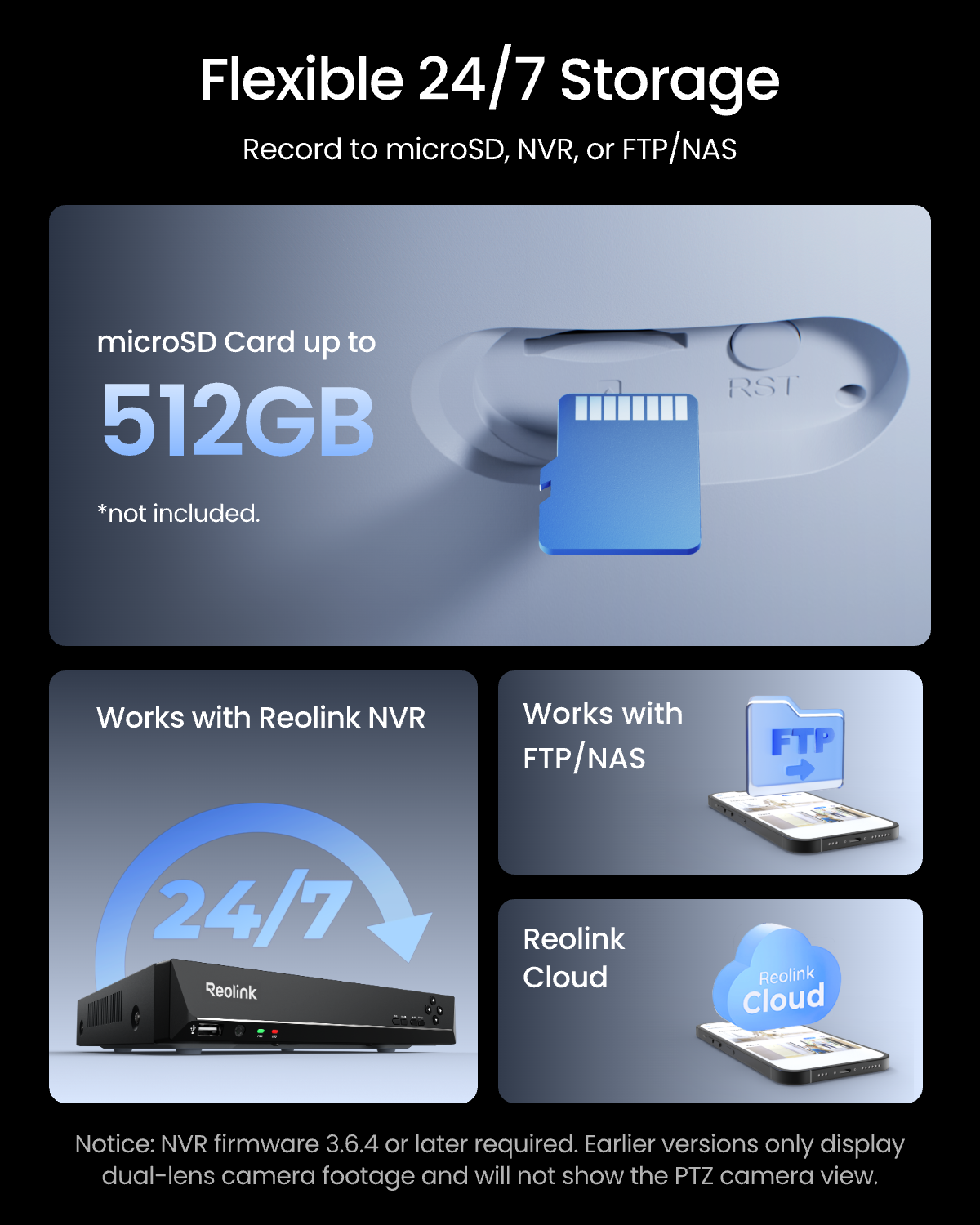

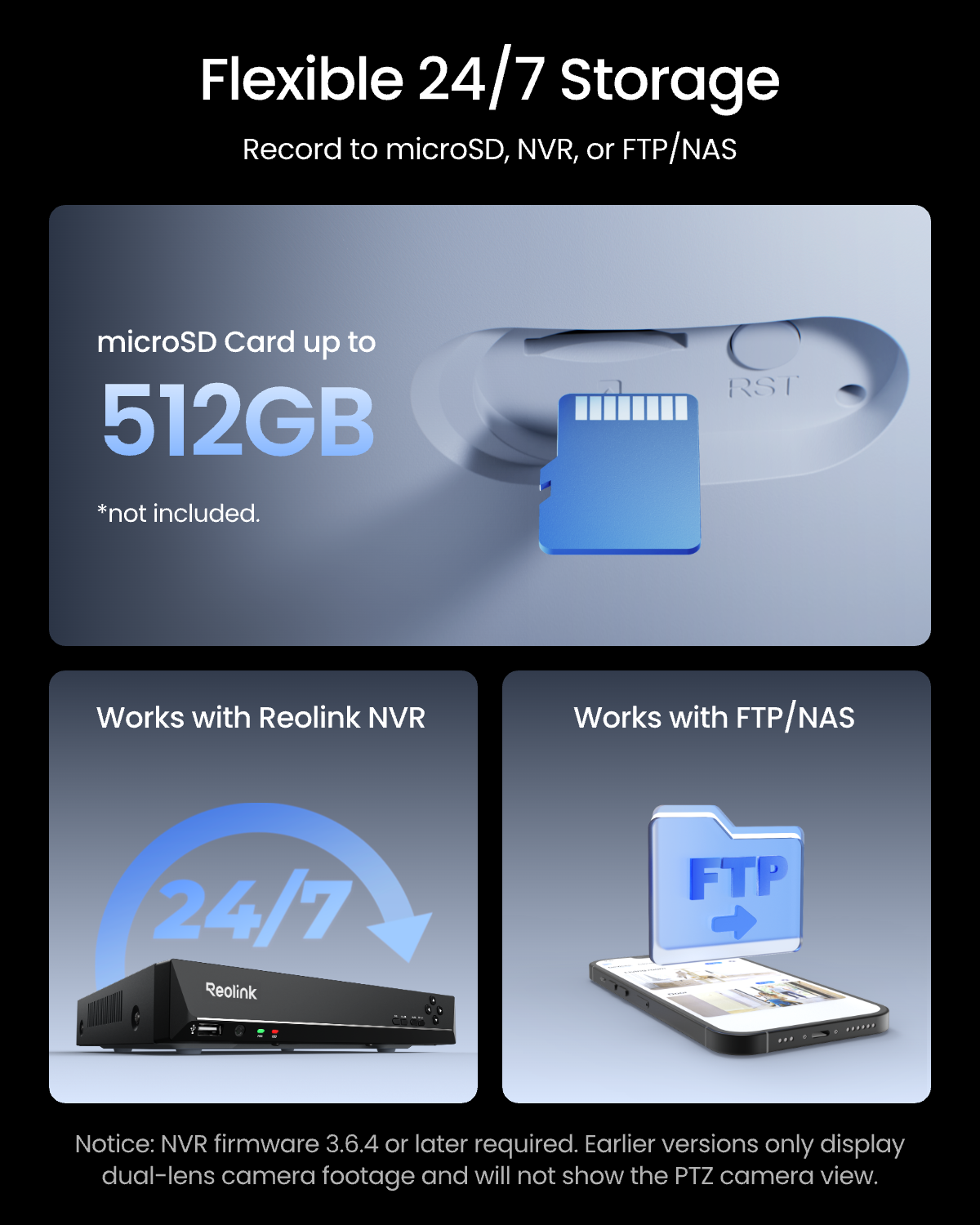

Your Data. Your Rules. Your Camera.

Local storage means your footage stays on your device. Record to microSD card, NVR, or NAS, no cloud bills, no monthly fees.

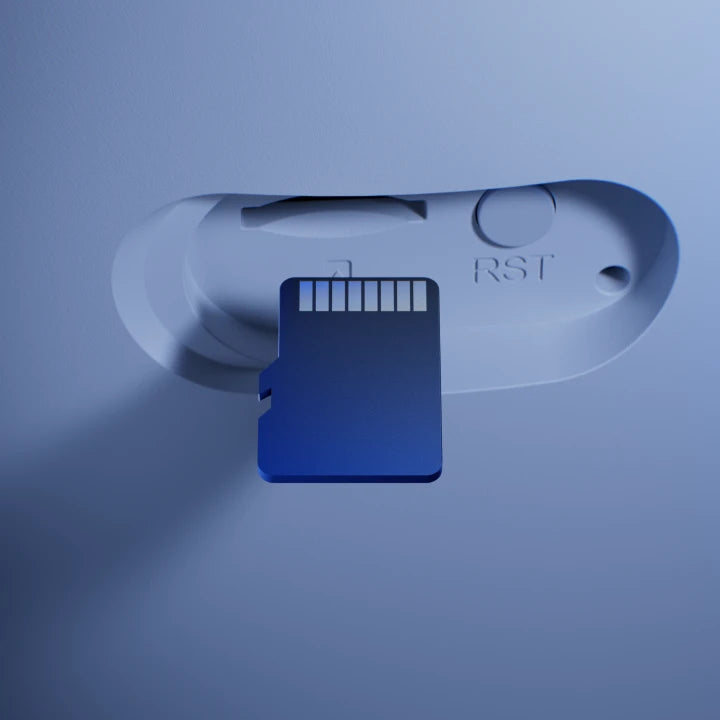

  • MicroSD Card

    Store your recordings locally and securely on a microSD card of up to 512 GB, freeing you from being stuck with limited storage.

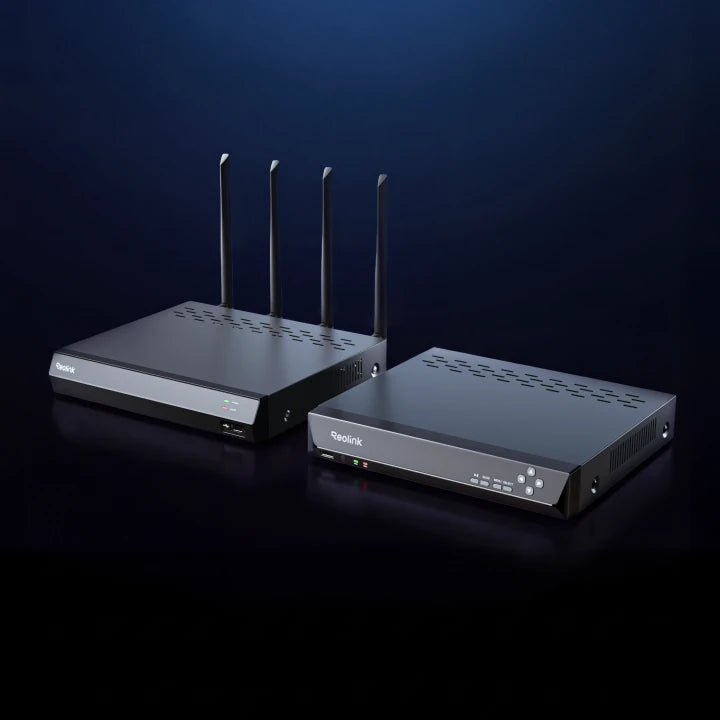

  • Reolink NVR

    Get ample storage and manage multiple cameras effortlessly by connecting the camera to a compatible Reolink NVR or a personalized security system.Important Notice: Check if your NVR hardware version is compatible and whether the firmware is up to date.

  • FTP/NAS Server

    Store footage on FTP/NAS servers for flexible access. No extra fees

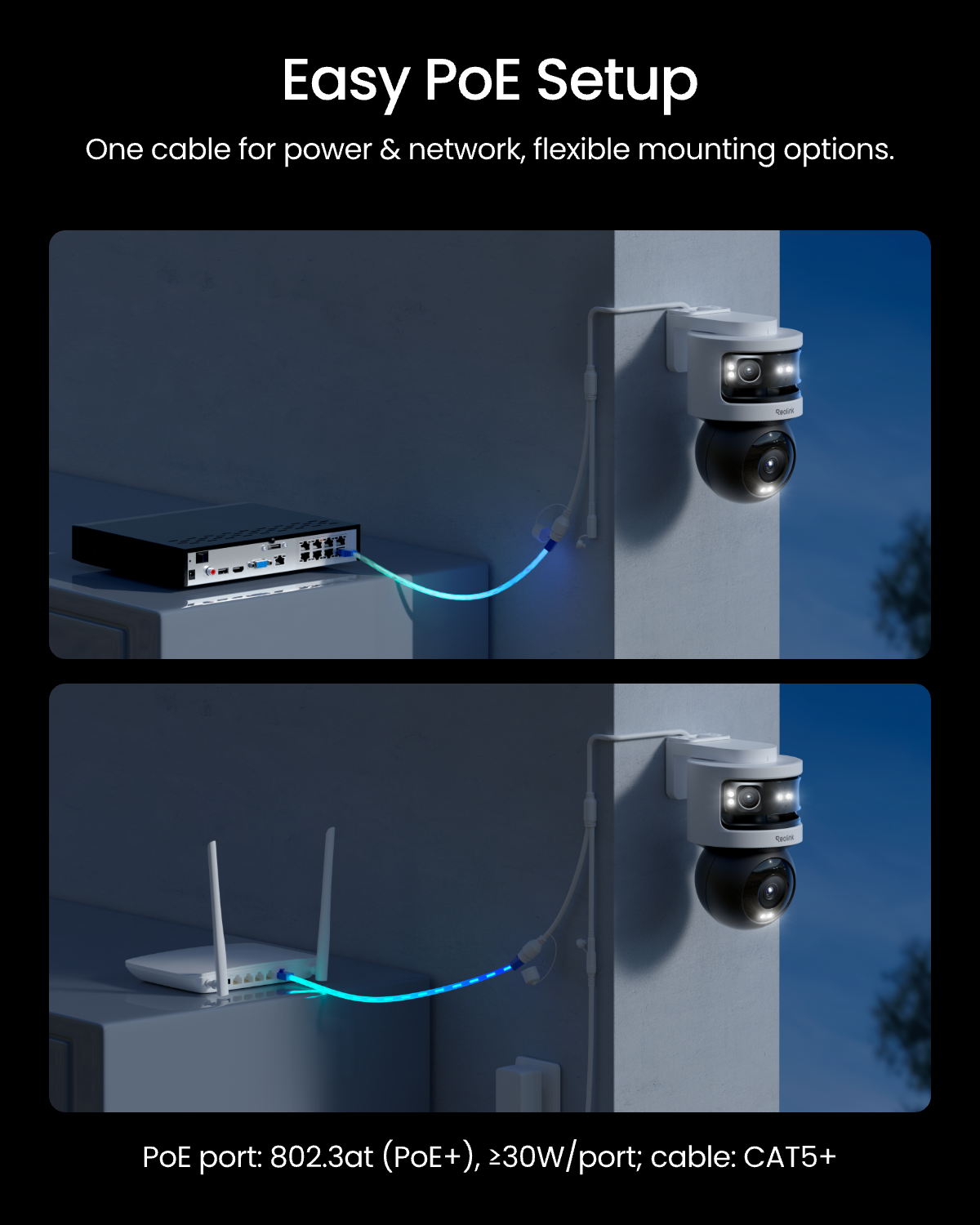

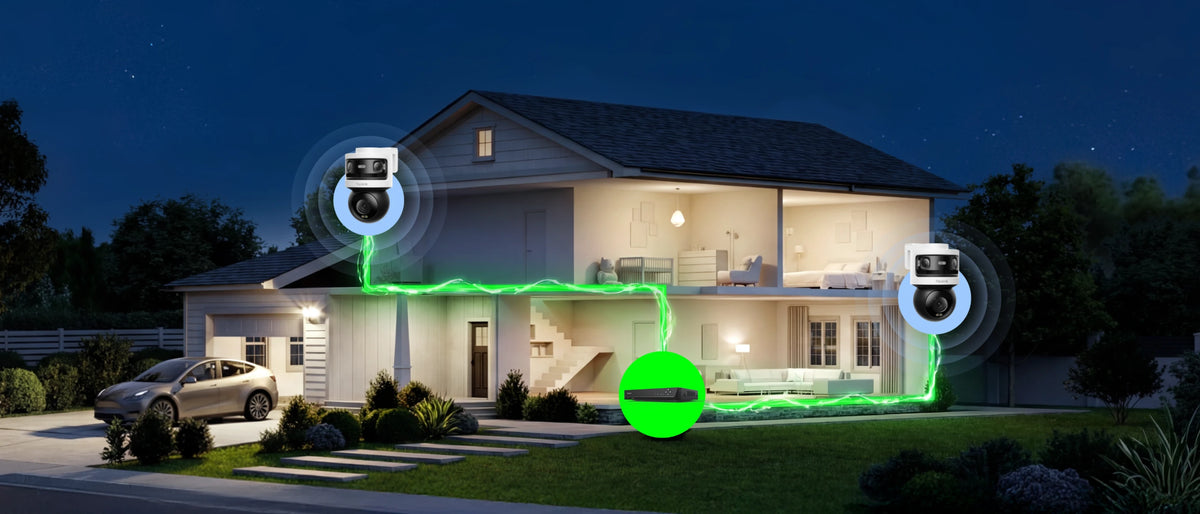

Simple Plug & Play

A single cable manages both data and a stable power supply, eliminating the need

for multiple wires. Setting up the Reolink OMVi 3i PoE is simple, even for beginners.

- Plug & Play

- Reliable Connection

Simple Plug & Play

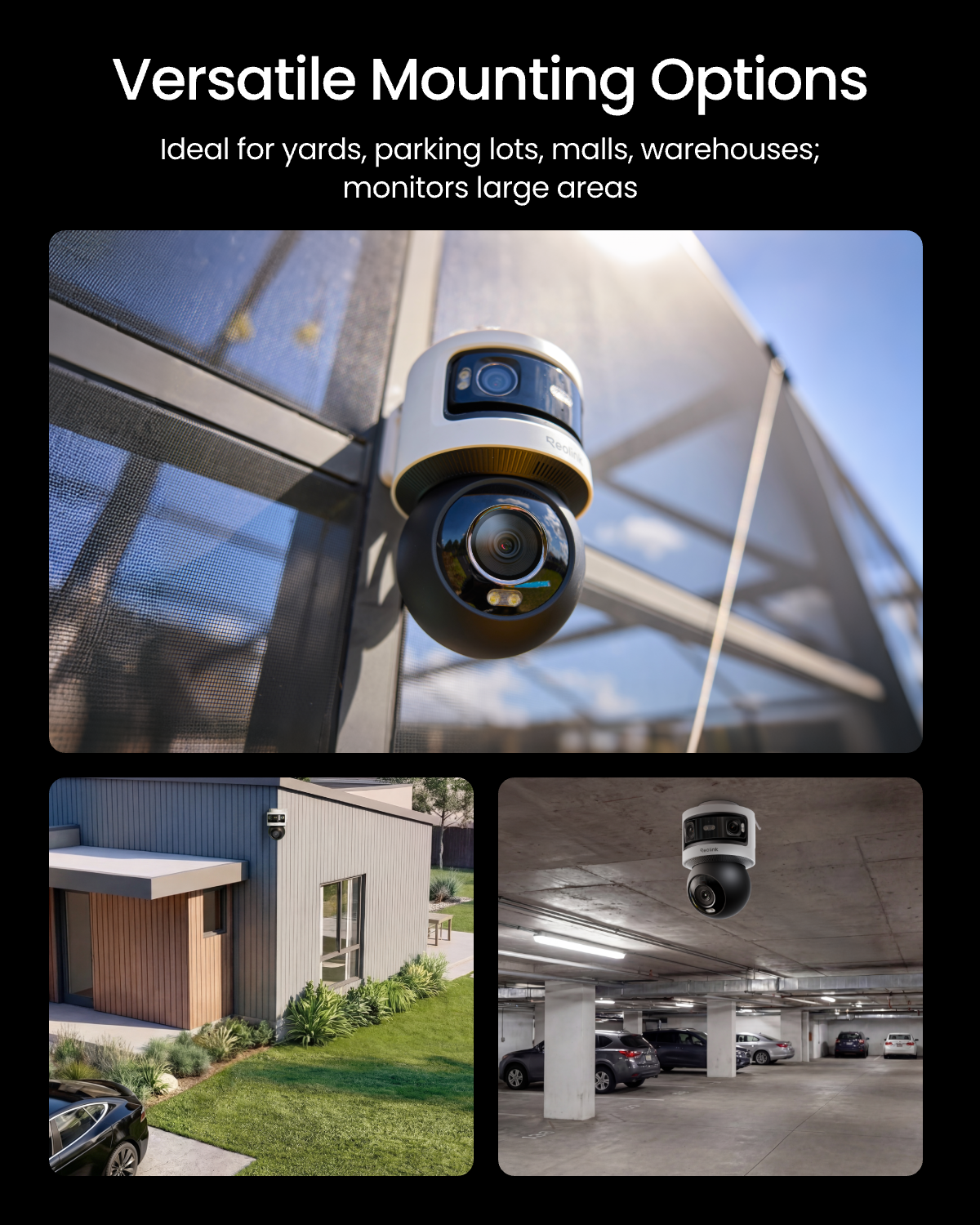

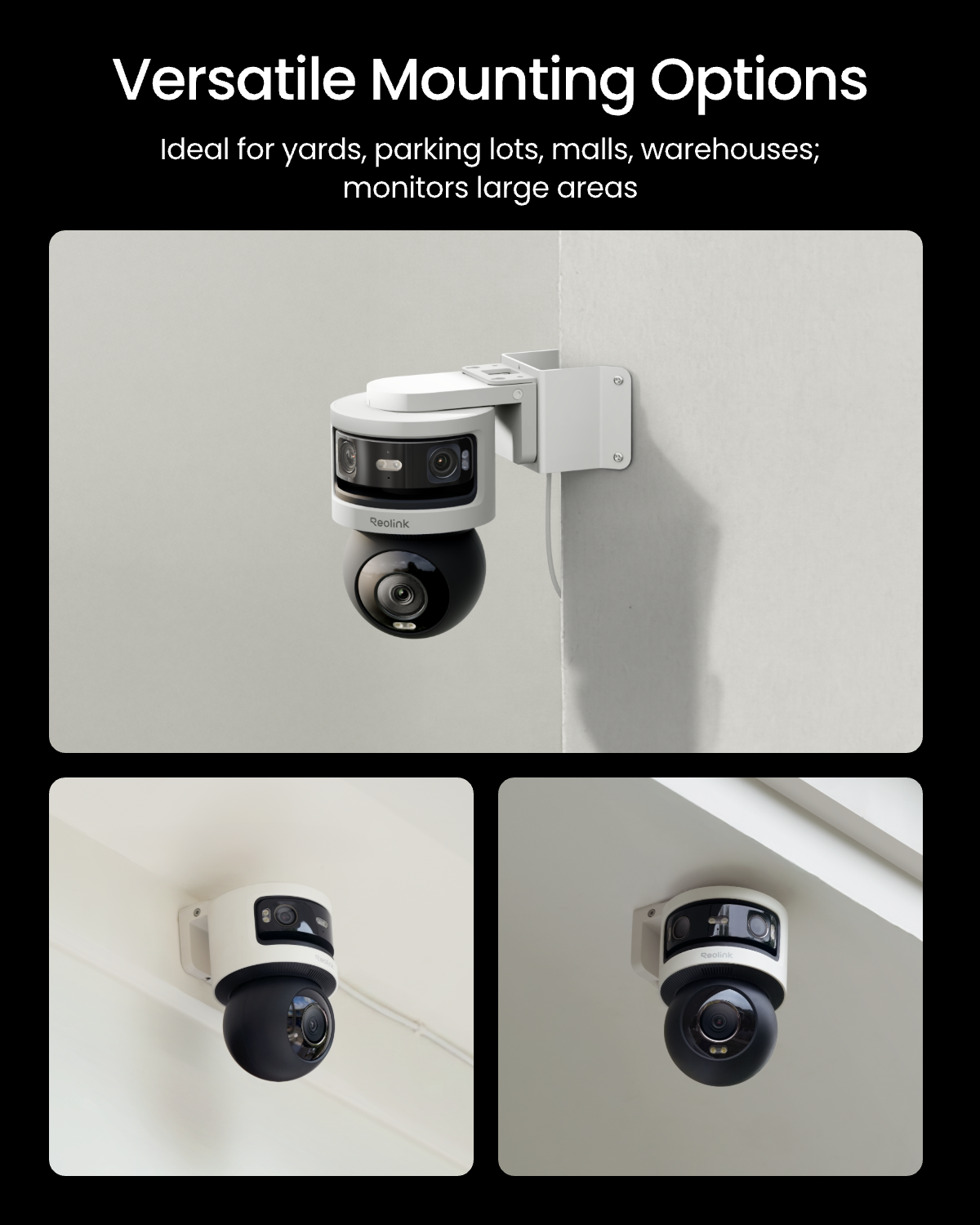

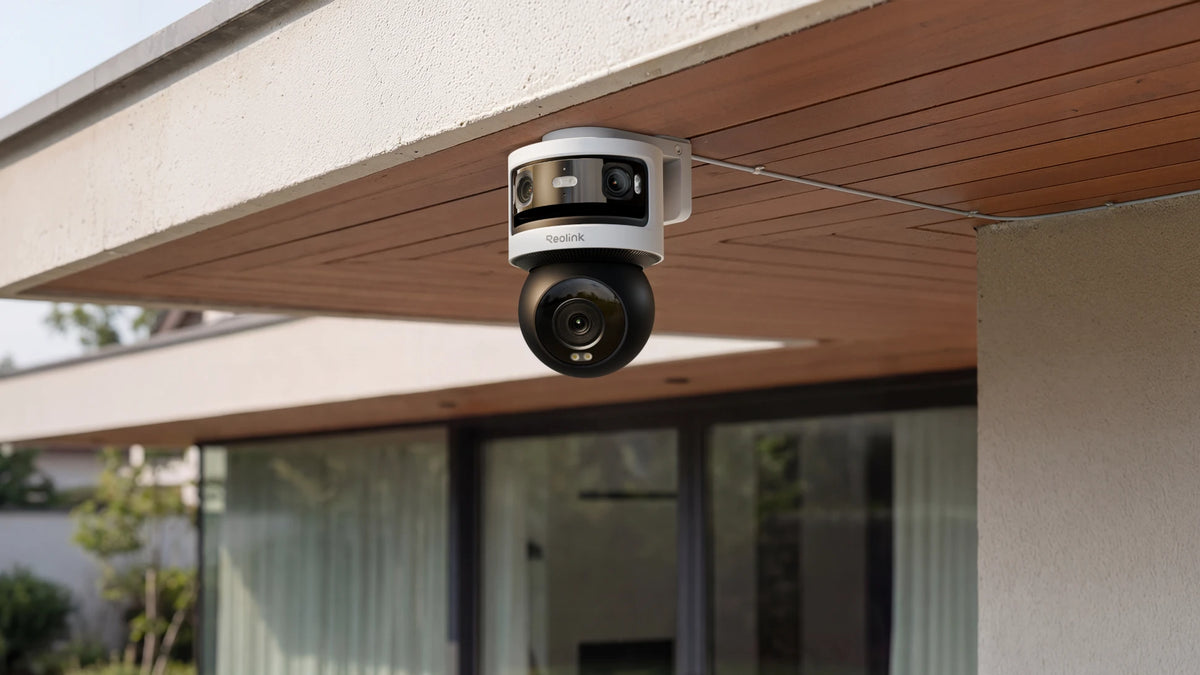

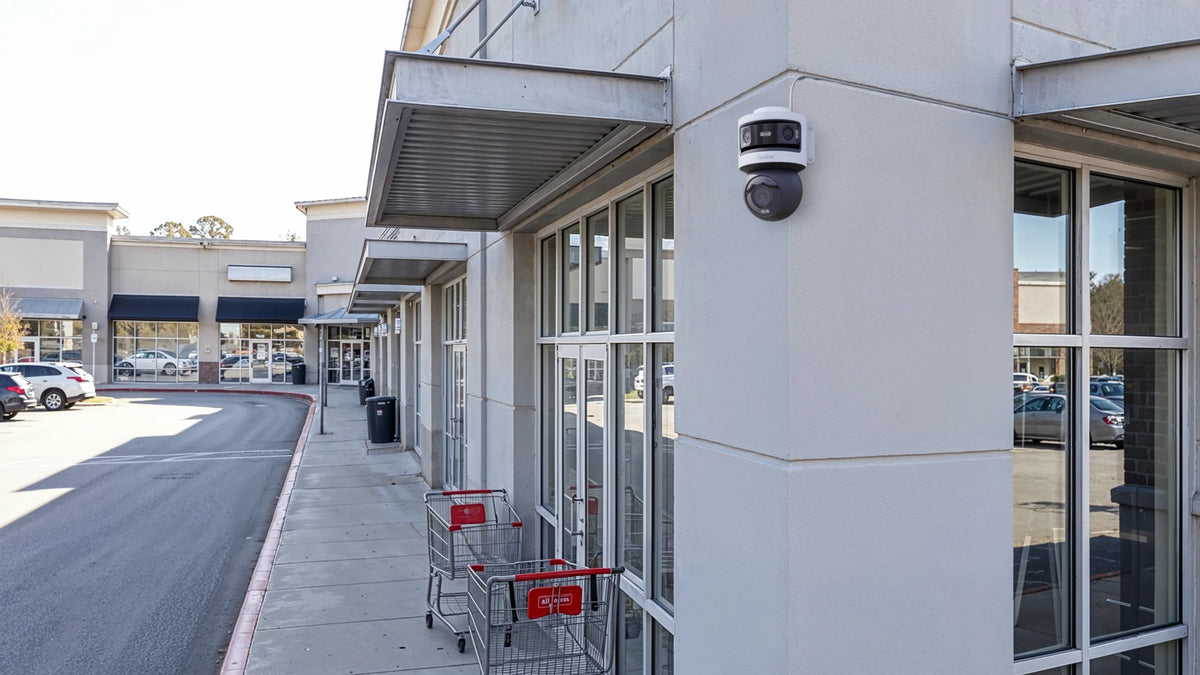

  • Ceiling Mount

    Install near the edge of the ceiling to reduce reflection and minimize blind spots.

  • Corner Mount

    For best results, use a Corner Mount Bracket (sold separately).

  • Wall Mount

    Face the camera directly forward, centered on the area you want to monitor.

Explore in Videos

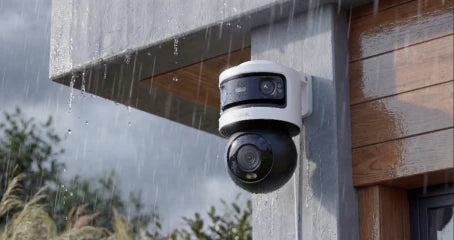

  • IP66 Waterproof

    Engineered for outdoor durability with IP66 weatherproofing. Designed to withstand rain, dust, and extreme temperatures, ensuring 24/7 reliable performance in any climate.

  • Cloud Services

    Optional cloud backup keeps your footage secure and accessible from anywhere. Reolink Cloud integration works seamlessly, local storage remains your primary option, cloud is always optional.

  • Time-lapse Album

    Automatically create condensed time-lapse videos of your entire day or week. Perfect for monitoring property activity, construction progress, or garden growth in fast-forward.

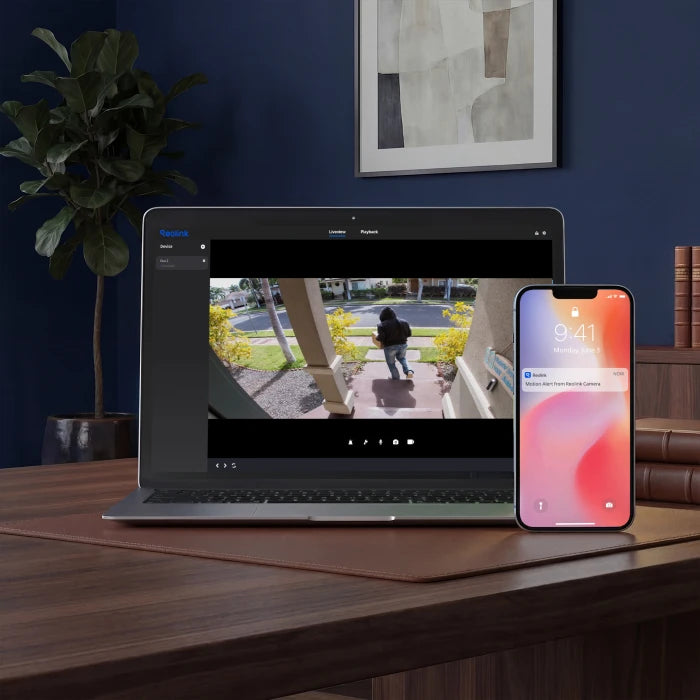

  • Instant Alerts in Real-Time

    Get push and email notifications in seconds when suspicious motions are detected. No subscription fees.

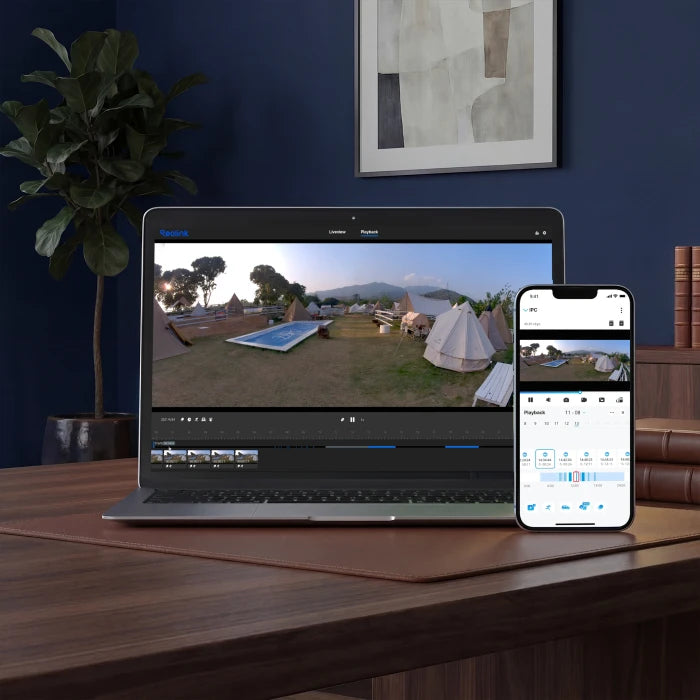

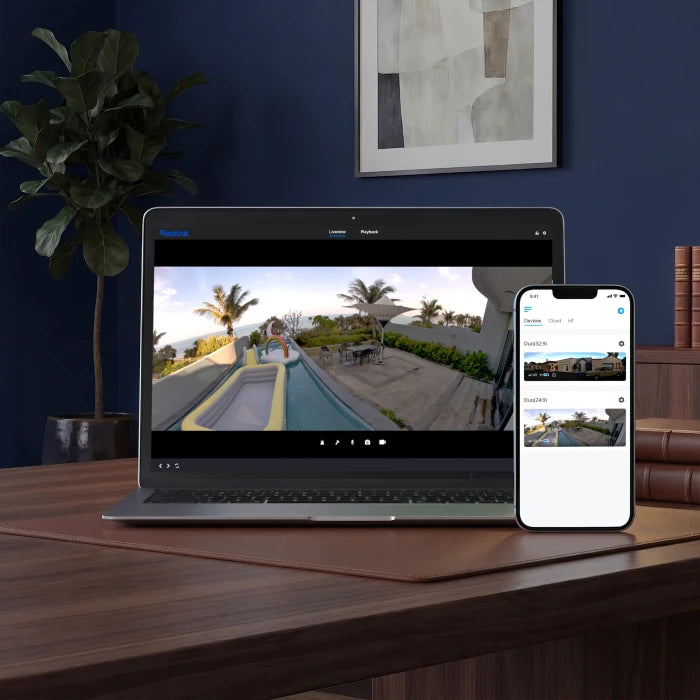

  • Seamless Live View

    Access real-time live view anytime, from anywhere, via Reolink App or Client, so you always know what's happening on your property.

  • Smart Playback

    With event and timeline filter, you can quickly filter out the recordings you don't need and find the clip you want within seconds.

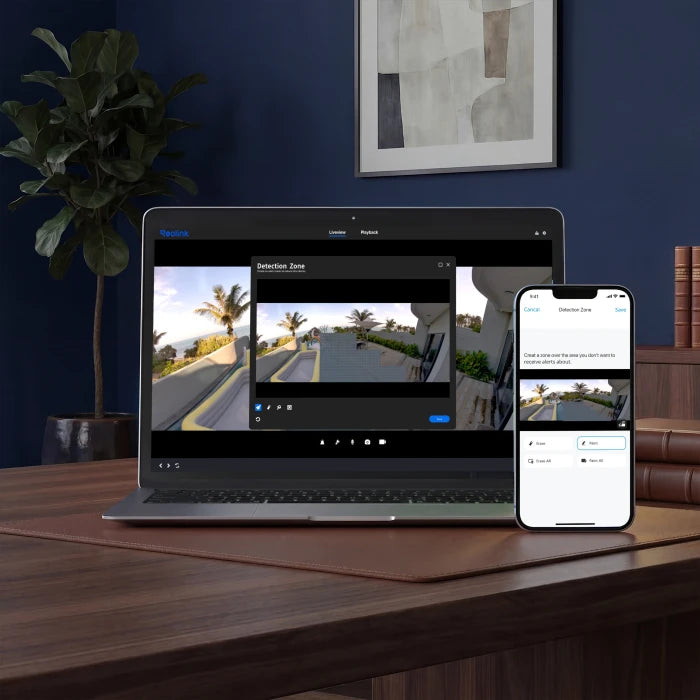

  • Detection Zones

    Customize motion detection zones to monitor the areas that matter most to you and leave out what doesn’t. No more distractions.

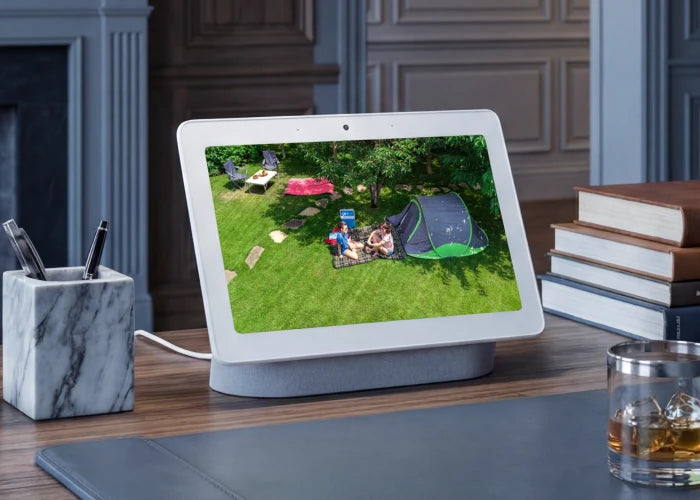

Work with Google HGome

Go Hands-free

As easy as saying "Hey Google, show me the Front Door", you can check what's happening there on your Google Nest Hub or Chromecast-enabled TVs.

Specifications

Download as PDF File

OMVI-3I POE

Video & Audio

Image Sensor:
1/2.7"+1/2.8"CMOS sensor

Resolution:
Upper cam: 5120 x 1920 (10MP)
Lower cam: 3840 x 2160 (8MP)

Lens:
Upper cam: f=2.8mm, F=1.6
Lower cam: f=6mm, F=1.6

Video Compression:
H.264/H.265

Zoom:
Digital Zoom

Field of View:
Upper Cam: H:180°, V:65°
Lower Cam: H:55°, V: 30°

Infrared Night Vision:
Up to 30 meters (100ft) (auto-switching with IR-cut filter)

Color Night Vision:
With spotlight: 8pcs/7W/6000K

Frame Rate:
Main stream: 2fps - 20fps (default: 20fps)
Sub stream: 4fps - 20fps (default: 20fps)

Code Rate:
Upper cam:
Main stream: 3072Kbps - 8192Kbps (default: 6144Kbps)
Sub stream: 256Kbps -2048Kbps (default: 1536Kbps)
Lower cam:
Main stream: 3072Kbps - 7168Kbps (default: 5120Kbps)
Sub stream: 256Kbps -1228Kbps (default: 1228Kbps)

Audio:
Two-way audio

Power Requirements

POE:
IEEE 802.3at, 48V, active

DC Power:
DC 12.0V⎓2A, <24W

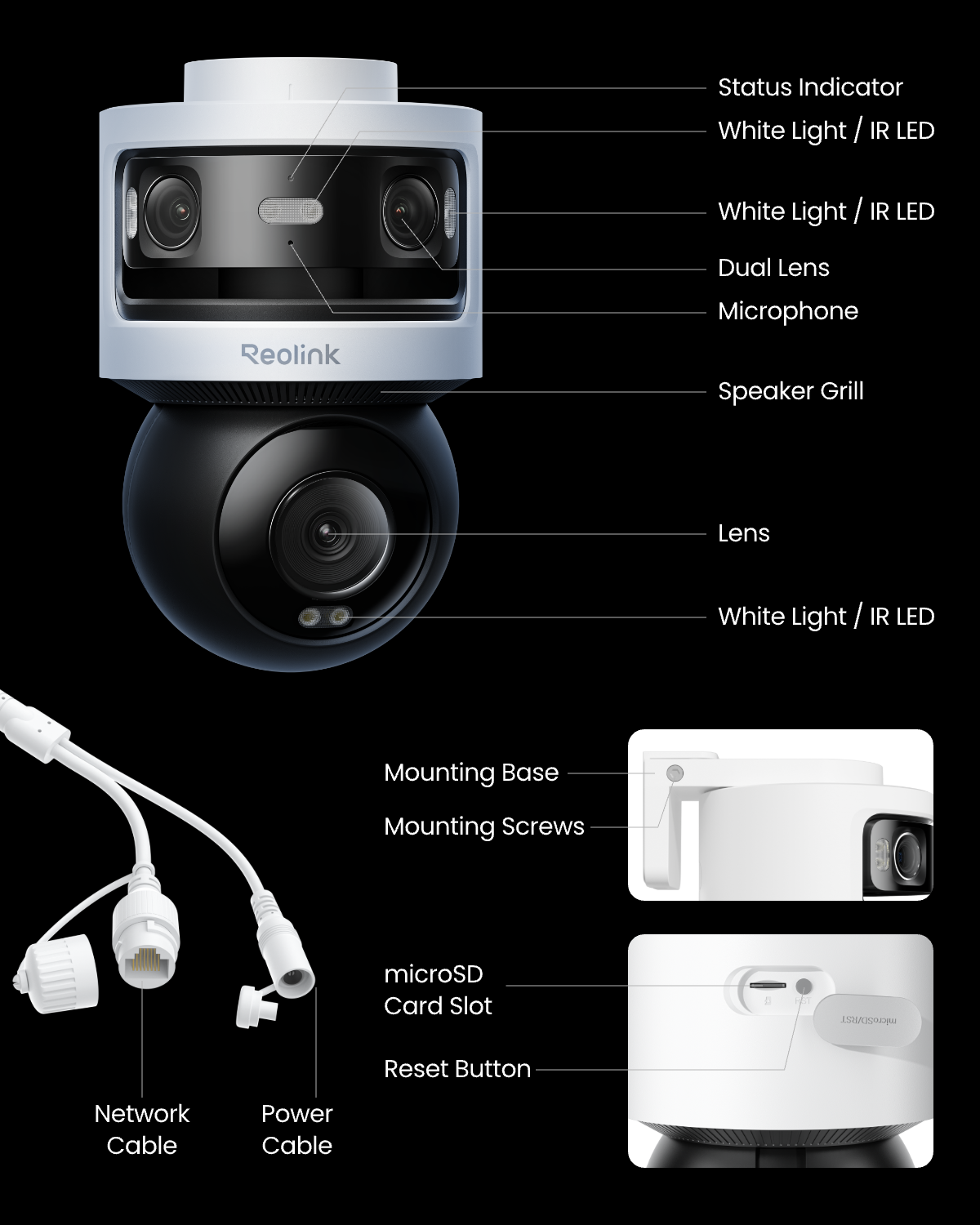

Interface

Power Port:
DC power port

Ethernet Port:
One 10M/100Mbps; RJ45

SD Card Slot:
Supports Max. 512GB microSD card

Reset Button:
YES

Audio In/Out:
Built-in microphone and speaker

Pan & Tilt

PT Angle(Max.):
Pan: 350°, Tilt: 50°

Pan Speed:
60/4°-60°/s (configurable)

Tilt Speed:
30/8°-30°/s (configurable)

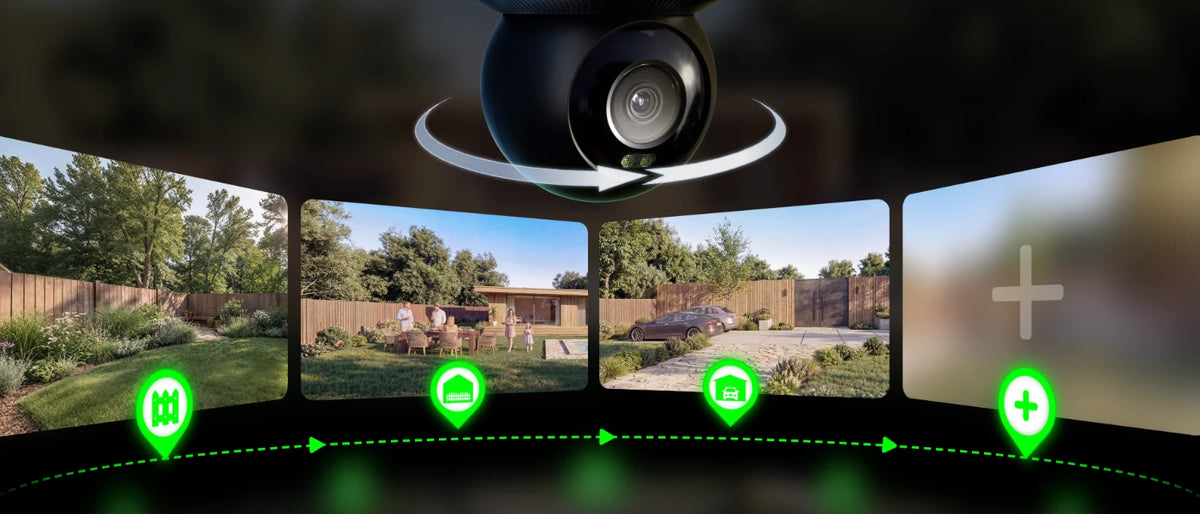

Preset Points:
Suppots 1 guard position & up to 64 preset positions

Patrol:
Supports 1 patrol; up to 4 presets per patrol

Sync Tracking:
YES

Software

Browsers Supported:
Edge, Chrome, Firefox, Safari

OS Supported:
PC: Windows, Mac OS; Smartphone: iOS, Android

Protocols & Standards:
HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P

User Access:
Max. 20 users (1 admin & 19 user);
Max. 12 simultaneous streams (2 main & 10 sub streams)

Other Features

Smart Alarm:
Motion detection; person detection; vehicle detection; animal detection

Auto Framing:
Yes

Local AI Video Search:
Yes

Perimeter Protection:
Upper cam: Line Crossing Alert, Zone Intrusion Alert, Zone Loitering Alert
Lower cam: N/A

Recording Modes:
Motion-triggered recording (default); Scheduled recording, 24/7 recording

Time Lapse:
YES

Tracking Methods:
Sync Track

Smart Home Compatibility:
Google Assistant

Working Environment

Operating Temperature:
-10°C~+55°C (14°F~131°F)

Operating Humidity:
10% ~ 90%

Weatherproof:
IP66

Mechanical

Dimensions:
202*151*125mm

Weight (Without Accessories):
1.3kg

Warranty

2-year limited warranty.
