Reolink P340: Your Ultimate 12MP Ultra HD Security Solution

  • Person/Vehicle Alerts
  • 12MP Ultra HD
  • Color Night Vision
  • Two-Way Audio
Regular price $159.00
Regular price $289.00 Sale price $159.00
Save 45%
Tax included. Shipping calculated at checkout.
Availability: Low stock
SKU: PC1212AB6K01
Regular price $159.00
Regular price $289.00 Sale price $159.00

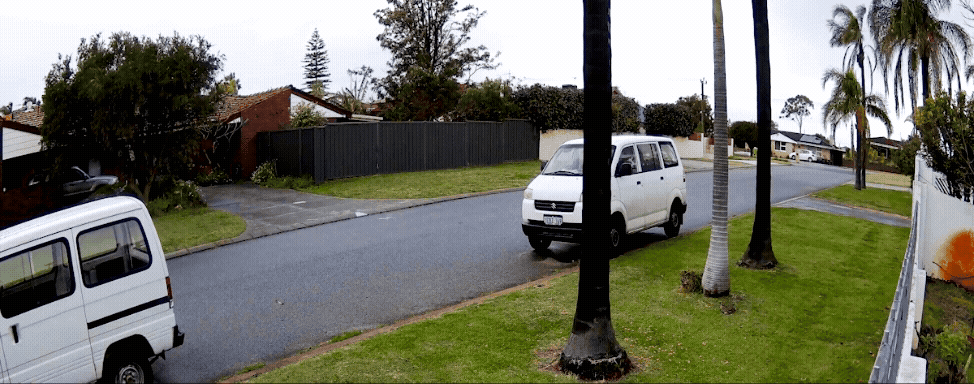

Unveil the Unseen with 12MP UHD

When it comes to security, every detail matters. P340 with F1.6 large aperture lens and 12MP ultra high resolution captures intricate details from facial features to license plates, leaving nothing goes unnoticed.

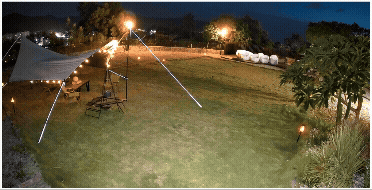

Stunning Color Night Vision

P340 is equipped with a powerful spotlight that keeps on at night, making night scenes as vivid as day. You can see more details in full color without worrying about poor lights.

Color Night Vision, Powerful Spotlight

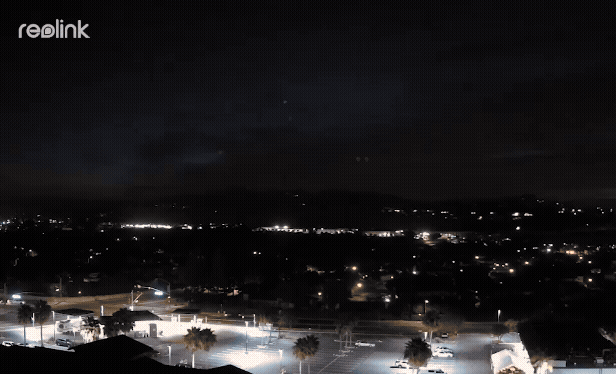

Amazing Time-Lapse Videos

Long-term events like sun rising and flower blooming are hard yet fun to observe. This camera with time lapse makes it quicker and easier to appreciate the amazing process of such events in minutes.

* This feature is incompatible when camera is connected to NVRs.

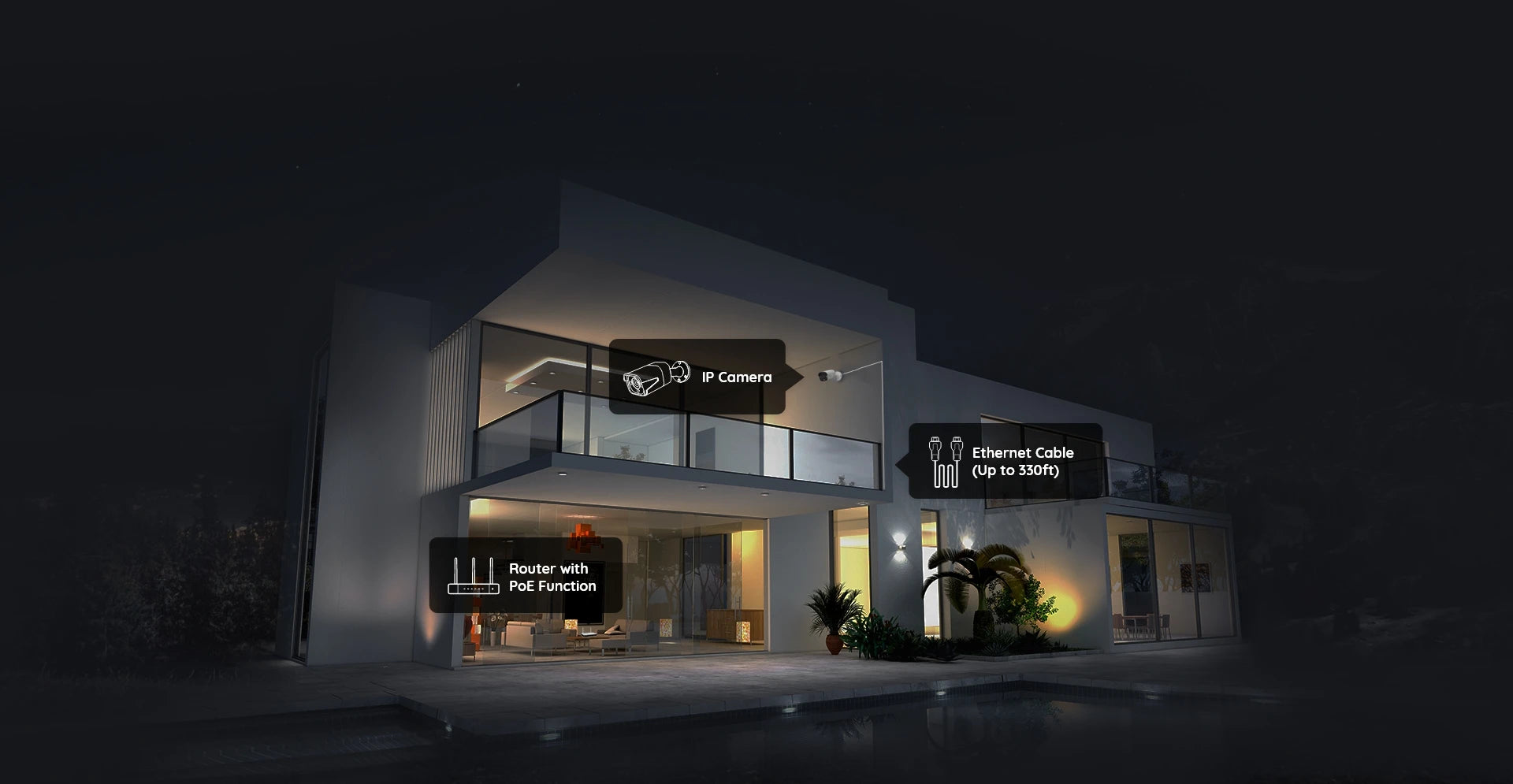

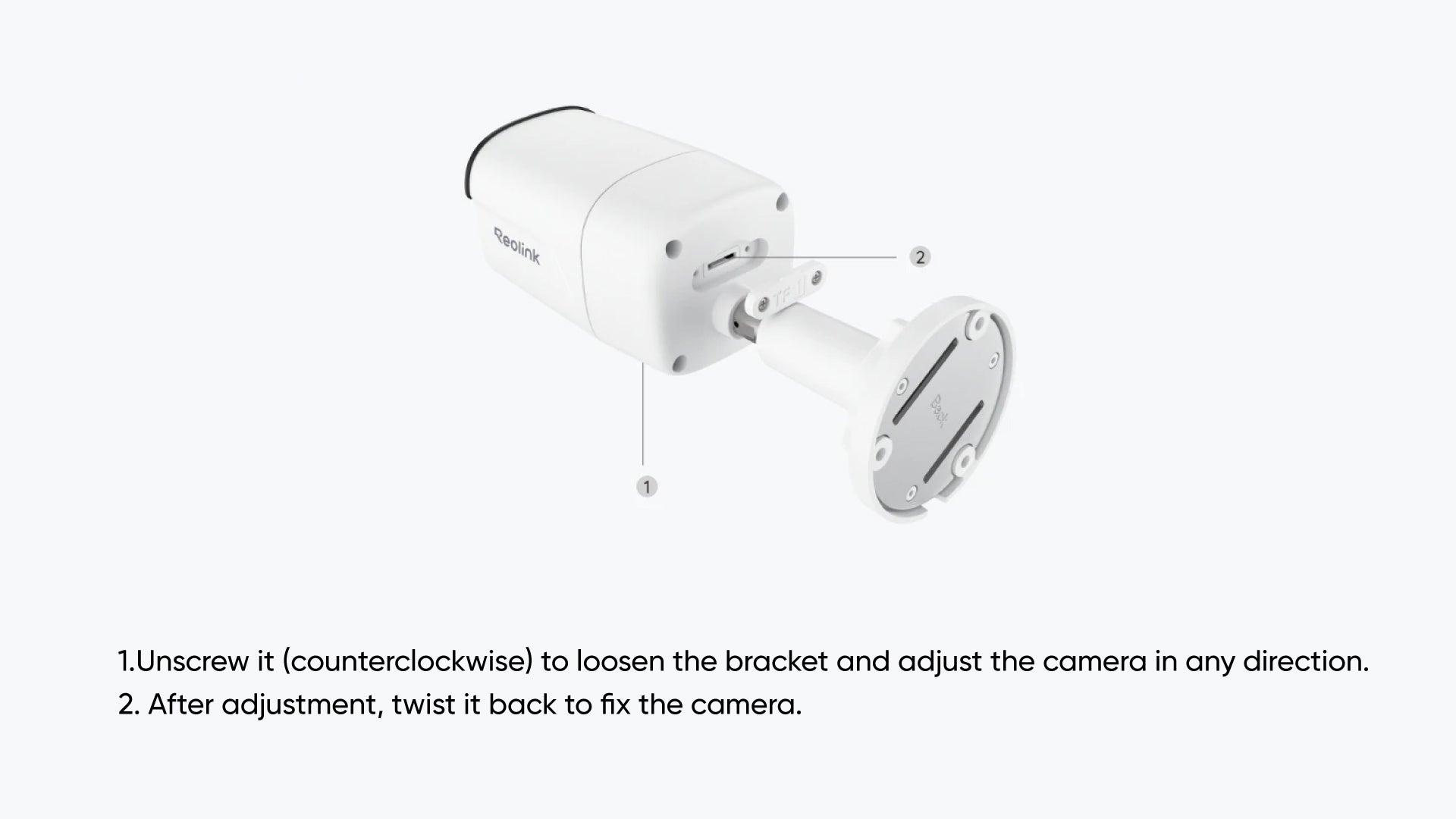

Simple Installation & Control

Multiple Recording Options

Share information about your brand with your customers. Describe a product, make announcements, or welcome customers to your store.

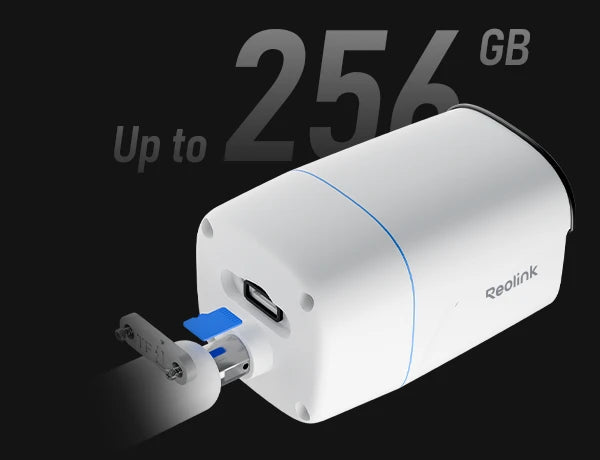

microSD Card

Supports up to 256GB microSD card (not included).

18.2 hours - 64GB
36.4 hours - 128GB
72.8 hours - 256GB

Figure based on the default bit rate of the cam (8192 kbps). Actual recording time depends on the settings. Results may vary.

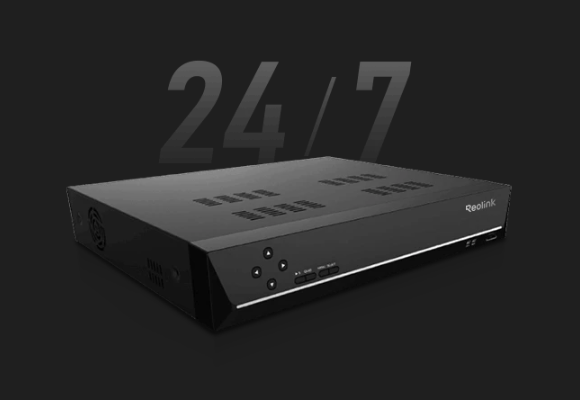

Reolink NVR

If you want to save videos for a much longer time or manage multiple cameras, you can simply connect this camera to a compatible Reolink NVR or security camera system.

*Reolink NVRs are recommended for best performance.

Remote Access & Control

Reolink App & Client are great for you to quickly configure the camera and make full use of its magnificent functions.

  • Real-Time Alerts

    When the camera detects something suspicious, it will immediately send real-time alerts to your device with a snapshot so that you can take quick action.

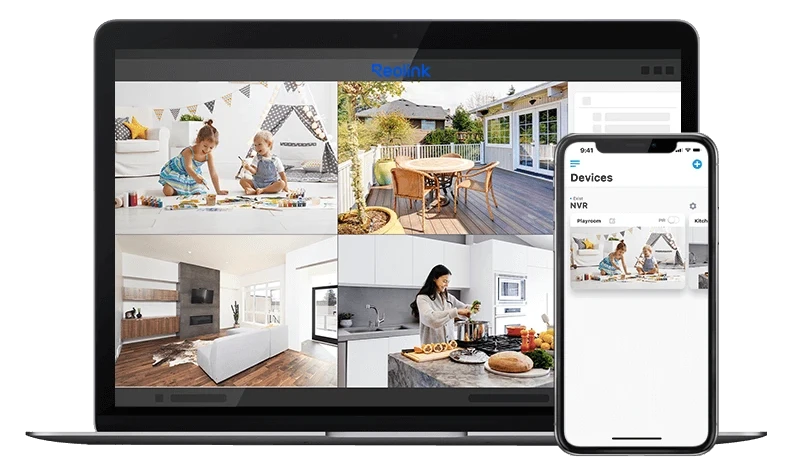

  • Live View from Everywhere

    Wherever you are, you can always know what's going on in your home with live video and audio. Take your phone when going out and everything is under control.

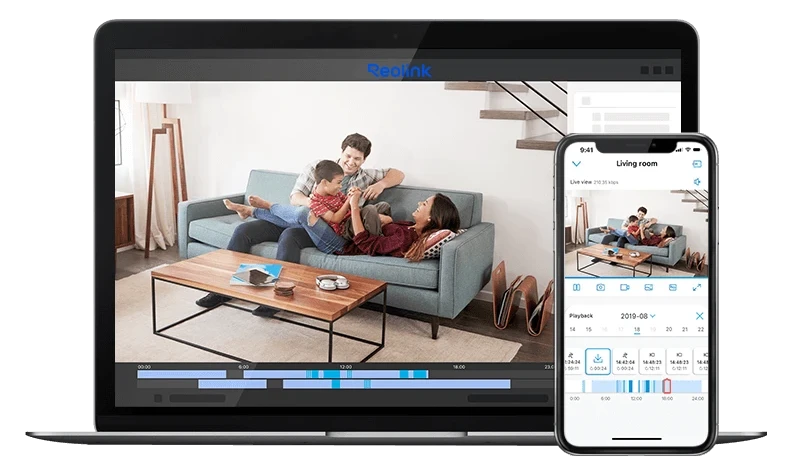

  • Easy & Smart Playback

    Replaying recordings is so easy when you locate them by date and timeline. Sharing fun moments or keeping crucial evidence, you won't miss any important events.

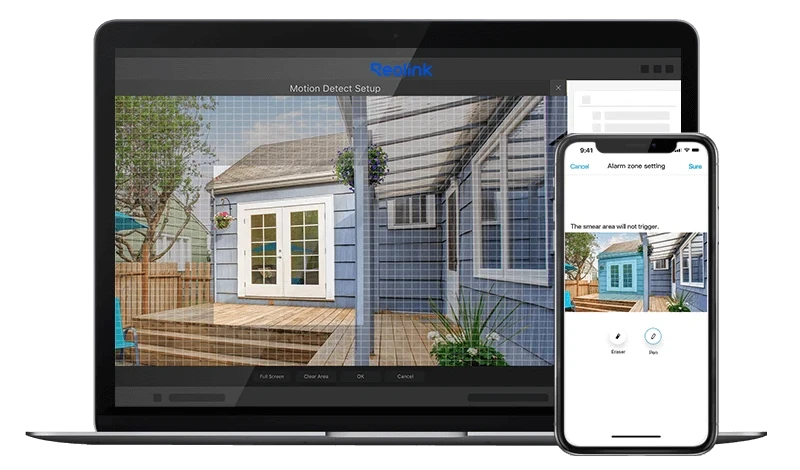

  • Customized Motion Zone

    Your privacy is highly valued. You can freely customize the motion zone by masking out the area where you don't want the camera to detect motions.

Control Your Cameras, Hands-Free


  • Works with Google Assistant

    As easy as saying “Hey Google, show me the backyard”, you can check what’s happening there on your Google Nest Hub or Chromecast-enabled TVs.

  • Works with Alexa

    Control it with your voice. Just ask Alexa to show the video of your camera on the Echo Spot, Echo Show or Fire TVs, and everything is done.

Specifications


Download as PDF File

Video & Audio

Image Sensor:
1/2.49" CMOS Sensor

Video Resolution:
Default: 4512X2512 (12 Megapixels) at 20 frames/sec

Lens:
f=4.0mm; F=1.6, with IR-cut filter

Video Format:
H.265

Field of View:
• Horizontal: 93°
• Vertical: 49°

Day & Night:
Auto-switching with IR-cut filter

Infrared Night Vision:

30 meters (100ft) (LED: 2pcs/28mil/850nm)

Color Night Vision:
Spotlight: 1pcs/4.3W/6500K/700 Lumens

Audio:
Two-way audio

Power

POE:
IEEE 802.3af, 48V Active

DC Power:
DC 12.0V⎓1A, <12W

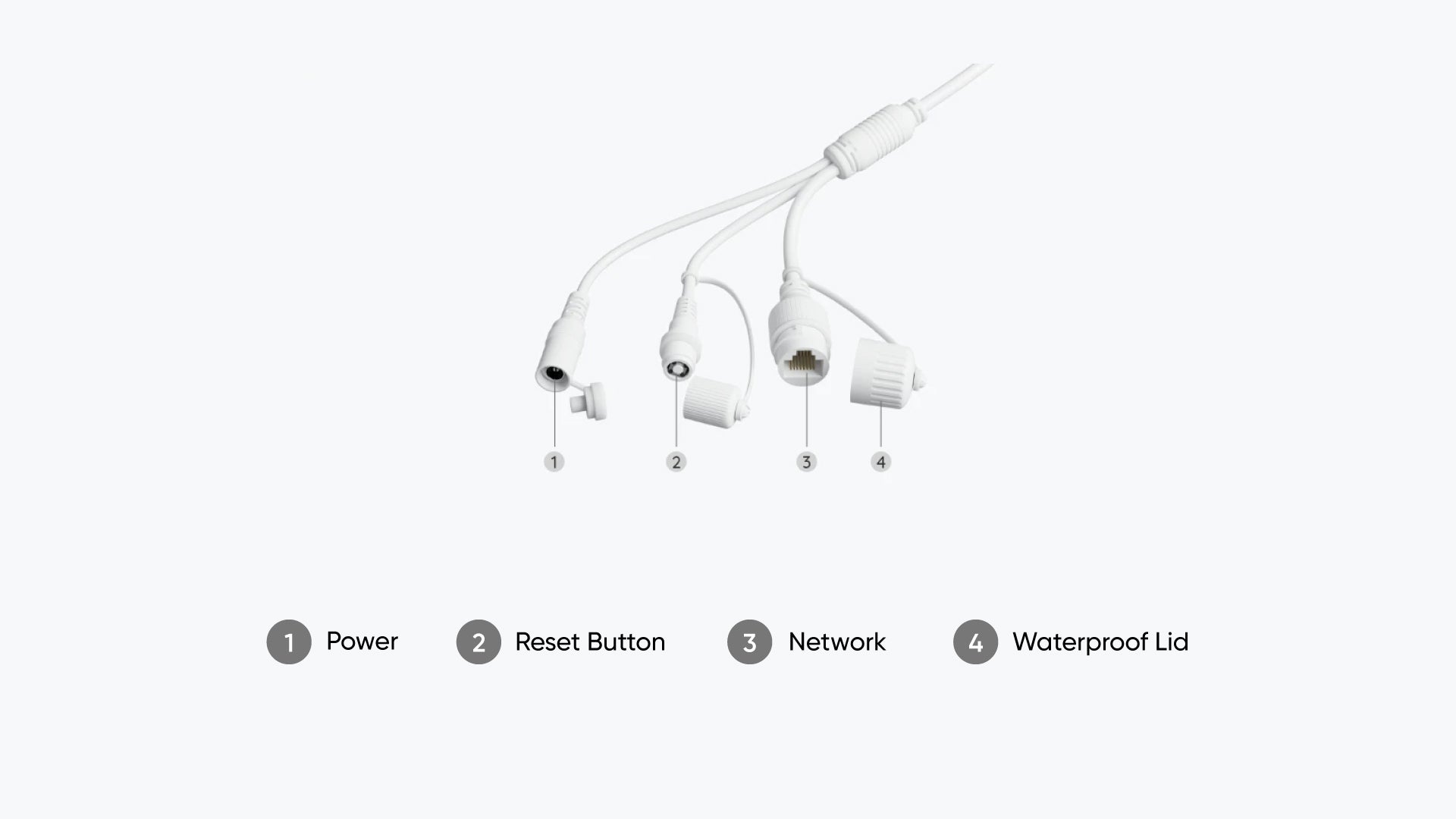

Interface

Power:
DC power port

System:
Reset button

Ethernet:
One 10M/100Mbps; RJ45

Storage:
microSD card slot (Max. 256GB)

Audio:
Built-in microphone and speaker

Software Features

Frame Rate:
• Mainstream: 2fps - 20fps (default: 20fps)
• Substream: 4fps - 20fps (default: 10fps)

Code Rate:
• Mainstream: 3072Kbps - 10240Kbps (default: 8192Kbps)
• Substream: 128Kbps - 1024Kbps (default: 768Kbps)

Browsers Supported:
Edge, Chrome, Firefox, Safari

OS Supported:
PC: Windows, Mac OS; Smartphone: iOS, Android

Smart Alarm:
Motion detection/person detection/vehicle detection/pet detection

Record Mode:
Motion-triggered recording (default); scheduled recording; 24/7 recording

Protocols & Standards:
HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P

Maximal User Access:

20 Users (1 admin account & 19 user accounts); support up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

Work with:
Google Assistant

Working Environment

Temperature:
Operating temperature: -10°C~+55°C (14°F~131°F)

Humidity:
Operating humidity: 10% ~ 90%

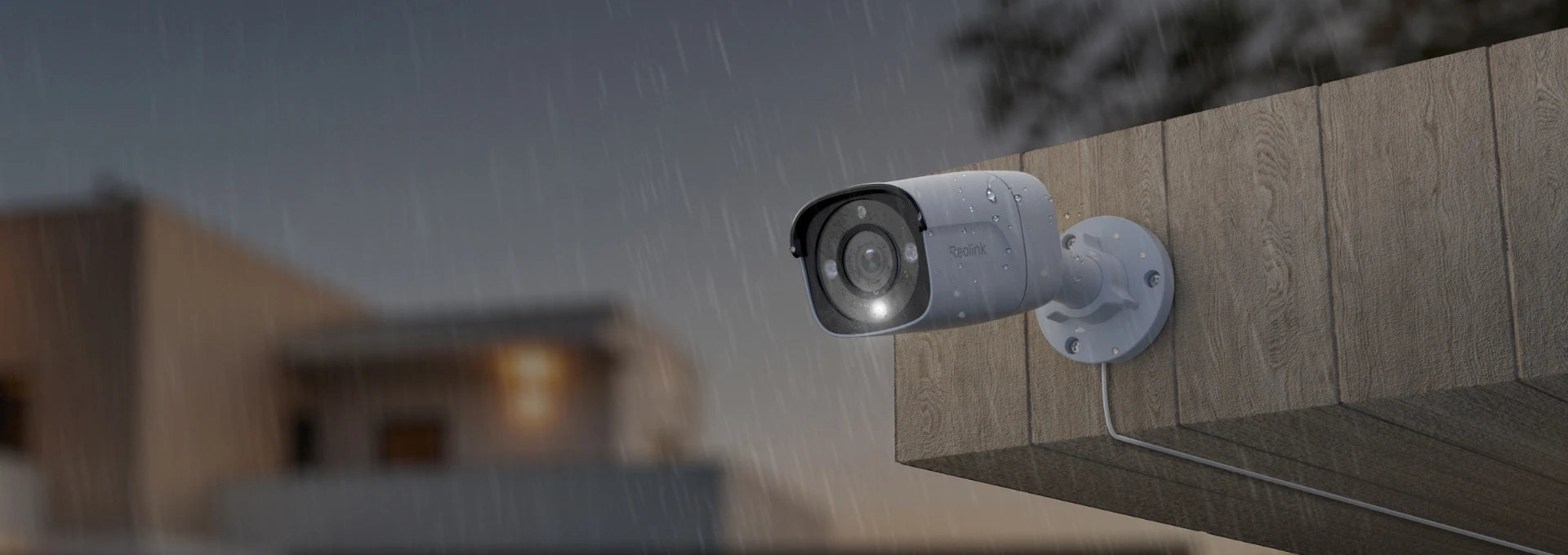

Waterproof:
IP67

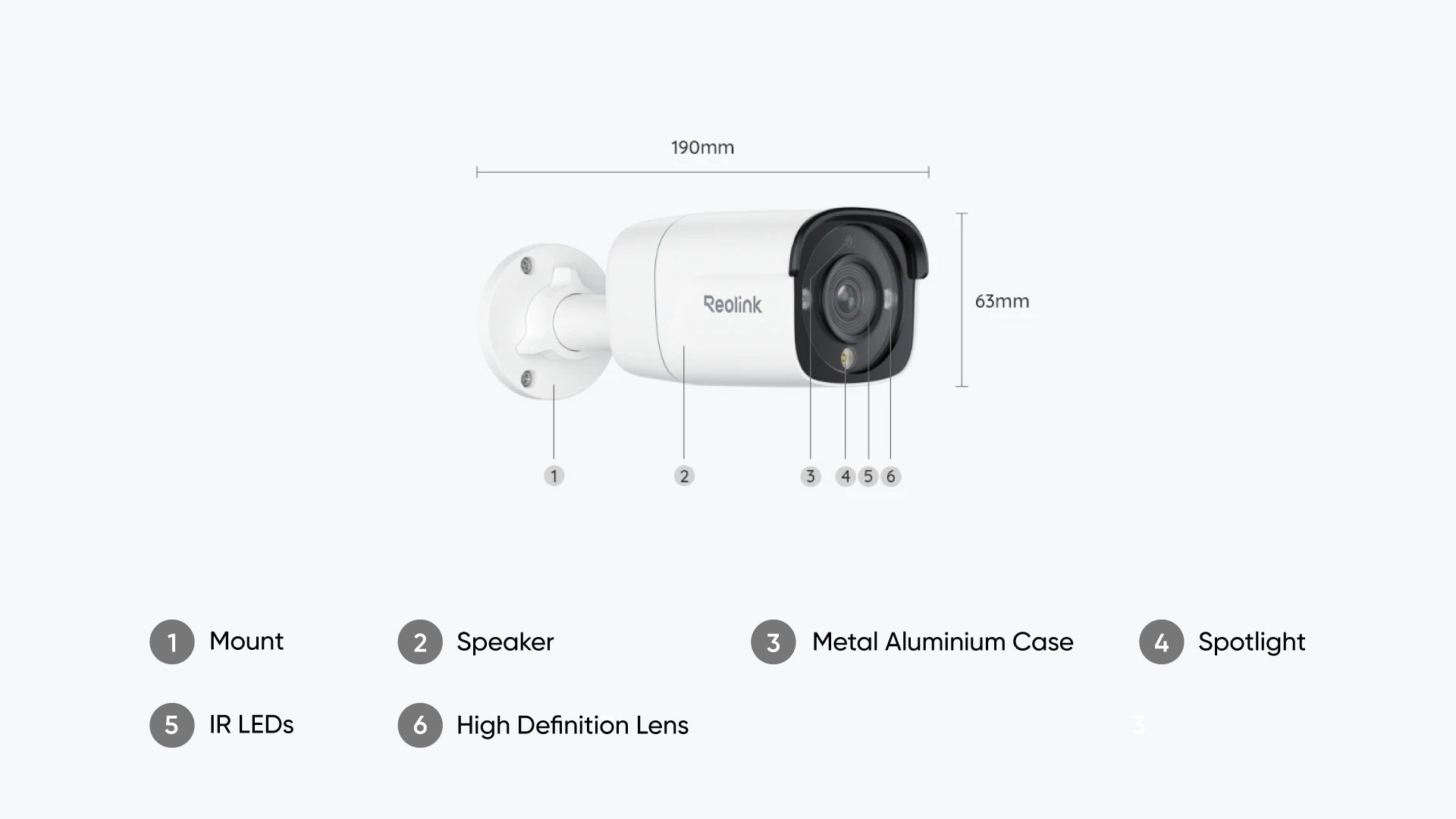

Size & Weight

Dimension:
Φ67*187mm

Weight:
460g

Warranty

2-year limited warranty
