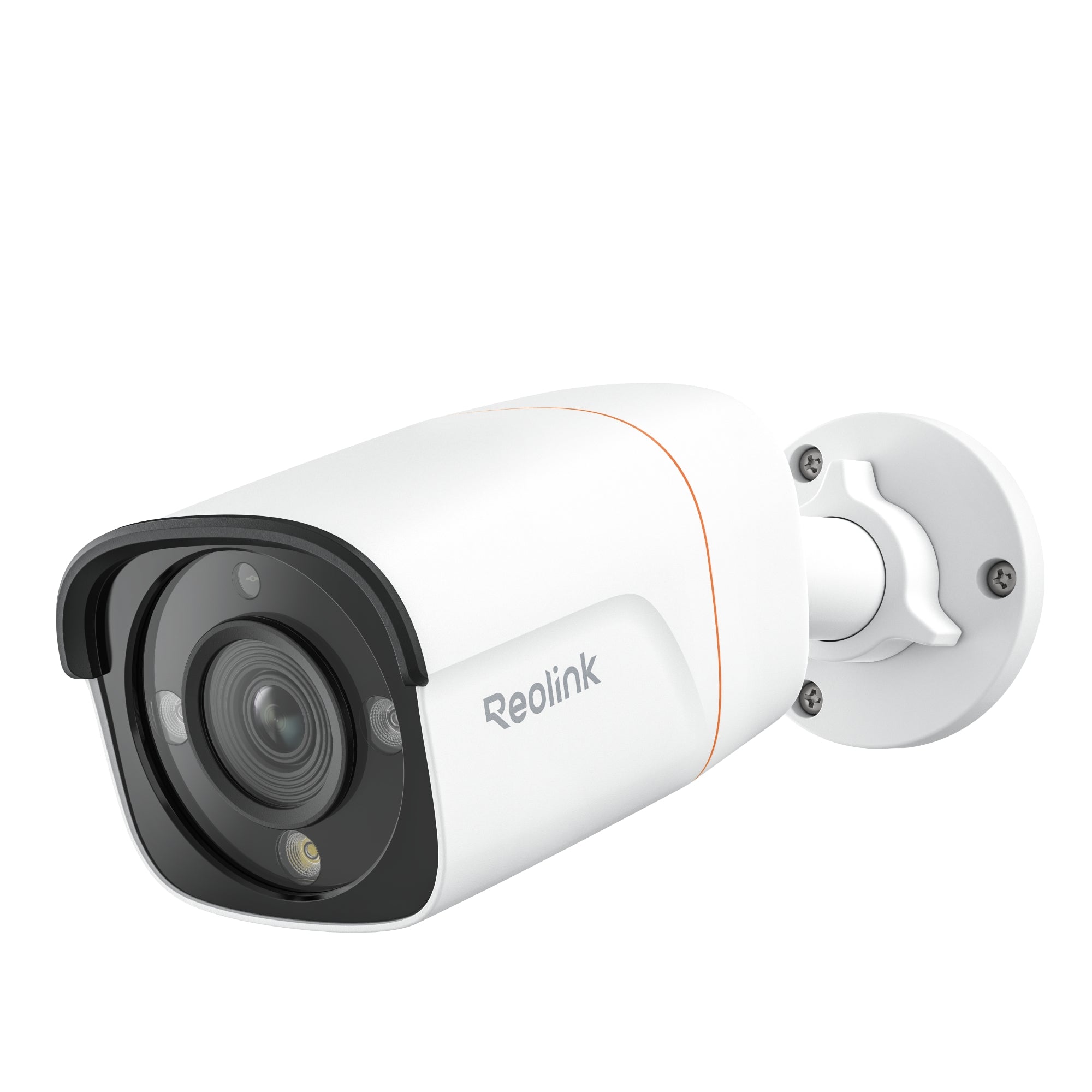

Reolink RP-PCB12M : 12MP Ultra HD PoE Camera with Spotlights

12MP High Resolution Advanced AI POE Camera

  • 12MP High Resolution (4512x2512) @25FPS
  • 4mm Lens, 123° Diagonal View, H: 100.4°, V: 50.6°, D:123°
  • Operating Temperature: -30°C~+55°C
  • Advanced AI Detection
  • Perimeter Protection: Line Crossing / Zone Intrusion / Zone Loitering Alert
  • Smart Event Detection (Beta)
  • AI Video Search
  • Color & IR Night Vison
  • Supports Max: 512GB micro SD card
Enquire with us
Enquire with us Enquire with us
Tax included. Shipping calculated at checkout.
Availability: In stock
SKU: PCRPB6K01
Reolink RP-PCB12M 12MP Ultra HD PoE Camera with Spotlights
Enquire with us
Enquire with us Enquire with us

12MP Clarity, Even in the Dark

Capture the smallest details with ultra high-definition 12MP resolution. Working in tandem, AI ISP technology coupled with the F1.6 large aperture lens ensures exceptional night vision, while spotlights bring full-color clarity to nighttime footage.

Unleash the Power of ReoNeura

  • AI Video Search

    Input descriptive keywords to instantly search specific video clips in local footage. Filter out irrelevant clips and pinpoint the target event in no time.

  • Perimeter Protection

    Identifies and differentiates between people, packages, animals, non-motorized vehicles, and vehicles, improving alert accuracy and reducing false alarms.

  • Smart Event Detection(Beta)

    Send instant alerts on objects forgotten or removed from key areas, ensuring timely action and loss prevention.

Feature Highlights

  • 12MP Resolution@25fps

  • AI ISP

  • 100° Viewing Angle

  • 30m Night Vision

  • 512GB microSD Card

  • -30°C~+55°C (-22°F~131°F)

Secure Storage For Every Need

Trusted storage options including microSD cards, high-capacity NVRs, encrypted FTP backup solutions.

  • MicroSD Card

    Conveniently store your recordings locally on a microSD card up to 512GB.


    32.3 hr - 128 GB
    64.7 hr - 256 GB
    129.4 hr - 512 GB




  • Reolink NVR

    Reolink NVR offers a reliable and high-capacity storage solution for small business security, enabling 24/7 continous recording across multiple channels.

Smooth VMS System

  • Remote Live Viewing

    Stay connected to your home or business with real-time remote viewing via the VMS system, whether you're in office or on the go.

  • Alarm Management

    Supports diverse detection, including Person & Object Detection, Smart Event Detection, Perimeter Protection, Device Anomaly Alarm, and Video Occlusion Alarm—with instant pop-up notifications via VMS for prompt response.

  • Device Management

    Group cameras by project or area for efficient device managment and status monitoring. Check the real-time connectivity status and battery level for uninterrupted surveillance.

  • Account Management

    Assign roles and permissions based on operational needs. With device-account linking, users only see authorized areas and devices. Once logged in, they can access linked devices across multiple platforms without repeated setup.

Specifications

Download PDF File

RP-PCB12M

Video & Audio

Image Sensor:
1/2.49" CMOS  Sensor

Resolution:
4512*2512(12Megapixels)@25FPS

Lens:
f=4mm fixed, F=1.6, with IR Cut

Zoom:
No

Video Compression:
H.265/H.264

Field of View:
Horizontal: 100.4°
Vertical: 50.6°
Diagonal:  123°

Day & Night:
IR-cut filter with auto-switching

Infrared Night Vision:
30 Meters(2PCS/2.8W/850nm)

Color Night Vision:
1PC/4.3W/6500K/600Lumens

Frame Rate:
Main Stream: 2fps - 25fps(default: 25fps)Sub Stream: 4fps - 20fps(default: 10fps)

Code Rate:
Main Stream: 2048Kbps -12288Kbps(default: 9216Kbps)Sub Stream: 128Kbps - 1228Kbps(default: 1024Kbps)

Audio:
Two way Audio

Power

PoE:
IEEE 802.3af, 48V Active

DC Power:
DC 12.0V⎓1A,  <12W

Interface

Power Port:
DC power port

Ethernet Port:
One  10M/100Mbps  RJ45

Storage:
MicroSD card slot (Max. 512GB)

Reset Button:
Yes

Alarm In/Out:
No

Audio In/Out:
Built-in Microphone&Speaker

Software Features

Browsers Supported:
Edge, Chrome, Firefox, Safari

OS Supported:
PC: Windows, Mac OS; Smartphone: iOS, Android

Protocols & Standards:
HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P,ONVIF

User Access:
20 Users (1 admin account & 19 user accounts);Support up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

Other Features

Smart Alarm:
Motion detection/Person Detection/Vehicle Detection/Animal Detection

Perimeter Protection:
Line Crossing Alert, Zone Intrusion Alert, Zone Loitering Alert

Smart Event Detection:
Object Removal (beta) , Forgotten Object (beta)

Recording Modes:
Motion-triggered recording (default); Scheduled recording, 24/7 recording

Smart Home Compatibility:
Google Assistant

AI Video Search:
Yes

AI ISP:
Yes

HDR:
No

Time Lapse:
Yes

Motion Track:
No

Working Environment

Operating Temperature:
-30°C~+55°C (- 22°F~131°F)

Operating Humidity:
10% ~ 90%

Weatherproof:
IP67

Mechanical

Dimensions:
68 x 63 x 188mm

Weight (Without Accessories):
452.4g

What's in the box

  • RP-PCB12M ×1
  • Ethernet Cable ×1
  • Quick Start Guide ×1

Warrranty

3-year limited warranty

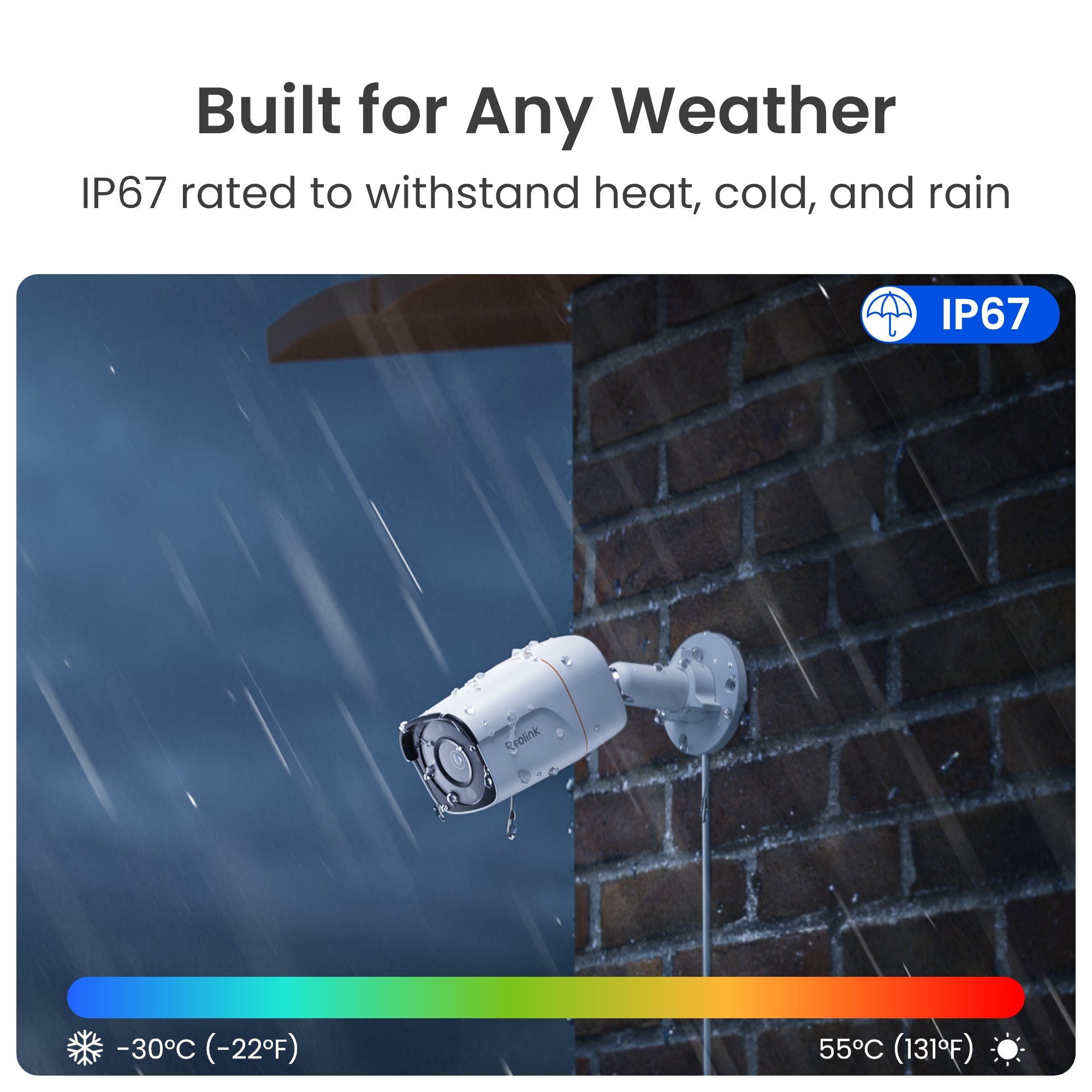

All-Weather Performance

All-metal housing and IP67 rating, ensuring durable operation from -30°C to 55°C —adapting seamlessly to residential and commercial environments.

All-Metal Housing, IP67 Waterproof, -30°C to 55°C
