Reolink RP-PCB8M : 8MP 4K 125° View PoE Bullet Security Camera

4K / 8MP Ultra HD POE Camera

  • 4K / 8MP Ultra HD Resolution (3840x2160) @ 30FPS
  • 133° Ultra-Wide Diagonal View, H: 108.6°- 32°, V: 56.2°- 18°, D: 133° - 36.7°
  • Real-time 30fps Smooth Video
  • 5X Optical Zoom with Auto Focus
  • Operating Temperature: -30°C ~ +55°C
  • Advanced AI Detection
  • Perimeter Protection: Line Crossing / Zone Intrusion / Zone Loitering Alert
  • AI Video Search
  • IR Night Vision
  • Supports Max: 512GB micro SD card
Regular price Enquire with us
Regular price Enquire with us Sale price Enquire with us
Tax included. Shipping calculated at checkout.
Availability: In stock
SKU: PCRPB4K01
Regular price Enquire with us
Regular price Enquire with us Sale price Enquire with us

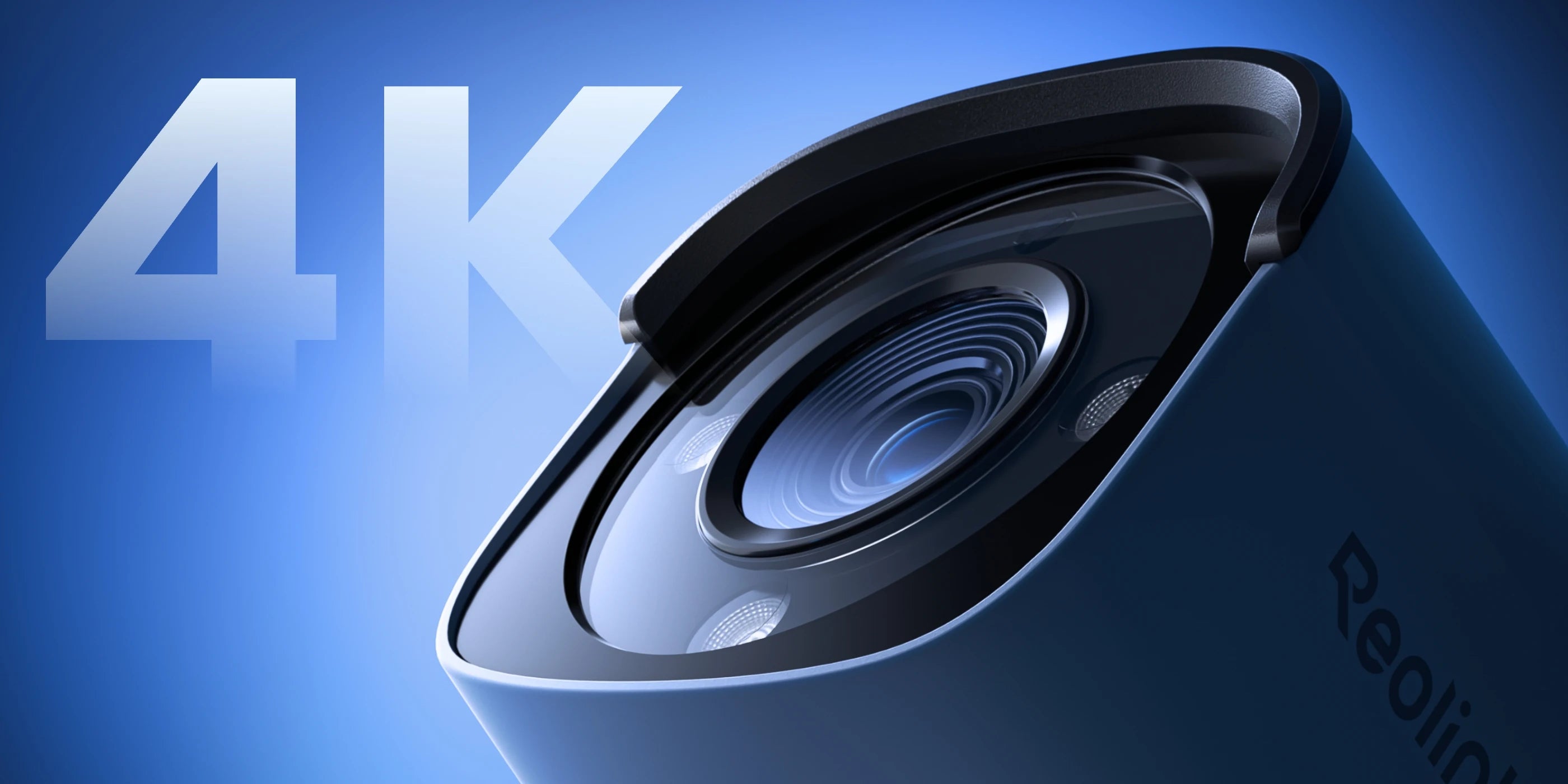

Precision Imaging with 4K Clarity

Capture ultra-high definition video at 25 FPS for smooth, reliable monitoring. With multiple lighting modes and F1.6 large aperture, enjoy optimised visibility in color night vision even in low light environments.

  • Perimeter Protection

    Equipped with AI-driven Line Crossing Alert, Zone Intrusion Alert, and Zone Lingering Alert, this pro-grade camera delivers precise 24/7 protection for critical areas, enabling rapid response to security threats.

  • Smart Event Detection(Beta)

    Send instant alerts on object forgotten or removed from key areas, ensuring timely action and loss prevention.

  • 4K 8MP Ultra HD @25 FPS

  • 125° Diagonal Viewing Angle with Enhanced 2.8mm Lenses

  • Color Night Vision

  • F1.6 Large Aperture

  • IR Night Vision Up to 100ft (30m)

  • Person/Vehicle/Animal Detection

Surveillance Solution for All Applications

With flexible installation options, this camera ensures durable and high-performance surveillance across a wide range of applications, from residential spaces to commercial sites.

Durable Full-Metal Housing, IP67 Waterproof, -30°C to 55°C (-22°F to 131°F)

Secure Storage For Every Need

Trusted storage options including microSD cards, high-capacity NVRs, encrypted FTP backup solutions.

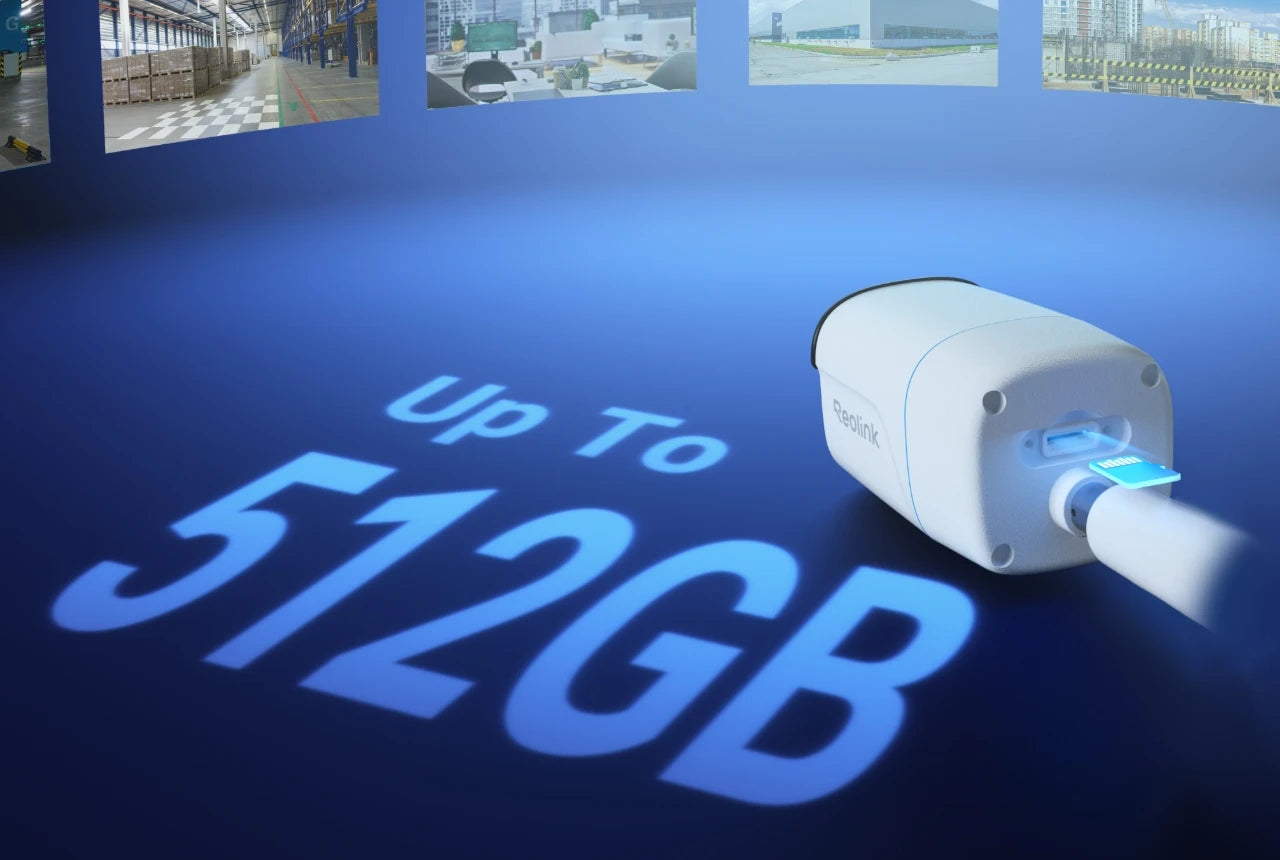

  • MicroSD Card

    Conveniently store your recordings locally on a microSD card up to 512GB.

    36.4 hours - 128GB
    72.8 hours - 256GB
    145.6 hours - 512GB

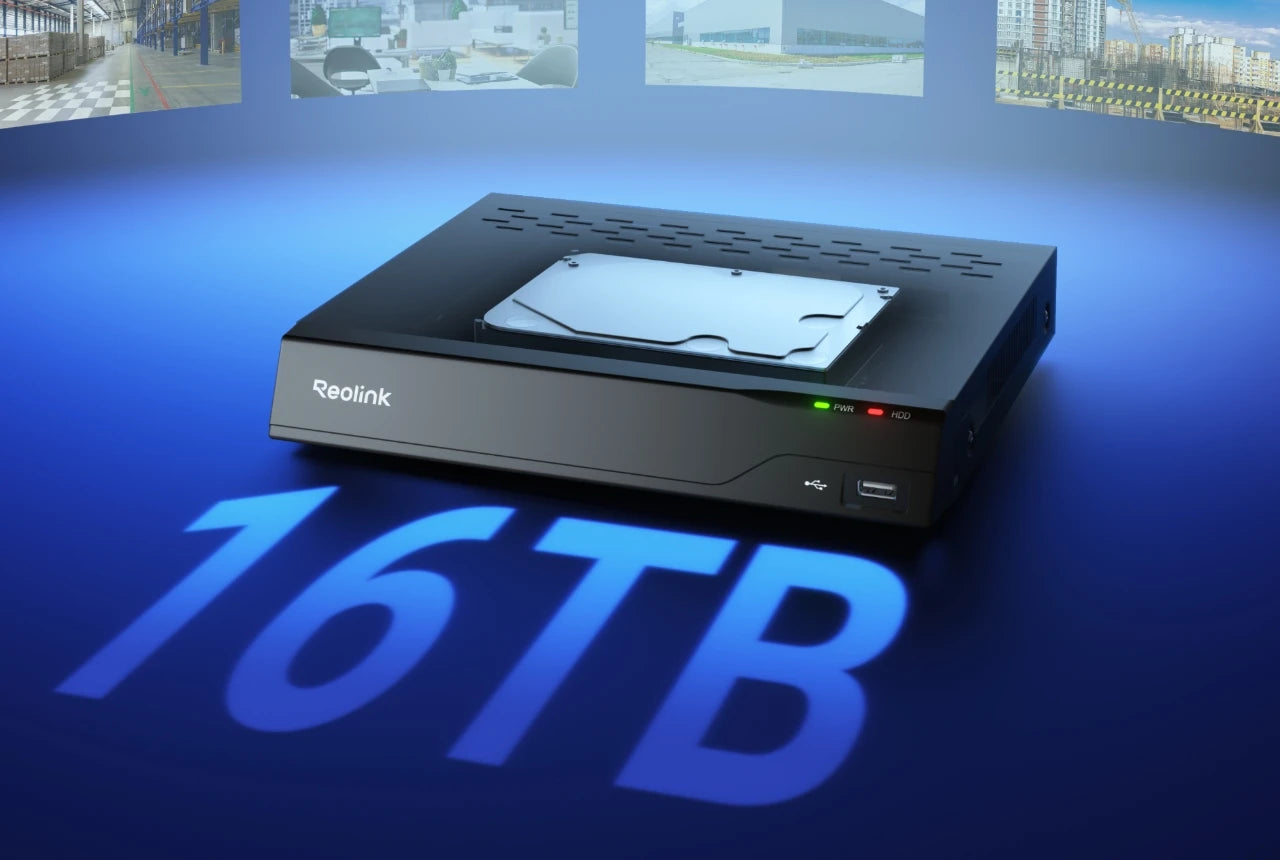

  • Reolink NVR

    Reolink NVR offers a reliable and high-capacity storage solution for small business security, enabling 24/7 continous recording across multiple channels.

Smooth VMS System

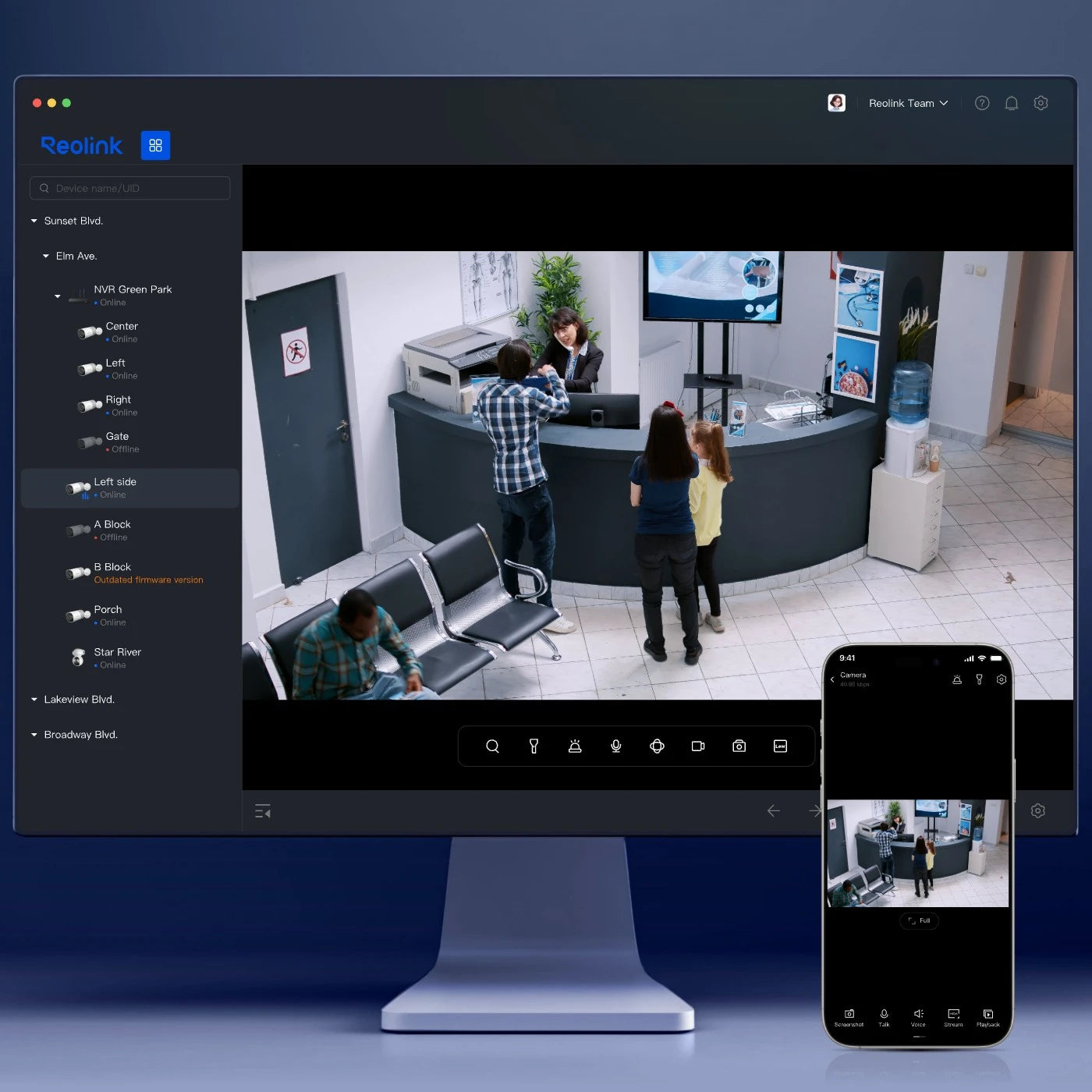

  • Remote Live Viewing

    Stay connected to your home or business with real-time remote viewing via the VMS system, whether you're in office or on the go.

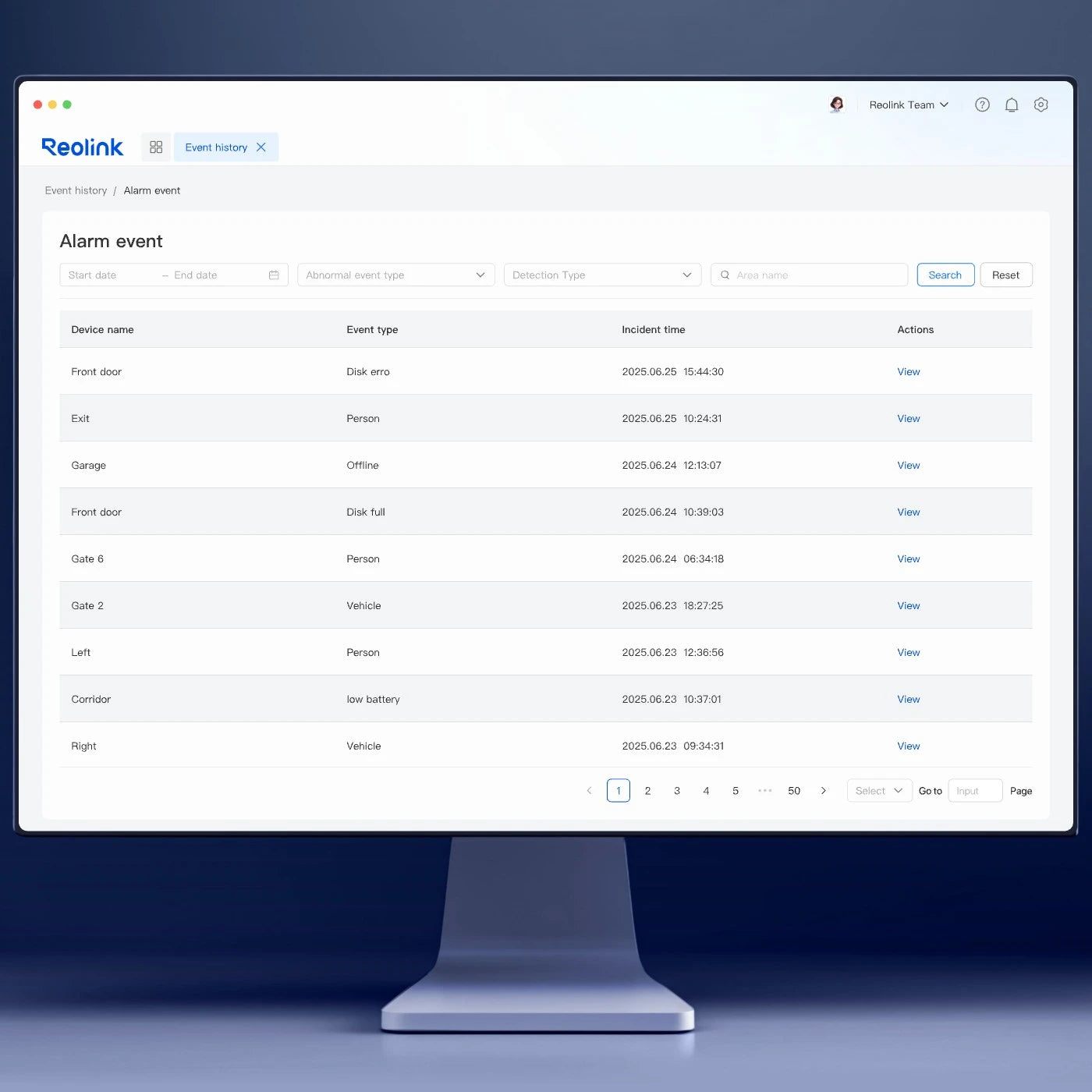

  • Alarm Management

    Supports diverse detection, including Person & Object Detection, Smart Event Detection, Perimeter Protection, Device Anomaly Alarm, and Video Occlusion Alarm—with instant pop-up notifications via VMS for prompt response.

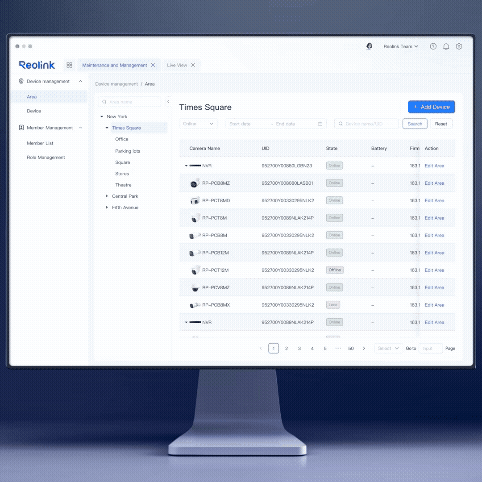

  • Device Management

    Group cameras by project or area for efficient device managment and status monitoring. Check the real-time connectivity status and battery level for uninterrupted surveillance.

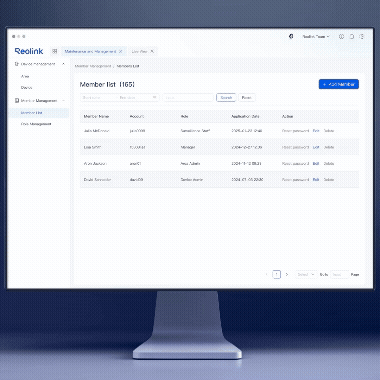

  • Account Management

    Assign roles and permissions based on operational needs. With device-account linking, users only see authorized areas and devices. Once logged in, they can access linked devices across multiple platforms without repeated setup.

Specifications


Download PDF File

Video & Audio

Image Sensor:
1/2.7" CMOS  Sensor

Resolution:
3840*2160(8Megapixels)@25FPS

Lens:
f=2.8mm fixed, F=1.6, with IR Cut

Zoom:
N/A

Video Compression:
H.265/H.264

Field of View:
Horizontal: 105°, Vertical: 56°, Diagonal:  125°

Day & Night:
IR-cut filter with auto-switching

Infrared Night Vision:
30 Meters(2PCS/2.8W/850nm)

Color Night Vision:
1PC/4.3W/6500K/700Lumens

Frame Rate:
Main Stream: 2fps -25fps(default: 25fps)
Sub Stream: 4fps - 15fps(default: 10fps)

Code Rate:
Main Stream: 2048Kbps -9216Kbps(default:7168Kbps)
Sub Stream: 64Kbps - 512Kbps(default: 256Kbps)

Audio:
Two way Audio

Power

PoE:
IEEE 802.3af, 48V Active

DC Power:

DC 12.0V⎓1A,  <12W

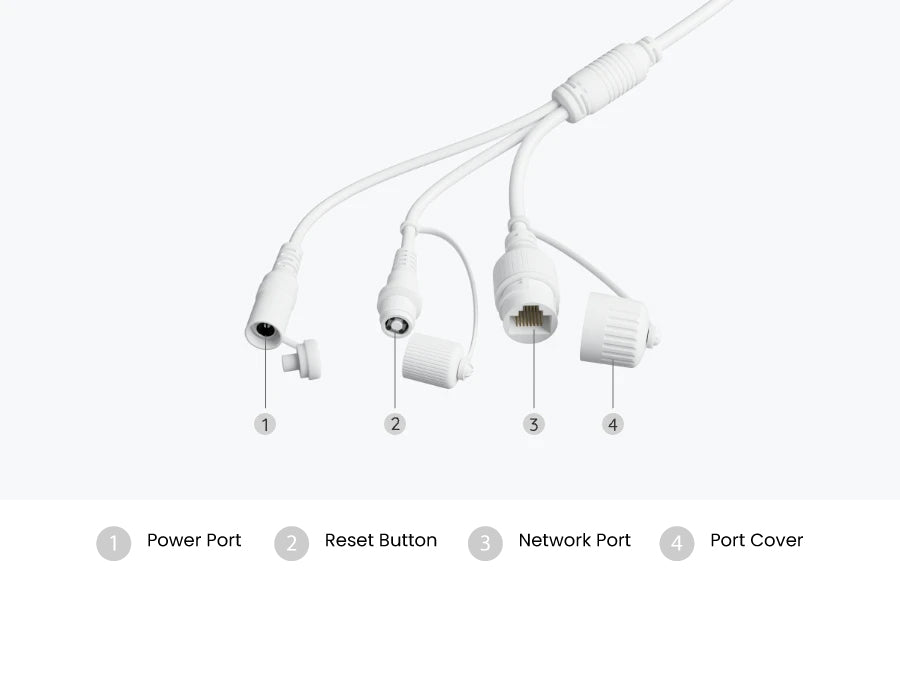

Interface

Power Port:
DC power port

Ethernet Port:
One  10M/100Mbps  RJ45

Storage:
MicroSD card slot (Max. 512GB)

Reset Button:

YES

Alarm In/Out:
N/A

Audio In/Out:
Built-in Microphone&Speaker

Software

Browsers Supported:
Edge, Chrome, Firefox, Safari

OS Supported:
PC: Windows, Mac OS; Smartphone: iOS, Android

Protocols & Standards:
HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P,ONVIF

User Access:
20 Users (1 admin account & 19 user accounts);Support up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

Other Features

Smart Alarm:
Motion detection/Person Detection/Vehicle Detection/Animal Detection

Perimeter Protection:
Line Crossing Alert, Zone Intrusion Alert, Zone Loitering Alert

Smart Event Detection:
Object Removal (beta) , Forgotten Object (beta)

Recording Modes:
Motion-triggered recording (default); Scheduled recording, 24/7 recording

Smart Home Compatibility:
Google Assistant

AI Video Search:
N/A

AI ISP:
N/A

HDR:
N/A

Time Lapse:
Yes

Motion Track:
N/A

Working Environment

Operating Temperature:
-30°C~+55°C

Operating Humidity:
10% ~ 90%

Weatherproof:
IP67

What's in the box

  • RP-PCB8M ×1
  • Ethernet Cable ×1
  • Operational Instruction ×1

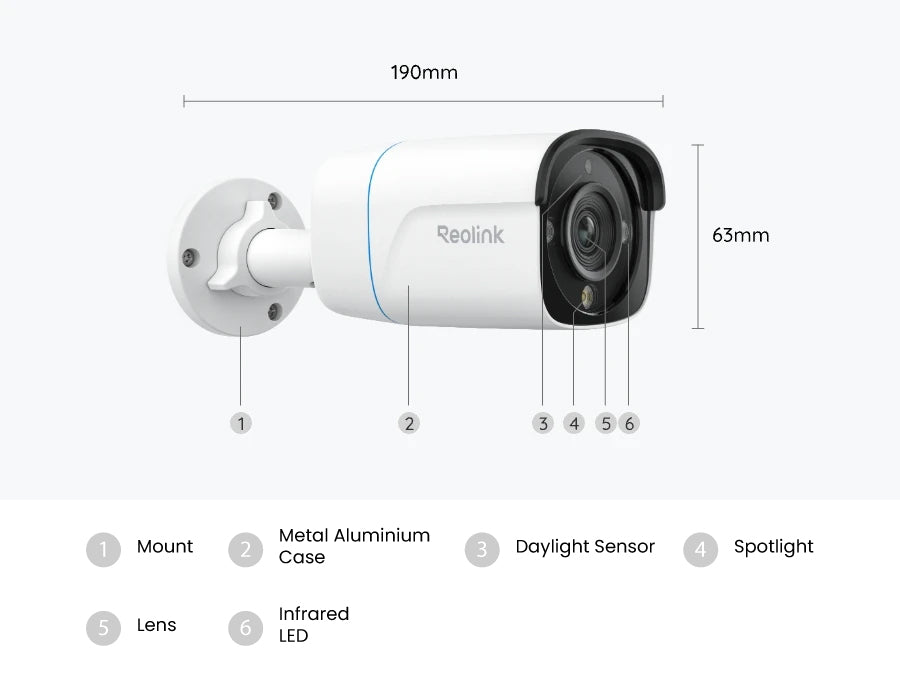

Mechanical

Dimensions:
68 x 63 x 188mm

Weight (Without Accessories):
452.4g

Warrranty

3-year limited warranty
