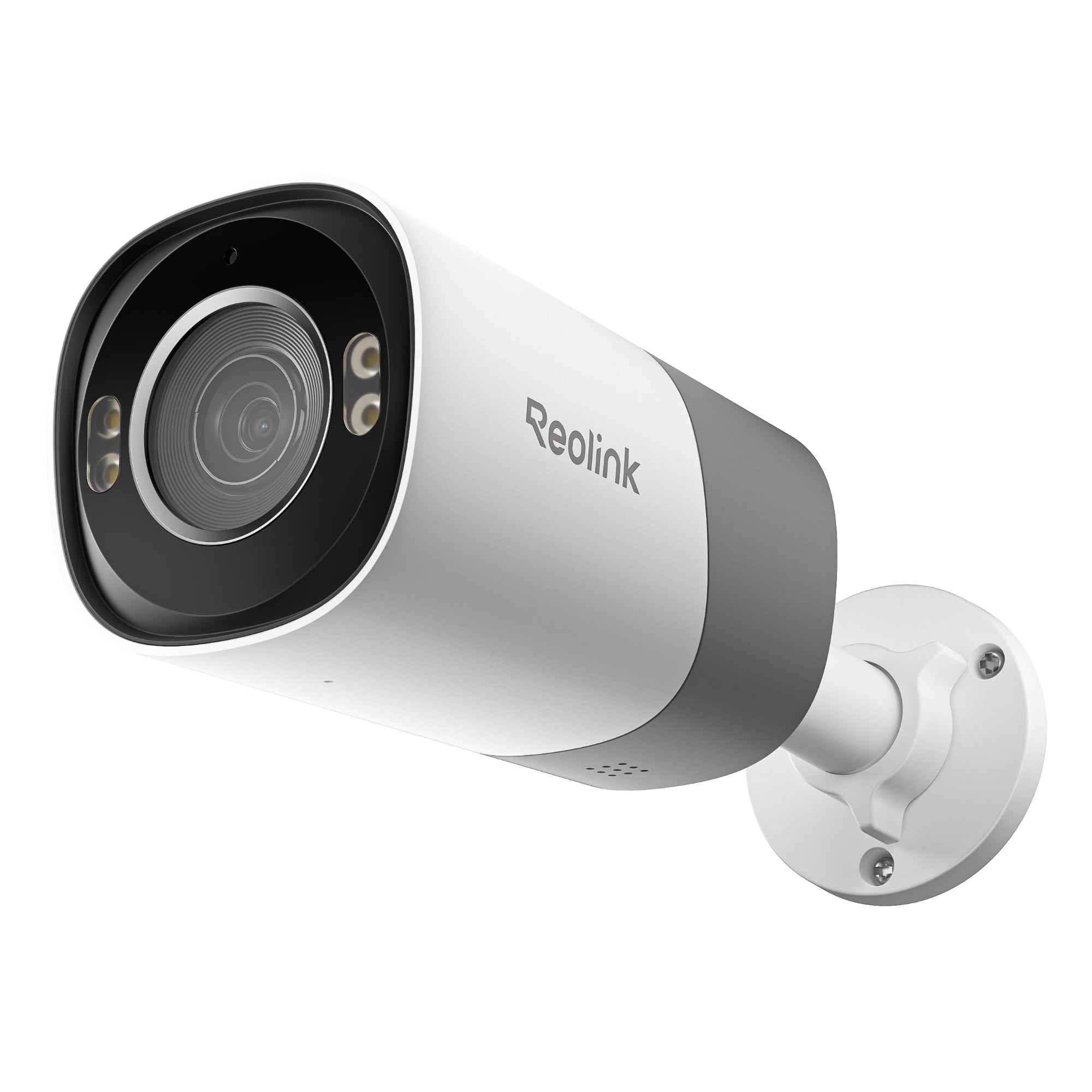

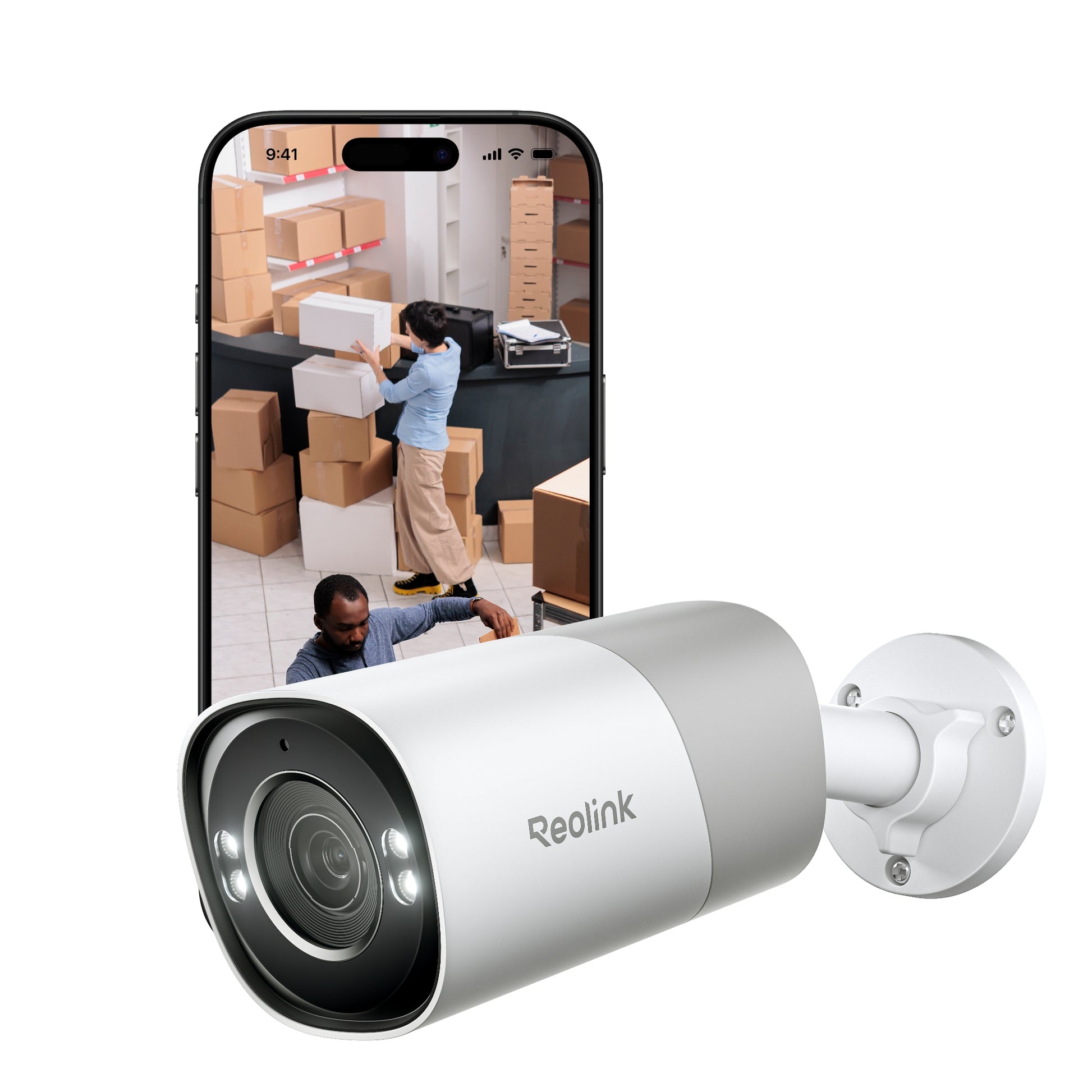

Reolink RP-PCB8MX : 8MP 4K PoE Bullet Camera with ColorX Night Vision

4K / 8MP Ultra HD POE Camera

  • 4K / 8MP Ultra HD Resolution (3840 x 2160) @ 30FPS
  • H: 109.4°, V: 59.6°, D: 131.8°

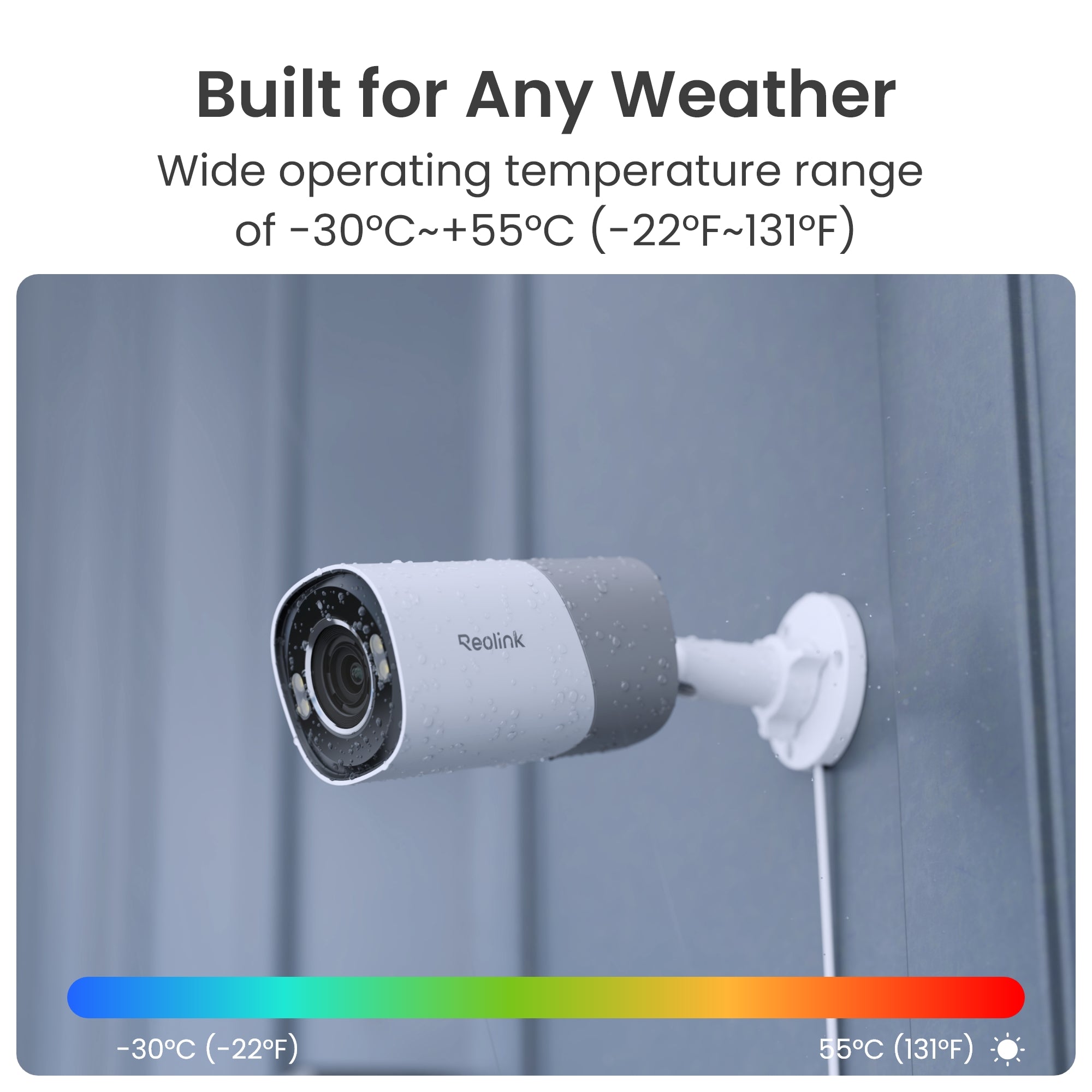

  • Operating Temperature: -30°C~+55°C
  • Person / Vehicle / Animal Detection
  • Perimeter Protection: Line Crossing / Zone Intrusion / Zone Loitering Alert
  • Smart Event Detection (Beta)
  • AI Video Search
  • Color Night Vison
  • Multiple Recording Options
  • Supports Max: 512GB micro SD card
  • Alarm input/output
Regular price Enquire with us
Regular price Enquire with us Sale price Enquire with us
Tax included. Shipping calculated at checkout.
Availability: In stock
SKU: PCRPB4K03
Regular price Enquire with us
Regular price Enquire with us Sale price Enquire with us

ColorX Night Vision: True Full Color

See full-color details even in near-complete darkness. With an F1.0 super aperture and advanced 1/1.8" sensor, this camera captures 4x more light than F2.0 lenses—offering glare-free, vibrant night footage under low-light conditions.

  • F1.0 Super Aperture

  • Advanced 1/1.8" Sensor

  • HDR Technology

    Enhances contrast and clarity, making dark areas clearer and highlights more vivid, bringing every scene to life.

  • 30 FPS High Frame Rate

    Enjoy lag-free 4K live streaming and playback, with every frame delivered flawlessly for a smooth experience.

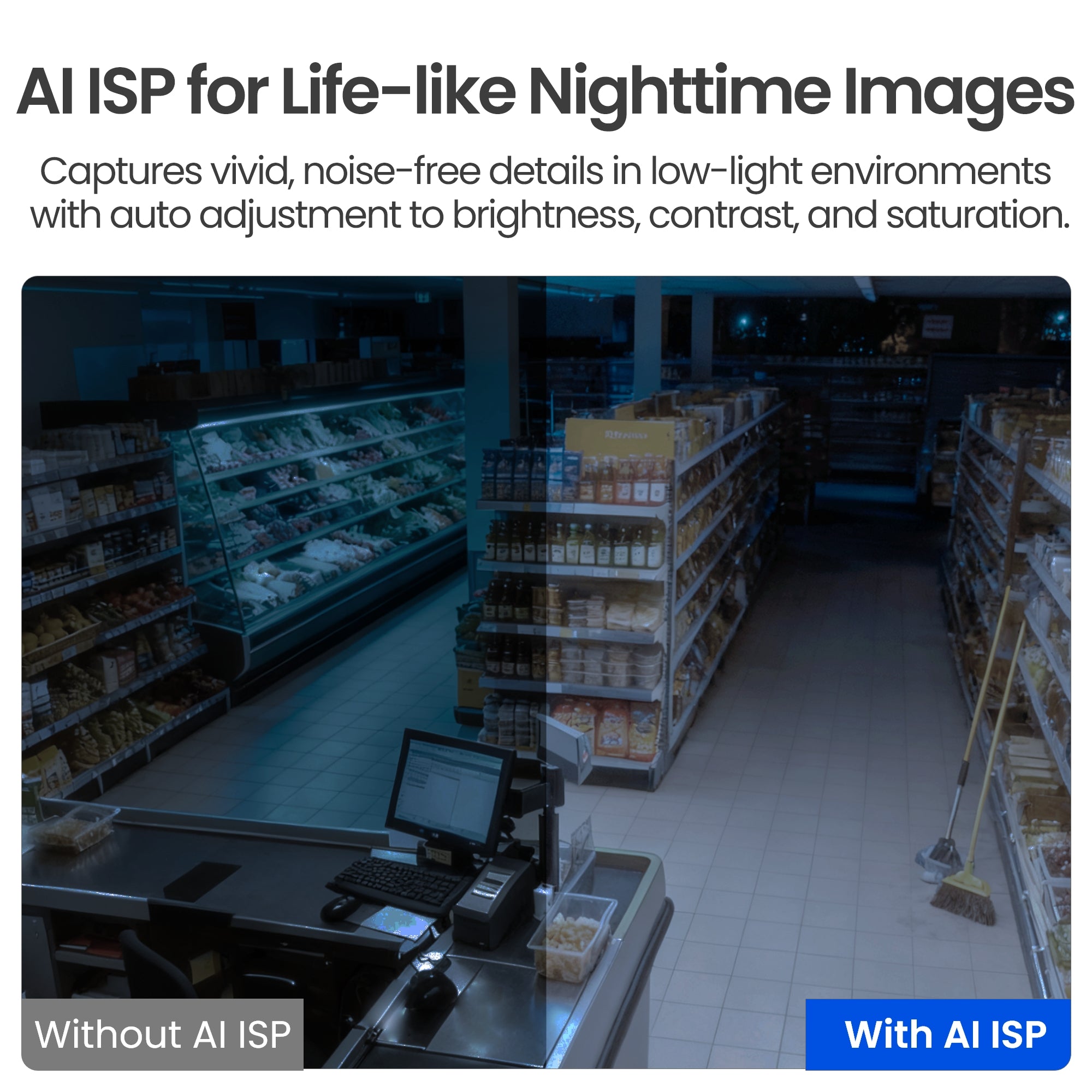

  • AI ISP

    AI-powered image tuning that boosts brightness, sharpness and color vibrancy—especially in low light environments.

Highlighted Features

  • 4K 8MP Ultra HD

  • 30 FPS Real-Time Recording

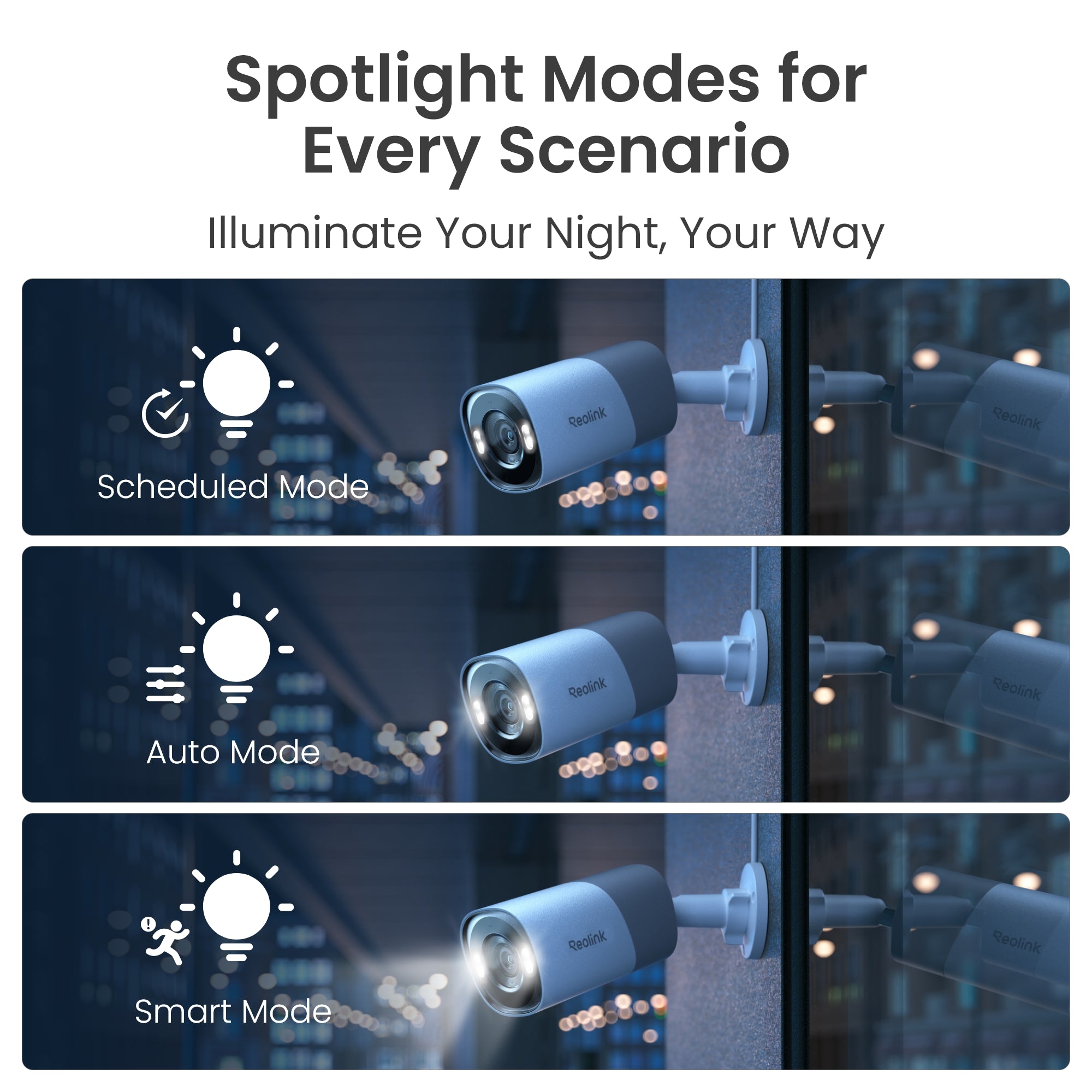

  • ColorX Night Vision with Spotlight Deterrence

  • Flexible Alarm Integration

  • Two-Way Audio

  • 512GB Local Storage

Unleash the Power of ReoNeura

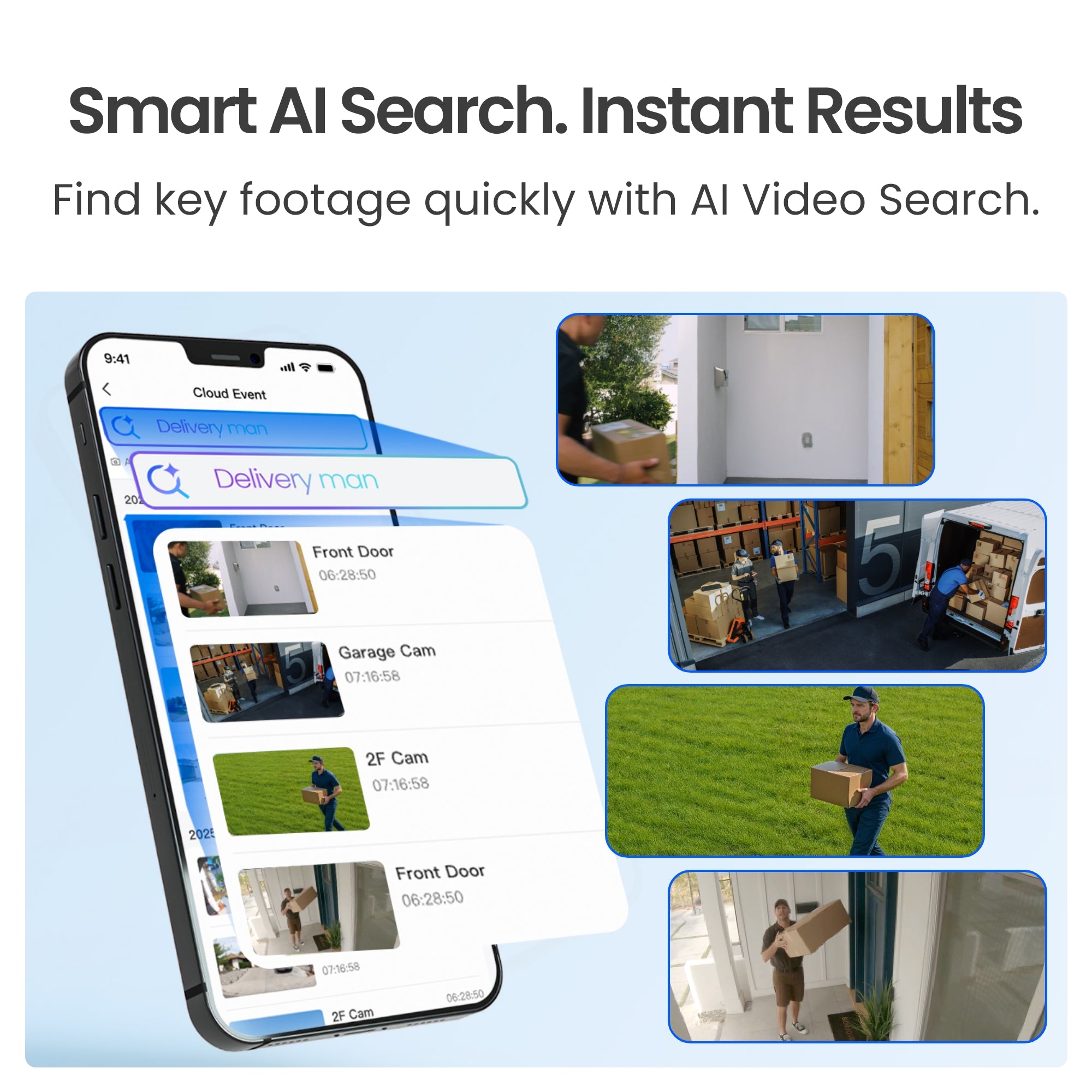

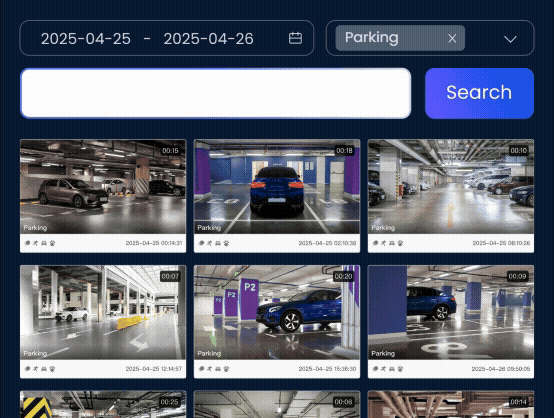

  • AI Video Search

    Input descriptive keywords (e.g. "person wearing white clothes", "yellow dog") to find specific video clips in locally saved triggered recordings. Filter out irrelevant clips and pinpoint the target alarm event in no time.

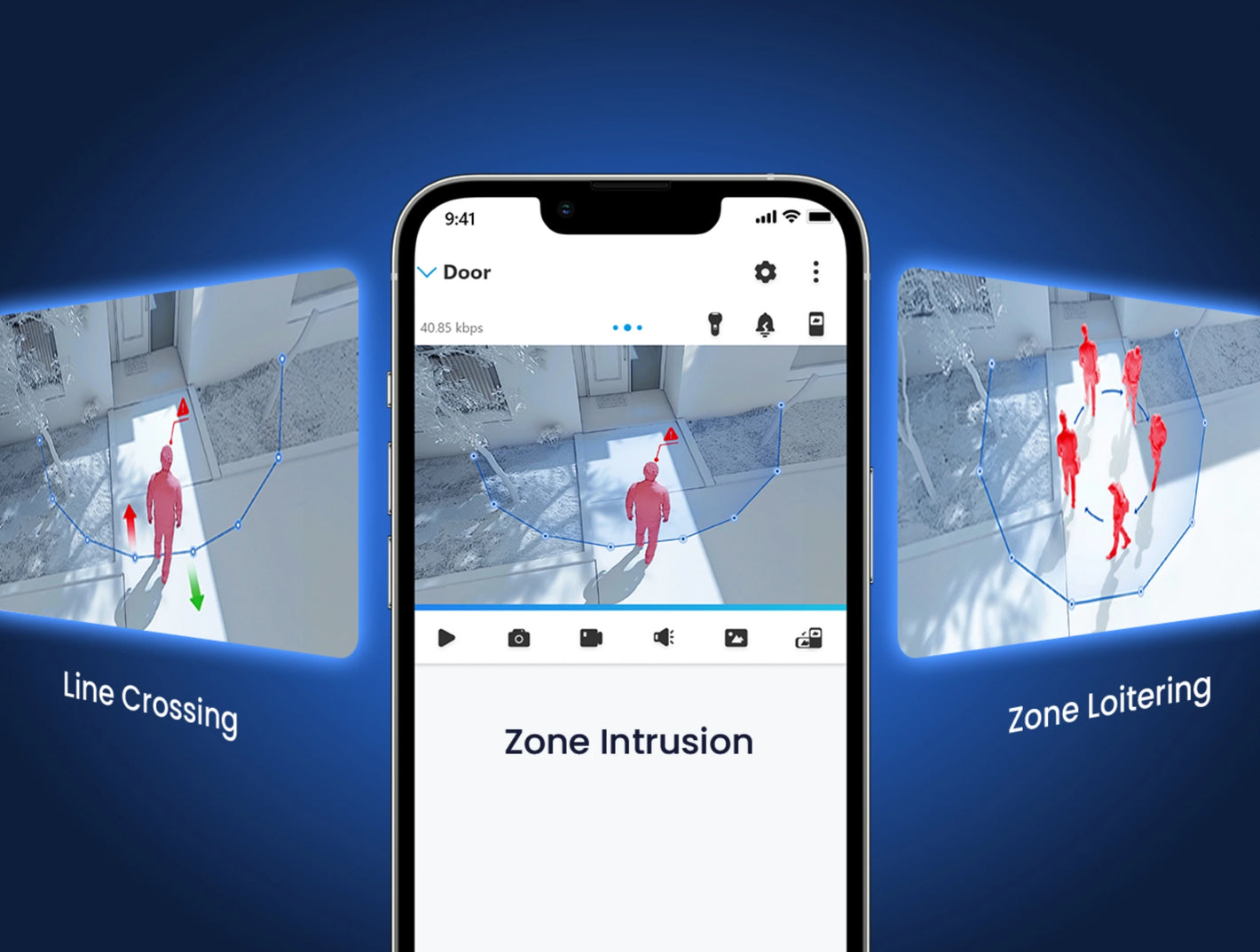

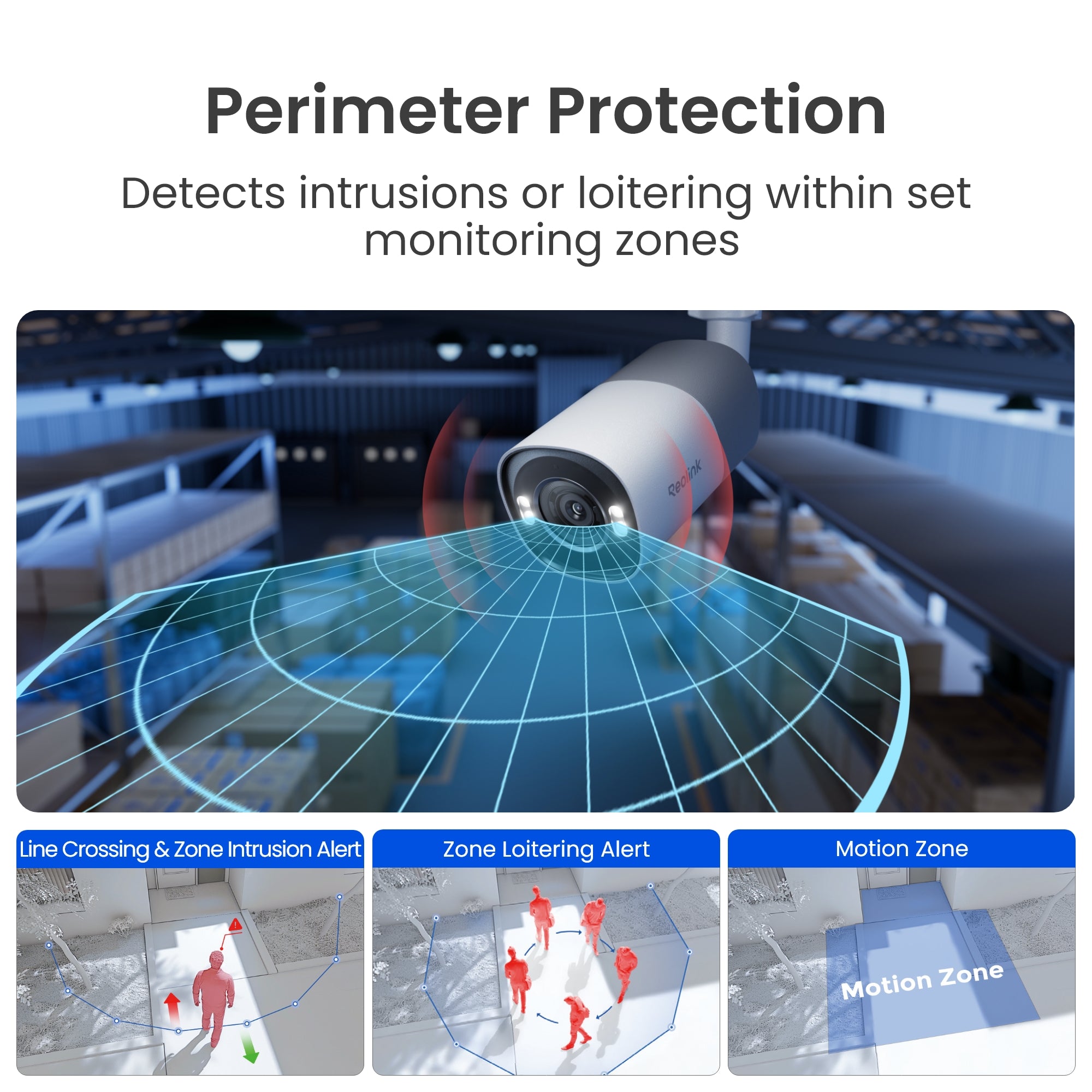

  • Perimeter Protection

    Equipped with AI-driven Line Crossing Alert, Zone Intrusion Alert, and Zone Lingering Alert, this pro-grade camera delivers precise 24/7 protection for critical areas, enabling rapid response to security threats.

  • Smart Event Detection

    Sends instant alerts on objects forgotten or removed from key areas, ensuring timely action and loss prevention.

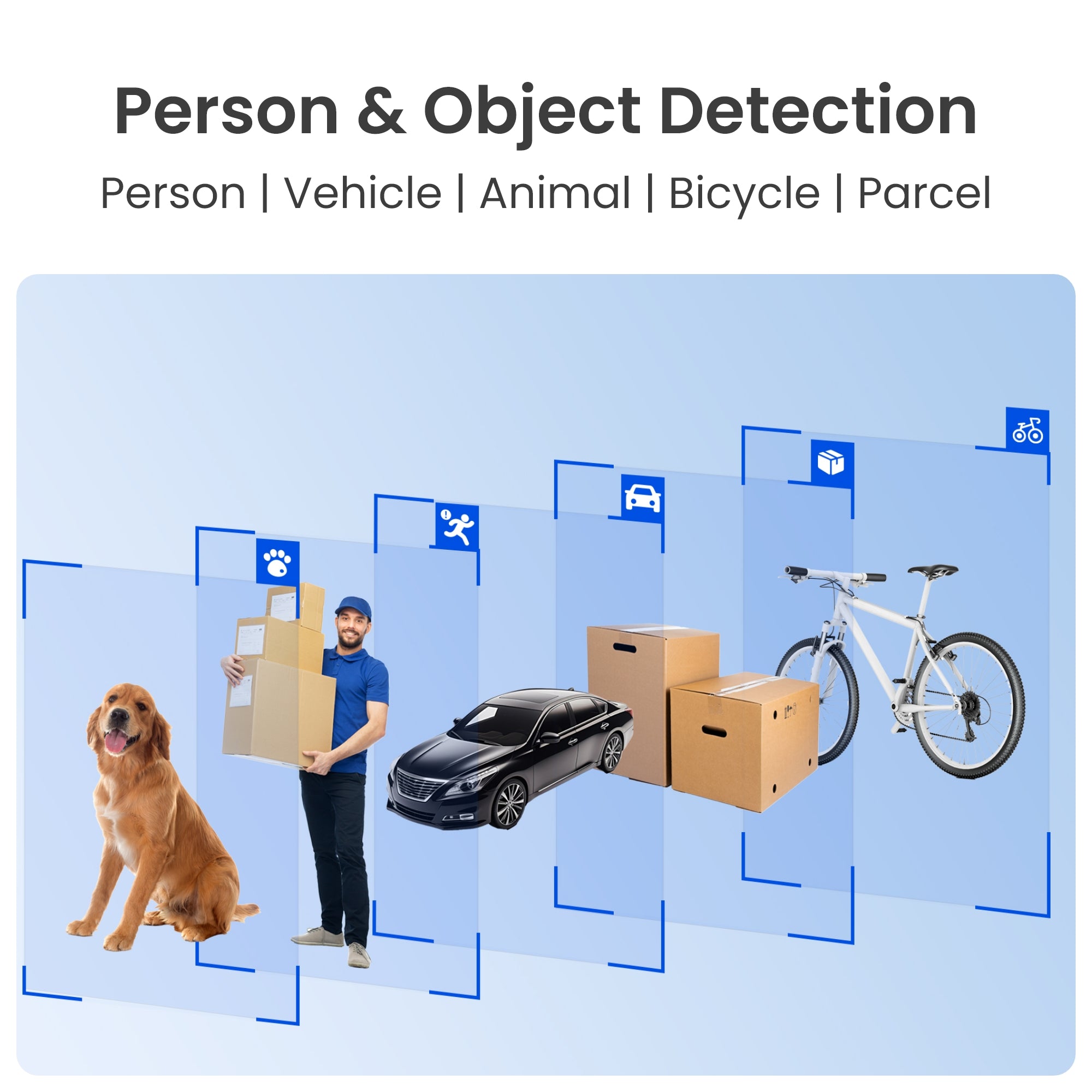

  • Person & Object Detection

    With this Smart Detection enhancement, the RP-PCB8MX delivers more comprehensive threat recognition—accurately identifying people, vehicles, animals, parcels, and even non-motorized vehicles like bicycles. Users can customize various alarm responses, including light & audio alarms, video recording, email notifications, and push notifications.

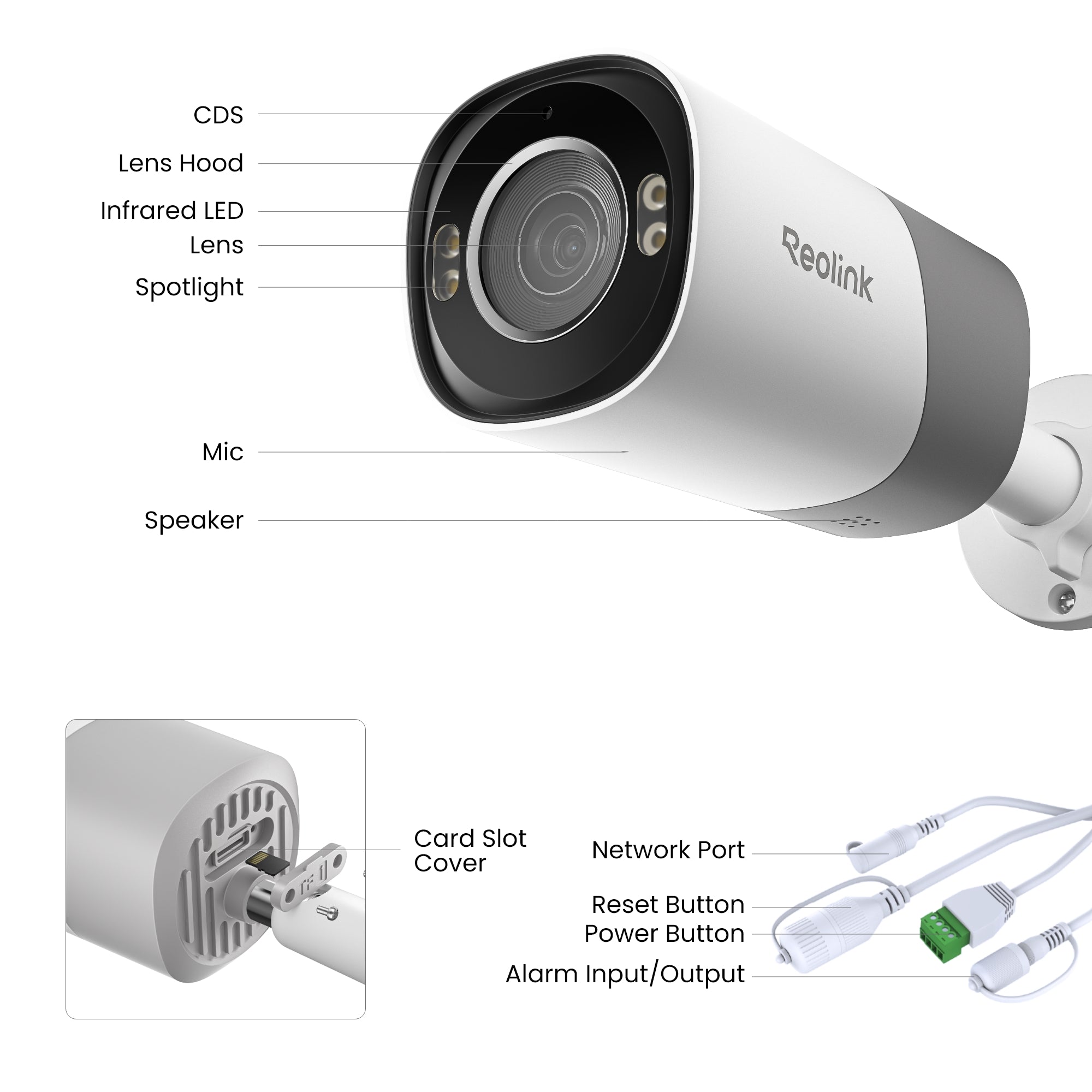

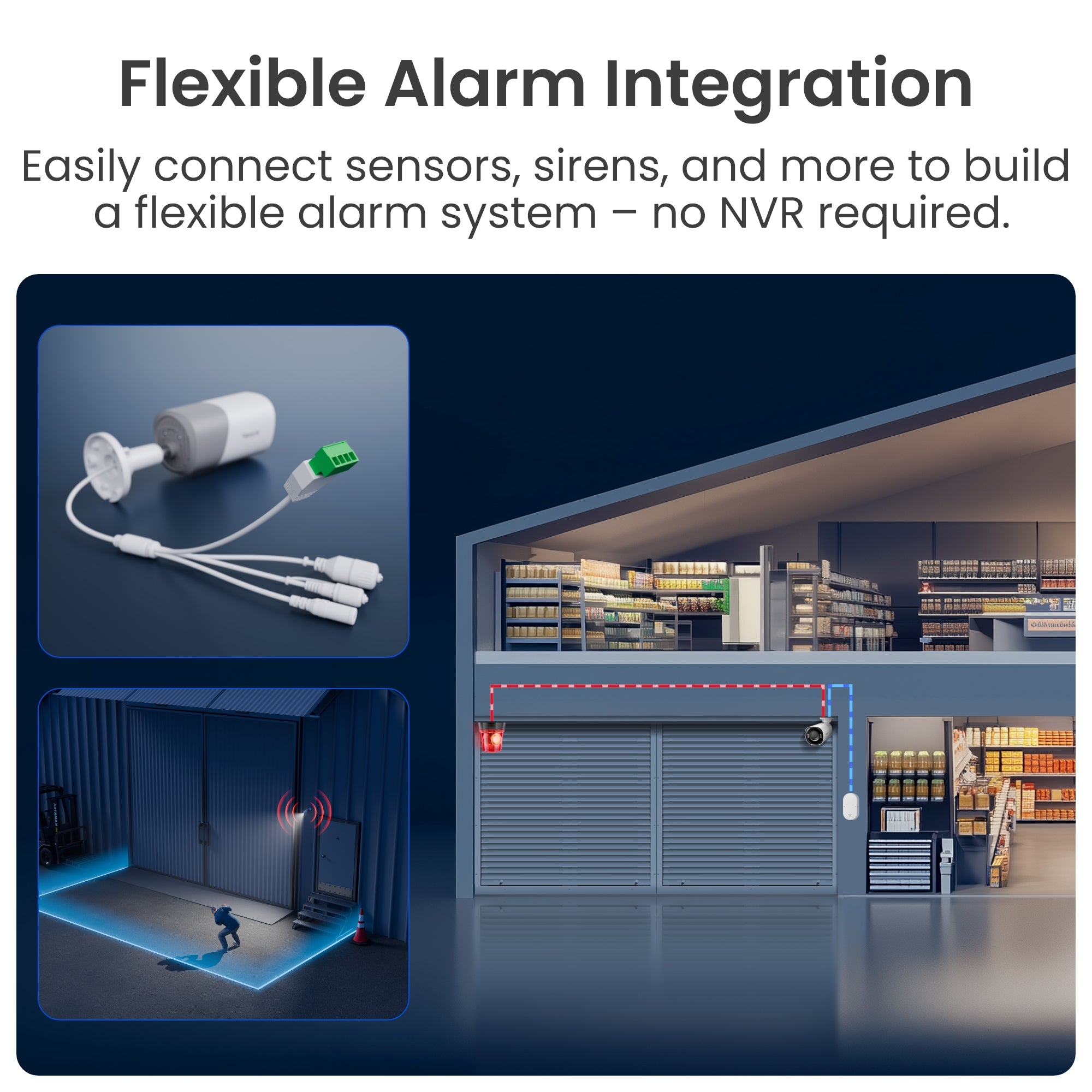

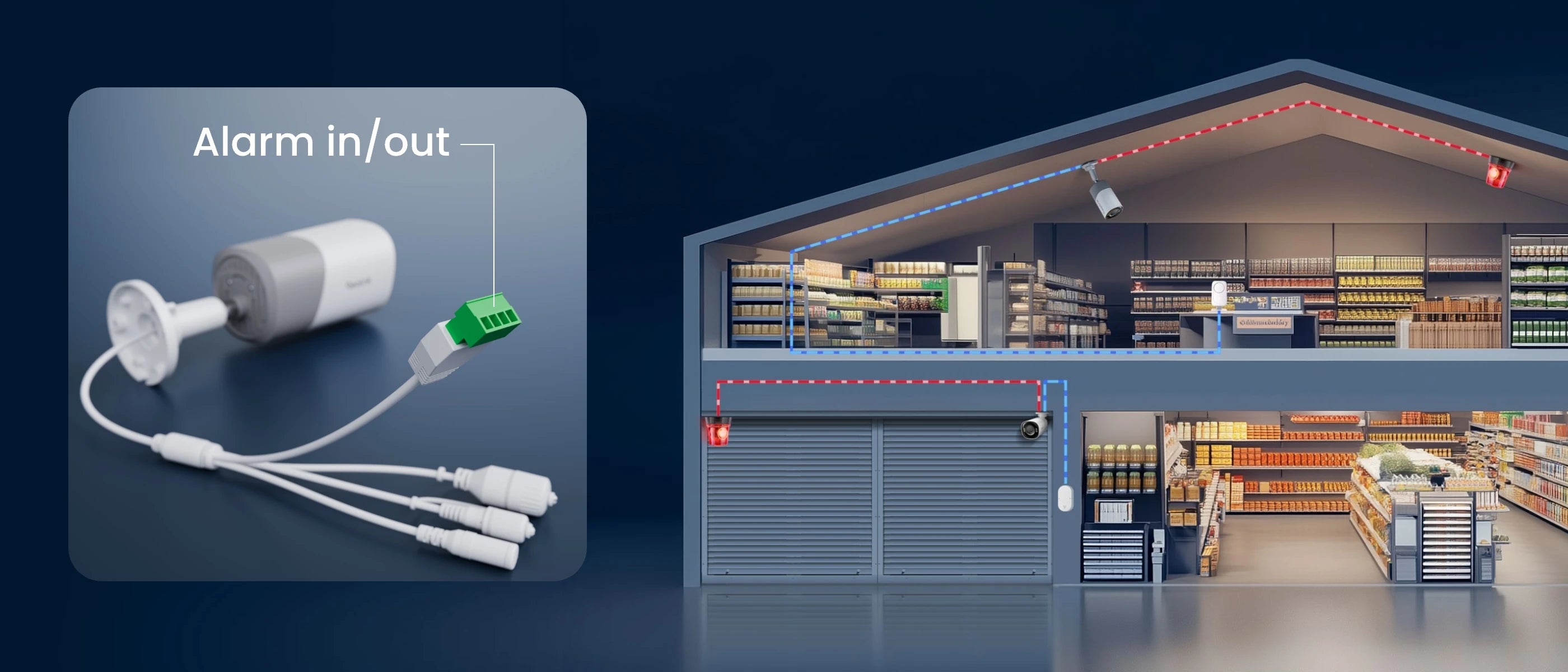

Flexible Alarm Integration

Reolink RP-PCB8MZ features in/out alarm ports that enable connection to external input devices such as sensors and magnetic contacts, and output devices such as sirens and strobe lights. This arming feature allows you to create and customise your own alarm linkage system, perfect for standalone setups or projects where the NVR lacks I/O support.

Secure Storage For Every Need

Trusted storage options including microSD cards, high-capacity NVRs, encrypted FTP backup solutions.

  • MicroSD Card

    Conveniently store your recordings locally on a microSD card up to 512GB.

    41.6hours - 128GB
    83.2hours - 256GB
    166.4hours - 512GB

  • Reolink NVR

    Reolink NVR offers a reliable and high-capacity storage solution for small business security, enabling 24/7 continuous recording across multiple channels.

Smooth VMS System

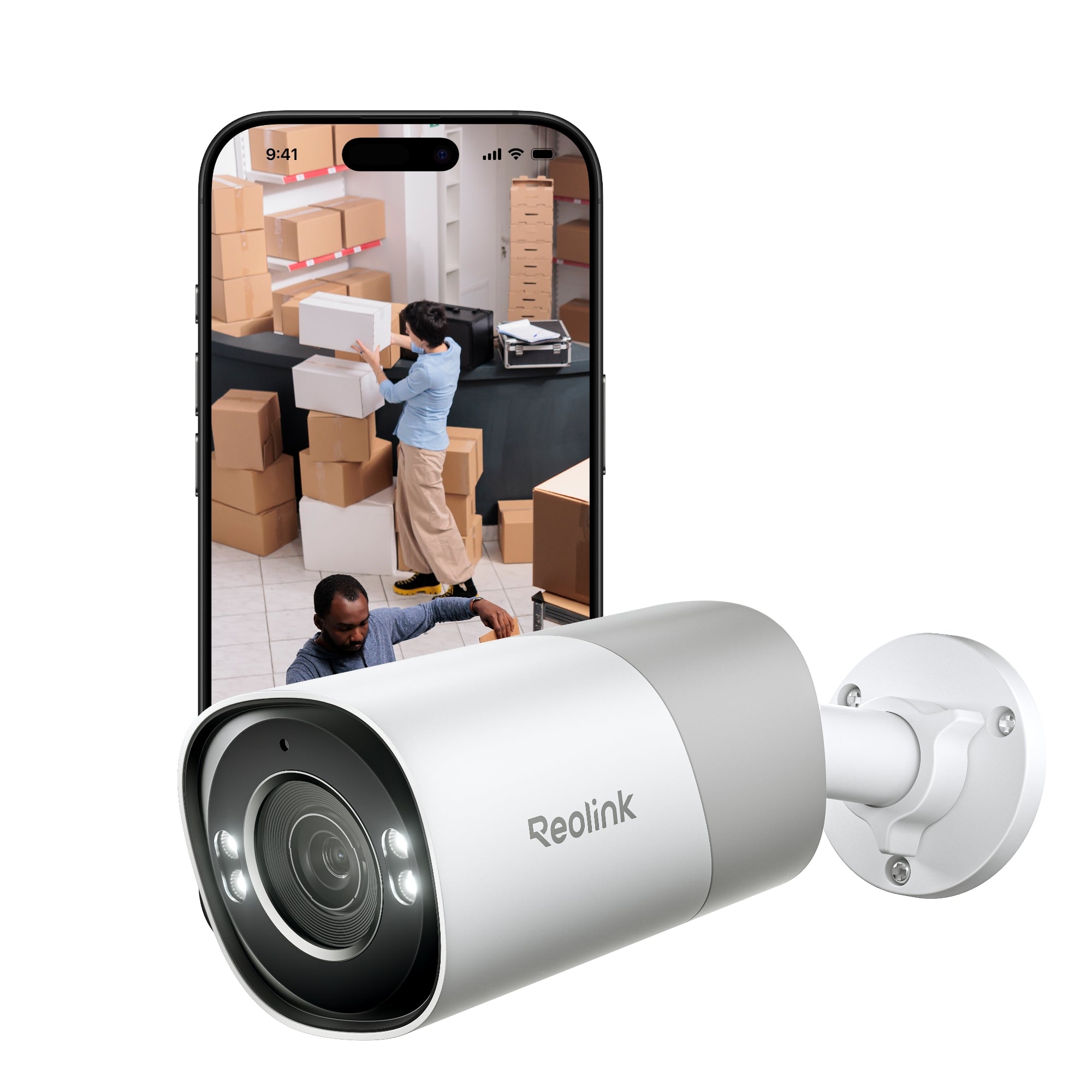

  • Remote Live Viewing

    Stay connected to your home or business with real-time remote viewing via the VMS system, whether you're in the office or on the go.

  • Alarm Management

    Supports diverse detection including Person & Object Detection, Smart Event Detection, Perimeter Protection, Device Anomaly Alarm, and Video Occlusion Alarm—with instant pop-up notifications via VMS for prompt response.

  • Device Management

    Group cameras by project or area for efficient device management and status monitoring. Check the real-time connectivtiy status and battery level for uninterrupted surveillance.

  • Account Management

    Assign roles and permissions based on operational needs. With device-account linking, users only see authorized areas and devices. Once logged in, they can access linked devices across multiple platforms without repeated setup.

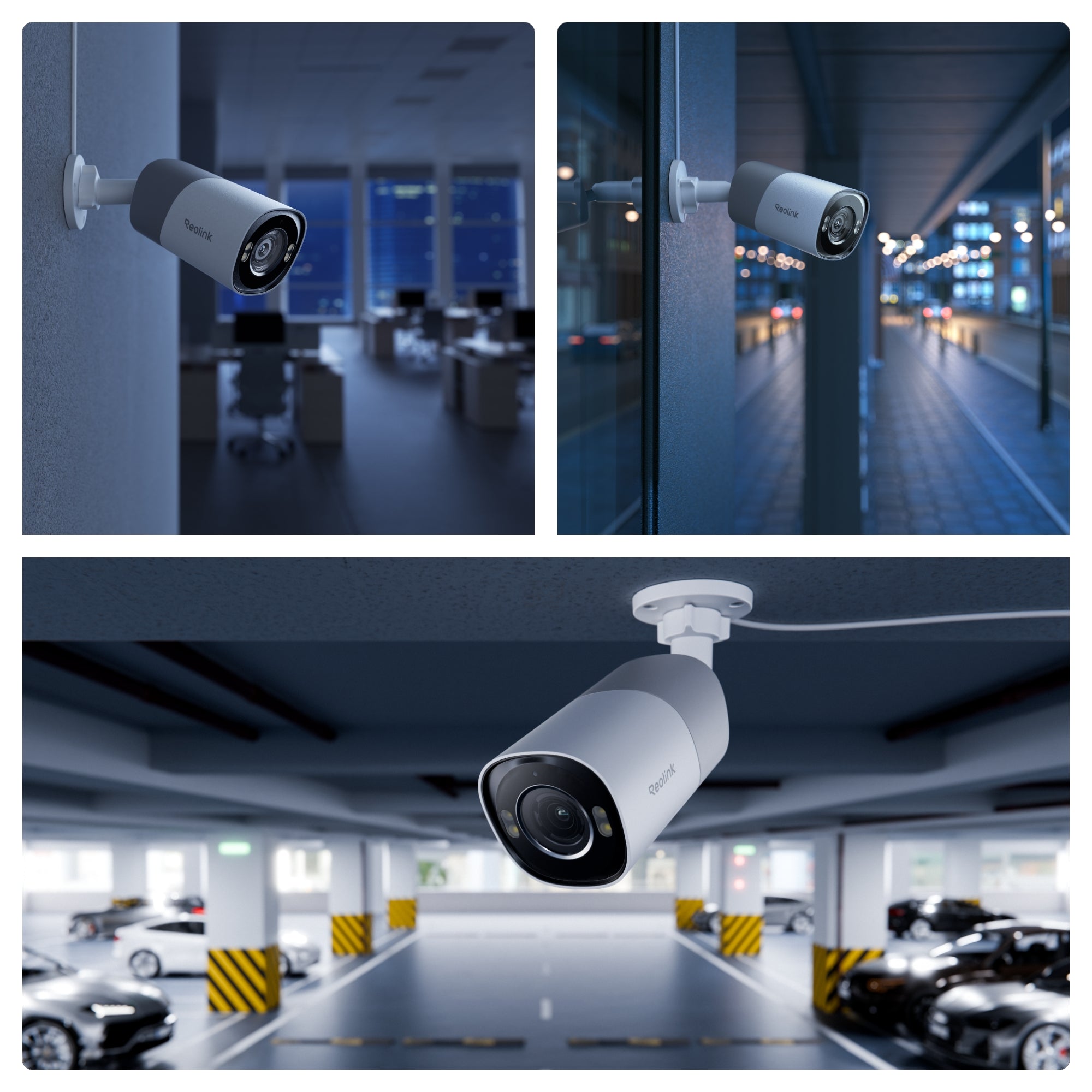

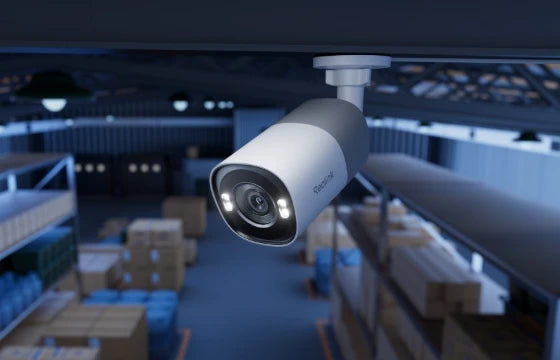

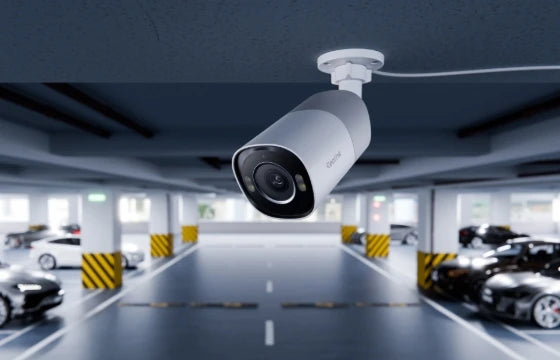

Surveillance Solutions for All Applications

With flexible installation options, this camera ensures durable and high-performance surveillance across a wide range of applications, from residential spaces to commercial sites.

Specifications


Download PDF File

Video & Audio

Image Sensor:
1/1.8" CMOS  Sensor

Resolution:
3840x2160(8Megapixels) @30fps

Lens:
f=2.8mm fixed, F=1.0

Zoom:
N/A

Video Compression:
H.265/H.264

Field of View:
Horizontal: 109.4°
Vertical: 59.6°
Diagonal:  131.8°

Day & Night:
IR-cut filter with auto-switching

Infrared Night Vision:
Up to 30meters(100ft);
LED: 4pcs/4W/850nm

Color Night Vision:
With spotlights:4pcs LEDs/0~4W adjustable/ 4000K/600 lumens

Frame Rate:
Main Stream: 2fps - 30fps(default: 30fps)
Sub Stream: 4fps - 15fps(default: 10fps)

Code Rate:
Main Stream: 2048Kbps -9216Kbps(default:7168Kbps
Sub Stream: 64Kbps - 512Kbps(default: 512Kbps)

Audio:
Two-way audio

Power

PoE:
IEEE 802.3af, 48V, Active

DC Power:
DC 12.0V⎓2A,  <15W

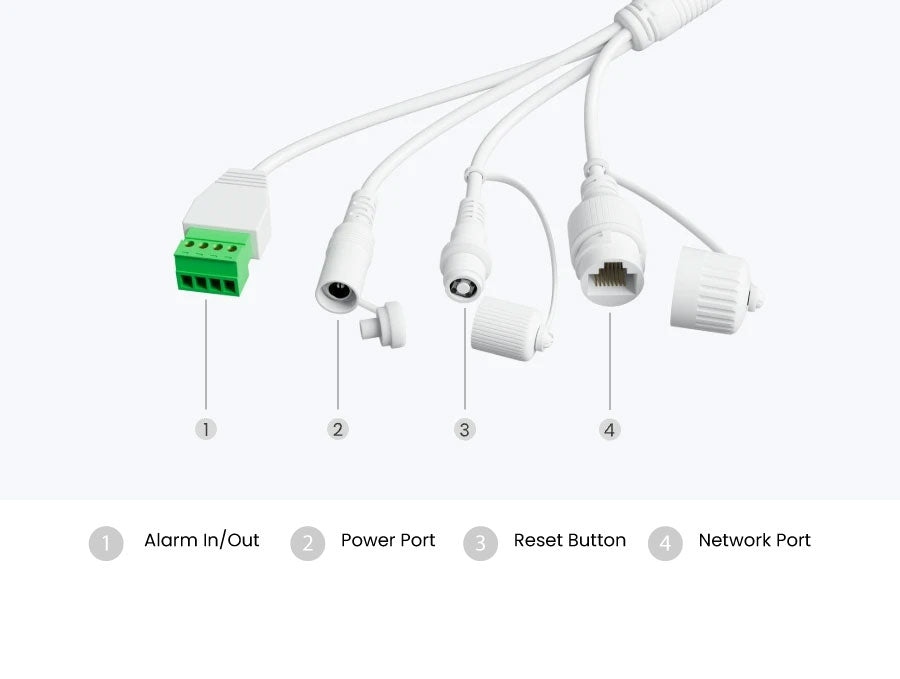

Interface

Power Port:
DC power port

Ethernet Port:
One  10M/100Mbps  RJ45

Storage:
microSD card slot (Max. 512GB)Reolink NVR, FTP

Reset Button:
Yes

Alarm In/Out:
1 input, 1 output (input:12V/1A; output:12V/500mA)

Audio In/Out:
Built-in Microphone & Speaker

Software

Browsers Supported:
Edge, Chrome, Firefox, Safari

OS Supported:
PC: Windows, Mac OS; Smartphone: iOS, Android

Protocols & Standards:
HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P, ONVIF

User Access:
Max. 20 users (1 admin & 19 user);  Max. 12 simultaneous streams (2 main & 10 sub streams)

Other Features

Smart Alarm:
Motion detection/Person Detection/Vehicle Detection/Non-motorized vehicle/Animal Detection/Package Detection

Perimeter Protection:
Line Crossing Alert, Zone Intrusion Alert, Zone Loitering Alert

Smart Event Detection:
Object Removal (beta) , Forgotten Object (beta)

Recording Modes:
Motion-triggered recording (default); Scheduled recording, 24/7 recording

Smart Home Compatibility:

Google Assistant

AI Video Search:
Yes

AI ISP:
Yes

WDR:
Yes

Time Lapse:
Yes

Motion Track:
N/A

Working Environment

Operating Temperature:
-30°C~+55°C

Operating Humidity:
10% ~ 90%

Weatherproof:
IP67

Mechanical

Dimensions:
76x74x220mm

Weight (Without Accessories):
756g

What's in the box

  • RP-PCB8MX ×1
  • Ethernet Cable ×1
  • Operational Instruction ×1

Warrranty

3-year limited warranty
