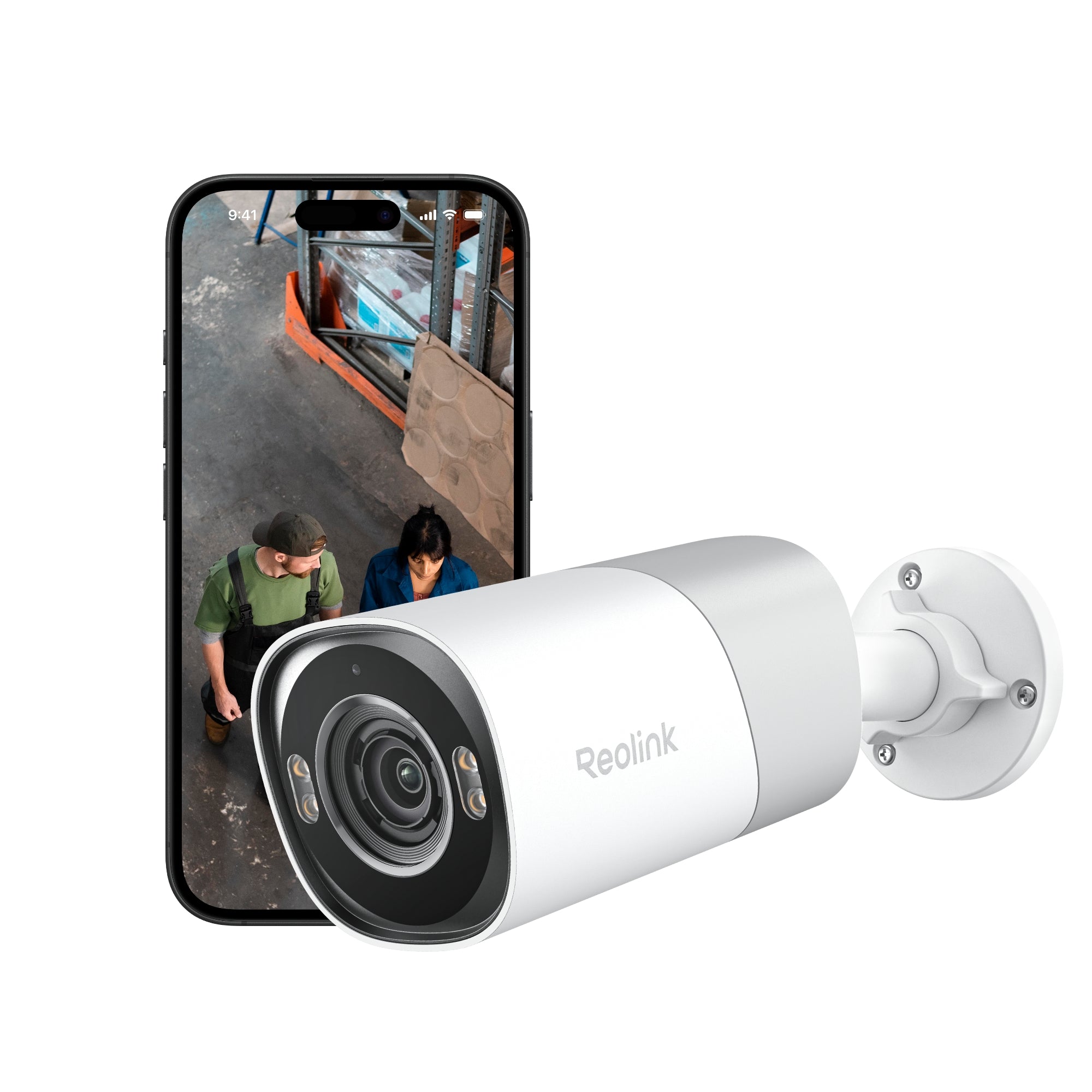

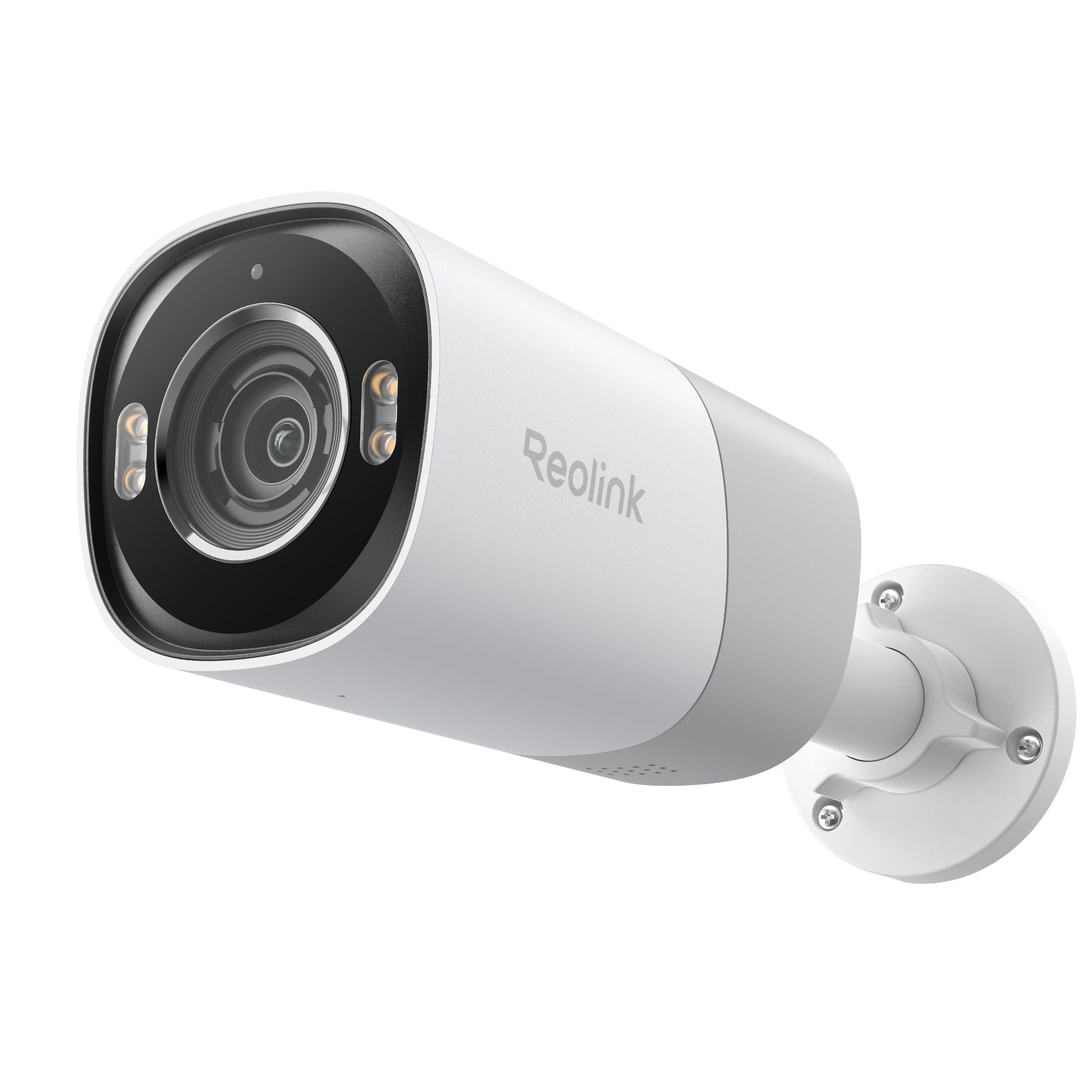

Reolink RP-PCB8MZ : 8MP 4K 133° View PoE Bullet Camera with 5× Optical Zoom

4K / 8MP Ultra HD POE Camera

  • 4K / 8MP Ultra HD Resolution (3840x2160) @ 30FPS
  • 133° Ultra-Wide Diagonal View, H: 108.6°- 32°, V: 56.2°- 18°, D: 133° - 36.7°
  • Real-time 30fps Smooth Video
  • 5X Optical Zoom with Auto Focus

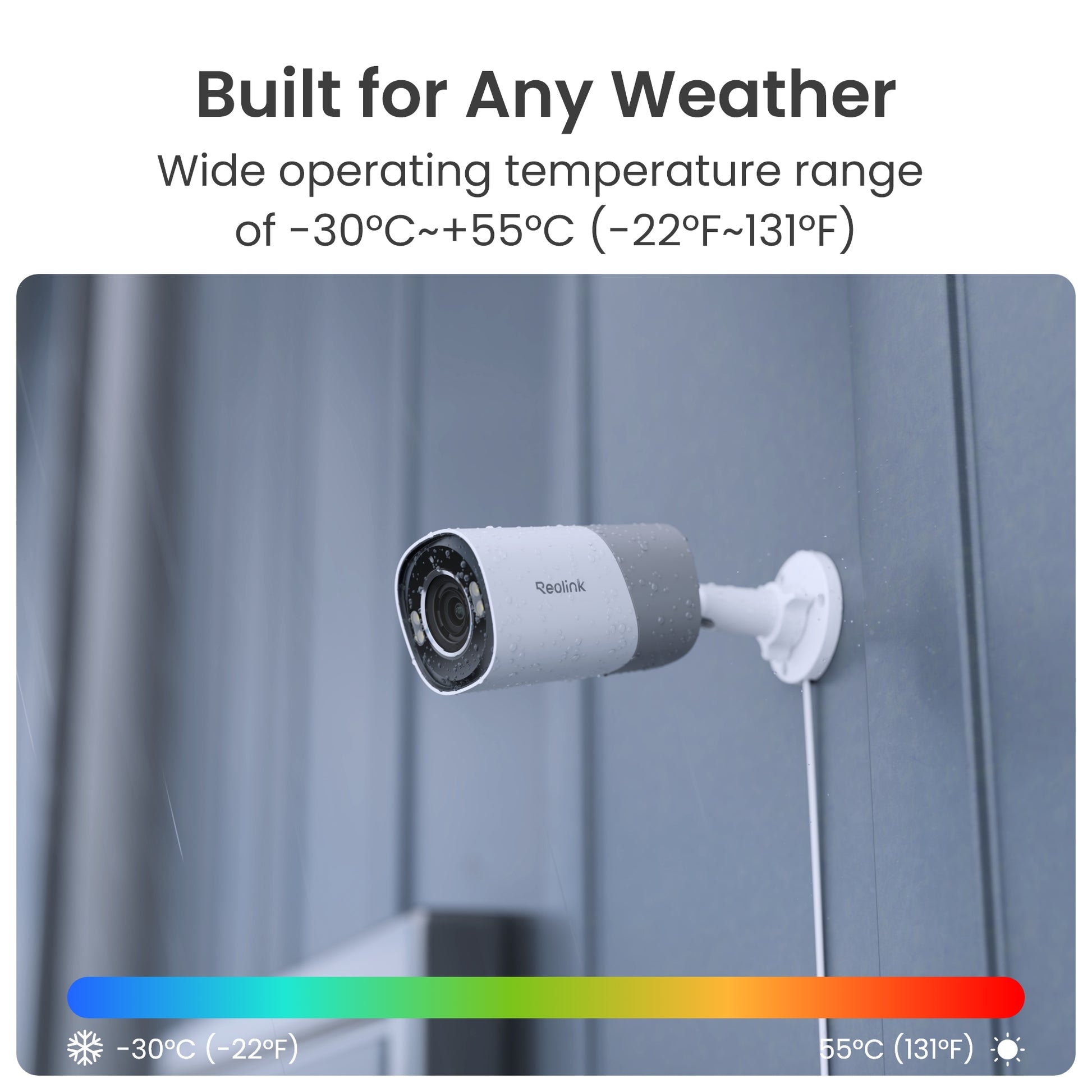

  • Operating Temperature: -30°C ~ +55°C
  • Advanced AI Detection
  • Perimeter Protection: Line Crossing / Zone Intrusion / Zone Loitering Alert
  • AI Video Search
  • IR Night Vision
  • Supports Max: 512GB micro SD card
Regular price Enquire with us
Regular price Enquire with us Sale price Enquire with us
Tax included. Shipping calculated at checkout.
Availability: In stock
SKU: PCRPB4K02
Regular price Enquire with us
Regular price Enquire with us Sale price Enquire with us

Features Hightlight

Unleash the Power of ReoNeura


  • AI Video Search

    Input descriptive keywords to instantly search specific video clips in local footage. Filter out irrelevant clips and pinpoint the target event in no time.

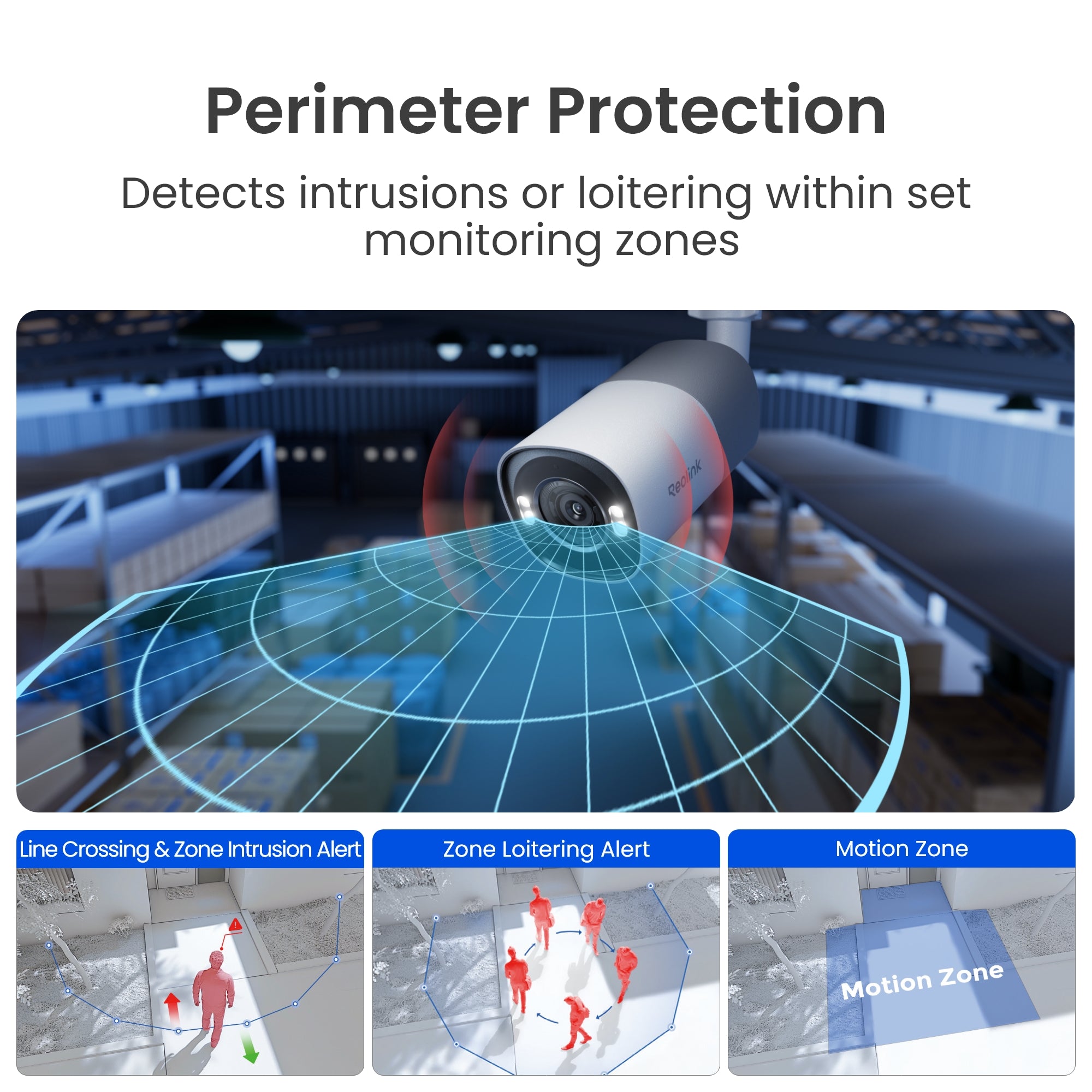

  • Perimeter Protection

    Identifies and differentiates between people, packages, animals, non-motorized vehicles, and vehicles, improving alert accuracy and reducing false alarms.

  • Smart Event Detection(Beta)

    Send instant alerts on objects forgotten or removed from key areas, ensuring timely action and loss prevention.

  • Person & Object Detection

    Identifies and differentiates between people, packages, animals, non-motorized vehicles, and vehicles, improving alert accuracy and reducing false alarms.

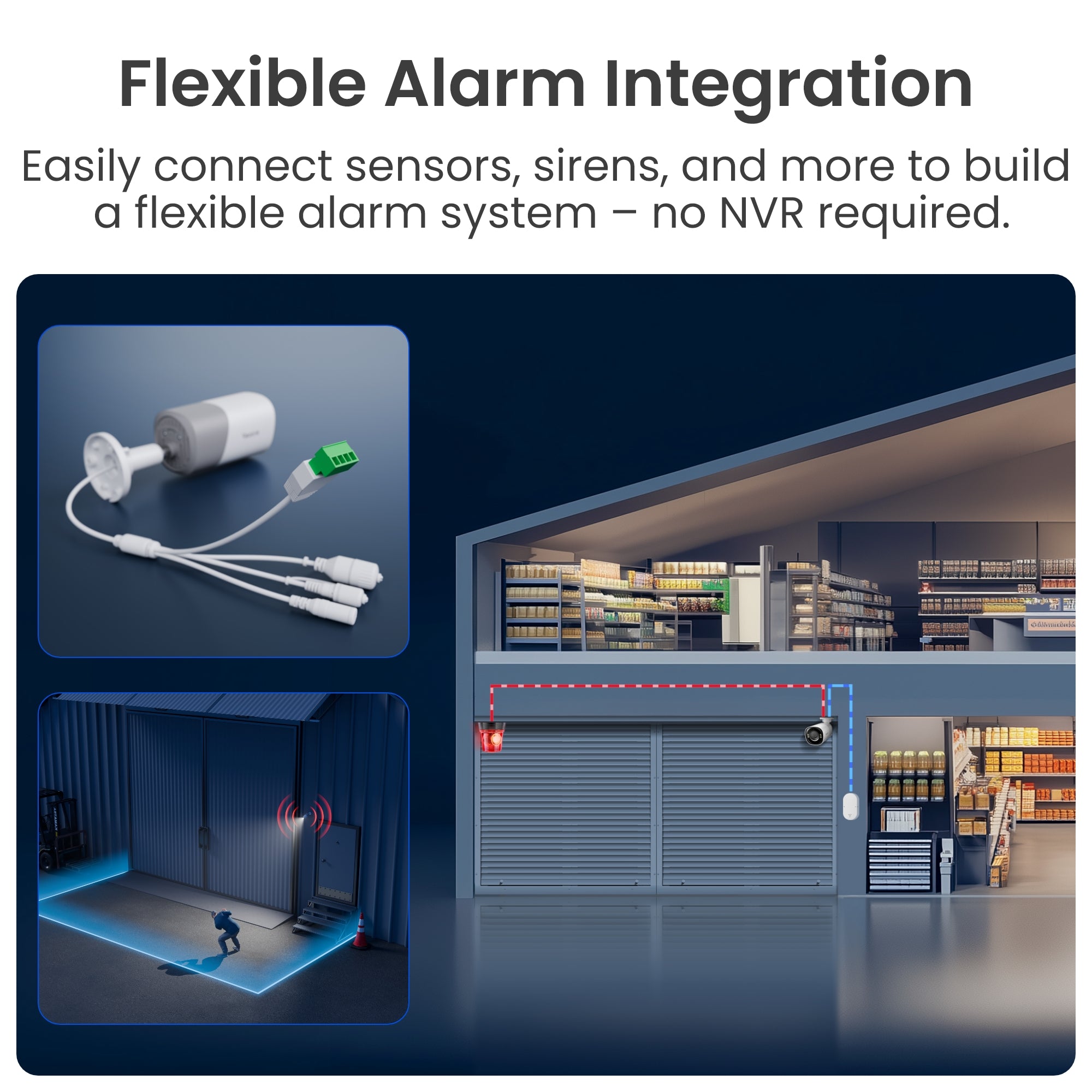

Flexible Alarm Integration

Seamless alarm linkage without a complex control system. With input and output cables, this camera easily integrates with alarm-in devices like sensor and door magnets, as well as alarm-out devices such as speakers and strobe lights.

Secure Storage For Every Need

Trusted storage options including microSD cards, high-capacity NVRs, encrypted FTP backup solutions.

  • MicroSD Card

    Conveniently store your recordings locally on a microSD card up to 512GB.

    41.6 hours- 128GB
    83.2 hours - 256GB
    166.4 hours - 512GB




  • Reolink NVR

    Reolink NVR offers a reliable and high-capacity storage solution for small business security, enabling 24/7 continous recording across multiple channels.

Smooth VMS System


  • Remote Live Viewing

    Stay connected to your home or business with real-time remote viewing via the VMS system, whether you're in office or on the go.

  • Alarm Management

    Supports diverse detection, including Person & Object Detection, Smart Event Detection, Perimeter Protection, Device Anomaly Alarm, and Video Occlusion Alarm—with instant pop-up notifications via VMS for prompt response.

  • Device Management

    Group cameras by project or area for efficient device managment and status monitoring. Check the real-time connectivity status and battery level for uninterrupted surveillance.

  • Account Management

    Assign roles and permissions based on operational needs. With device-account linking, users only see authorized areas and devices. Once logged in, they can access linked devices across multiple platforms without repeated setup.

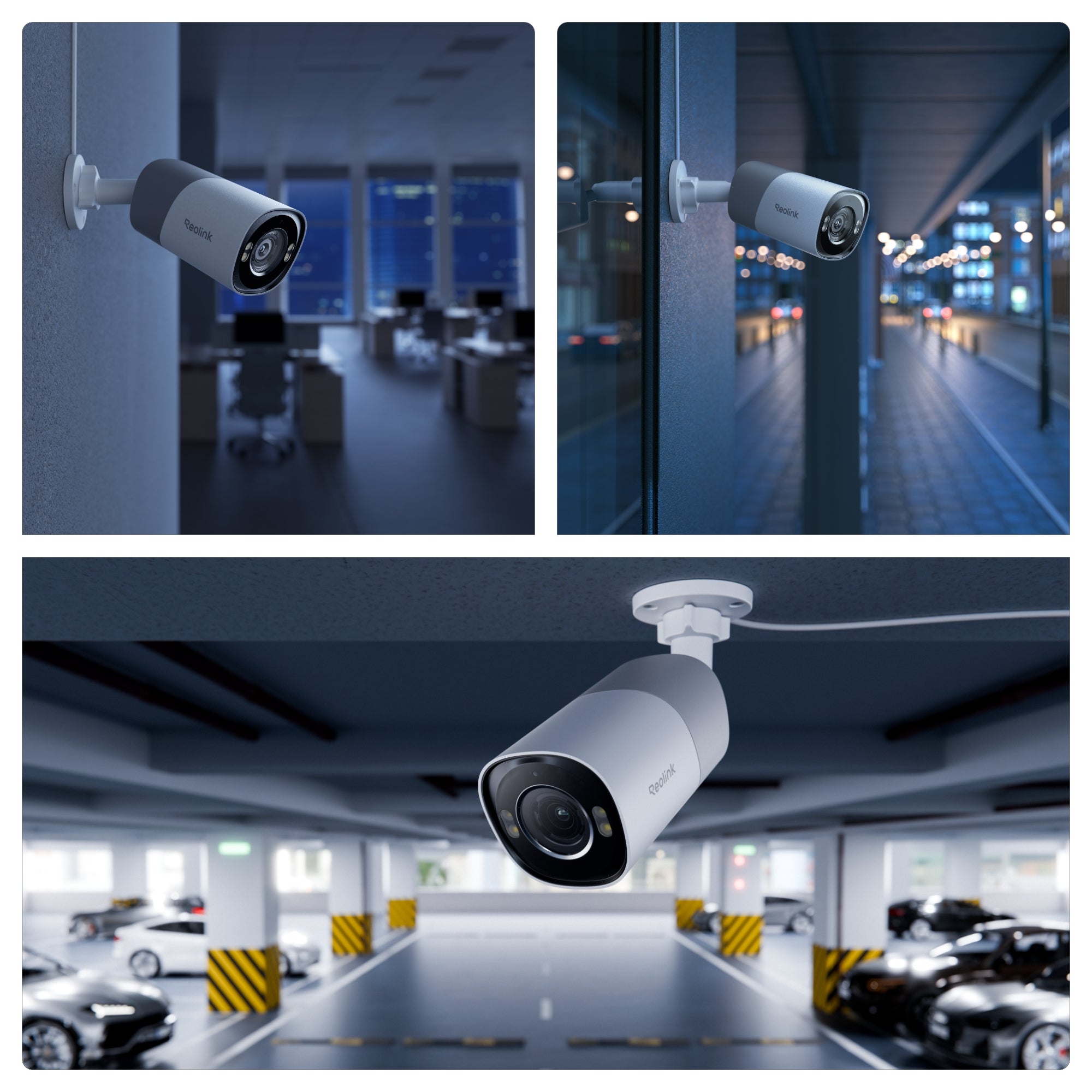

Surveillance Solution for All Applications

With flexible installation options, this camera ensures durable and high-performance surveillance across a wide range of applications from residential spaces to commercial sites.

Specifications


Download PDF File

Video & Audio

Image Sensor:
1/2.8" CMOS  Sensor

Resolution:
3840x2160(8Megapixels) @30fps
Lensf=2.7-13.5mm Max.F=1.6

Zoom:
5X optical zoom

Video Compression:
H.265/H.264

Field of View:
Horizontal: 108.6°- 32°
Vertical: 56.2°- 18°
Diagonal: 133°- 36.7°

Day & Night:
IR-cut filter with auto-switching

Infrared Night Vision:
Up to 30meters(100ft); LED: 4pcs/4W/850nm

Color Night Vision:
With spotlights:4pcs LEDs/0~4W adjustable/4000k/600 lumens

Frame Rate:
Main Stream: 2fps - 30fps(default: 30fps)Sub Stream: 4fps - 15fps(default: 10fps)

Code Rate:
Main Stream: 2048Kbps -9216Kbps(default:7168Kbps
)Sub Stream: 64Kbps - 512Kbps(default: 512Kbps)

Audio:
Two-way audio

DC Power:
DC 12.0V⎓2A,  <15W

Power

PoE:
IEEE 802.3af, 48V, Active

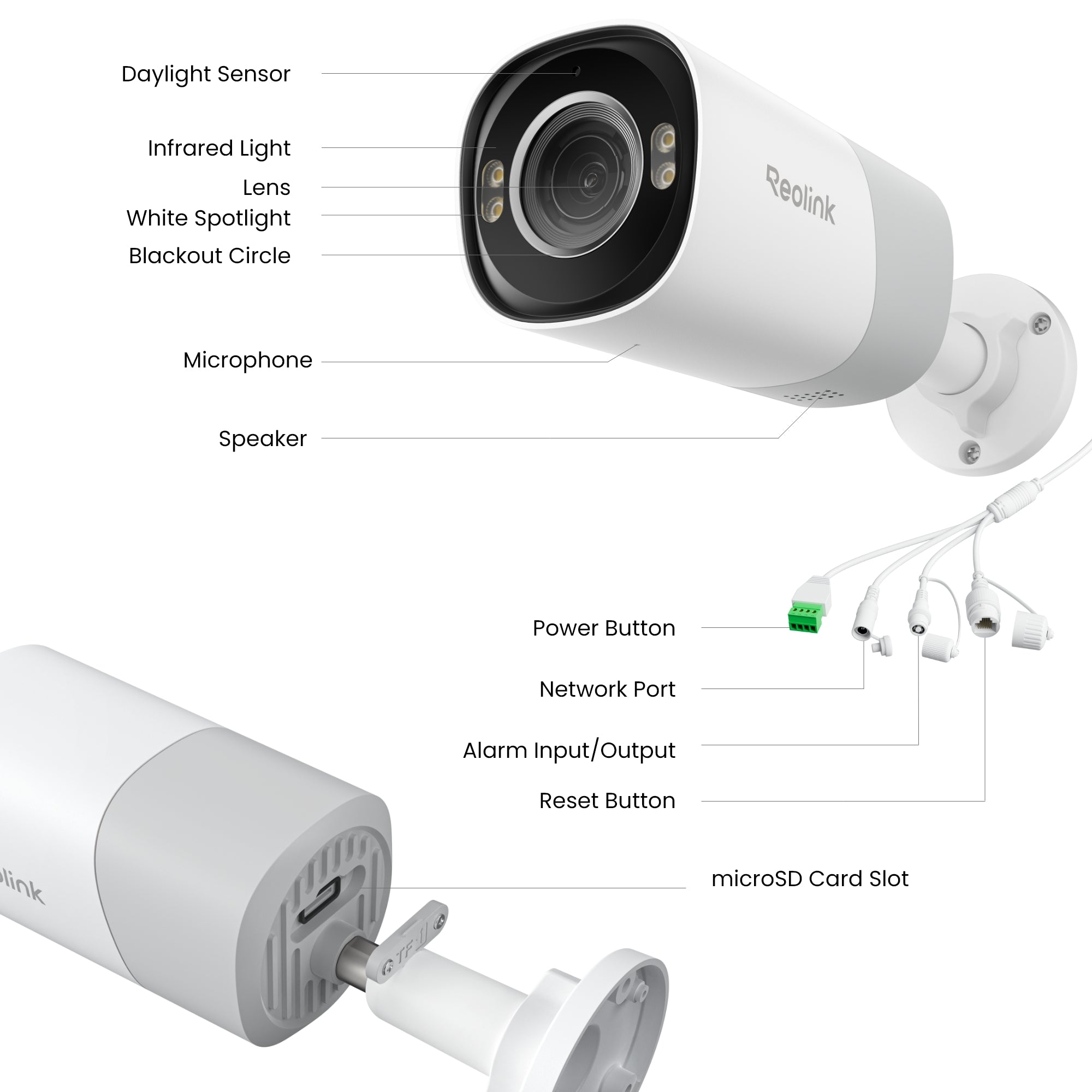

Interface

Power Port:
DC power port

Ethernet Port:
One  10M/100Mbps  RJ45

Storage:
MicroSD card slot (Max. 512GB) Reolink NVR, ftp

Reset Button:
YES

Alarm In/Out:
1 input, 1 output (input:12V/1A; output:12V/500mA)

Audio In/Out:
Built-in Microphone & Speaker

Software Features

Browser Supported:
Edge, Chrome, Firefox, Safari

OS Supported:
PC: Windows, Mac OS; Smartphone: iOS, Android

Protocols & Standards:
HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P, ONVIF

Max.User Access:
Max. 20 users (1 admin & 19 user);  Max. 12 simultaneous streams (2 main & 10 sub streams)

Other Features

Smart Alarm:
Motion detection/Person Detection/Motor Vehicle Detection/Non-motorized Vehicle Detection/Animal Detection/Package Detection

Perimeter Protection:
Line Crossing Alert, Zone Intrusion Alert, Zone Loitering Alert

Smart Event Detection:
Object Removal (beta) , Forgotten Object (beta)

Recording Modes:
Motion-triggered recording (default); Scheduled recording, 24/7 recording

Smart Home Compatibility:
Google Assistant

AI Video Search:
Yes

AI ISP:
Yes

HDR:
Yes

Time Lapse:
Yes

Motion Track:
N/A

Working Environment

Operating Temperature:
-30°C~+55°C

Operating Humidity:
10% ~ 90%

Weatherproof:

IP67

Mechanical

Dimensions:
76x74x220mm

Weight (Without Accessories):

776g

What's in the box

  • RP-PCB8MZ ×1
  • Ethernet Cable ×1
  • Waterproof Lid ×1

Warrranty

3-year limited warranty
