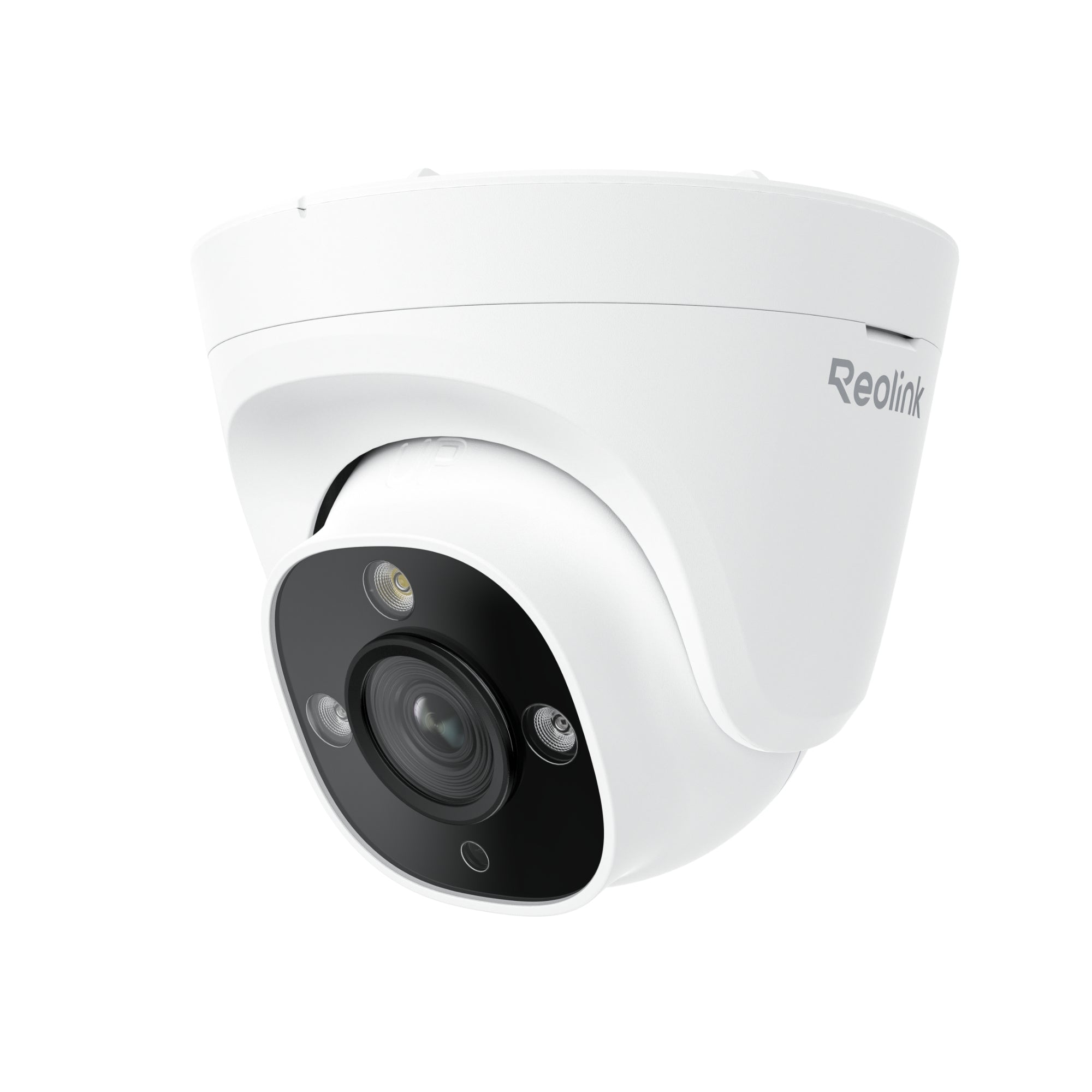

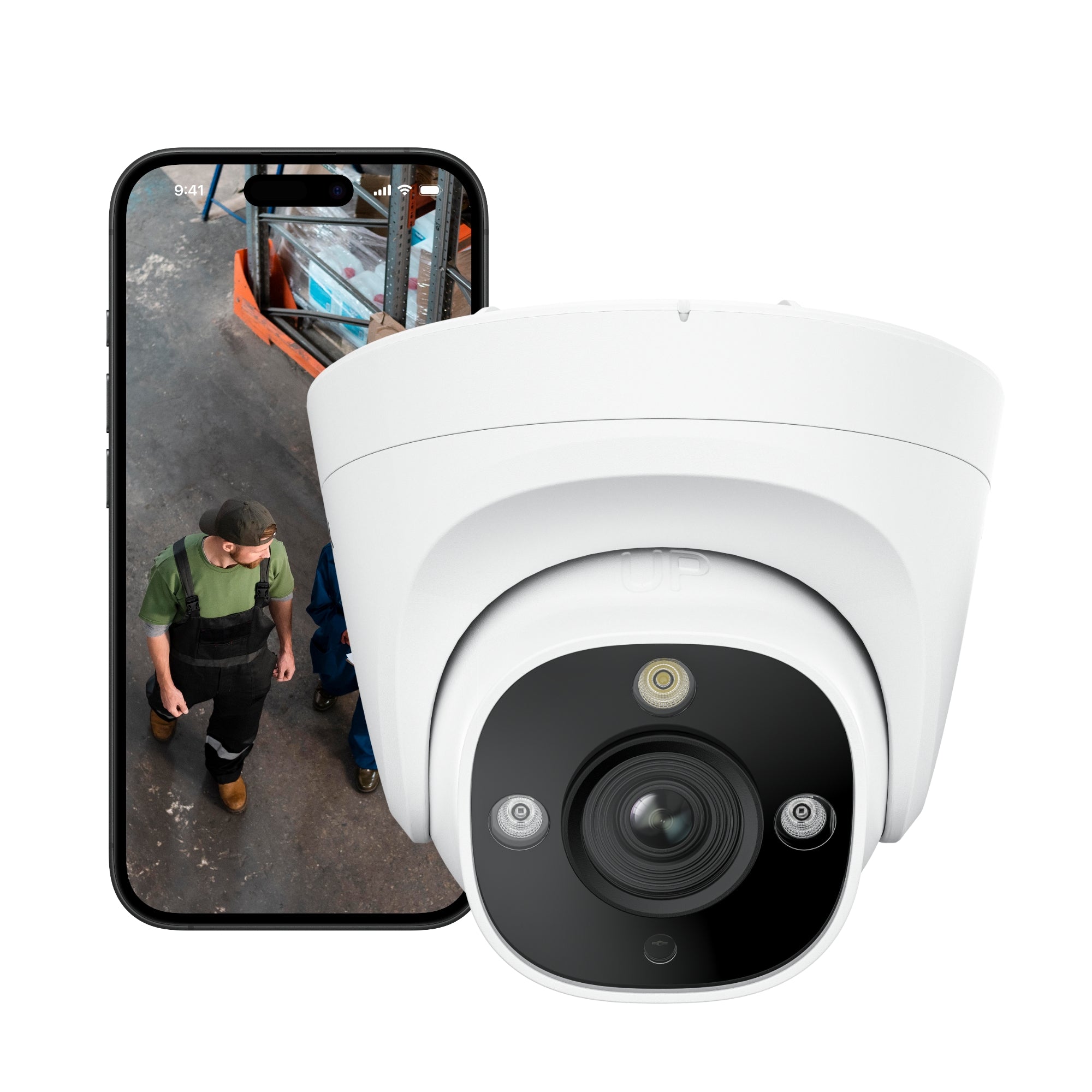

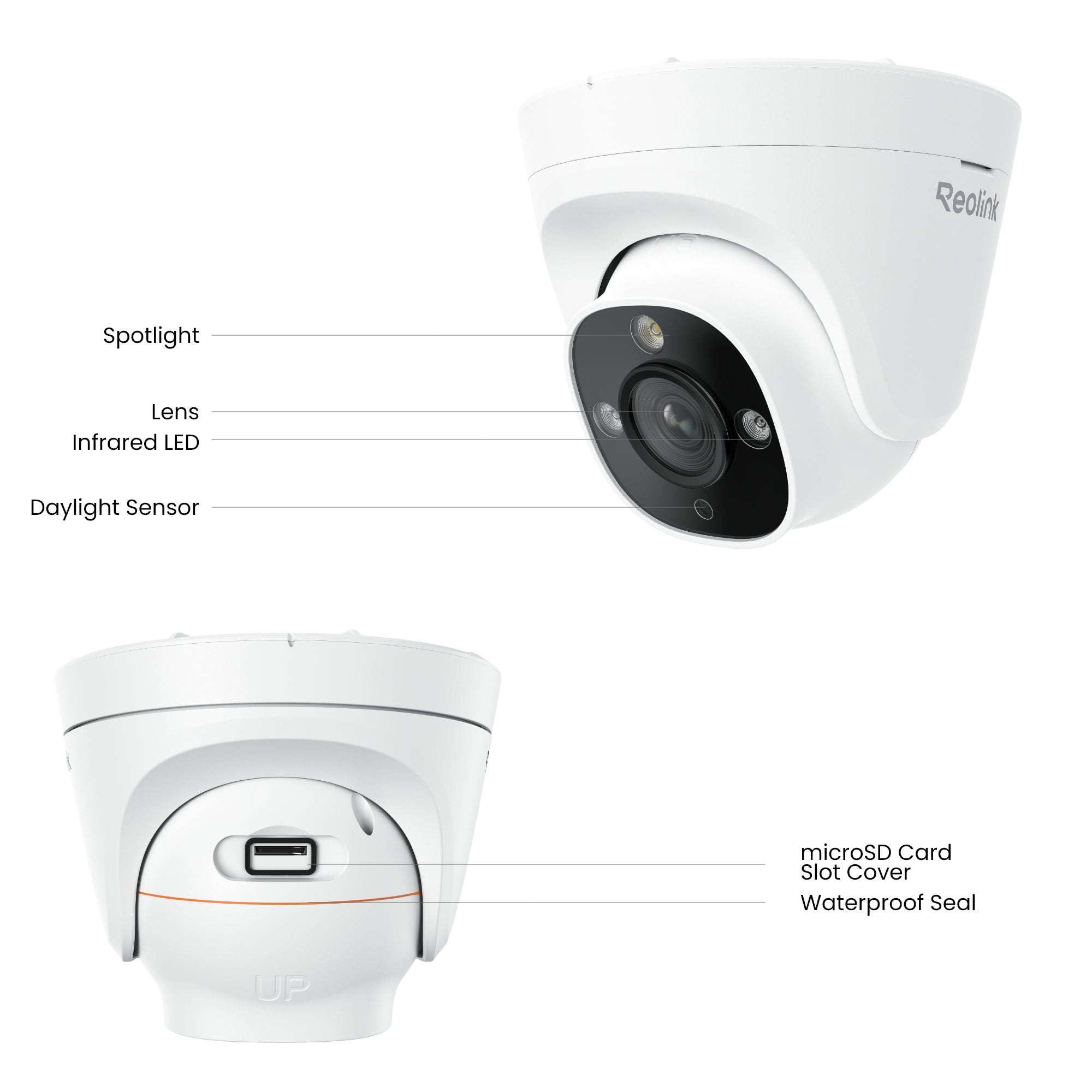

Reolink RP-PCT12M : 12MP Ultra HD PoE Camera with Spotlights

12MP High Resolution POE Camera

  • 12MP (4512x2512) @ 25FPS
  • 4mm Lens,  123° Diagonal View, H：100.4°, V:  50.6°,  D:123°
  • Operating Temperature: -30°C ~ +55°C
  • Advanced AI Detection
  • Perimeter Protection: Line Crossing / Zone Intrusion / Zone Loitering Alert
  • AI Video Search
  • Color & IR Night Vison
  • Supports Max: 512GB micro SD card
Enquire with us
Enquire with us Enquire with us
Tax included. Shipping calculated at checkout.
Availability: In stock
SKU: PCRPD6K01
ReolinkReolink RP-PCV8MZ : 8MP 4K IK10 Vandal-Proof PoE Dome Camera with 5X Optical Zoom
Reolink RP-PCV8MZ 8MP 4K IK10 Vandal-Proof PoE Dome Camera with 5X Optical Zoom
Reolink RP-PCT8MD 8MP 4K PoE Panoramic Dual Lens Camera
ReolinkReolink RP-PCT8MD : 8MP 4K PoE Panoramic Dual Lens Camera
Reolink RP-PCT12M 12MP Ultra HD PoE Camera with Spotlights
Enquire with us
Enquire with us Enquire with us

12MP Clarity, Even in the Dark

Capture the smallest details with ultra high-definition 12MP resolution. Working in tandem, AI ISP technology coupled with the F1.6 large aperture lens ensures exceptional night vision, while spotlights bring full-color clarity to nighttime footage.

Unleash the Power of ReoNeura

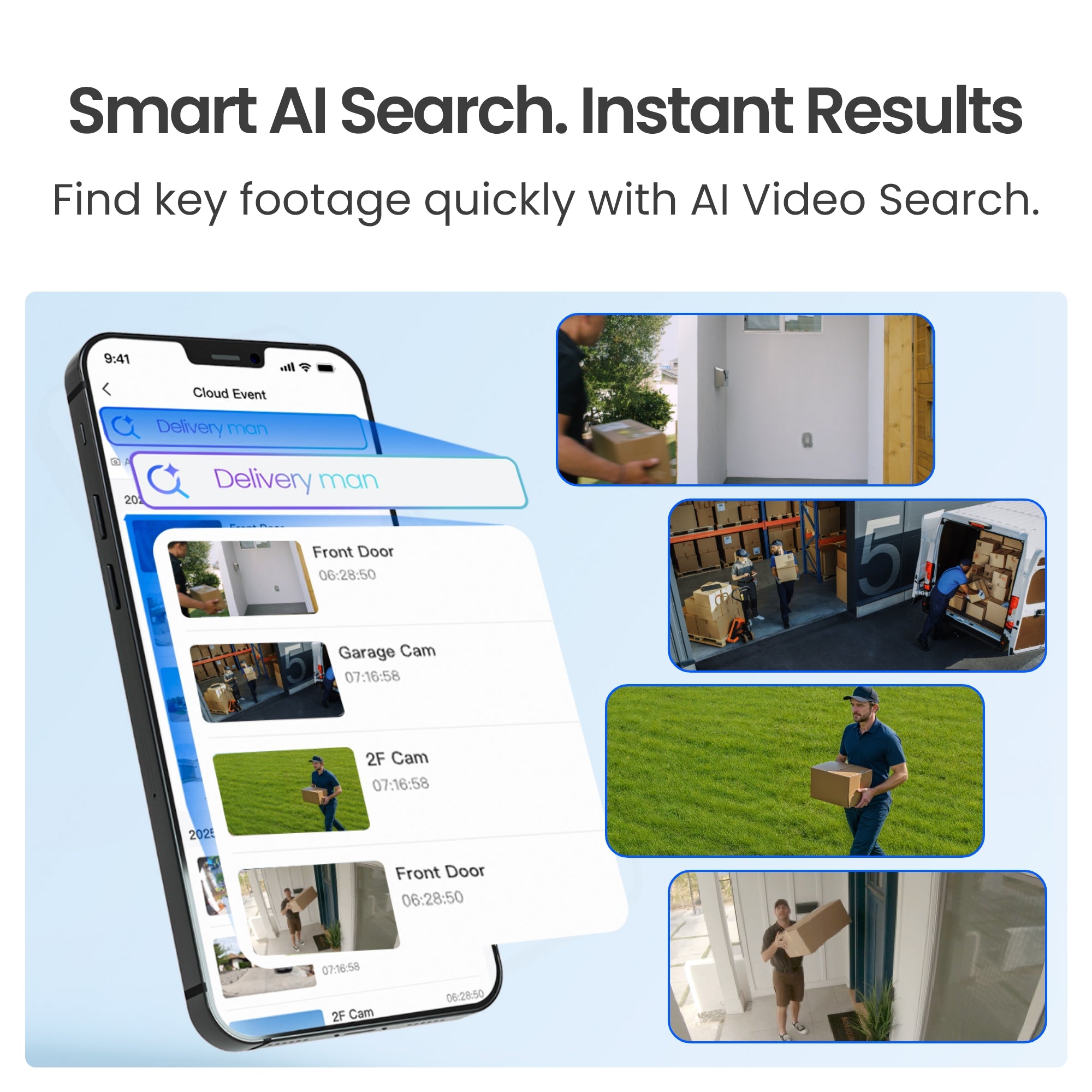

  • AI Video Search

    Input descriptive keywords (e.g. "person wearing white clothes", "yellow dog") to search specific video clips in locally saved triggered recordings. Filter out irrelevant clips and pinpoint the target alarm event in no time.

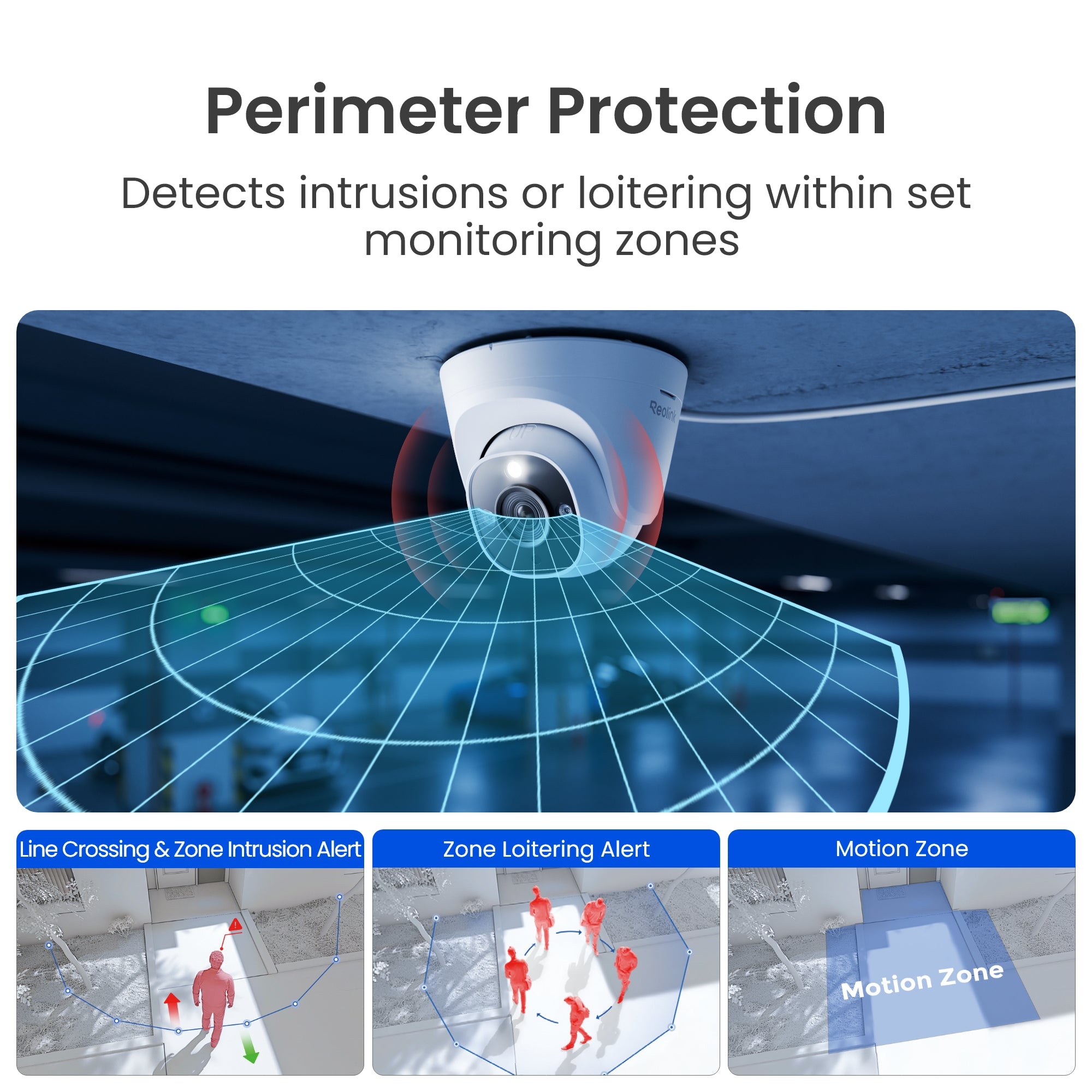

  • Perimeter Protection

    Equipped with AI-driven Line Crossing Alert, Zone Intrusion Alert, and Zone Lingering Alert, this pro-grade camera delivers precise 24/7 protection for critical areas, enabling rapid response to security threats.

  • Smart Event Detection(Beta)

    Send instant alerts on object forgotten or removed from key areas, ensuring timely action and loss prevention.

Feature Highlights

  • 12MP Resolution@25fps

  • AI ISP

  • 100° Viewing Angle

  • 30m Night Vision

  • 512GB microSD Card

  • -30°C~+55°C (-22°F~131°F)

Secure Storage For Every Need

Trusted storage options including microSD cards, high-capacity NVRs, encrypted FTP backup solutions.

  • MicroSD Card

    Conveniently store your recordings locally on a microSD card up to 512GB.

    32.3 hr - 128 GB
    64.7 hr - 256 GB
    129.4 hr - 512 GB

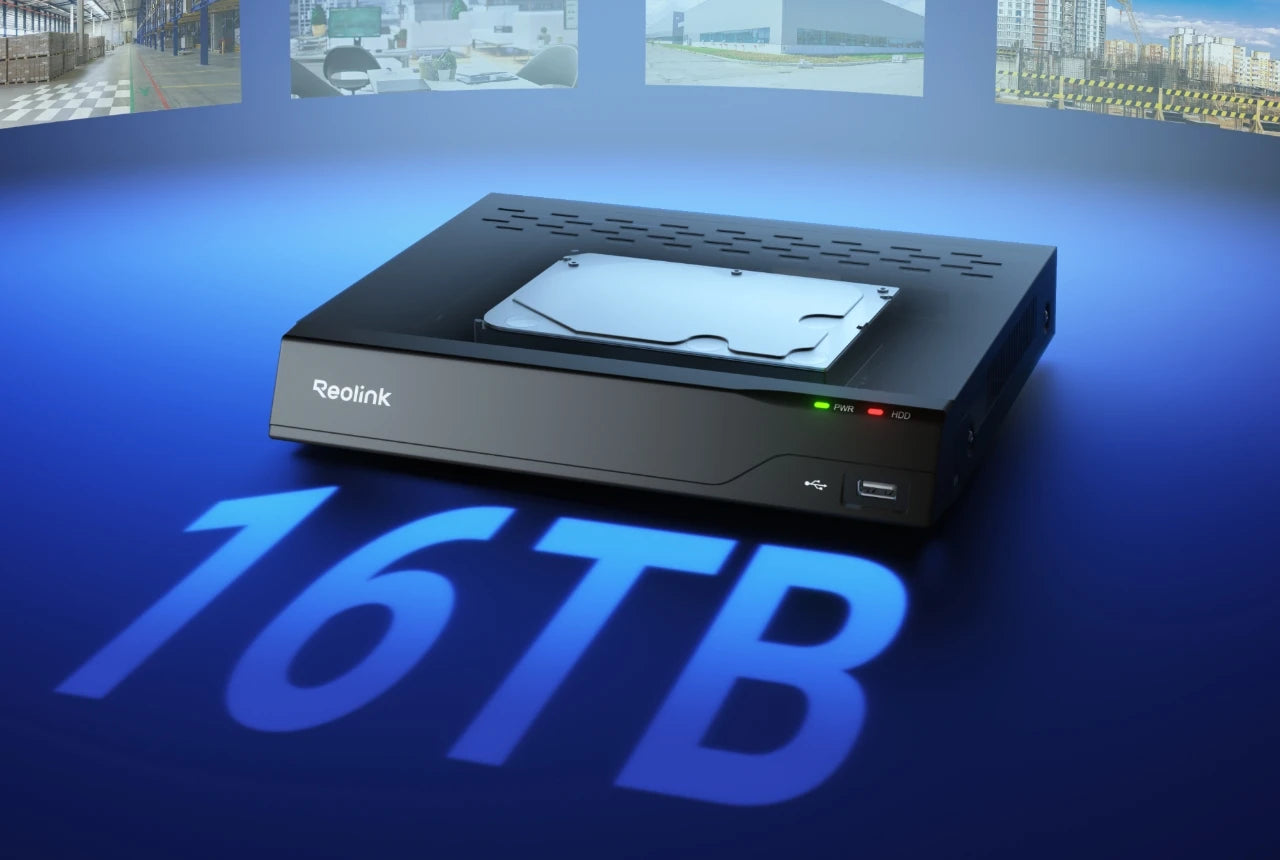

  • Reolink NVR

    Reolink NVR offers a reliable and high-capacity storage solution for small business security, enabling 24/7 continous recording across multiple channels.

Smooth VMS System

  • Remote Live Viewing

    Stay connected to your home or business with real-time remote viewing via the VMS system, whether you're in office or on the go.

  • Alarm Management

    Supports diverse detection, including Person & Object Detection, Smart Event Detection, Perimeter Protection, Device Anomaly Alarm, and Video Occlusion Alarm—with instant pop-up notifications via VMS for prompt response.

  • Device Management

    Group cameras by project or area for efficient device managment and status monitoring. Check the real-time connectivity status and battery level for uninterrupted surveillance.

  • Account Management

    Assign roles and permissions based on operational needs. With device-account linking, users only see authorized areas and devices. Once logged in, they can access linked devices across multiple platforms without repeated setup.

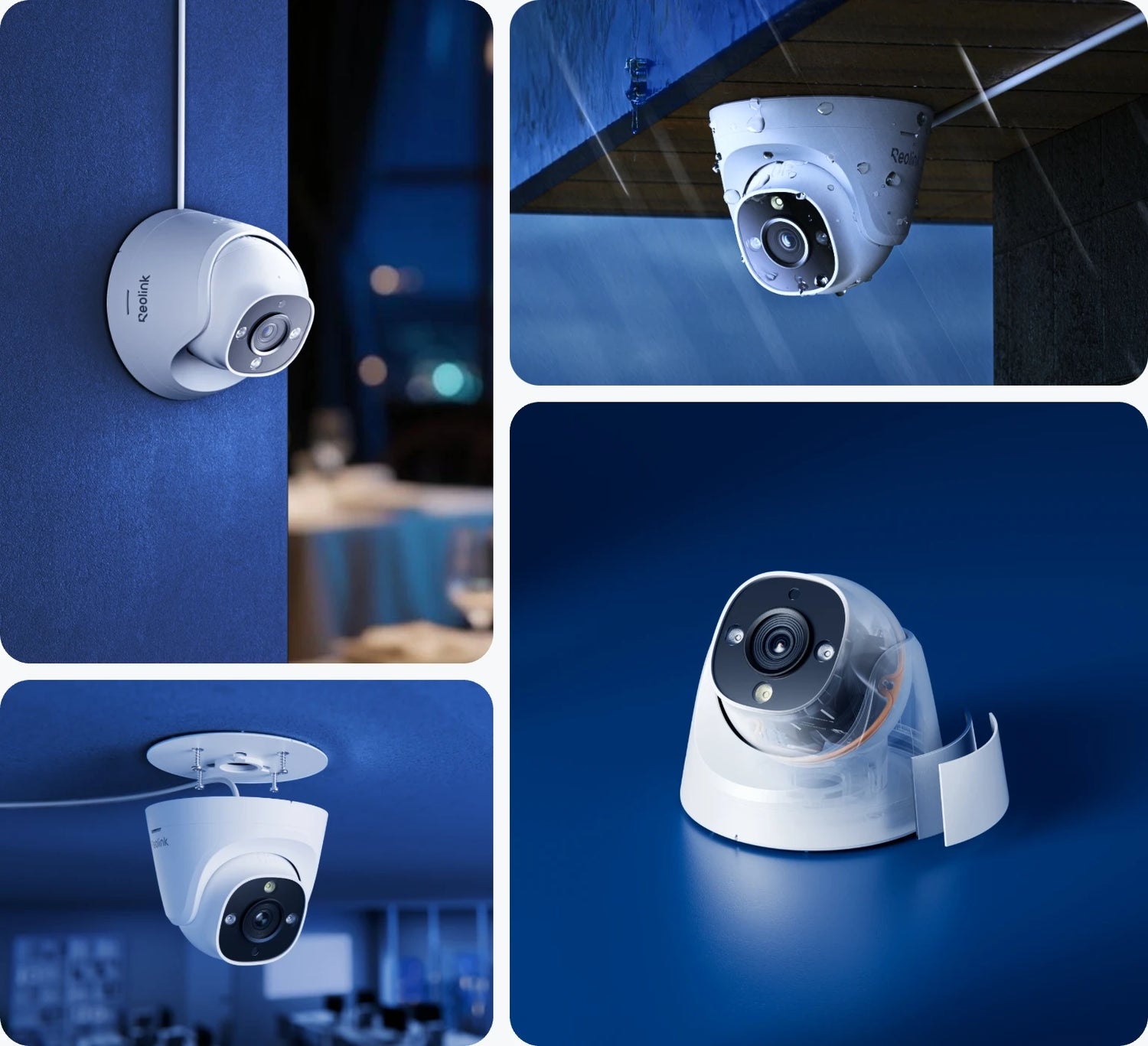

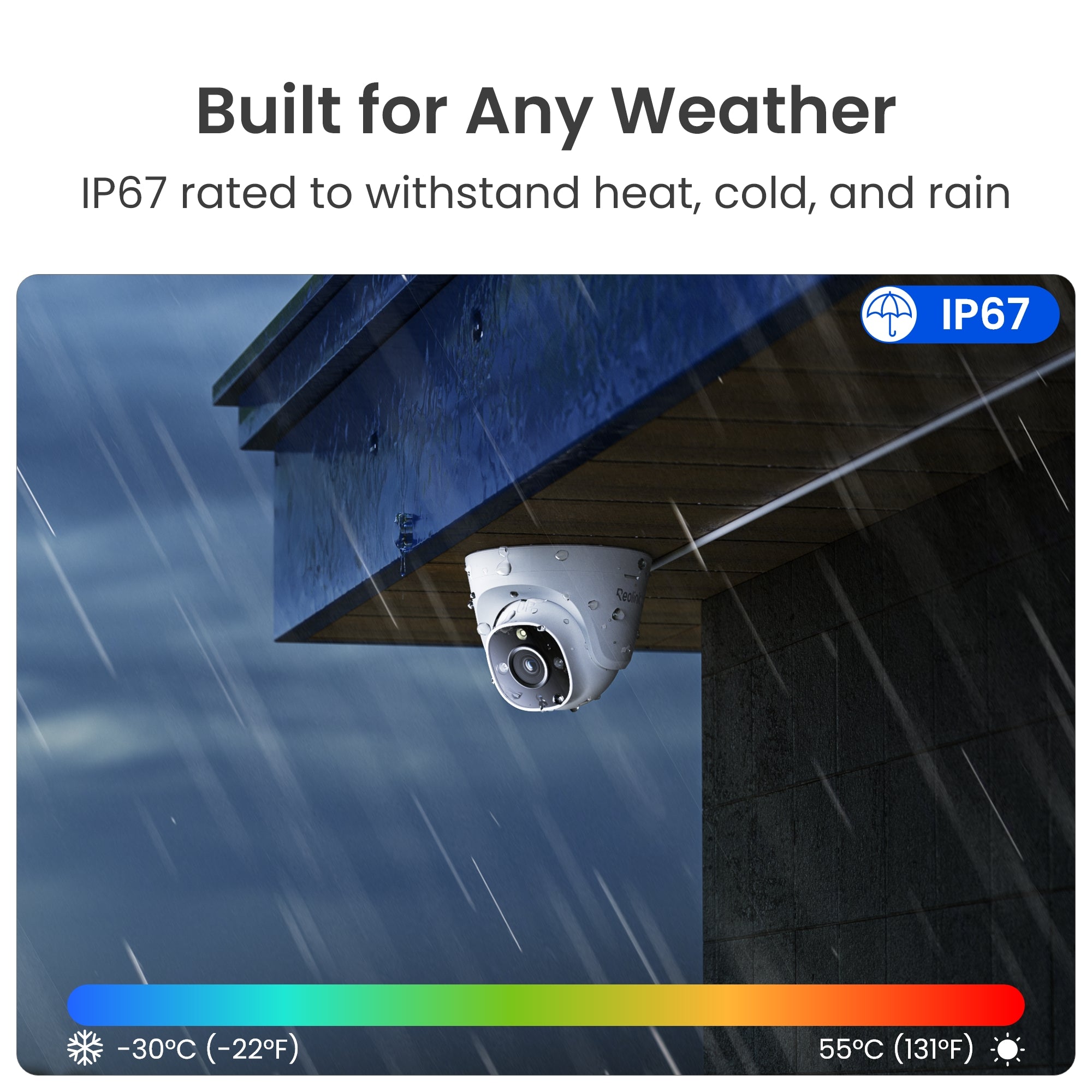

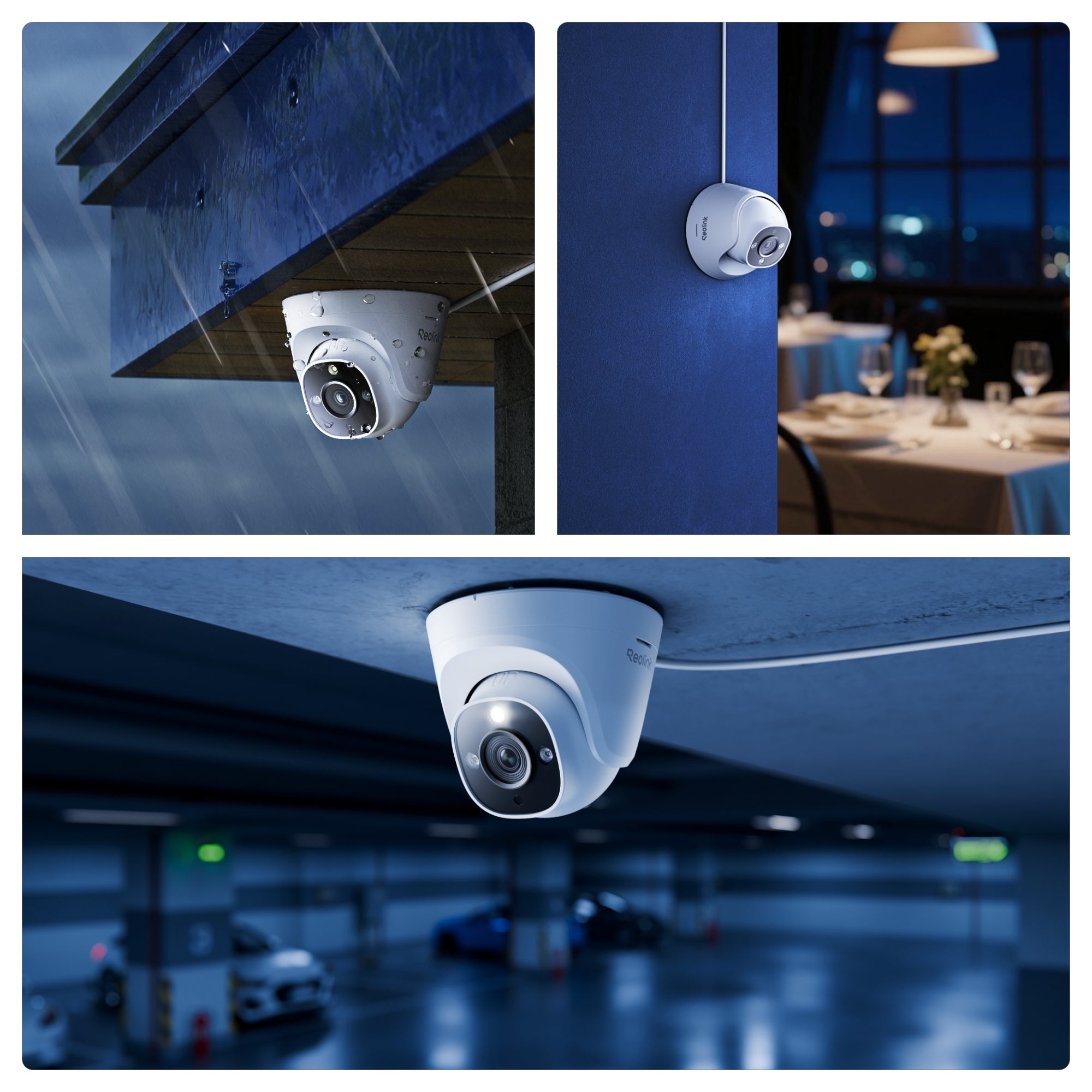

All-Weather Performance

With flexible installation options, this camera ensures durable and high-performance surveillance across a wide range of applications from residential spaces to commercial sites.

Durable Metal Housing, IP67 Waterproof, -30°C~+55°C

Specifications

Download PDF File

RP-PCT12M

Video & Audio

Image Sensor:
1/2.49" CMOS Sensor

Resolution:
4512*2512(12Megapixels)@25FPS

Lens:
f=4mm fixed, F=1.6, with IR Cut

Zoom:
No

Video Compression:
H.265/H.264

Field of View:
Horizontal: 100.4°
Vertical: 50.6°
Diagonal:  123°

Day & Night:
IR-cut filter with auto-switching

Infrared Night Vision:
30 Meters(2PCS/2.8W/850nm)

Color Night:
Vision1PC/4.3W/6500K/600Lumens

Frame Rate:
Main Stream: 2fps - 25fps(default: 25fps)
Sub Stream: 4fps - 20fps(default: 10fps)

Code Rate:
Main Stream: 2048Kbps -12288Kbps(default: 9216Kbps)
Sub Stream: 128Kbps - 1228Kbps(default: 1024Kbps)

Audio:
Two way Audio

Power

PoE:
IEEE 802.3af, 48V Active

DC Power:
DC 12.0V⎓1A,  <12W

Interface

Power Port:
DC power port

Ethernet Port:
One  10M/100Mbps  RJ45

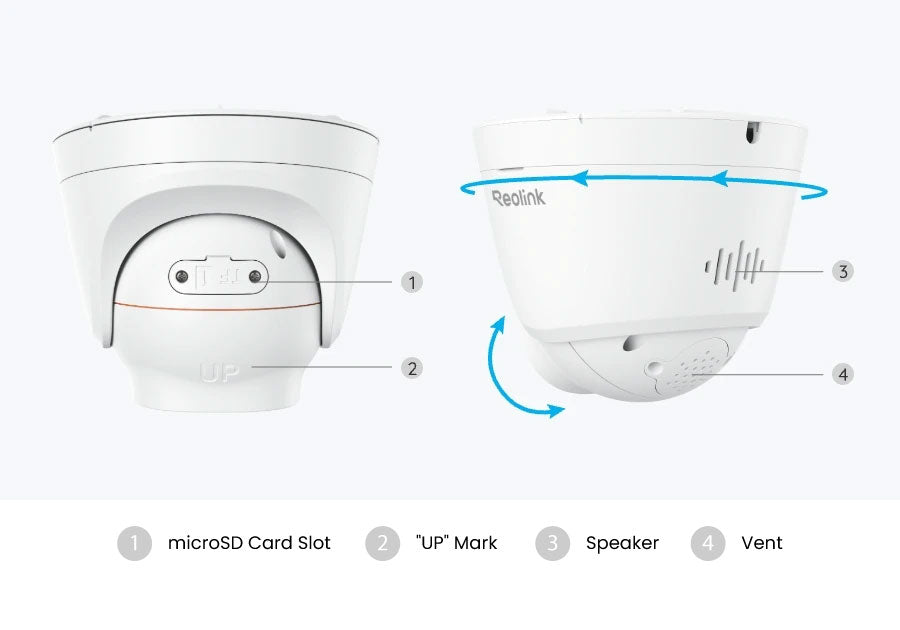

Storage:
MicroSD card slot (Max. 512GB)

Reset Button:
Yes

Alarm In/Out:
No

Audio In/Out:
Built-in Microphone & Speaker

Software

Browsers Supported:
Edge, Chrome, Firefox, Safari

OS Supported:
PC: Windows, Mac OS; Smartphone: iOS, Android

Protocols & Standards:
HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P,ONVIF

User Access:
20 Users (1 admin account & 19 user accounts); Support up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

Other Features

Smart Alarm:
Motion detection/Person Detection/Vehicle Detection/Animal Detection

Perimeter Protection:
Line Crossing Alert, Zone Intrusion Alert, Zone Loitering Alert

Smart Event Detection:
Object Removal (beta) , Forgotten Object (beta)

Recording Modes:
Motion-triggered recording (default); Scheduled recording, 24/7 recording

Smart Home Compatibility:
Google Assistant

AI Video Search:
Yes

AI ISP:
Yes

HDR:
No

Time Lapse:
Yes

Motion Track:
No

Working Environment

Operating Temperature:
-30°C~+55°C (- 22°F~131°F)

Operating Humidity:
10% ~ 90%

Weatherproof:
IP67

Mechanical

Dimensions:
Ø117.4 x103.8mm

Weight (Without Accessories):
526g

What's in the box

  • RP-PCT12M ×1
  • Ethernet Cable ×1
  • Quick Start Guide ×1

Warrranty

3-year limited warranty

All-Weather Performance

All-metal housing and IP67 rating, ensuring durable operation from -30°C to 55°C —adapting seamlessly to residential and commercial environments.

All-Metal Housing, IP67 Waterproof, -30°C to 55°C
