Reolink RP-PCT16MD : 16MP Ultra HD PoE Panoramic Dual Lens Camera

16MP Ultra-Clear POE Camera

  • 16MP Ultra-Clear Details (7680×2160) @ 25FPS
  • 180° Panorama, H: 180°, V: 60°
  • Motion Track
  • Operating Temperature: -30°C~+55°C
  • Person/Vehicle/Animal Detection
  • Perimeter Protection: Line Crossing / Zone Intrusion / Zone Loitering Alert
  • Smart Event Detection (Beta)
  • AI Video Search
  • Color Night Vison
  • Multiple Recording Options
  • Supports Max: 512GB micro SD card
Regular price Enquire with us
Regular price Enquire with us Sale price Enquire with us
Tax included. Shipping calculated at checkout.
Availability: In stock
SKU: PCRPDB8K01
Regular price Enquire with us
Regular price Enquire with us Sale price Enquire with us

One Camera, Multiple Technologies

The RP-PC16MD features 16MP UHD clarity, 180° ultra-wide view, and Motion Track. Better safeguard your properties with a clearer and larger view. The camera is a super yet affordable guardian for your shop, courtyard, garage, and warehouse.

  • 16MP Clarity

    Capture more details and deliver vivid pictures with its two 4K image sensors, ensuring no blurred images and no moments missed.

  • 180° Panaroma

    Provide a larger view space by image stitching technology and achieve the function of two single-lens cameras working together, thereby reducing the installation costs for you.

  • Motion Track

    Visualize the movement path of people, vehicles, and animals in ONE image. Once the detection is triggered, you'll receive the picture via email or can export the picture directly from the Reolink App. Get informed of what matters from a picture, know faster, and respond sooner.

Capture more details and deliver vivid pictures with its two 4K image sensors, ensuring no blurred images and no moments missed.

Feature Highlight

  • 25 FPS

  • Color Night Vision

  • 30m (100ft) IR Distance

  • Two-Way Audio

  • Person/Vehicle/Animal Detection

  • -30°C~+55°C(-22°F~131°F)

  • Dual H.265/H.264 Compression

  • 512GB Local Storage

  • Easy PoE Setup

ReoNeura AI Technology


  • AI Video Search

    Input descriptive keywords (e.g., "delivery person", "yellow dog") to search specific video clips in locally saved triggered recordings. Filter out irrelevant clips and pinpoint the target alarm event in no time.

  • Perimeter Protection

    Equipped with AI-driven Line Crossing Alert, Zone Intrusion Alert, and Zone Lingering Alert, this pro-grade camera delivers precise 24/7 protection for critical areas, enabling rapid response to security threats.

  • Smart Event Detection

    Send instant alerts on objects forgotten or removed from key areas, ensuring timely action and loss prevention.

Secure Storage For Every Need

Ensure trusted storage options including microSD cards, high-capacity NVRs, encrypted FTP backup solutions.

  • MicroSD Card

    Conveniently store your recordings locally on a microSD card up to 512GB.

    29.1 hours - 128GB
    58.3 hours - 256GB
    116.5 hours - 512GB

  • Reolink NVR

    Reolink NVR offers a reliable and high-capacity storage solution for small business security, enabling 24/7 continuous recording across multiple channels.

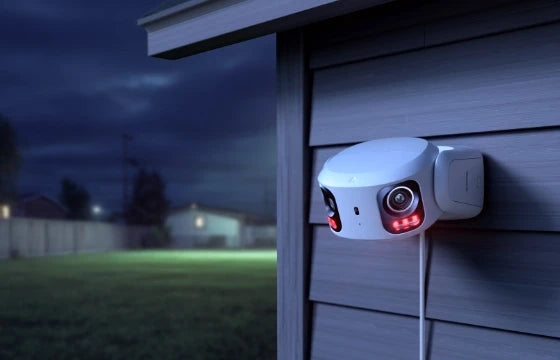

  • Color Night Vision

    Spotlights can not only deter intruders but also support Color Night Vision. Combined with an F1.6 large aperture, the camera can capture color frames with stunning details even at night.

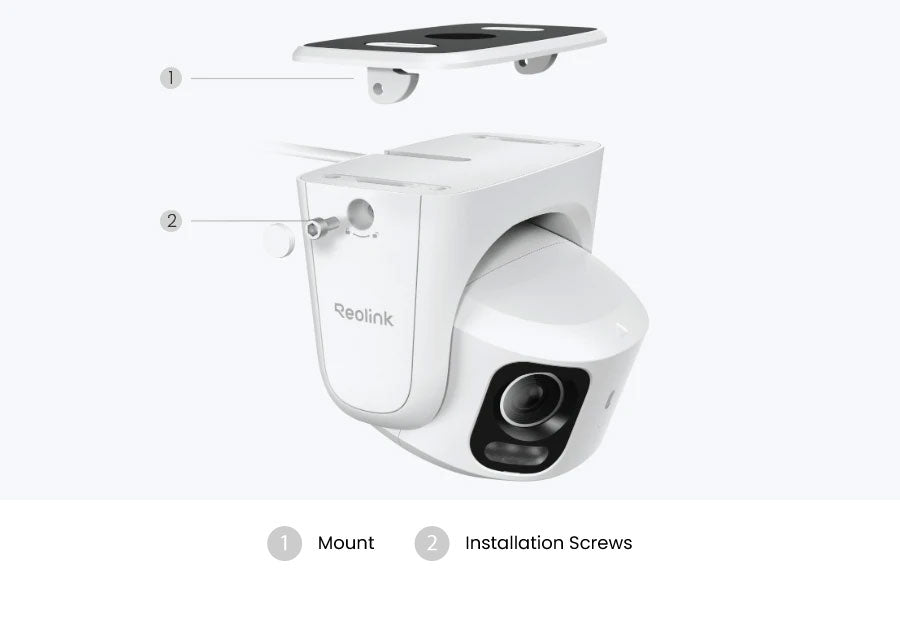

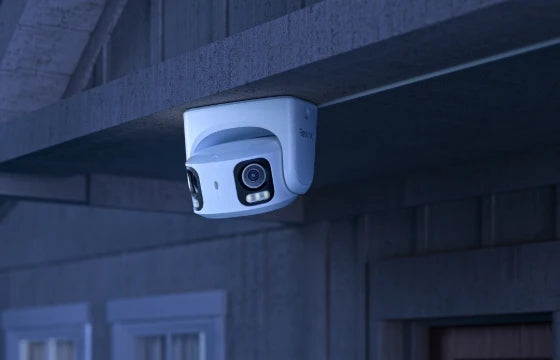

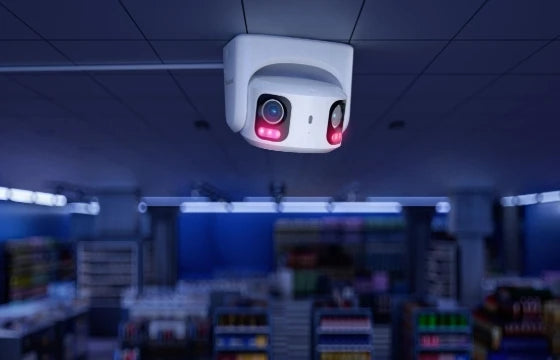

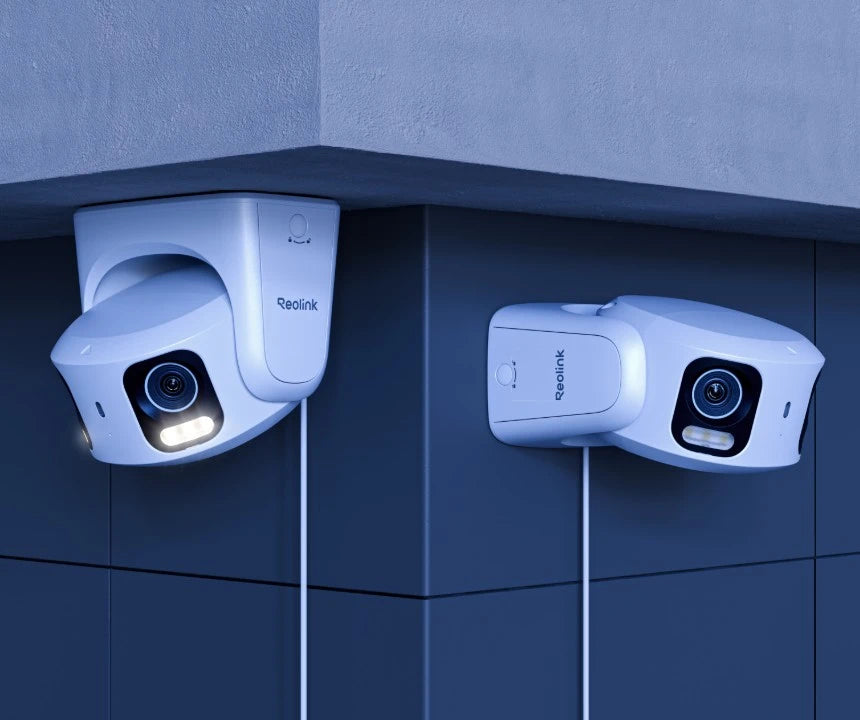

  • Flexible Installation

    The compact camera is mountable on both ceilings and walls, applicable in your offices, warehouses, and other scenarios.

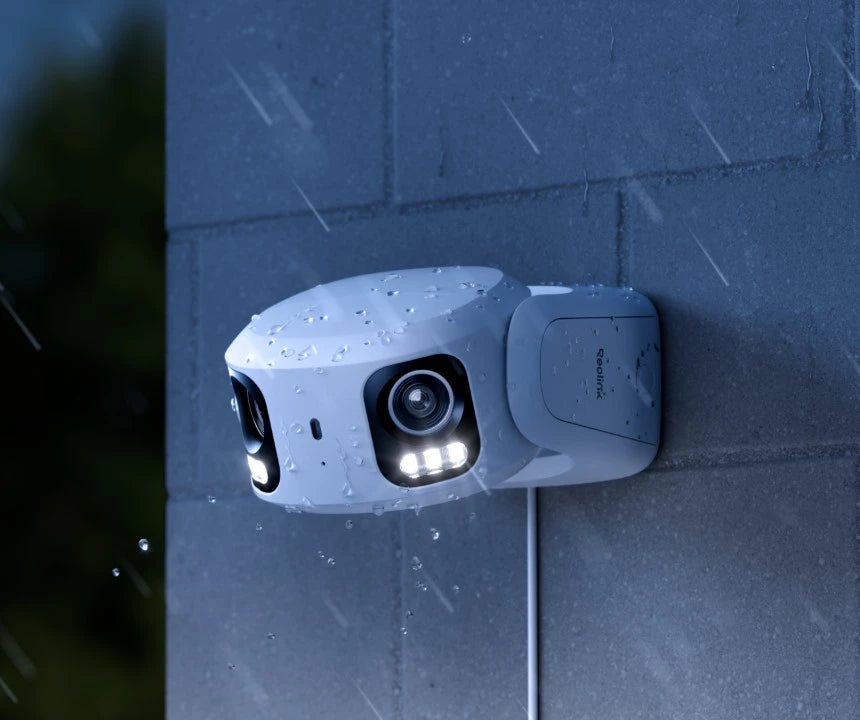

  • IP67 Weatherproof

    The mental housing and IP67 rating ensure durable operation from -30°C to 55°C, making it adaptable seamlessly for both indoor and outdoor use.

Smooth VMS System


  • Remote Live Viewing

    Stay connected to your home and business with real-time remote viewing via the VMS system, whether you're in the office or on the go.

  • Alarm Management

    Supports diverse detection, including Person & Object Detection, Smart Event Detection, Perimeter Protection, Device Anomaly Alarm, and Video Occlusion Alarm, with instant pop-up notifications via VMS for prompt response.

  • Device Management

    Group cameras by project or area for efficient device management and status monitoring. Enjoy real-time connectivity status and battery level for uninterrupted surveillance.

  • Account Management

    Assign roles and permissions based on operational needs. With device-account linking, users only see authorized areas and devices. Once logged in, they can access linked devices across multiple platforms without repeated setup.

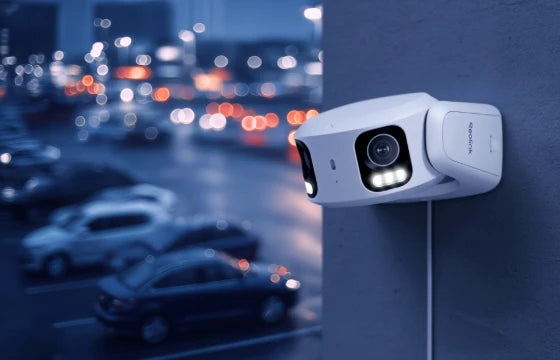

Surveillance Solution for All Applications

With flexible installation options, this camera ensures durable and high-performance surveillance across a wide range of applications, from residential spaces to commercial sites.

Specifications


Download PDF File

Video & Audio

Image Sensor:
1/2.8" CMOS

Resolution:
7680*2160(16Megapixels)@25FPS

Lens:
f = 2.8 mm fixed, F = 1.6

Zoom:
N/A

Video Compression:
H.265/H.264

Field of View:
Horizontal: 180°
Vertical: 53.8°

Day & Night:
I
R-cut filter with auto-switching

Infrared Night Vision:
Up to 30meters(100ft);LED: 6pcs/3W/850nm

Color Night Vision:
With spotlights:6pcs LEDs/3.5W/4000k/400lumens

Frame Rate:
Main Stream: 4fps - 25fps(default: 25fps)
Sub Stream: 4fps - 20fps(default: 20fps)

Code Rate:
Main Stream: 3072Kbps -12288Kbps(default:10240Kbps)
Sub Stream: 256Kbps - 2048Kbps(default: 1024Kbps)

Audio:
Two-way audio

Power

PoE:
IEEE 802.3af, 48V, Active

DC Power:

DC 12.0V⎓2A,  <12W

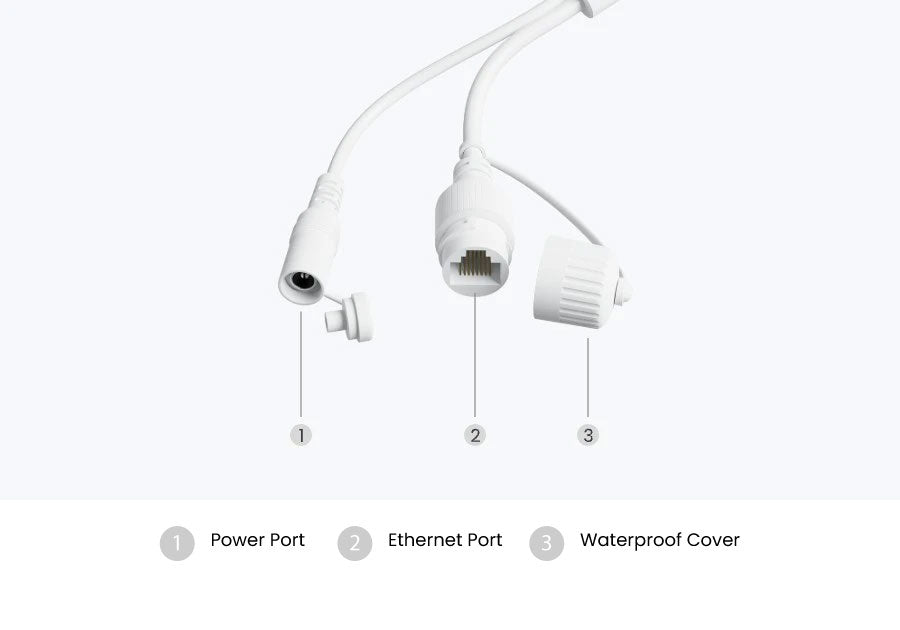

Interface

Power Port:
DC power port

Ethernet Port:
One  10M/100Mbps  RJ45

Storage:
MicroSD card slot (Max. 512GB) Reolink NVR, ftp

Reset Button:
YES

Alarm In/Out:
N/A

Audio In/Out:
Built-in Microphone&Speaker

Software Feature

Browser Supported:
Edge, Chrome, Firefox, Safari

OS Supported:
PC: Windows, Mac OS; Smartphone: iOS, Android

Protocols & Standards:
HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P, ONVIF

Software

User Access:
Max. 20 users (1 admin & 19 user);  Max. 12 simultaneous streams (2 main & 10 sub streams)

Other Feature

Smart Alarm:
Motion detection/Person Detection/Vehicle Detection/Animal Detection

Perimeter Protection:
Line Crossing Alert, Zone Intrusion Alert, Zone Loitering Alert

Smart Event Detection:
Object Removal (beta) , Forgotten Object (beta)

Recording Modes:
Motion-triggered recording (default); Scheduled recording, 24/7 recording

Smart Home Compatibility:
Google Assistant

AI Video Search:
Yes

AI ISP:
N/A

WDR:
NO

Time Lapse:
Yes

Motion Track:
Yes

Working Environment

Operating Temperature:
-30°C~+55°C

Operating Humidity:
10% ~ 90%

Weatherproof:
IP67

What's in the box

  • RP-PCT16MD ×1
  • 1m Network Cable ×1

Mechanical

Dimensions:
132mmx131mmx72mm

Weight (Without Accessories):
775g

Warrranty

3-year limited warranty
